Umo House
1 / 5
| Technical Specification Details | ||
|---|---|---|

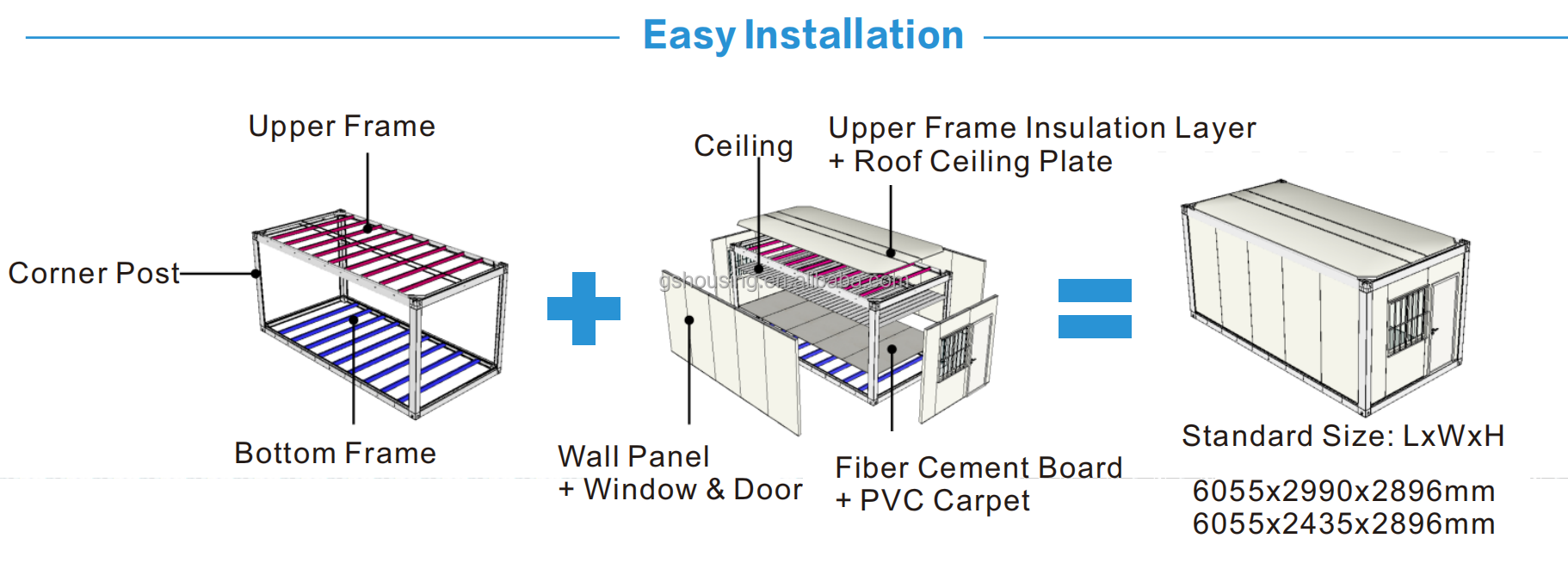

| Specification | L*W*H(mm) | 6055*2990*2896 (inner size 5875*2810*2575) |
| Roof type | Flat roof with four internal drain-pipes (Drain-pipe cross size: 40*80mm) | |
| Storey | ≤3 | |
| Design Date | Designed service life | 20 years / Customized |
| Floor live load | 2.0KN/sqm | |
| Roof live load | 0.5KN/sqm | |
| Wind load | 0.6KN/sqm | |
| Seismic resistance | 8 degree | |

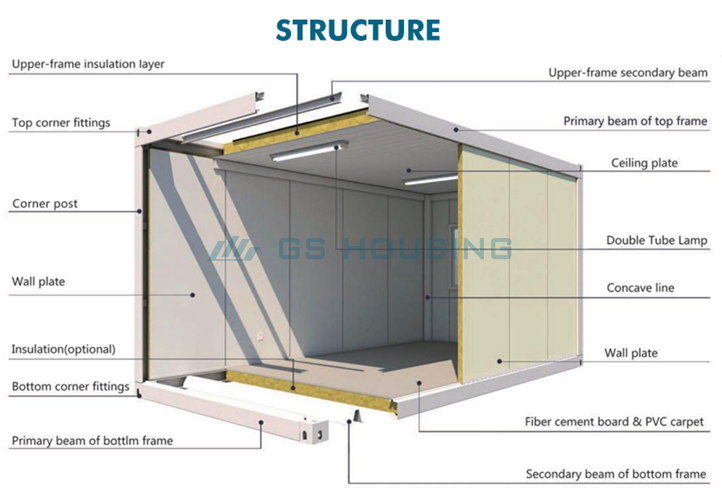

| Structure | Corner post | Specification: 210*150mm, Galvanized cold roll steel, t=3.0mm, Material: SGC440 |
| Roof main beam | Specification: 180mm, Galvanized cold roll steel, t=3.0mm, Material: SGC440 | |
| Floor main beam | Specification: 160mm, Galvanized cold roll steel, t=3.5mm, Material: SGC440 | |
| Roof sub beam | Specification: C100*40*12*2.0*7PCS, Galvanized cold roll C steel, t=2.0mm, Material: Q345B | |
| Floor sub beam | Specification: 120*50*2.0*9pcs, "TT" shape pressed steel, t=2.0mm, Material: Q345B | |
| Paint | Powder electrostatic spraying lacquer ≥100μm | |
| Roof | Roof panel | 0.5mm Zn-Al coated colored steel sheet, white-gray |
| Insulation | 110mm glass wool with single Al foil, density ≥64kg/m³, Class A Non-combustible | |
| Top ceiling | V-193 0.5mm pressed Zn-Al coated color steel sheet, hidden nail, white-gray | |
| Floor | Floor surface | 2.0mm PVC board, light gray |
| Base (optional) | 19mm cement fiber board, density ≥1.3g/cm³ | |
| Insulation (optional) | Moisture-proof plastic film | |
| Base External Plate | 0.3mm Zn-Al coated board | |
| Wall | Thickness | 75mm color steel rock wool board; outer board: 0.5mm water ripple Zn-Al coated color steel sheet, PE coating, white gray. Inner board: 0.5mm orange peel Zn-Al coated color steel sheet, white gray with PE coating. "S" type plug interface is adopted to eliminate cold and hot bridge effect. |
| Insulation | 75mm Basalt cotton, density ≥100kg/m³, Class A Non-combustible | |
| Door | Specification(mm) | W*H = 840*2035 |
| Material | Steel door | |
| Window | Specification(mm) | Front window: W*H = 800*1100, Back window (standard): W*H = 800*1100 |
| Frame material | Plastic steel, 80S, with anti-theft rod, screen window | |
| Glass | 4mm+9A+4mm double glass | |
| Electrical | Voltage | Global power supply requirement |
| Electrical wire | Electrical wiring: 6 sqm, AC wiring: 4.0 sqm, socket wiring: 2.5 sqm, light switch wiring: 1.5 sqm | |
| Breaker | High breaking, miniature circuit breaker | |
| Light | Double tube lamp, 30W | |
| Socket | 4pcs 5 holes socket 10A, 1pcs 3 holes AC socket 16A, 1pcs Single switch 10A, EU standard | |
| Decoration | Top & column packing | 0.6mm Zn-Al coated color steel sheet, white-gray |
| Skirting | 0.6mm Zn-Al coated color steel skirting, white-grey | |
We have wholly-owned factories near major shipping ports. This allows us to guarantee product quality, reliable after-service, and competitive manufacturing costs.
No, we have no minimum order quantity. A single house can be ordered and shipped.
Yes, the finishes and size of the houses can be designed according to your exact requirements. Our professional design team will assist you in creating the perfect custom layout.
The designed service life of the houses is more than 20 years. We offer a 1-year warranty. If any components require replacement after the warranty expires, we assist with purchasing them at cost price.
For standard samples in stock, units can be shipped within 2 days. For mass production, the typical lead time is 10-20 days after signing the contract and receiving the deposit payment.
We provide comprehensive installation videos, instruction manuals, online video support, and can send onsite installation instructors if required to ensure safe and smooth assembly.
