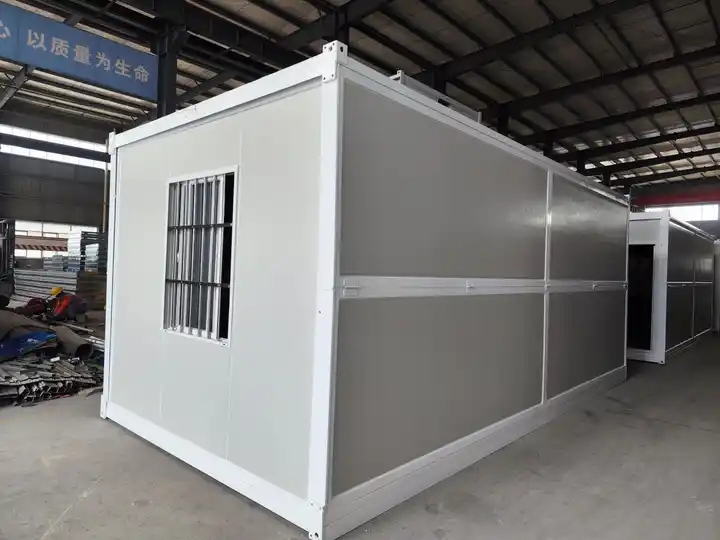

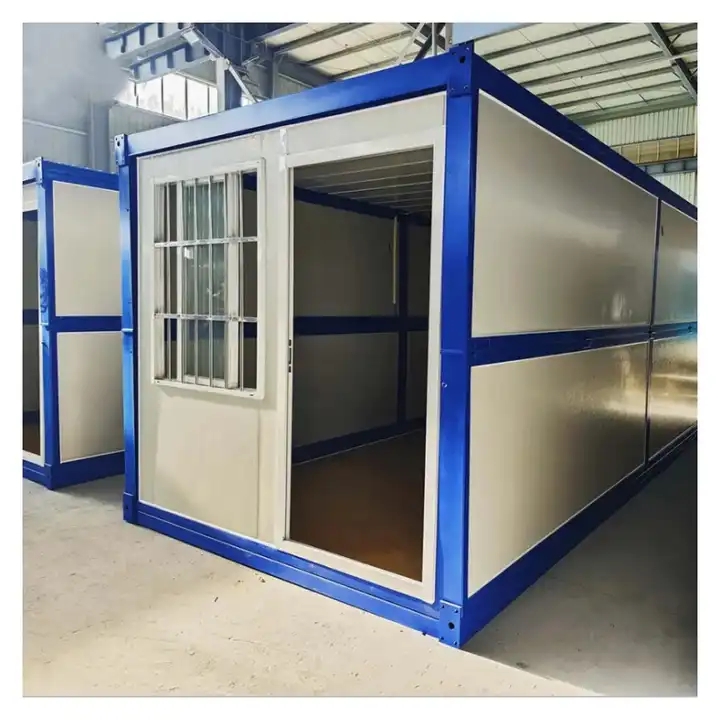

| Technical parameter table of folding house (export type) | ||||||
|---|---|---|---|---|---|---|
| Type | Specifications | Material Name | Model (mm) | Thickness (mm) | Unit | Quantity |
| Basic features | External dimensions (mm) | - | 5800*2480*2560 | - | - | - |

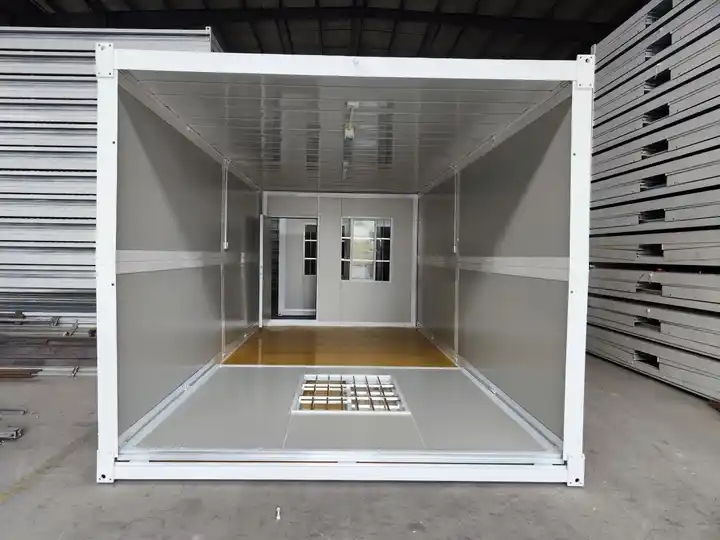

| Internal dimensions (mm) | - | 5620*2320*2400 | - | - | - | |

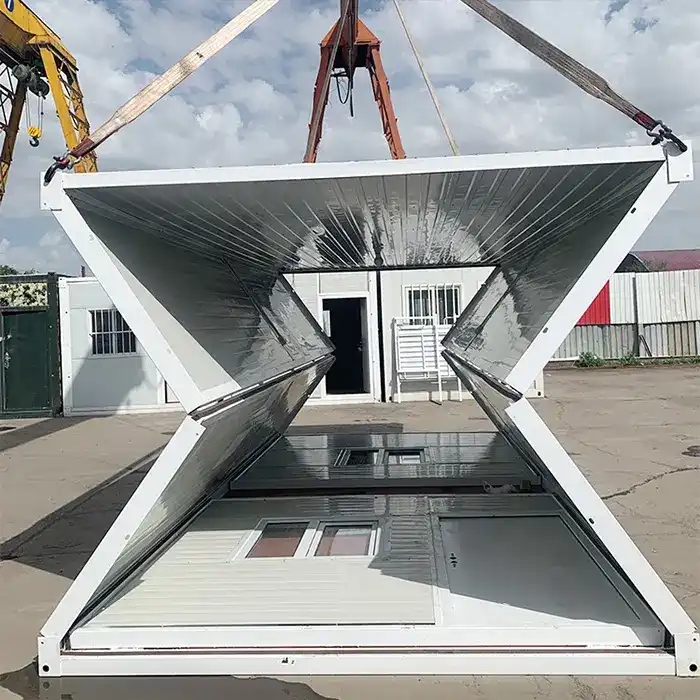

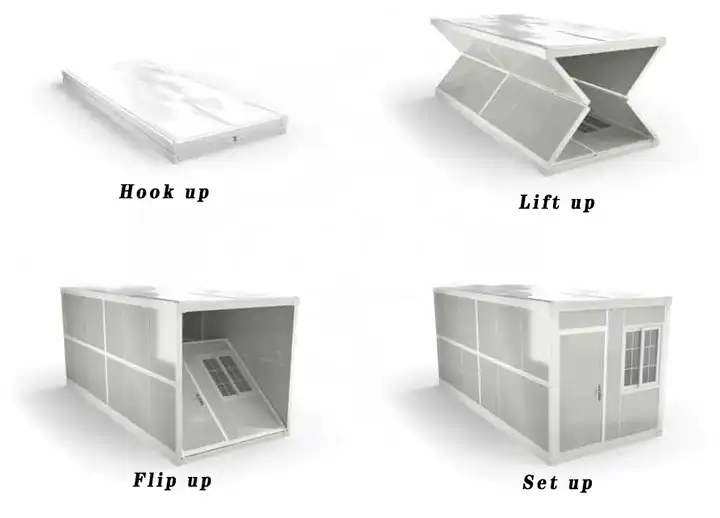

| Folding state | - | 5800*2480*360 | - | - | - | |
| Total mass (kg) | - | 900.00 | - | - | - | |
| Frame structure | TOP STRUCTURE | Q235 rectangular square tube | 40*40*2840 | 1.3 | Root | 5 |
| Q235 rectangular square tube | 20*40*1130 | 1.2 | Root | 6 | ||
| Q235 rectangular square tube | 20*20*5840 | 1.2 | Root | 3 | ||
| Galvanized square tube | 60*60*6000 | 1.2 | Root | 2 | ||
| 30*30 angle iron | 5840.00 | 1.2 | Root | 2 | ||
| 30*30 angle iron | 2840.00 | 1.2 | Root | 2 | ||
| Galvanized color steel plate | 8400.00 | 0.3 | Block | 6.5 | ||
| glass silk cotton | 50mm*12kg/m³ | 50.0 | Volume | 2 | ||
| ceiling plate | v927*5840 | 0.16 | Block | 6.5 | ||
| Electrical system | Electrical wiring is installed in strict accordance with moisture-proof specifications. All electrical products conform to CE certification. Circuits are connected according to circuit engineering specifications. Indoor: 4 incoming wires, 2.5GB soft copper wires for sockets, 1 20A circuit breaker, 1 three-hole air conditioning socket, 1 five-hole single-open socket, 1 five-hole socket and 1 LED lamp. | |||||
| 6 meters of noodles | Guard | 1270.00 | 1.3 | Block | 4 | |
| Guard | 1205 | 1.3 | Block | 4 | ||
| P-tube | 40*60*6000 | 1.2 | Root | 8 | ||
| rectangular tube | 50*50*1150 | 1.2 | Root | 8 | ||
| Hinge | high strength | - | One | 30 | ||
| Wall Panel | 1165mm*50*2954 | 0.16 | Block | 8 | ||
| D-type rubber strip | 6000.00 | - | Root | 24 | ||
| 3 meters of noodles | P-tube | 2640.00 | 1.2 | Root | 4 | |
| P-tube | 2485.00 | 1.2 | Root | 4 | ||
| Galvanized buckle groove | 2450.00 | 1.2 | Root | 1 | ||
| Galvanized buckle groove | 975.00 | 1.2 | Root | 1 | ||
| Wall Panel | 950*50 | 0.16 | Meters | 9.66 | ||
| Galvanized angle | 50# | 1.2 | Meters | 20.41 | ||
| Window | 925*930 | 0.4 | One | 2 | ||
| Door | 970mm*1970mm | High quality steel door | One | 1 | ||
| Adhesive strip | - | - | Meters | 21.32 | ||
| Bottom structure | Custom galvanized square tube | 60*120 | 1.2 | Root | 2 | |
| Custom galvanized square tube | 60*60*2840 | 1.2 | Root | 2 | ||
| Hinge | high strength | - | One | 4 | ||
| Q235B rectangular square tube | 40*40*2860 | 1.0 | Root | 9 | ||
| Glass magnesium floor | 1170*2855 | 1.5 | Block | 5 | ||
| Box top | Overall frame coating | Electrostatic spray/straight white plastic powder | ||||
