| Category | Parameter | Specification |
| Structural Parameters | Building Dimensions | - Length: 60–120 m (adjustable) - Width: 12–20 m (adjustable) - Eave Height: 2.5–4.5 m |
| Frame Material | High-strength galvanized steel | |
| Roof Slope | 1:10 to 1:12 | |
| Column Spacing | 6–8 m (depending on load requirements) | |

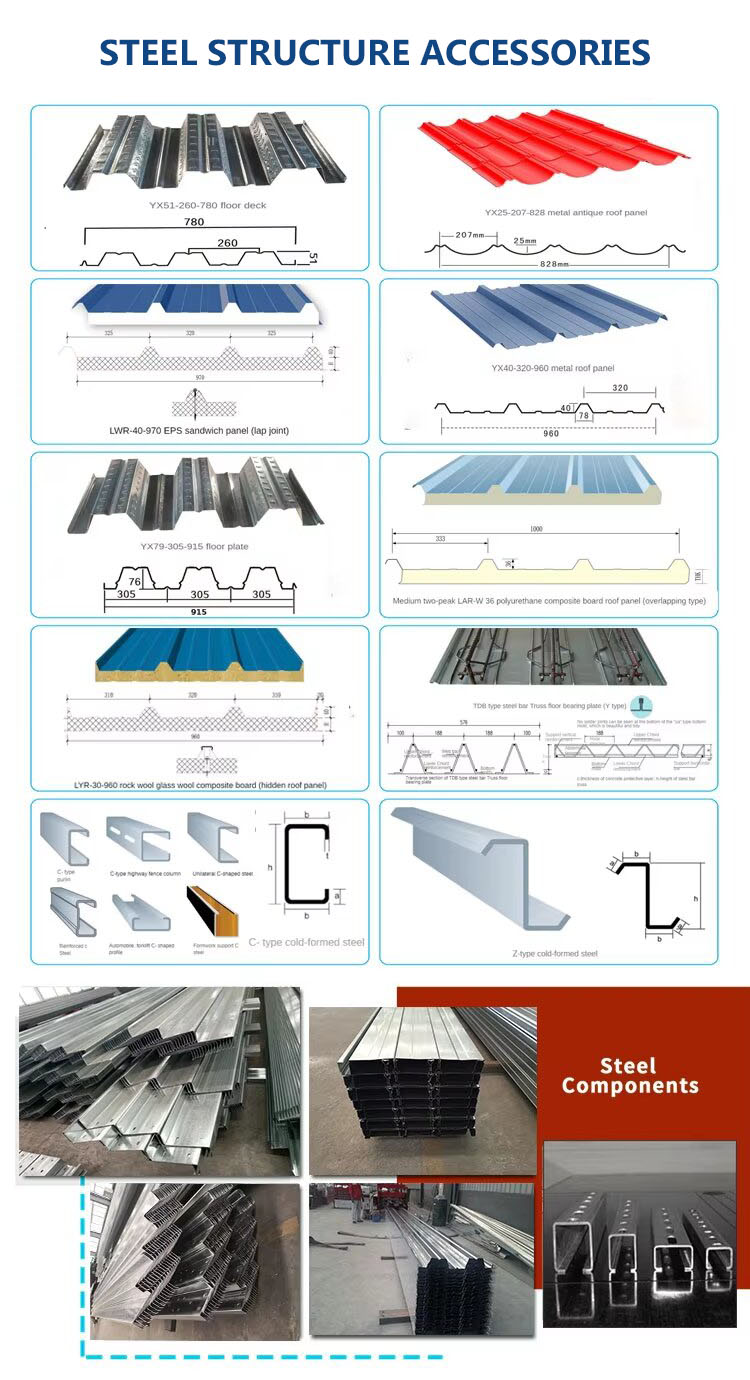

| Material Specifications | Steel Thickness | - Columns: 2.5–6 mm - Beams: 2.0–5 mm - Roof/Wall Panels: 0.4–0.8 mm |
| Galvanization | Hot-dip galvanized coating for corrosion resistance | |
| Insulation | Optional: 50–150 mm rock wool/PU foam (for temperature control) | |

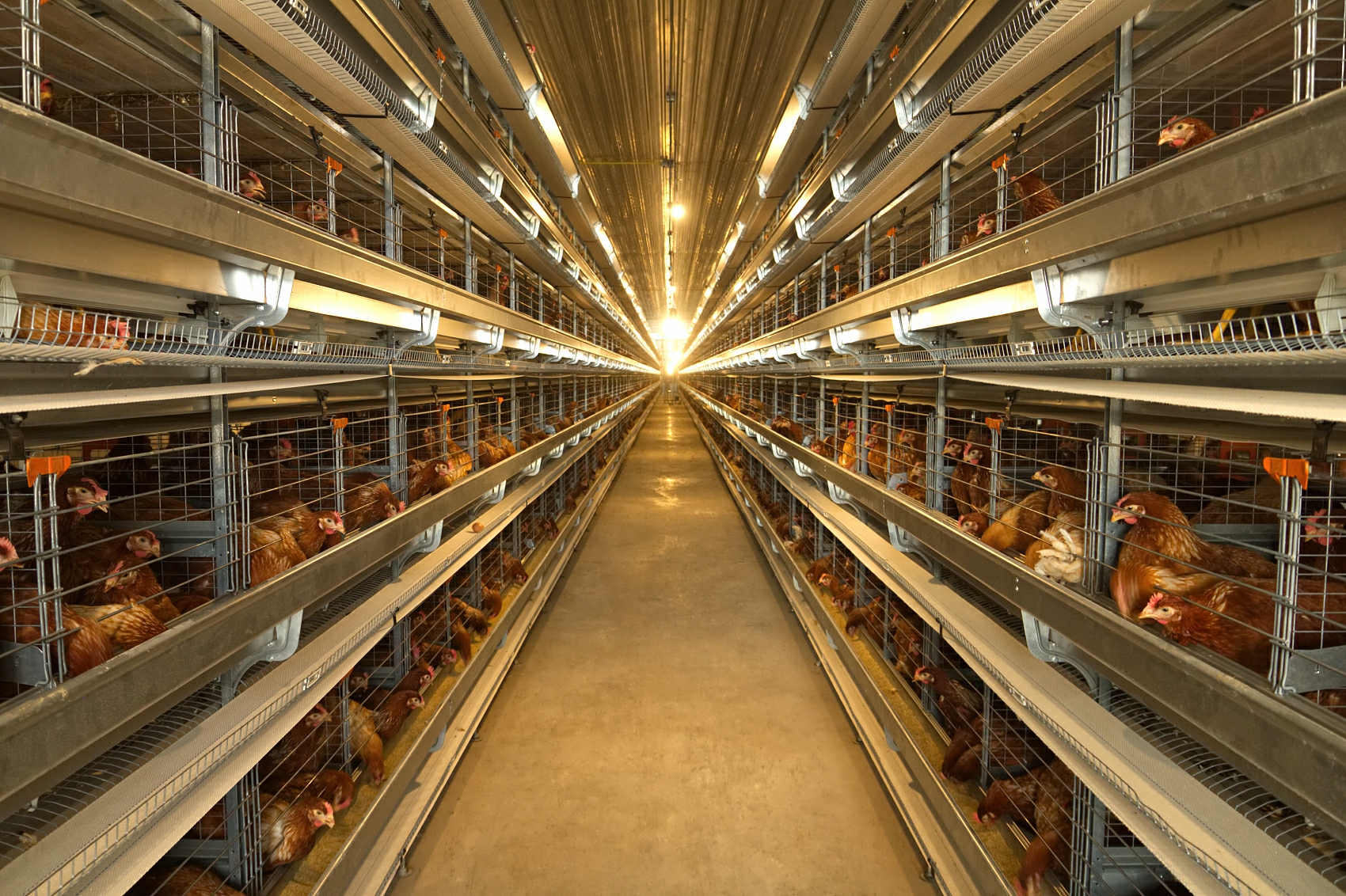

| Layout & Capacity | Stocking Density | 8–12 birds/m² (varies by chicken type: broiler/layer) |
| Ventilation System | Mechanical fans (airflow: 1.0–2.5 m³/hr/kg live weight) | |

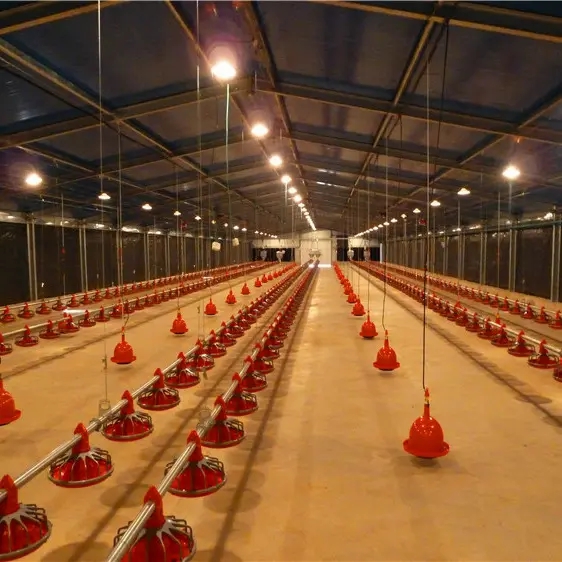

| Feeding System | Automated chain feeders or pan feeders | |
| Temperature Range | 18–28°C (controlled via ventilation/curtains) | |
| Relative Humidity | 50–70% | |
| Lighting | 10–20 lux (adjustable LED system with timers) | |
| Safety & Standards | Wind Load Resistance | Up to 150 km/h (design per ASCE 7 or local codes) |
| Snow Load Resistance | 0.5–1.5 kN/m² (region-dependent) | |
| Seismic Resistance | Designed per ISO 3010 or local seismic codes | |
| Additional Features | Fire Resistance | Steel structure coated with fire-retardant paint (1–2 hours rating) |
| Automation | Optional: Automated egg collection, climate control, manure removal systems |
We are a direct manufacturer of steel structure buildings. We have rich experience in steel structure designing, manufacturing, processing, and installation.
Our business goal is to give you the best price with the same quality and the best quality with the same price. We will try our best to reduce your cost.

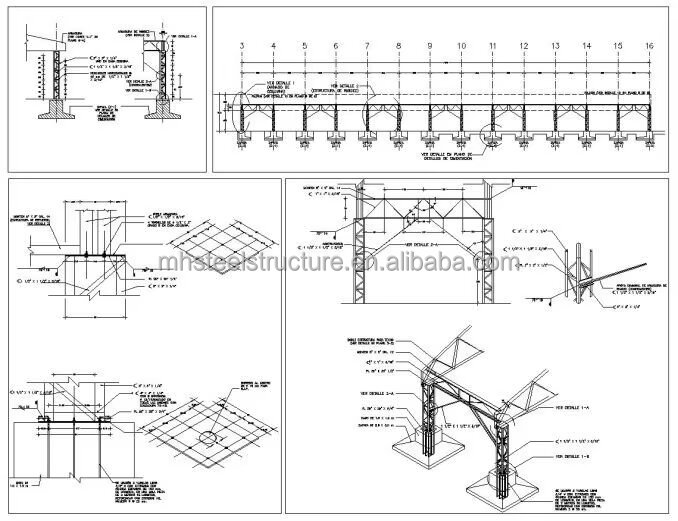

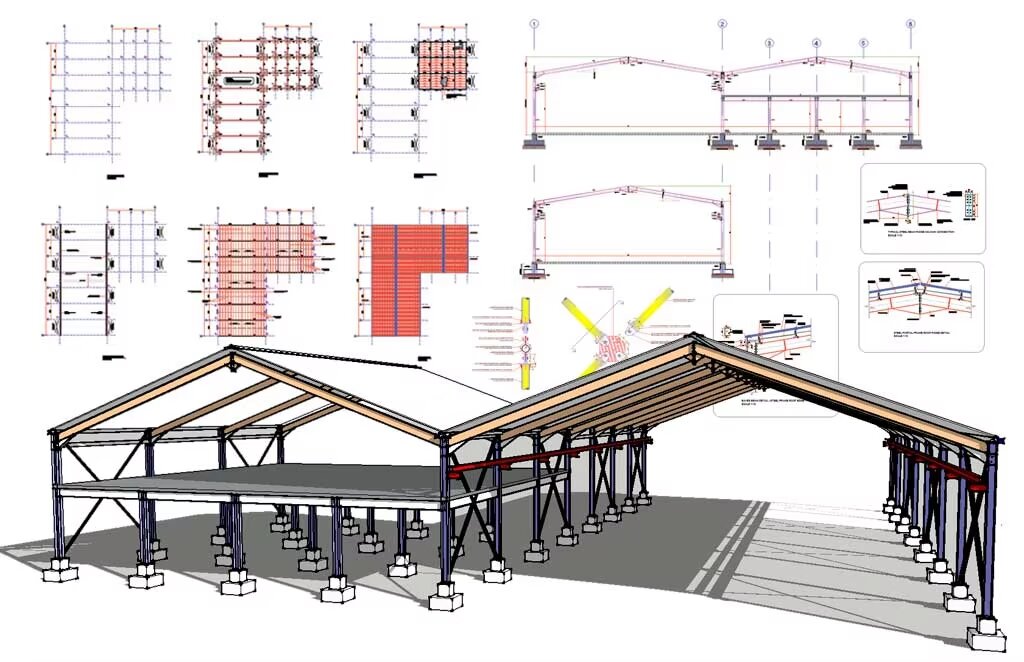

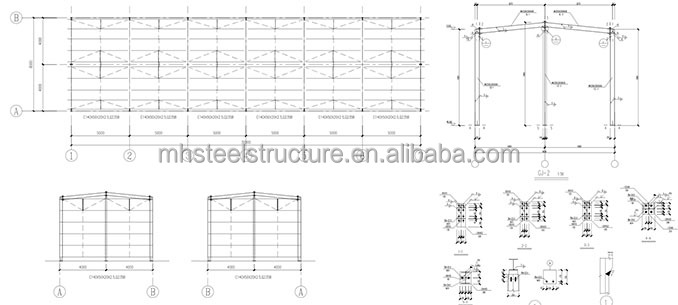

We will give detailed installation drawings and videos for free. And if you need, we could send engineers as installation directors or even a team.
Delivery time depends on order quantities. Generally, the delivery time will be 30-45 days after receiving the deposit.
You can chat with us anytime or you can just fill out our questionnaire and send it back to us. We will give you the best quotation as soon as possible.
Yes, all specifications including wind load, snow load, and seismic resistance parameters can be adjusted and customized based on your local regulations and structural testing requirements.
