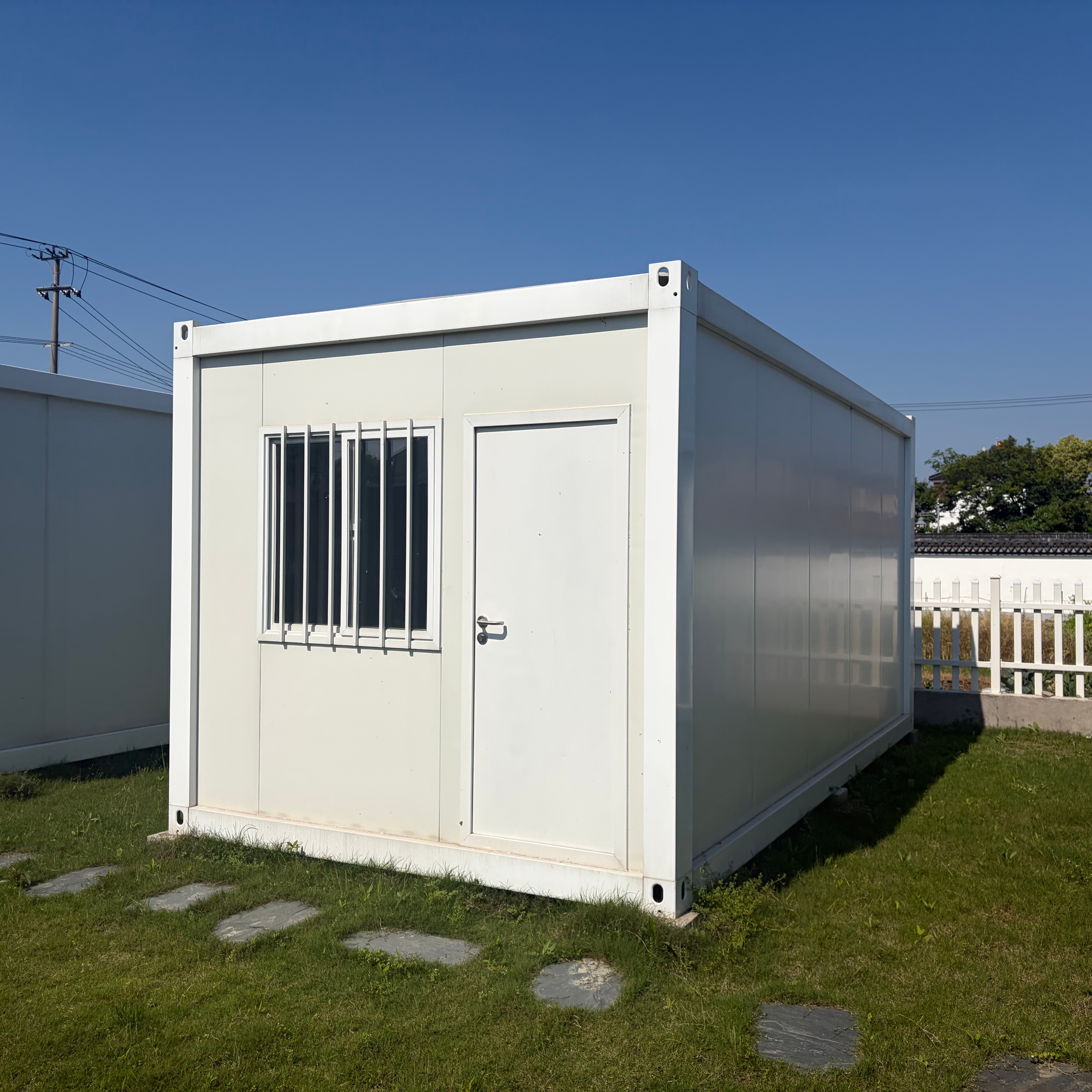

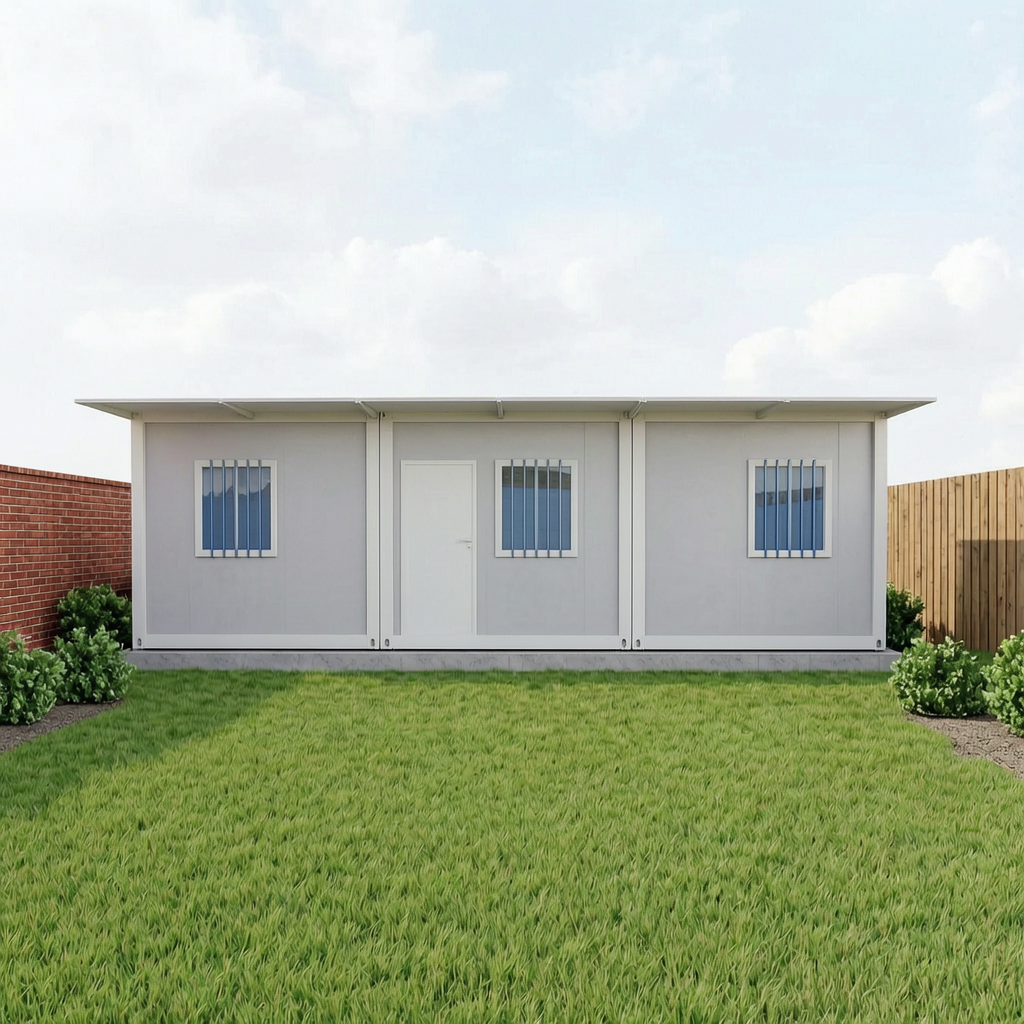

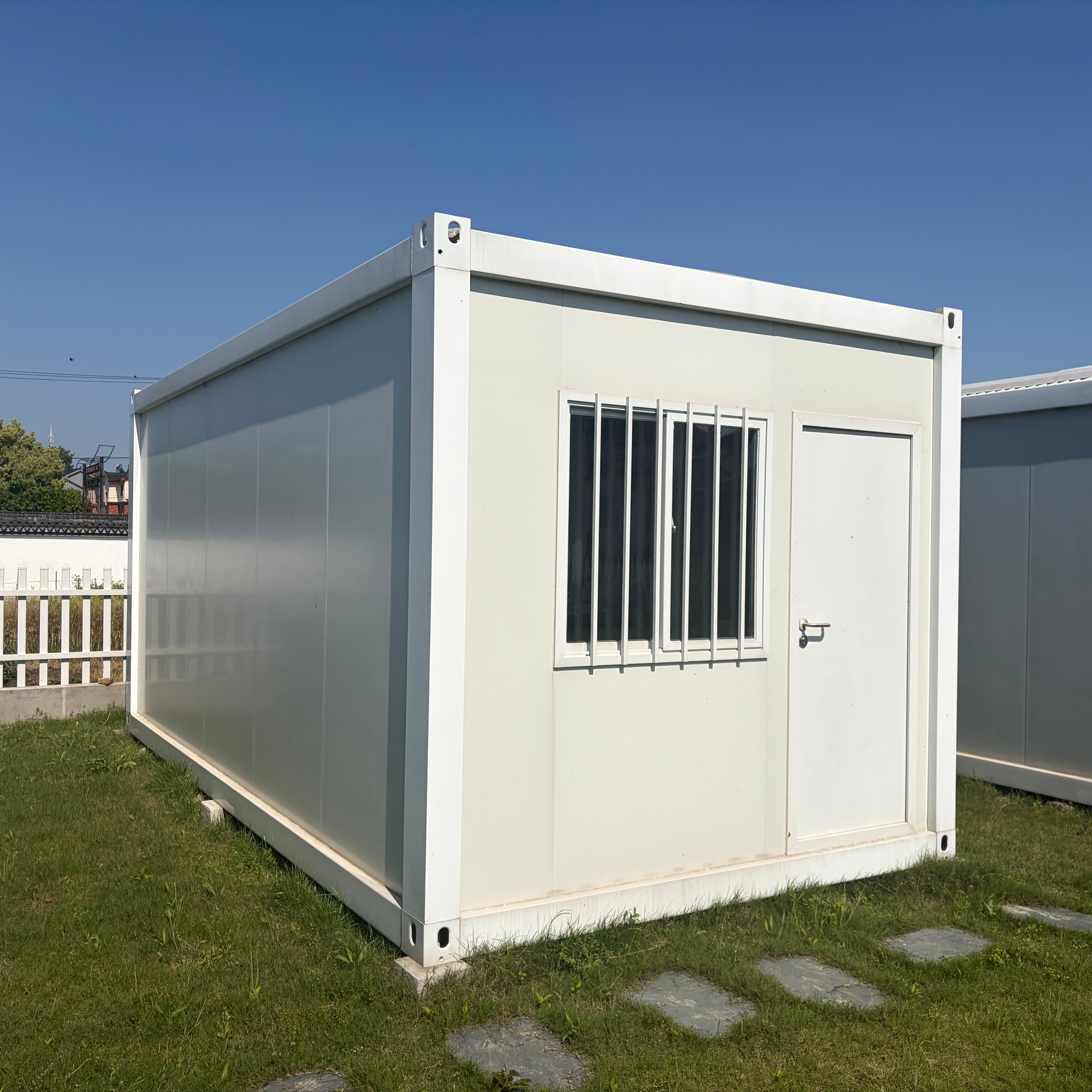

The price of detachable flat packing container house is much lower than that of traditional buildings, making it more suitable for collective accommodation, temporary housing, and office needs.

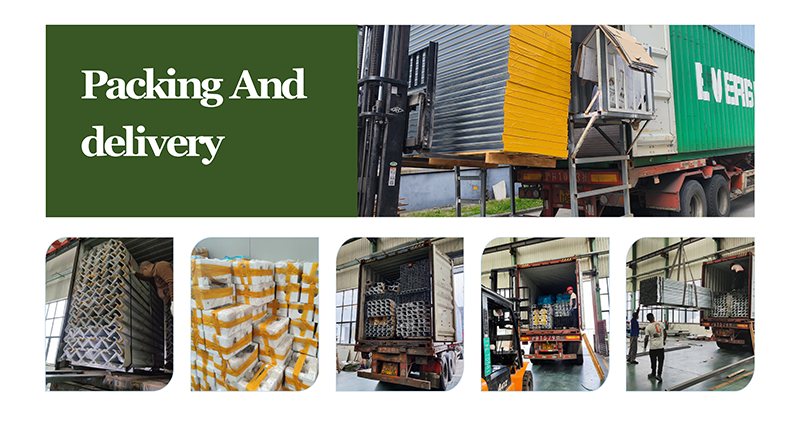

All parts are disassembled. A 1*20GP container can fit 6 standard units, and a 1*40HQ can fit 16 standard units, reducing freight costs significantly. Custom sizes are supported.

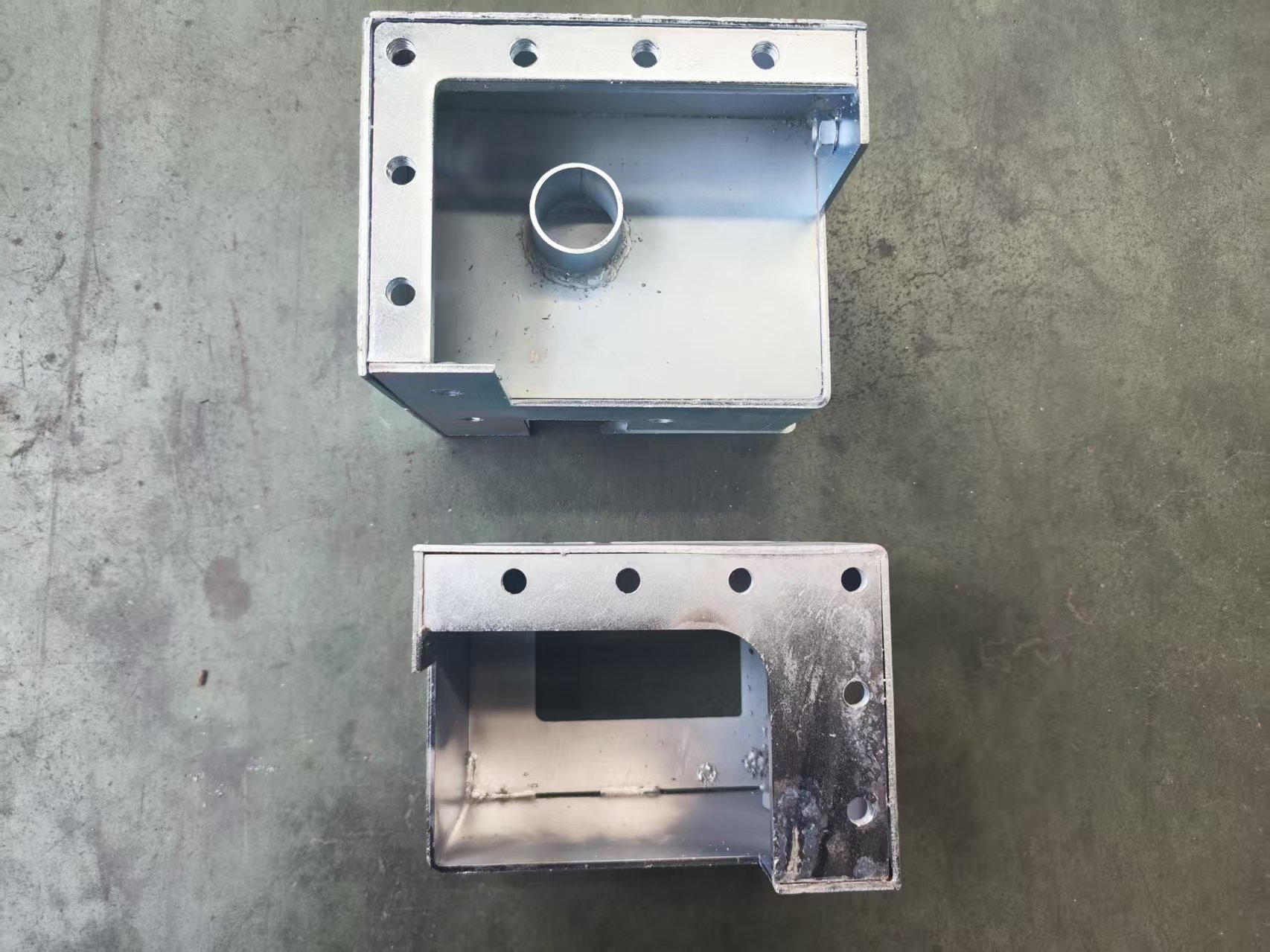

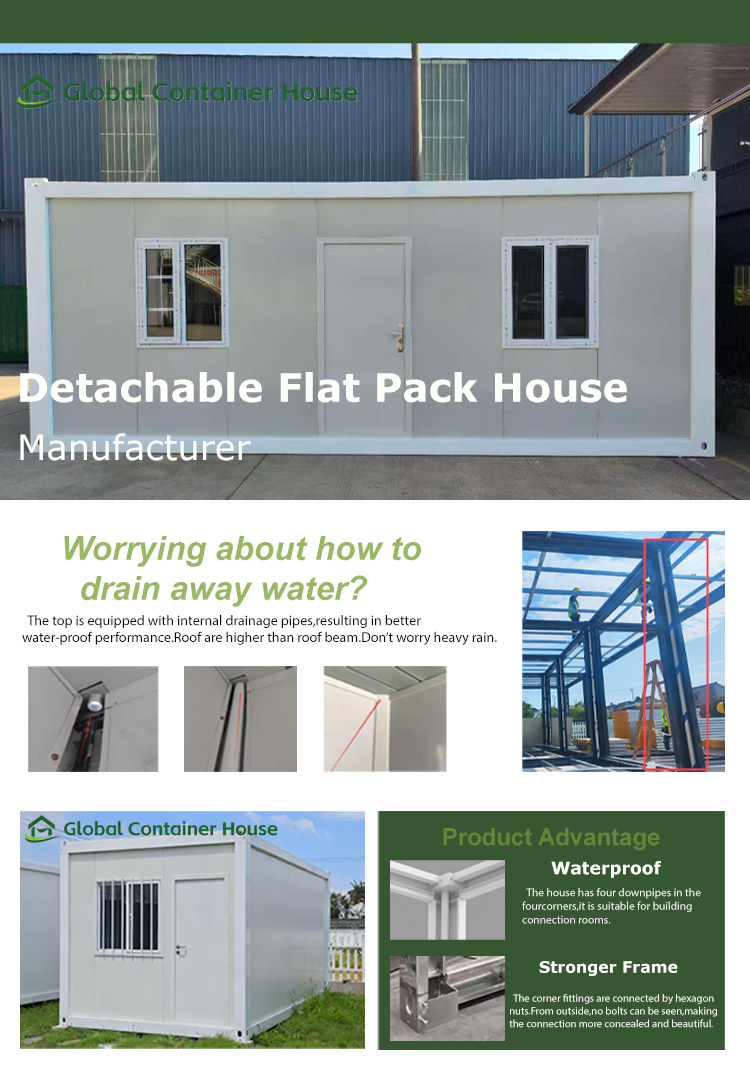

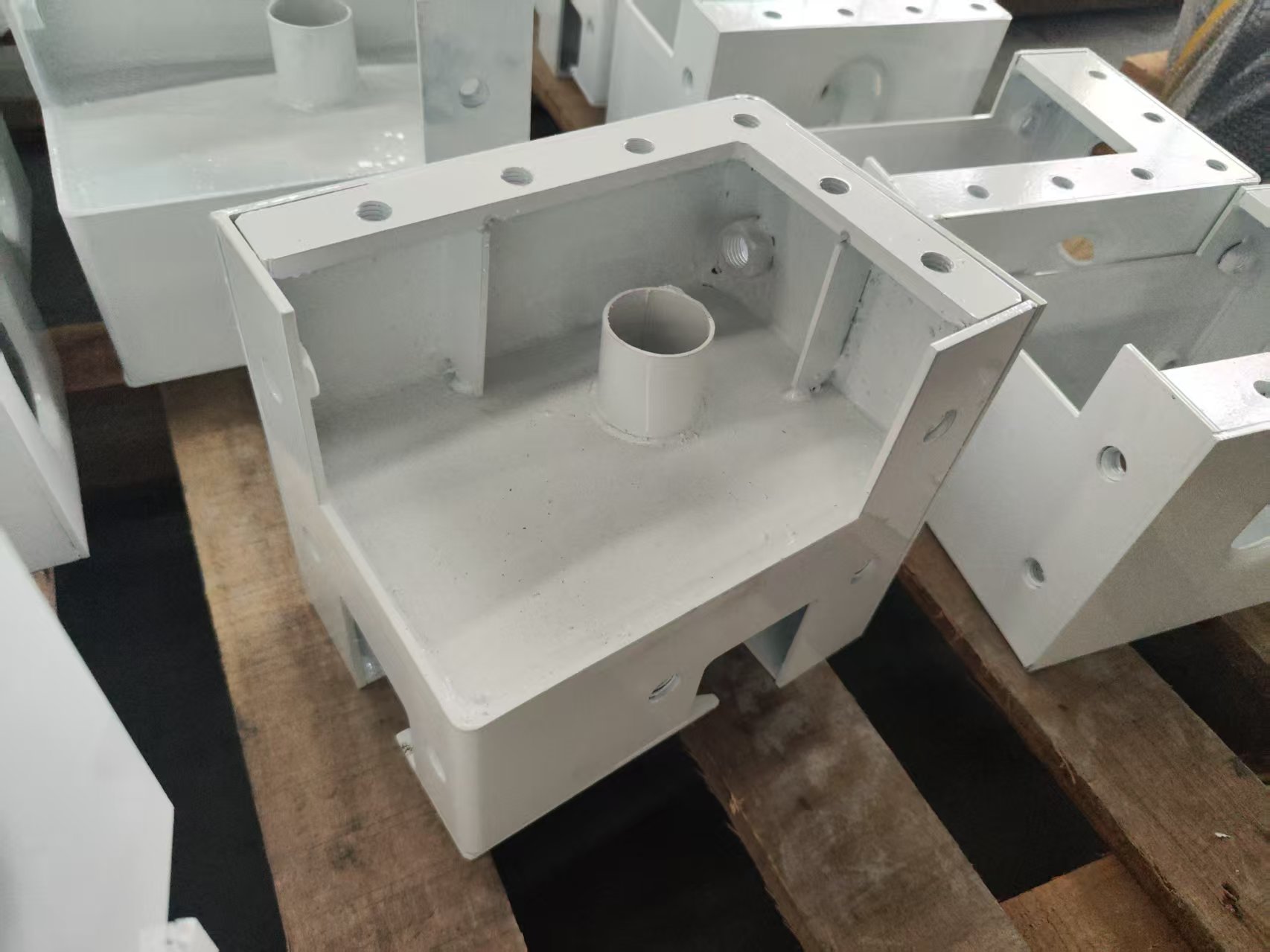

Corner fittings are connected by hidden hexagon nuts inside, making the structure look cleaner, more concealed, and aesthetically pleasing.

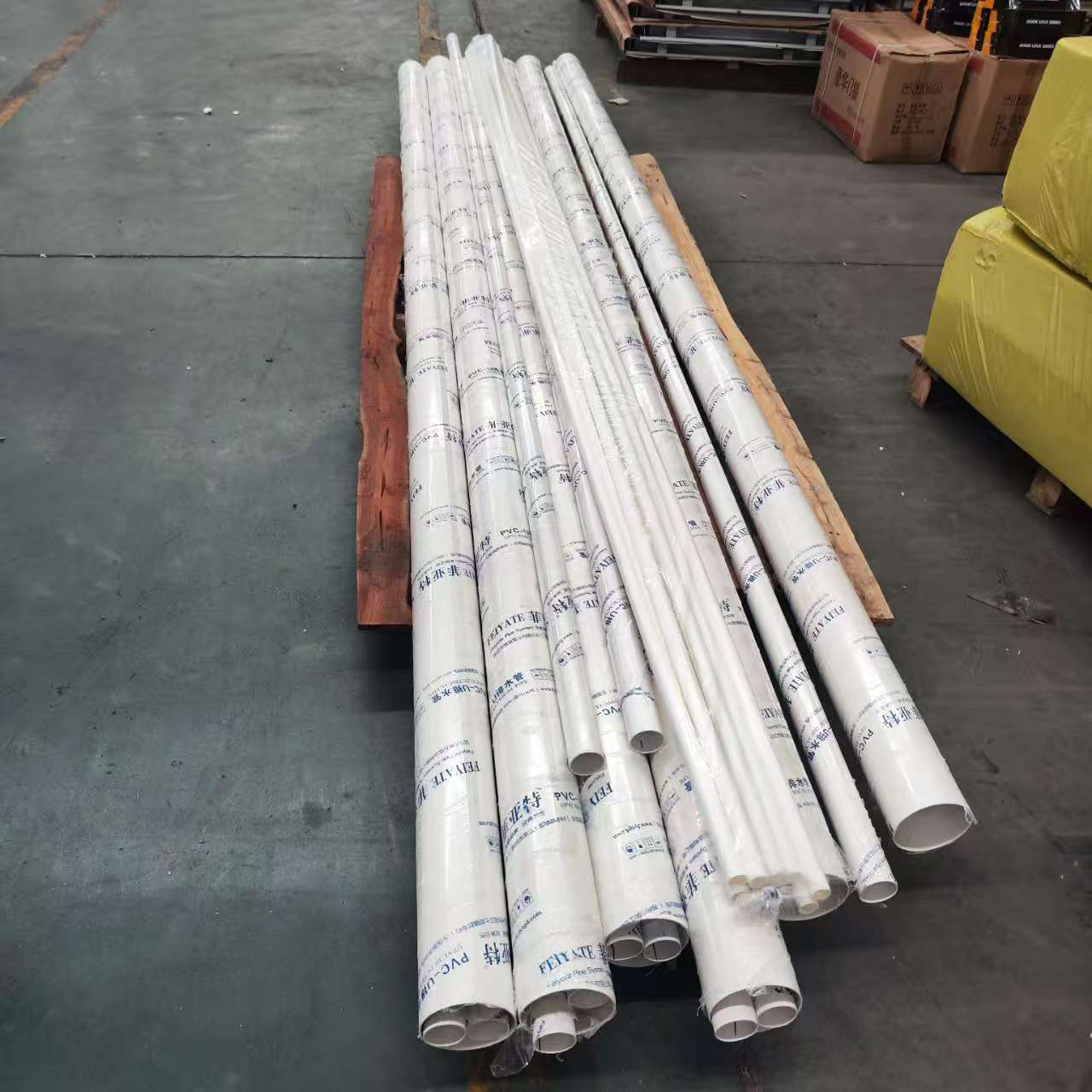

Equipped with internal drainage pipes within the columns. The roof is higher than the main beam structure, ensuring zero leakage during heavy rain.
Two workers can easily complete the entire setup within two days, without requiring heavy crane equipment.
Highly customizable options including flooring materials, interior/exterior wall cladding patterns, terraces, and additional layouts.

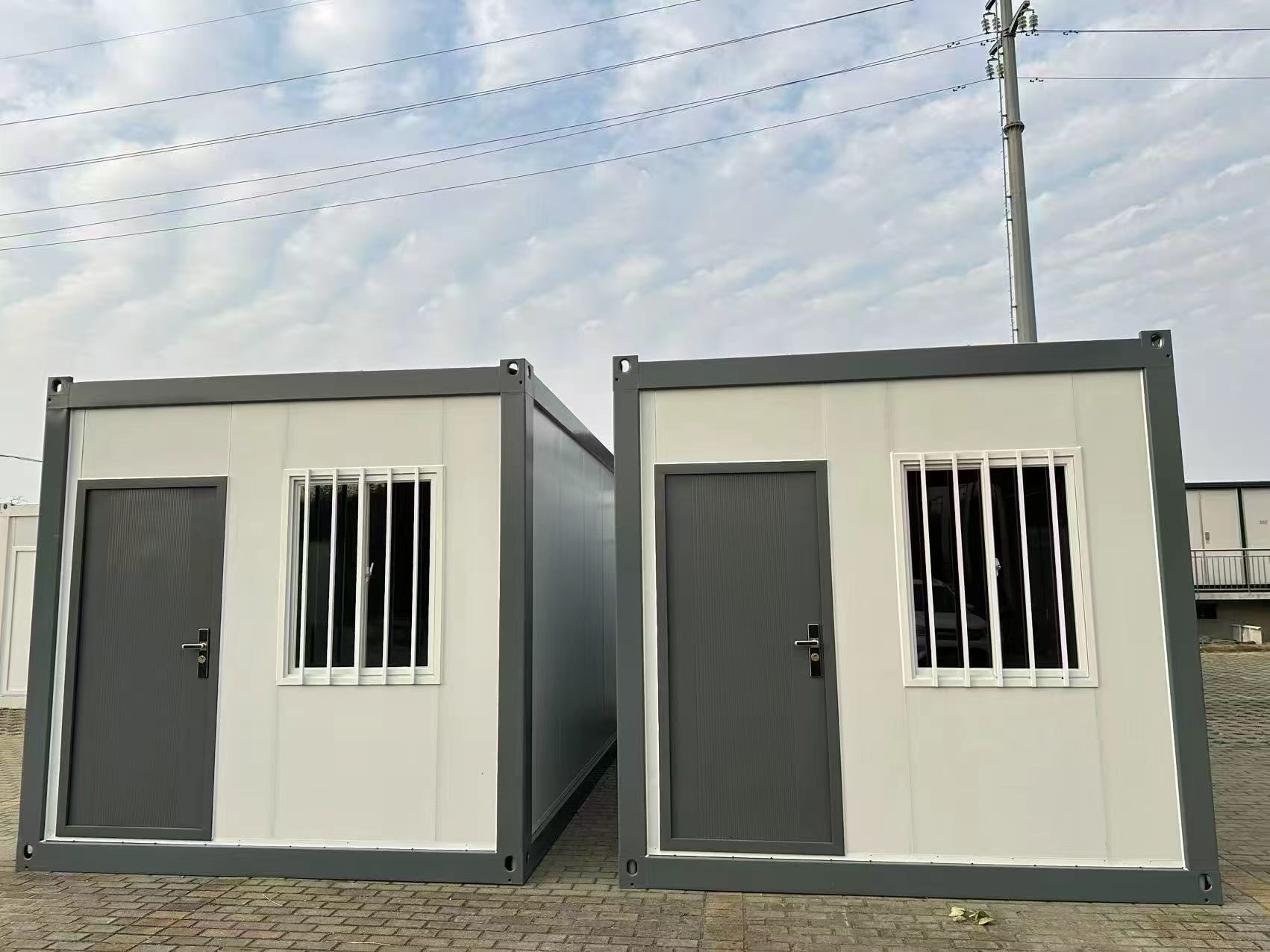

We support custom frame colors, wall panel choices, window profiles, and door coloring. (MOQ: 16 Units)

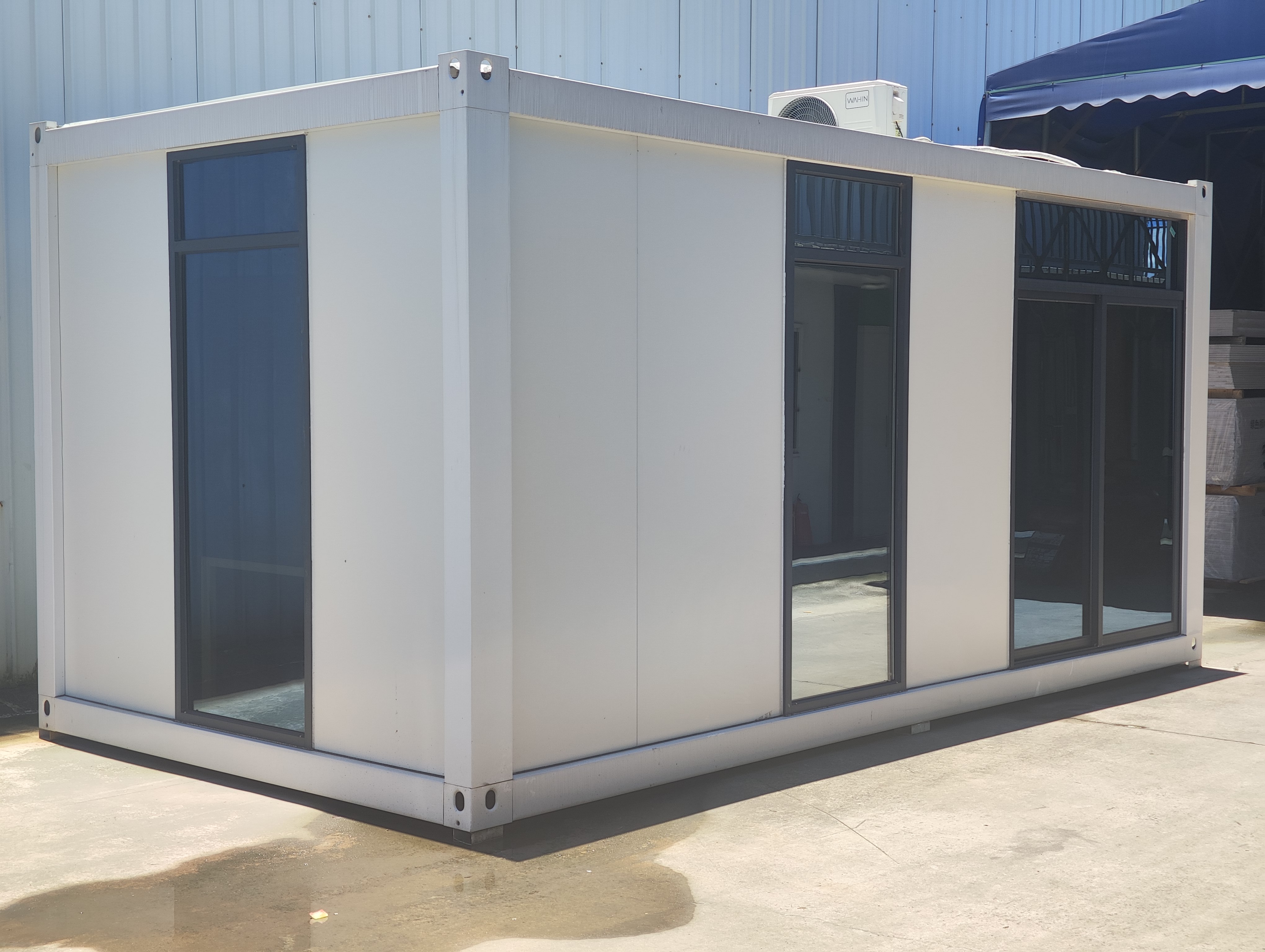

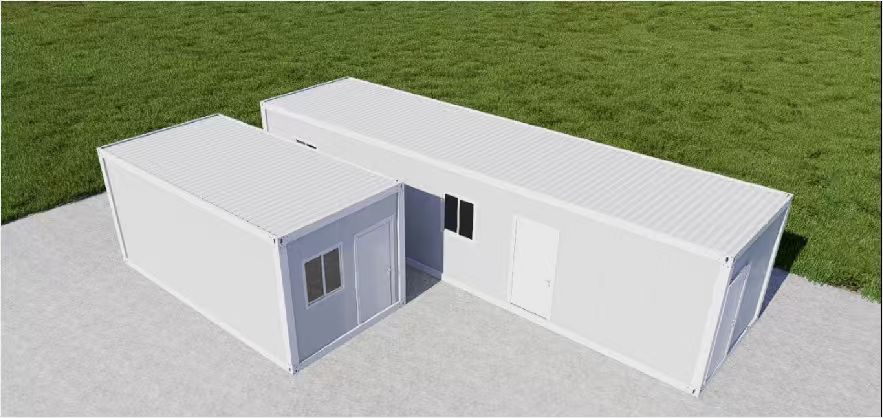

The length, width, and height of the detachable container structure can be tailored to meet distinct structural designs.

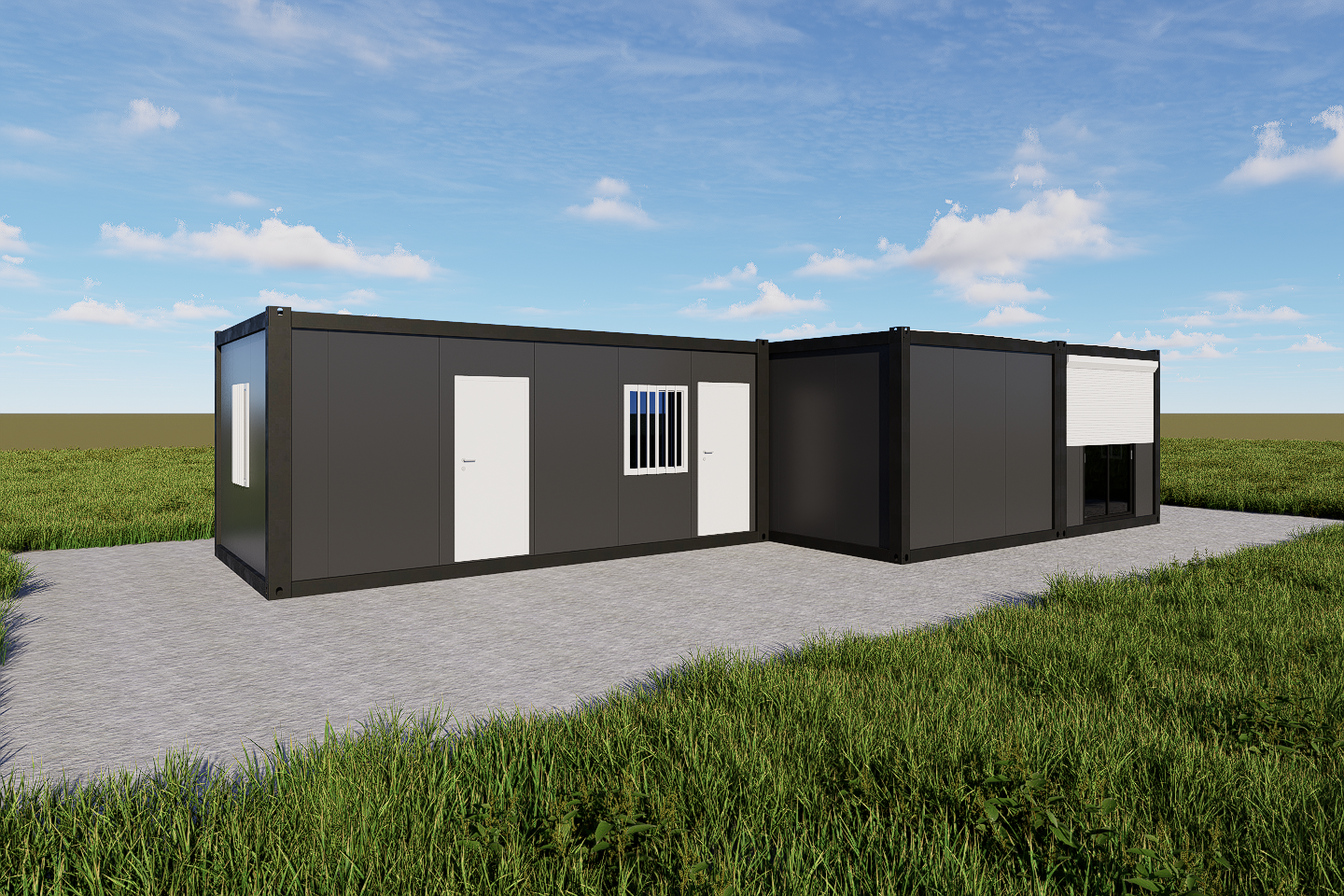

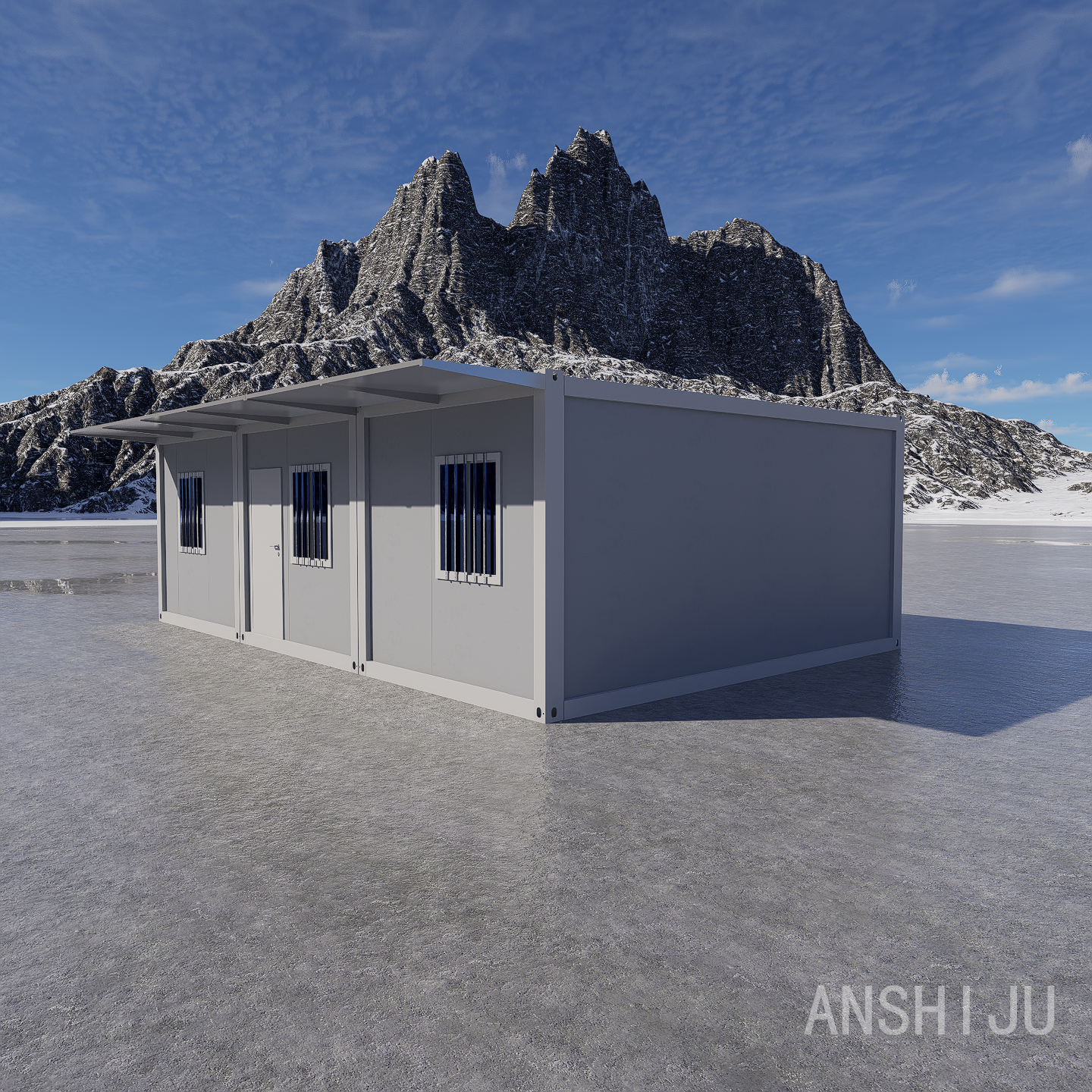

We provide professional custom planning, detailed CAD blueprints, and high-fidelity 3D renderings to guide production.

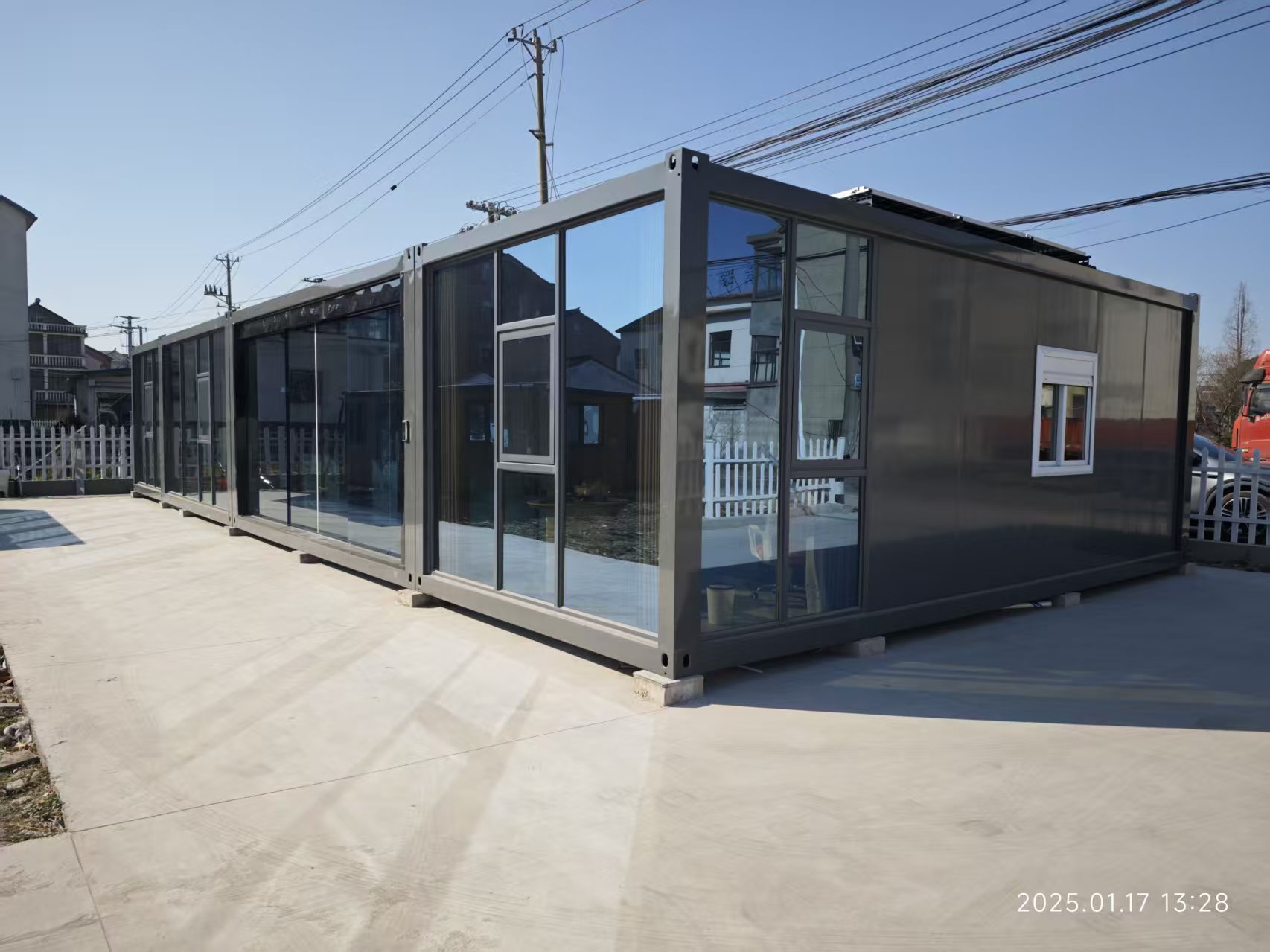

Optional 5+9+5 double-layer tempered glass or 12mm thickness with a thermal break aluminum alloy frame for optimal sound and heat insulation.

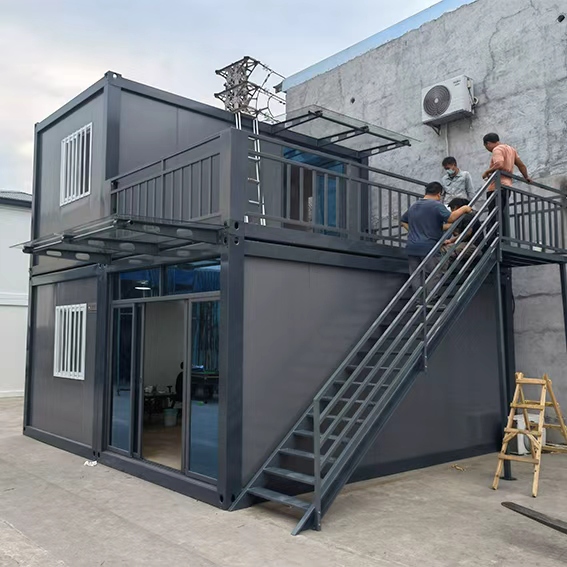

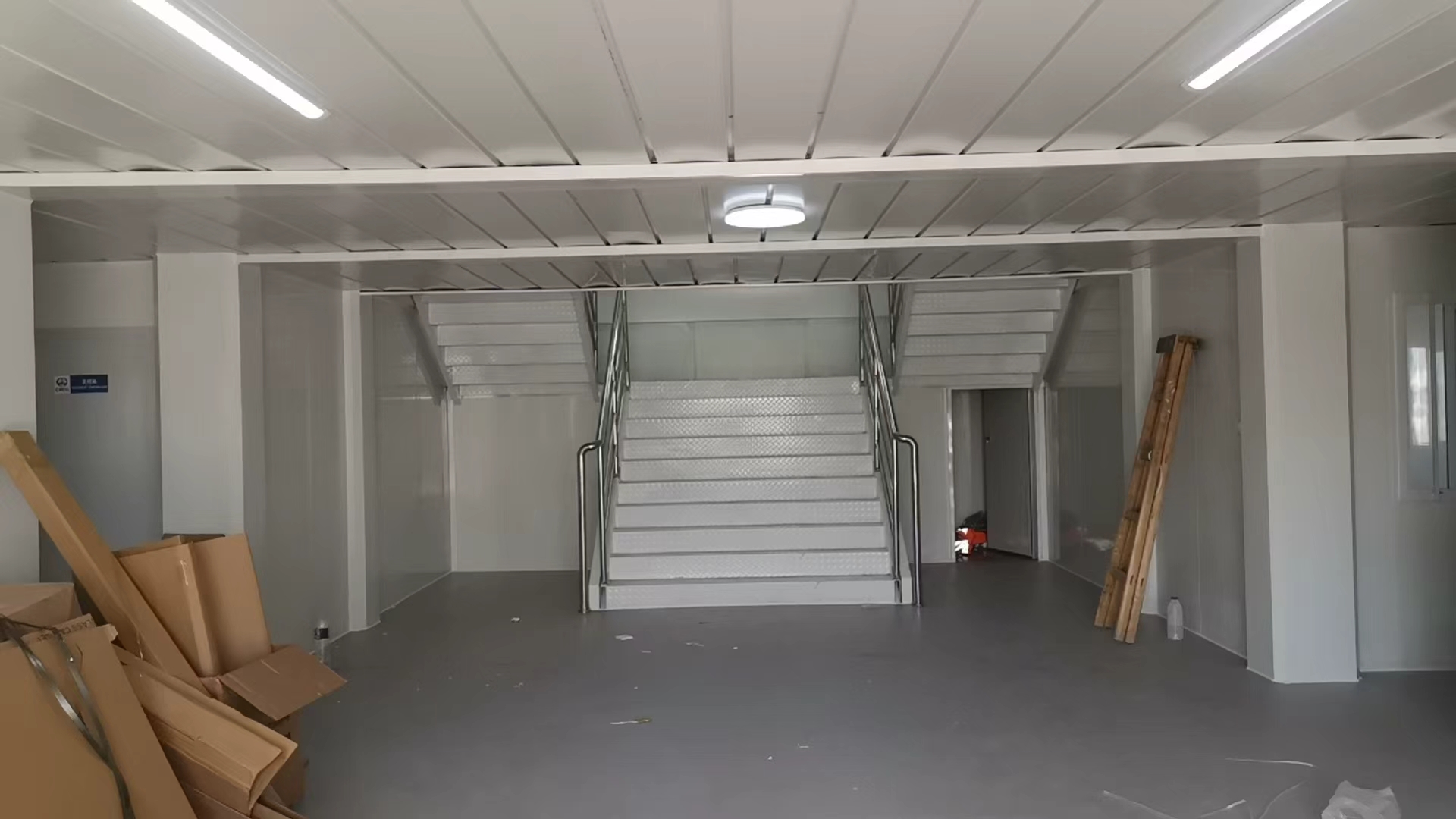

Expand structures vertically with built-in stairs, external balconies, custom canopies, and terrace features.

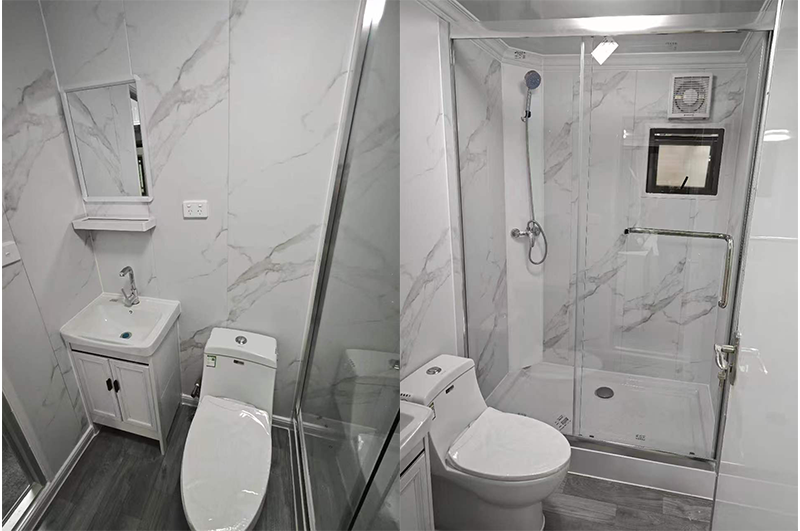

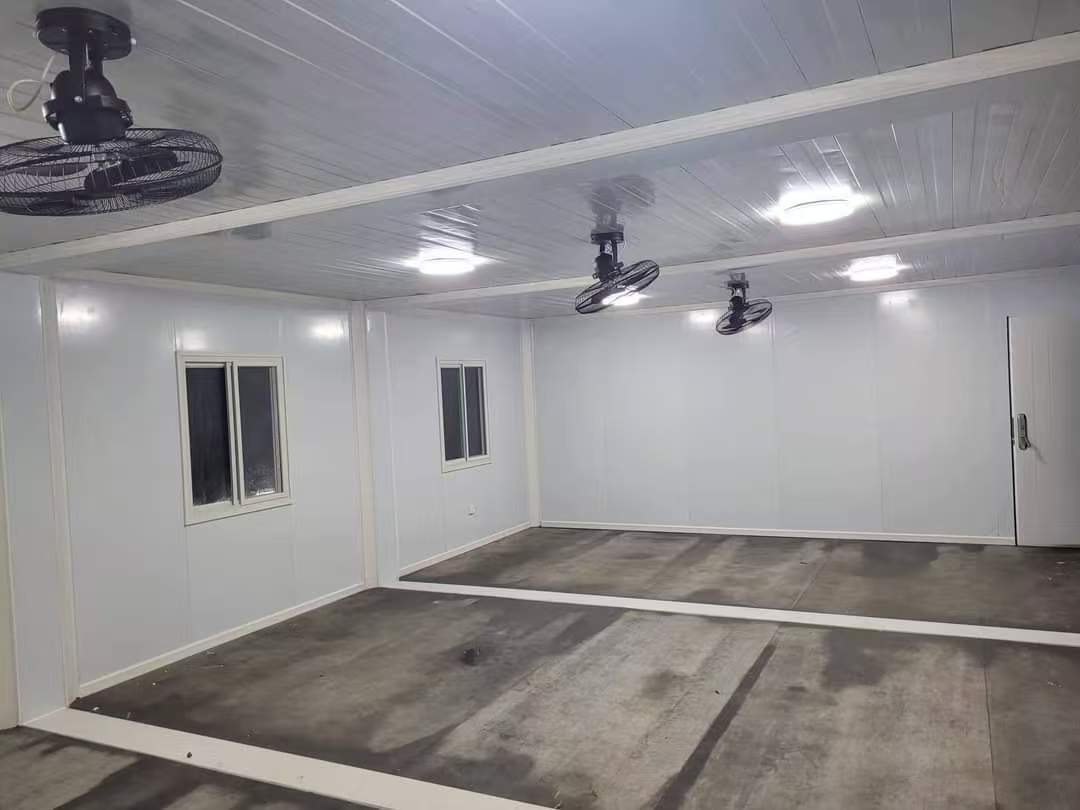

Premium internal layouts featuring modern toilets, mirrors, vanity basins, integrated showers, and durable aluminum or marble tiles.

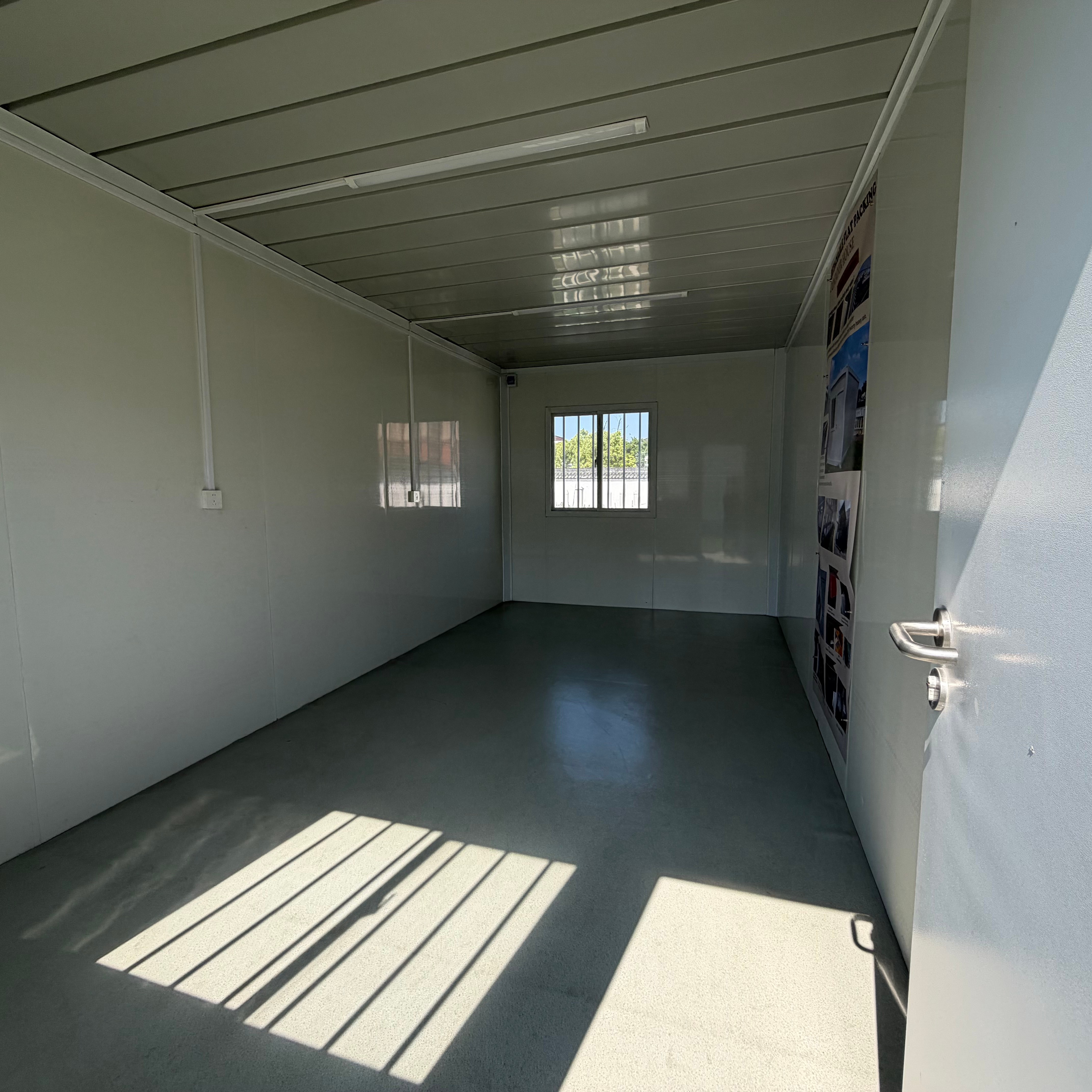

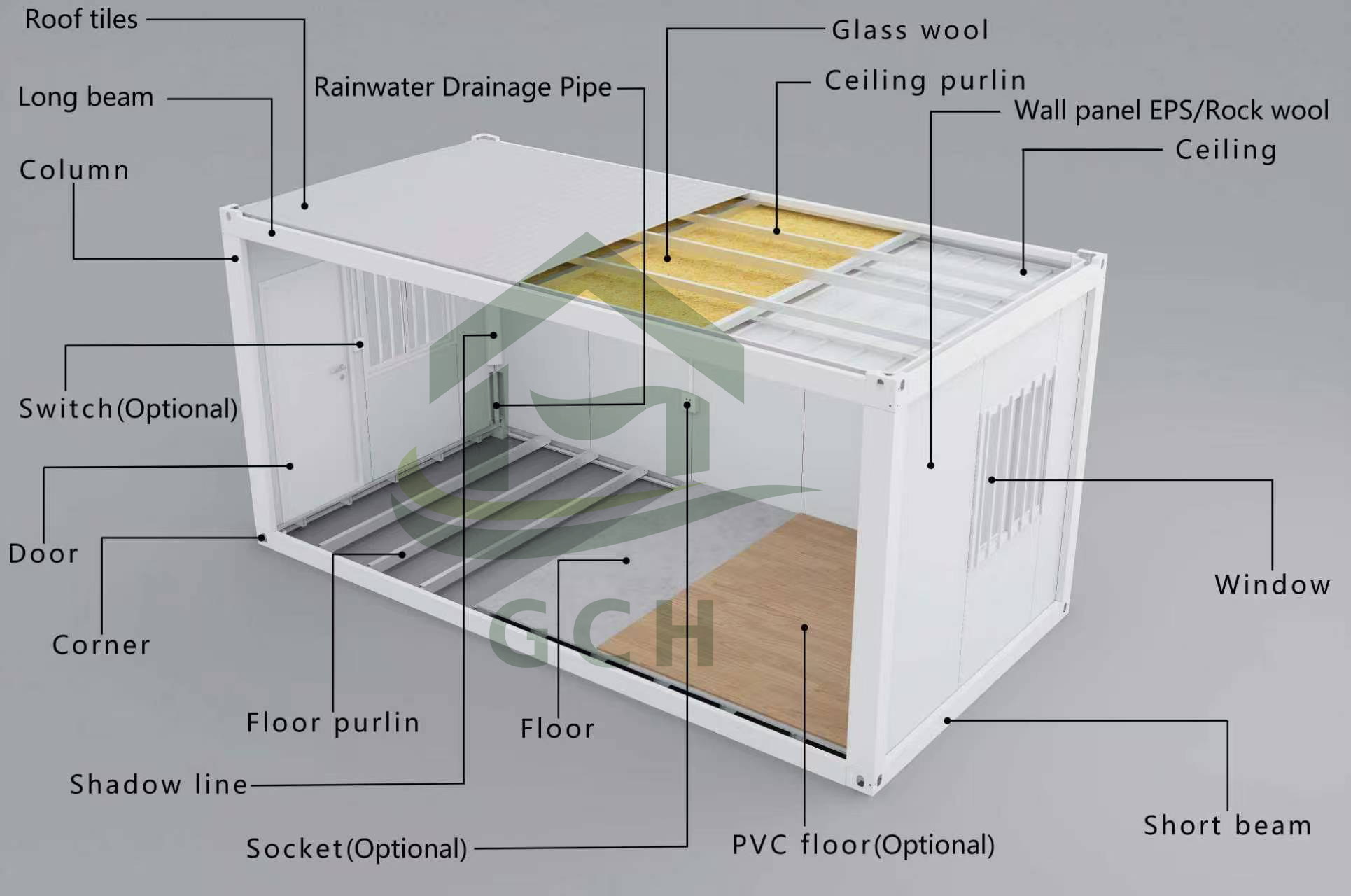

| Configuration List For 20ft Detachable Flat Packing Container House | |
|---|---|

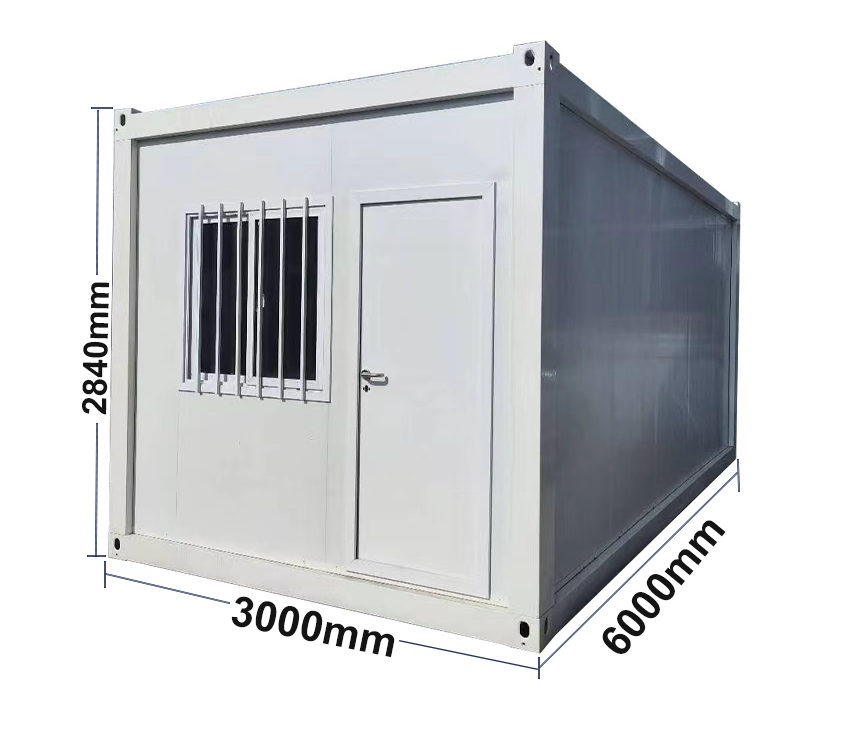

| Size: | 6000*3000*2840mm (can be customized) |

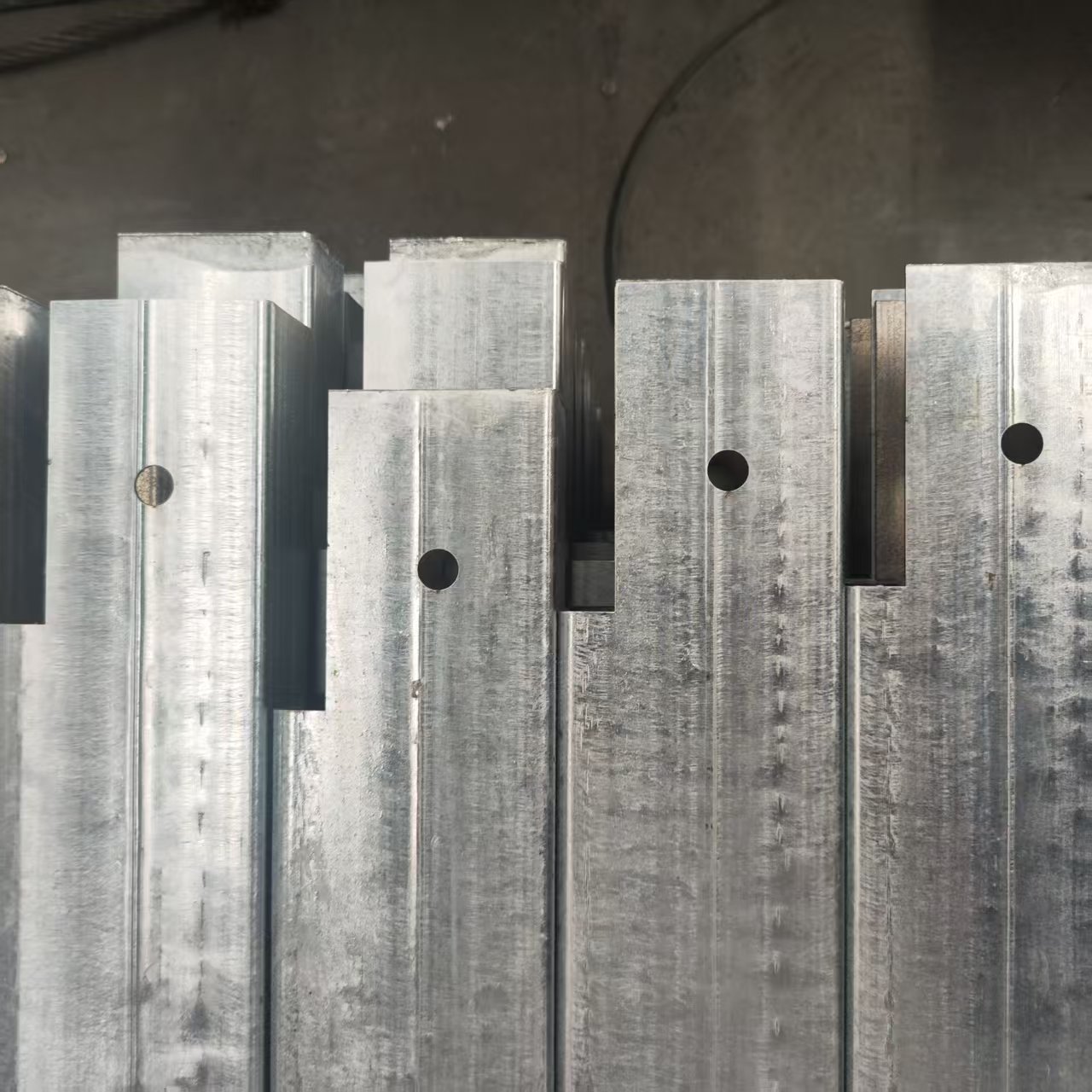

| Main frame: | 2.3mm to 3.0mm spray painted galvanized steel tube |
| Purlin: | Galvanized steel square tubes |
| Wall partition: | 50mm/75mm/100mm rock wool/EPS/PU panel with 0.3mm-0.5mm color steel plate |
| Door: | 840*2035mm 0.4mm high-end steel door with secure lock |
| Windows: | 1100*1130mm plastic steel sliding windows (2 sets) |

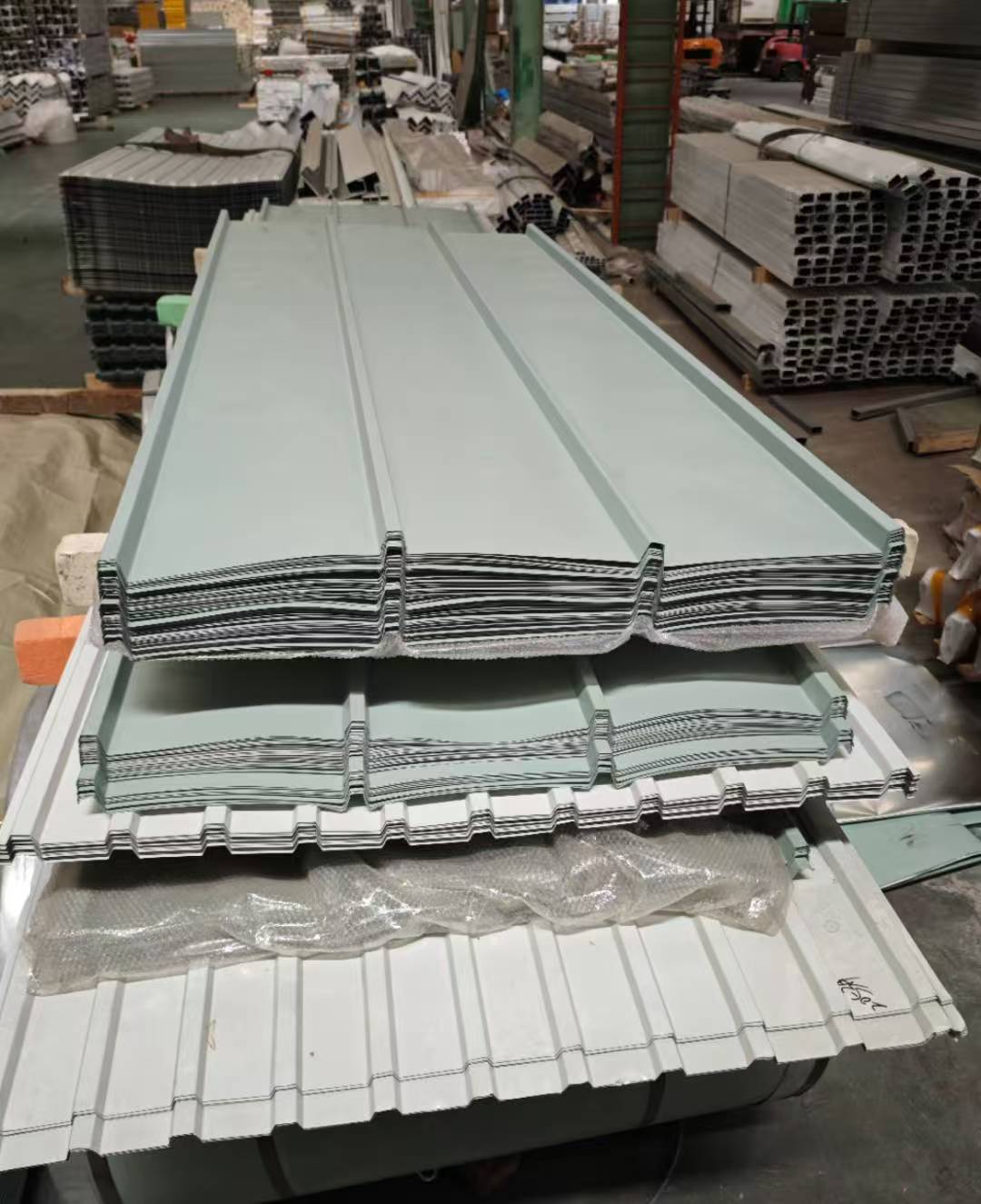

| Roof tiles: | 980 type color steel |

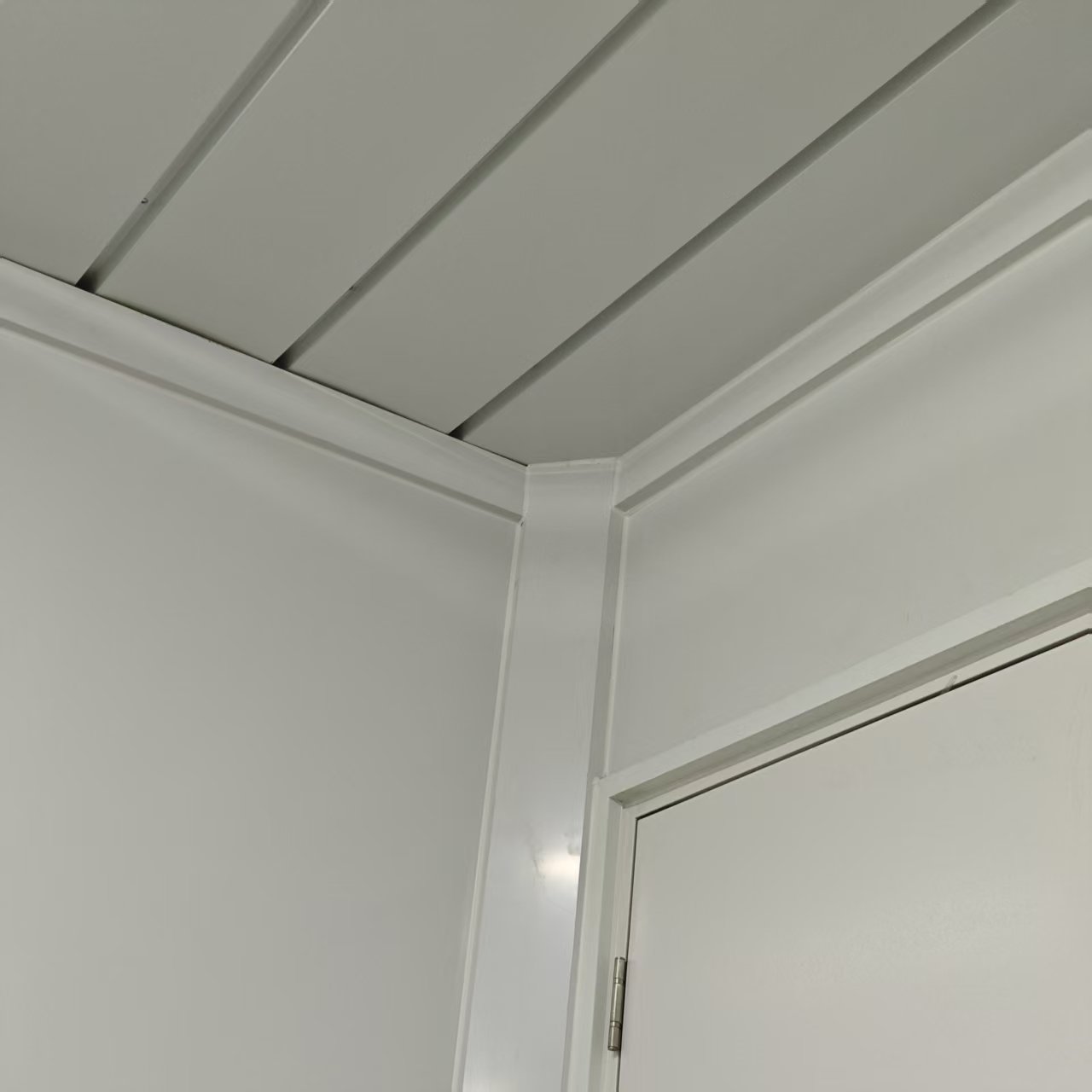

| Ceiling: | 831 type color steel |
| Floor: | 15mm/18mm MGO board or cement fiber board |
| Customization: | Fully customizable according to specifications |
| Bathroom (optional): | Toilet, integrated shower, washbasin unit |
| Electrical system (optional): | LED interior lighting, wiring, wall sockets, power switch, distribution box |

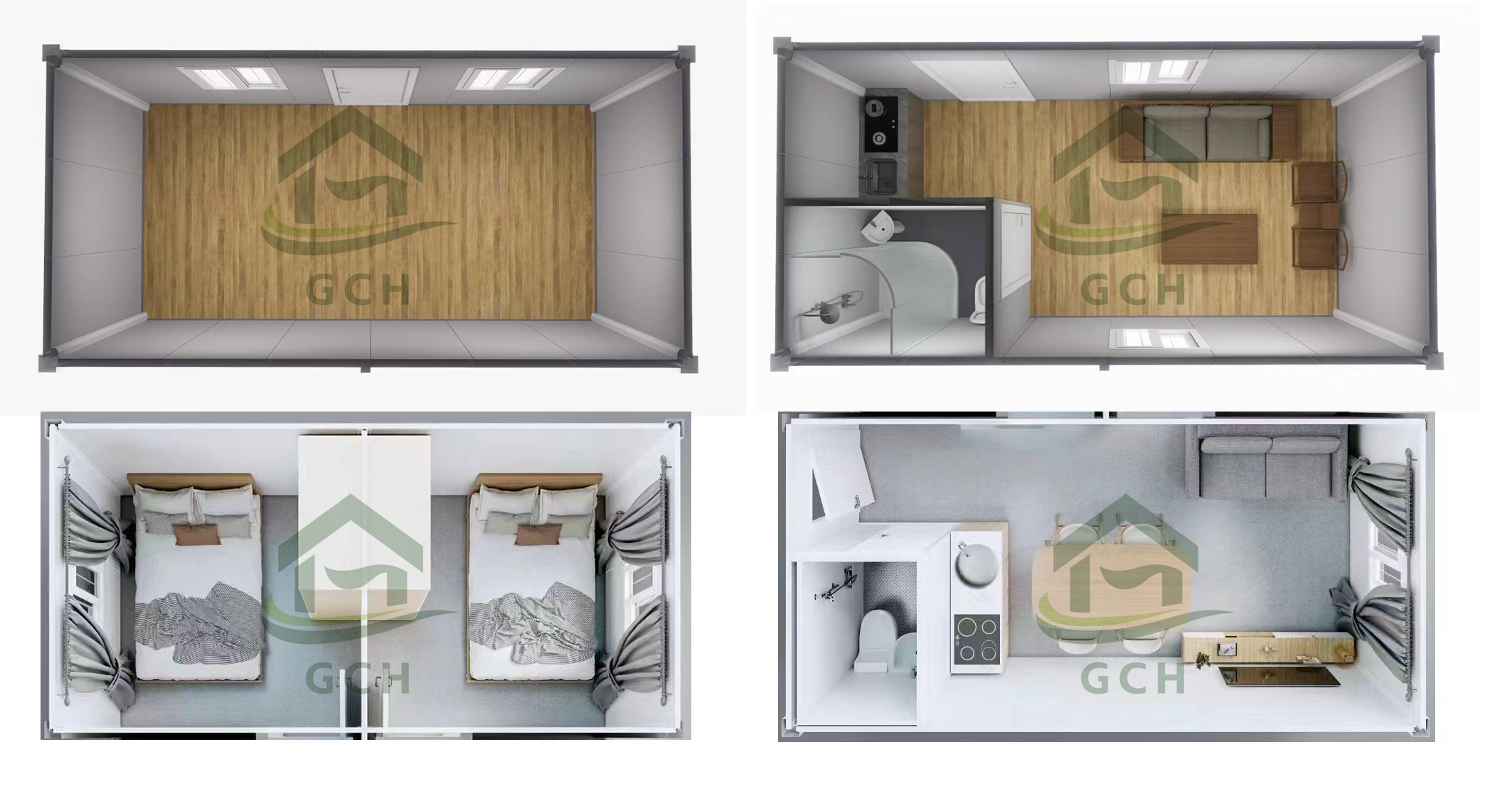

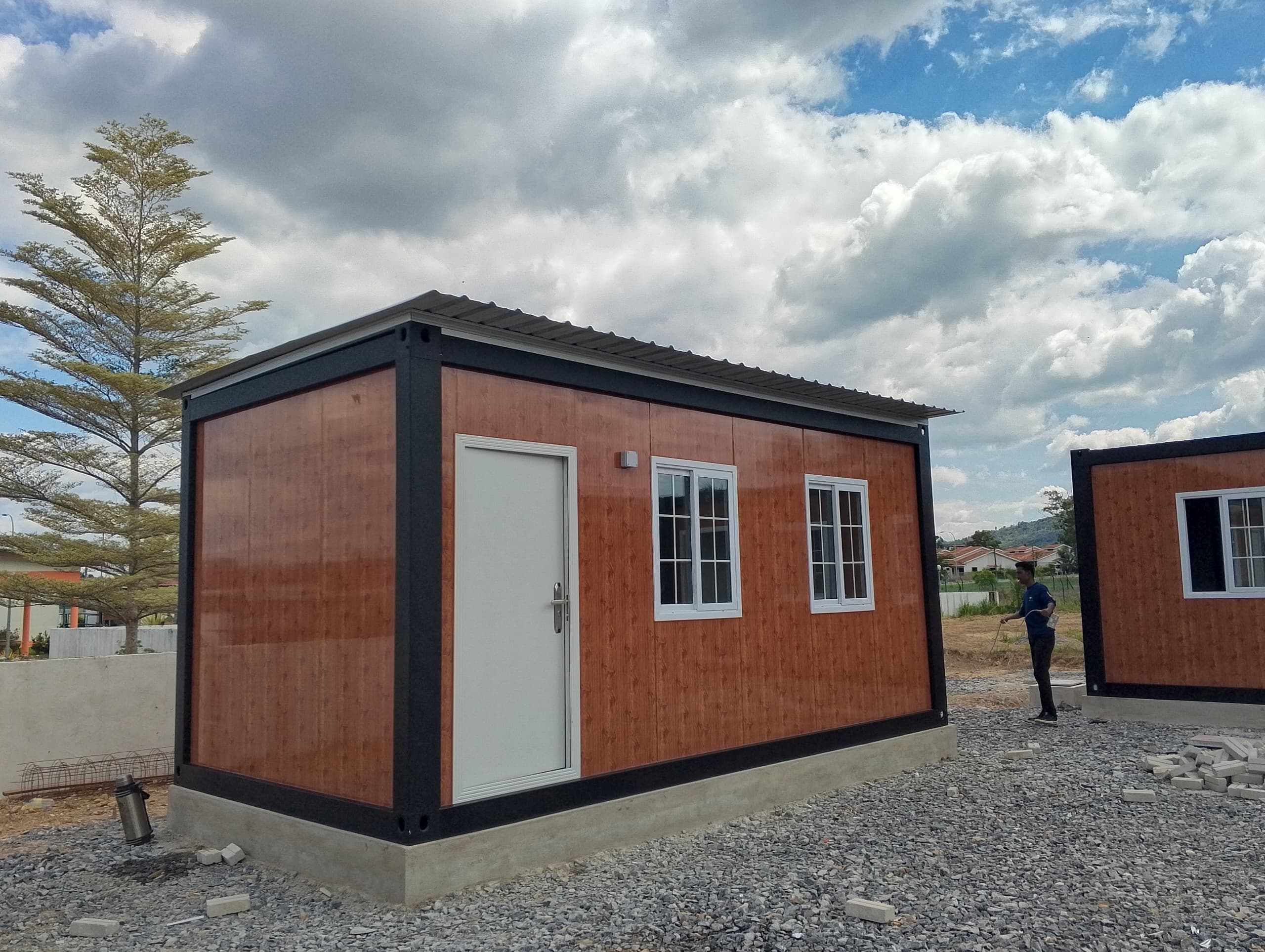

To meet your individual design requirements, we offer dedicated structural layout and design services based on the following framework:

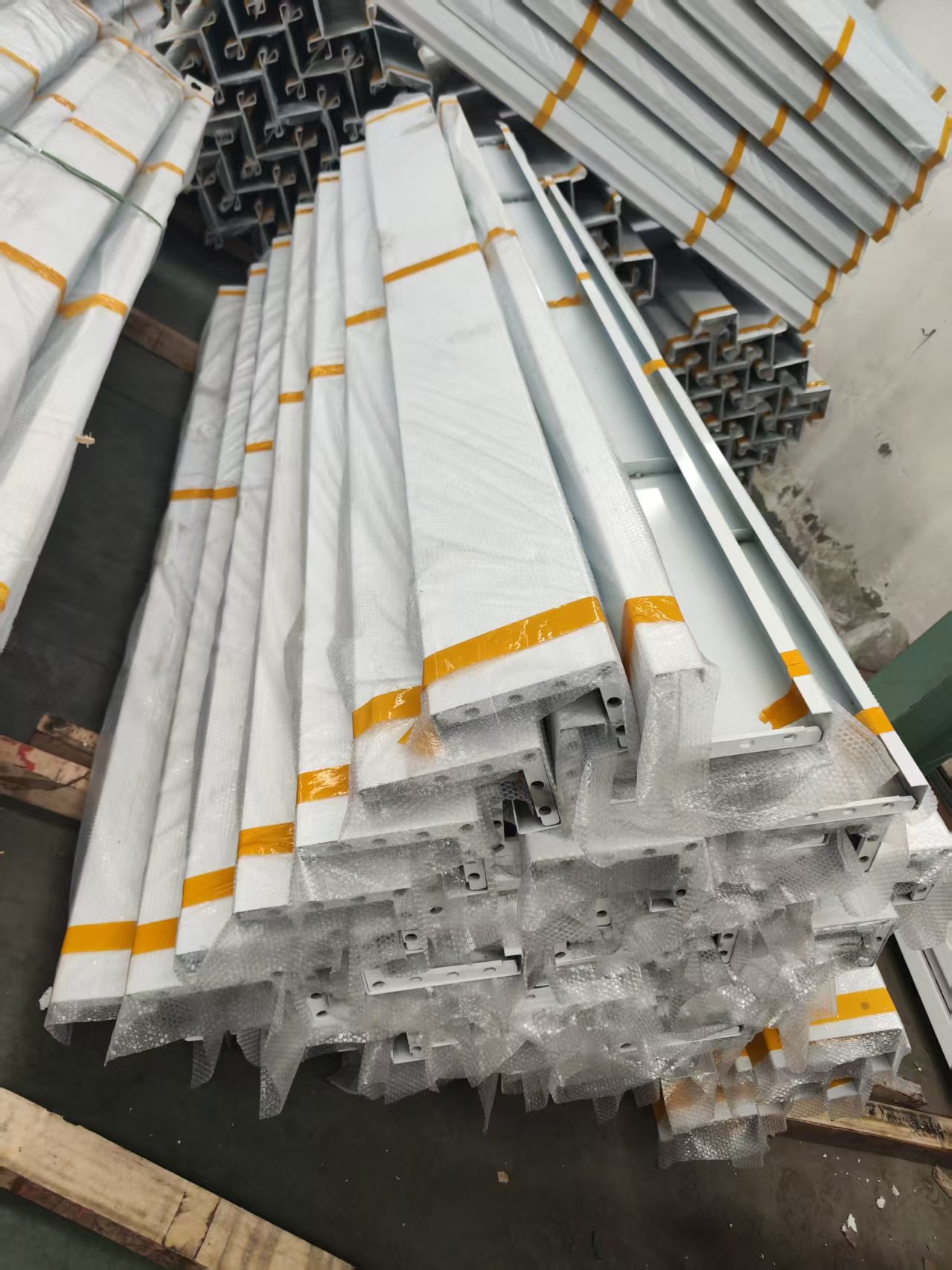

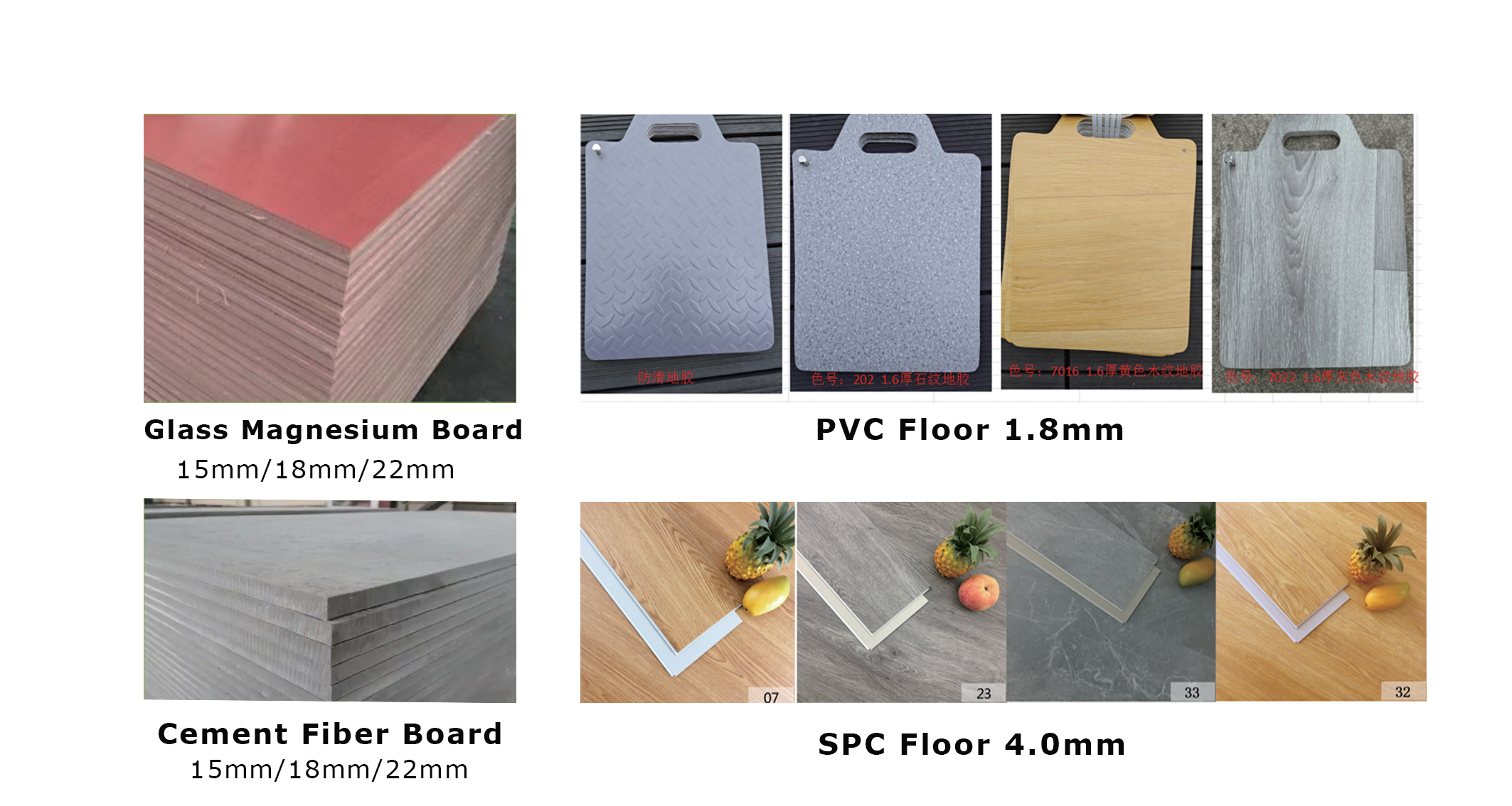

Floor Configuration: Base support MGO board or Cement Fiber Board. Optional finish layer options include 1.8mm PVC tile sheet or 4.0mm SPC click locking tiles.

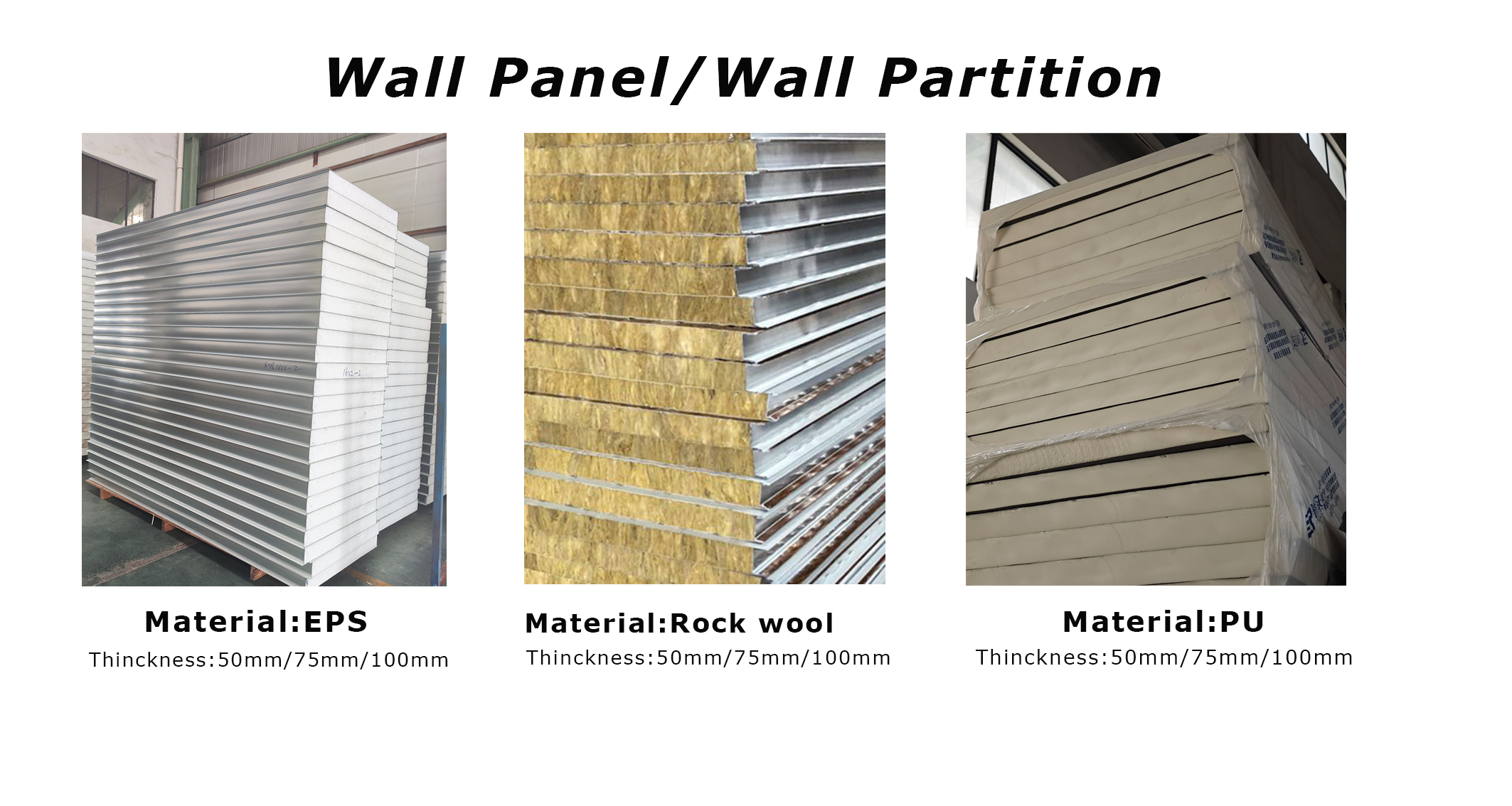

Core Wall Insulation: Rockwool, EPS, or PU infill material options, available in thickness steps of 50mm, 75mm, and 100mm.

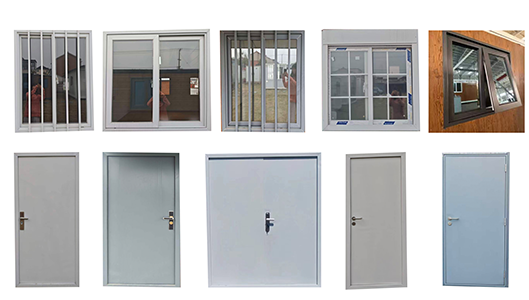

Windows & Doors: Choice of sliding vinyl steel, aluminum framing, or thermal break frames. External entry doors feature premium steel with custom fireproof locks.

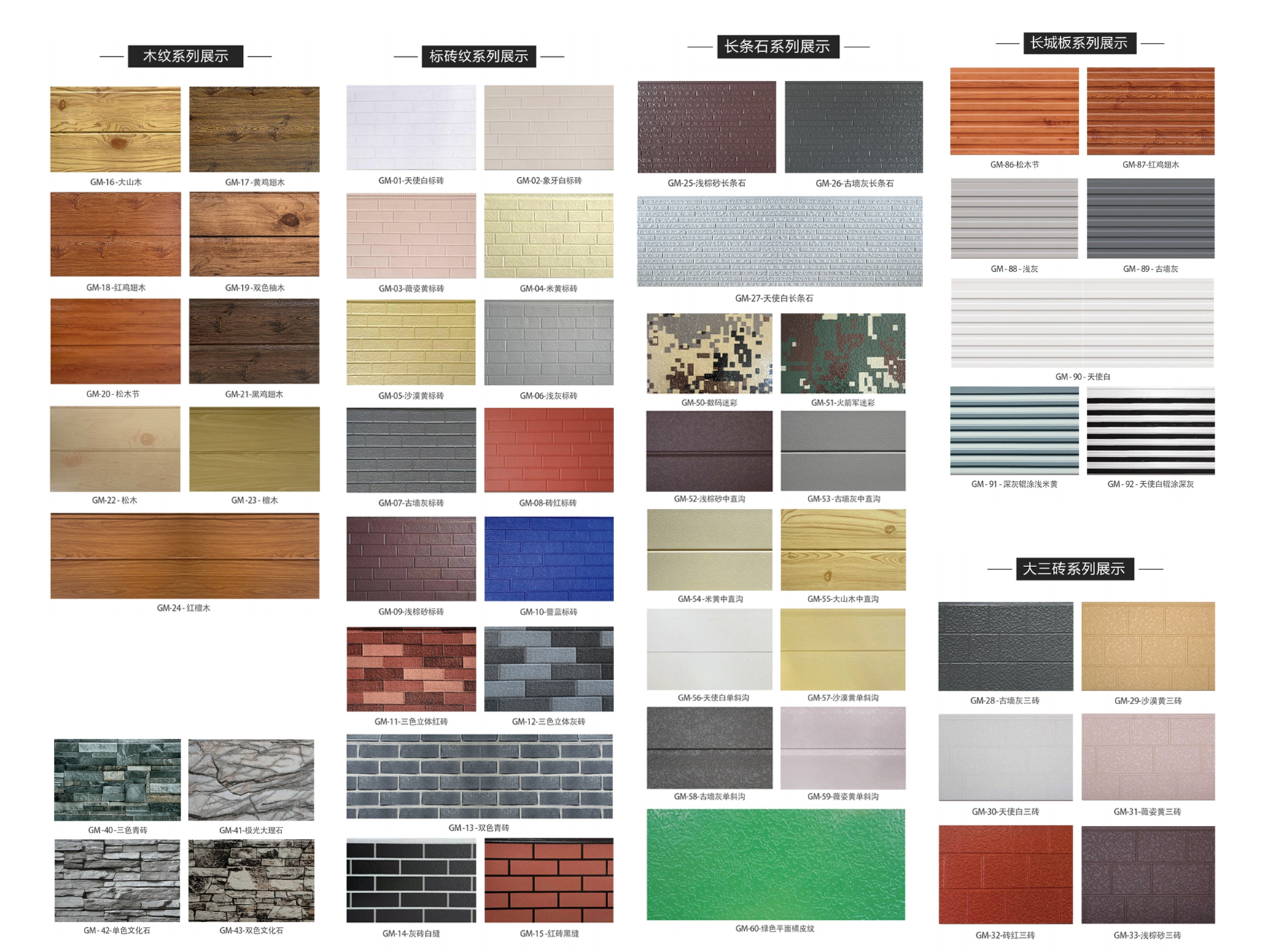

Exterior Cladding: Aesthetic protection options, including 16mm metal-carved siding or durable wood-plastic composite composite wall panels.

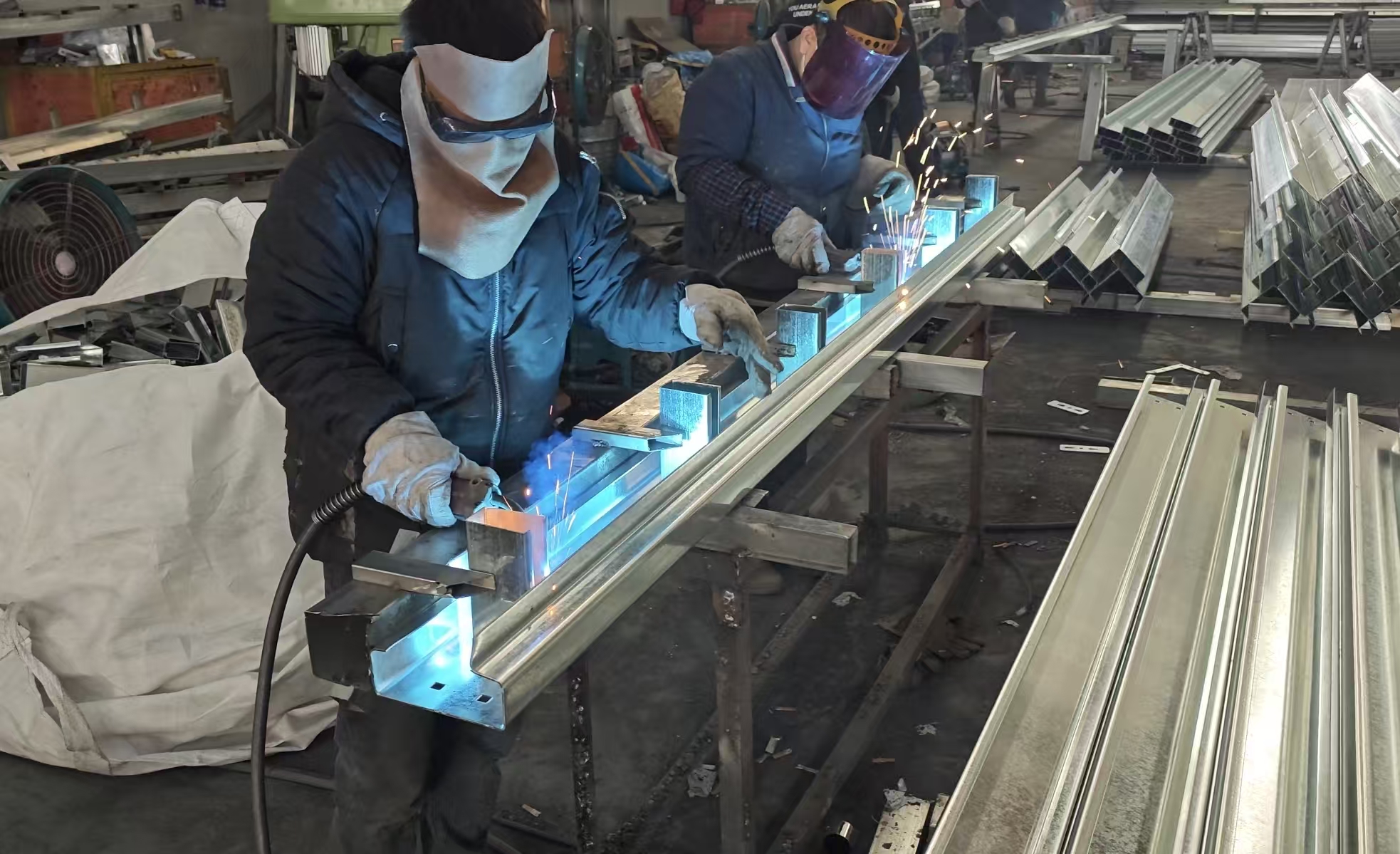

Welding & Assembly: Dedicated precision welding line for foundation base beams and roof structures.

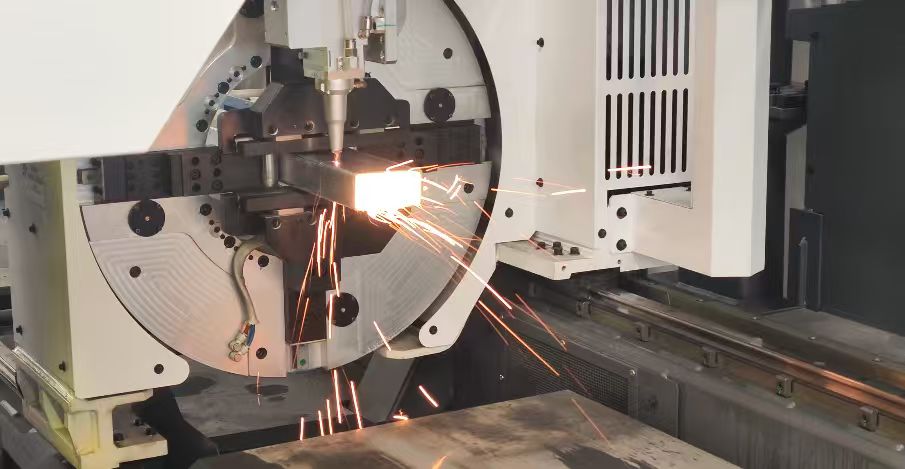

Laser Cutting: Heavy machinery cuts base steel profiles to perfect engineering tolerances.

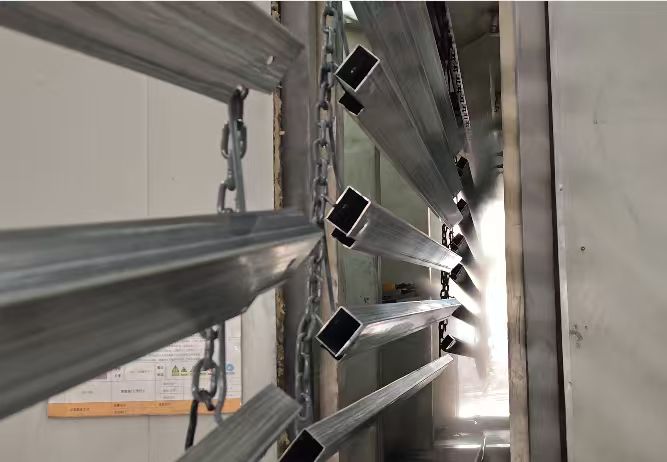

Powder Spraying: Electrostatic powder coating line followed by baking finish to ensure frame durability.

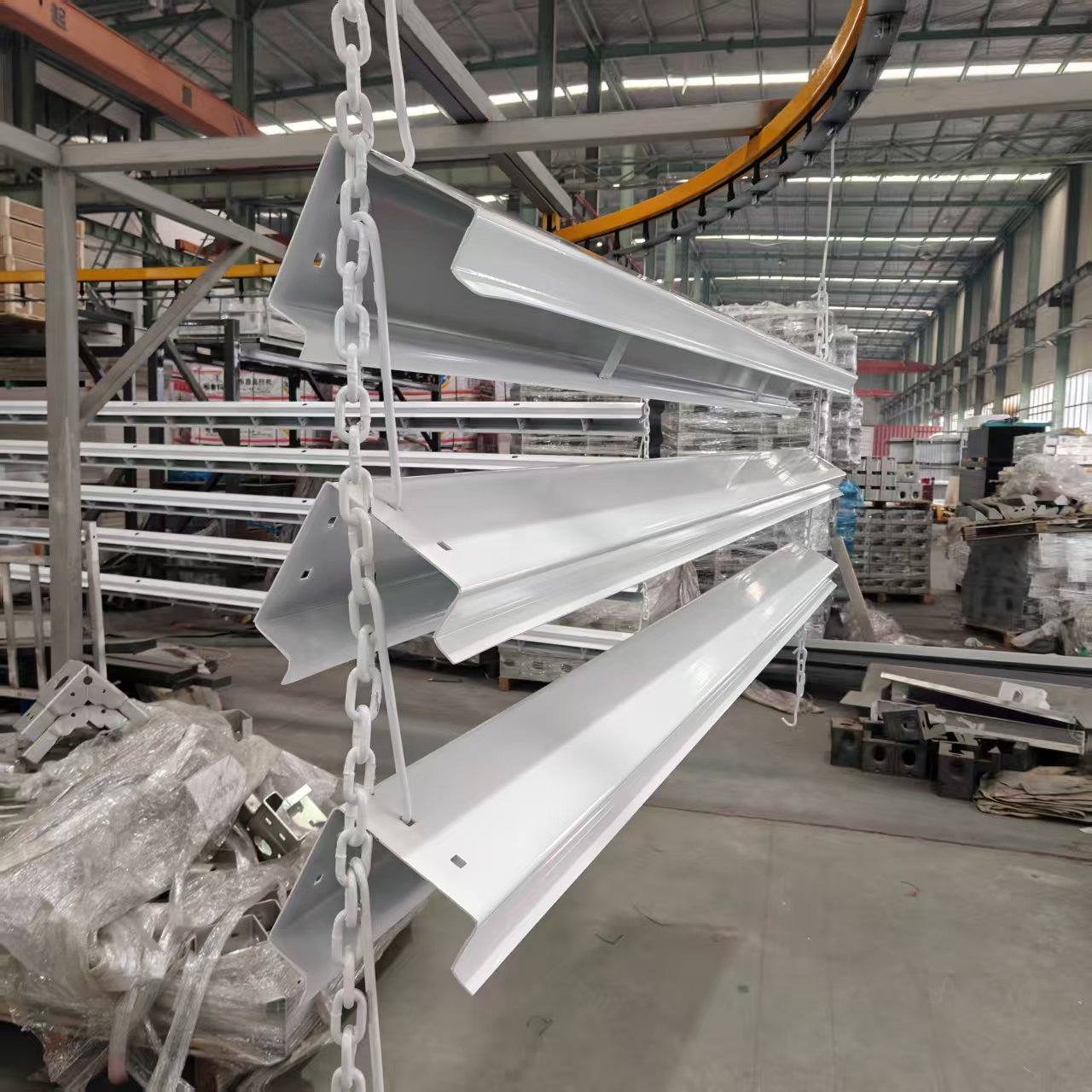

Airing & Curing: Temperature-controlled clean airing process to dry paint layers safely.

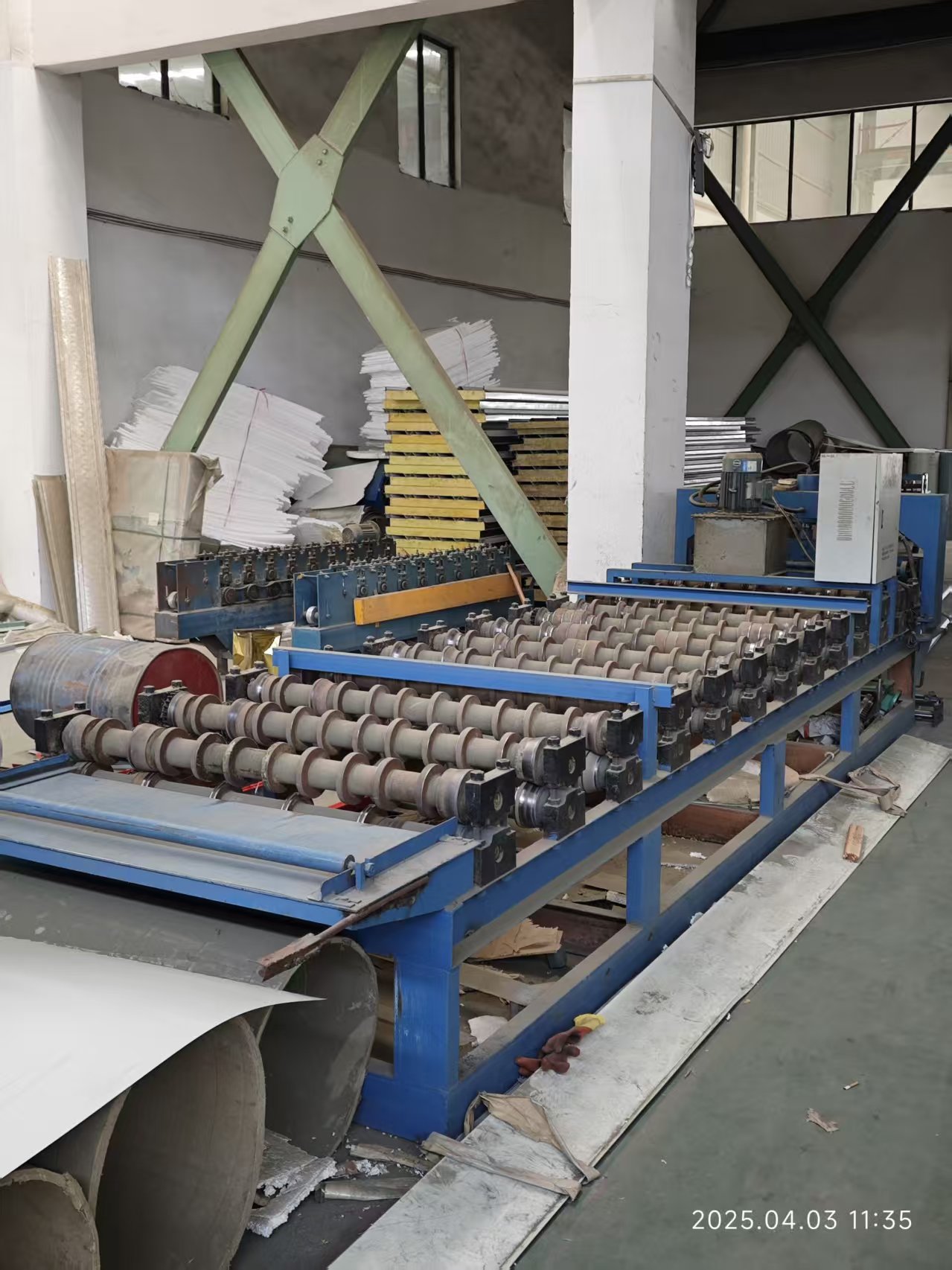

Metal Roll Forming: Cold rolling processes form thick profile structural sections.

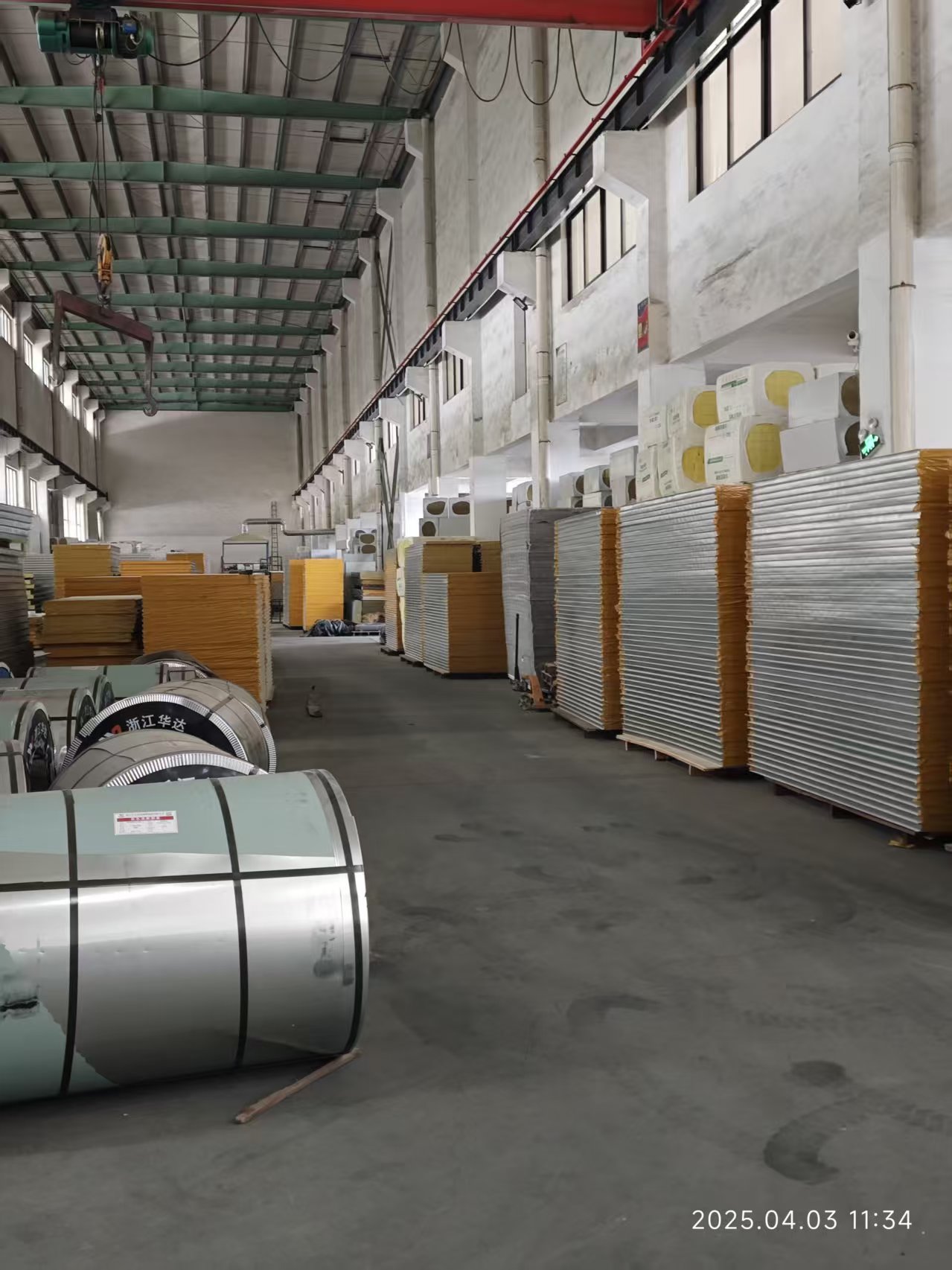

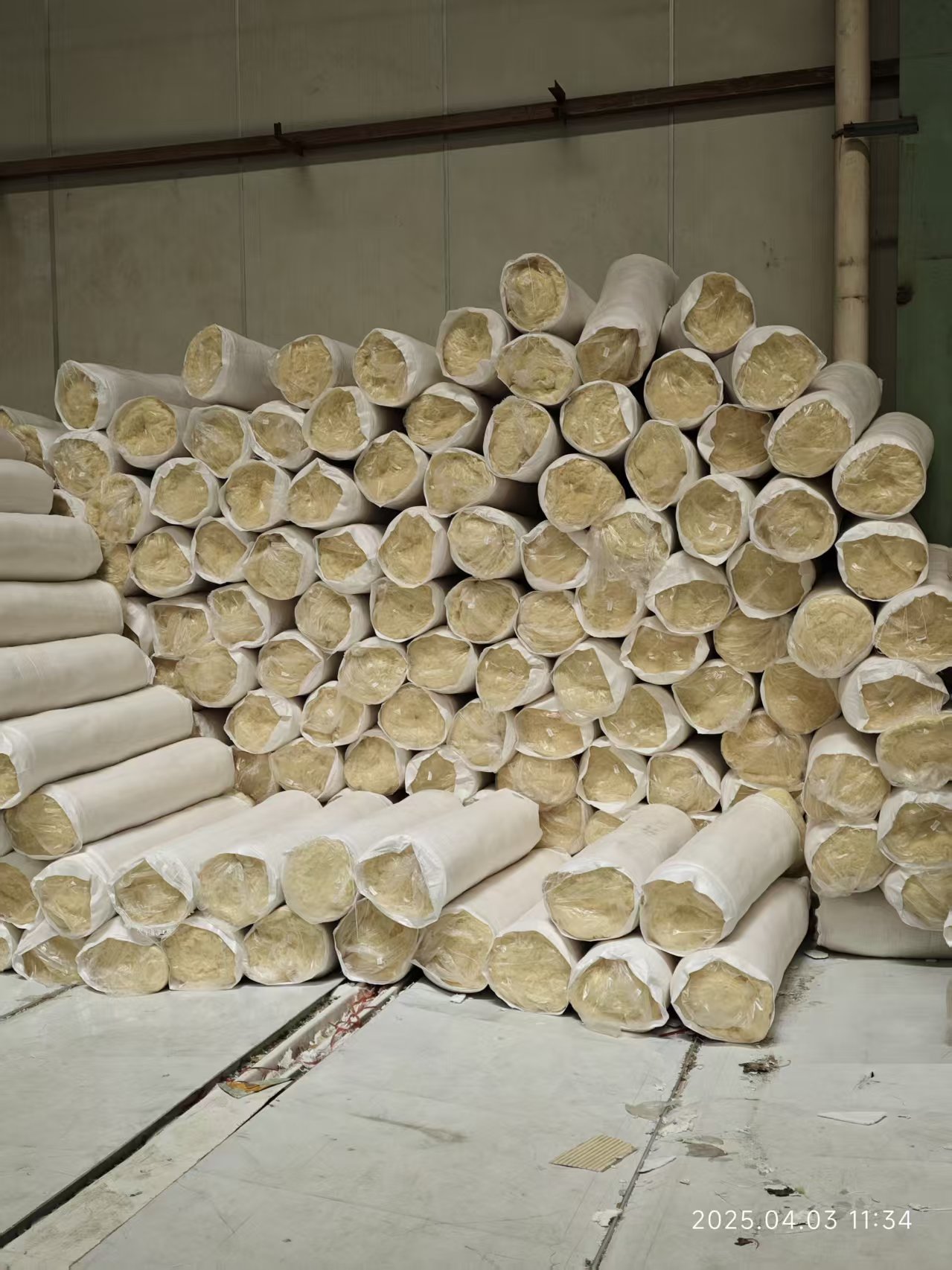

Panel Manufacturing: Lamination processing of iron surface skin sheets and rockwool wall insulation.

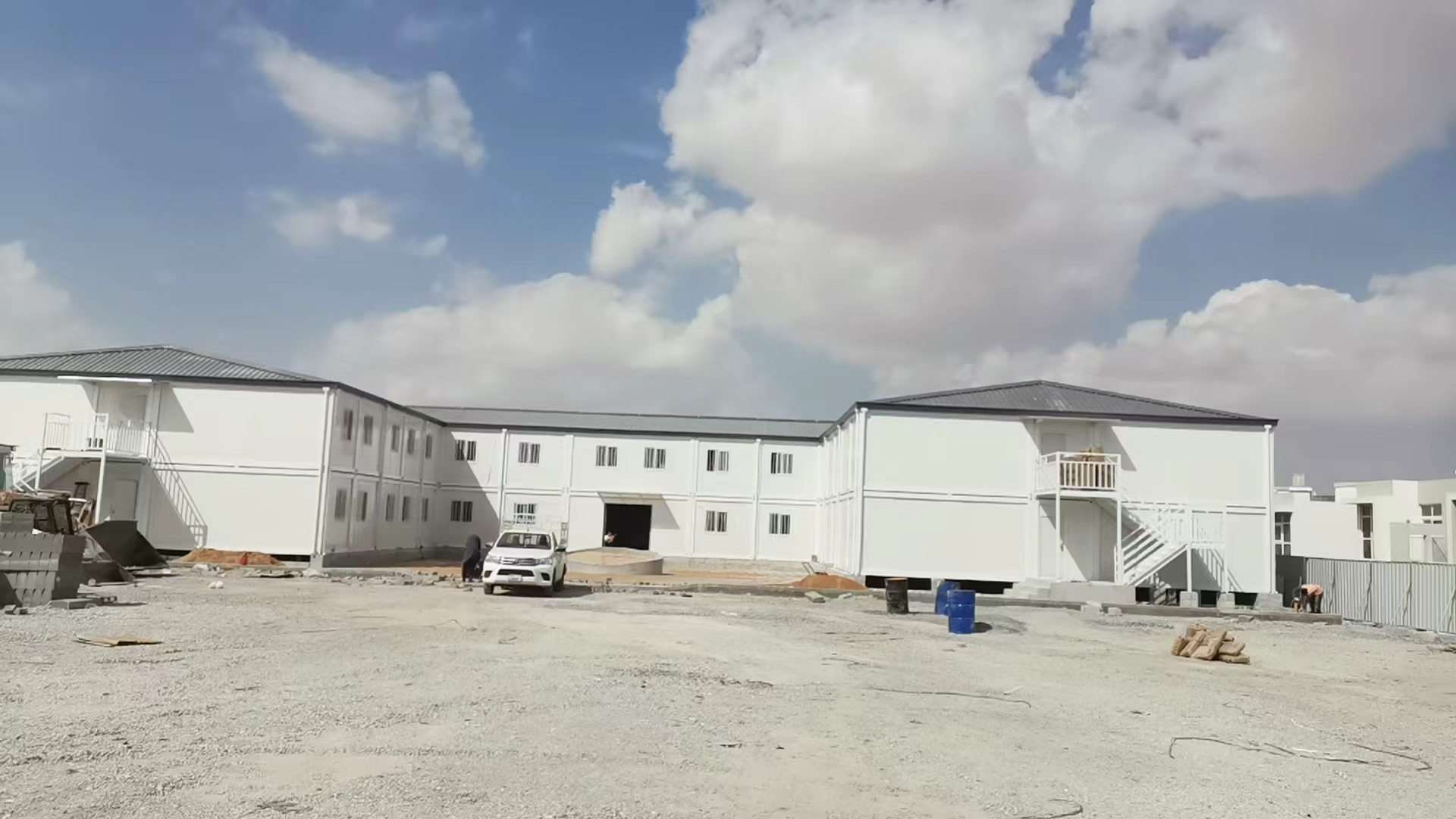

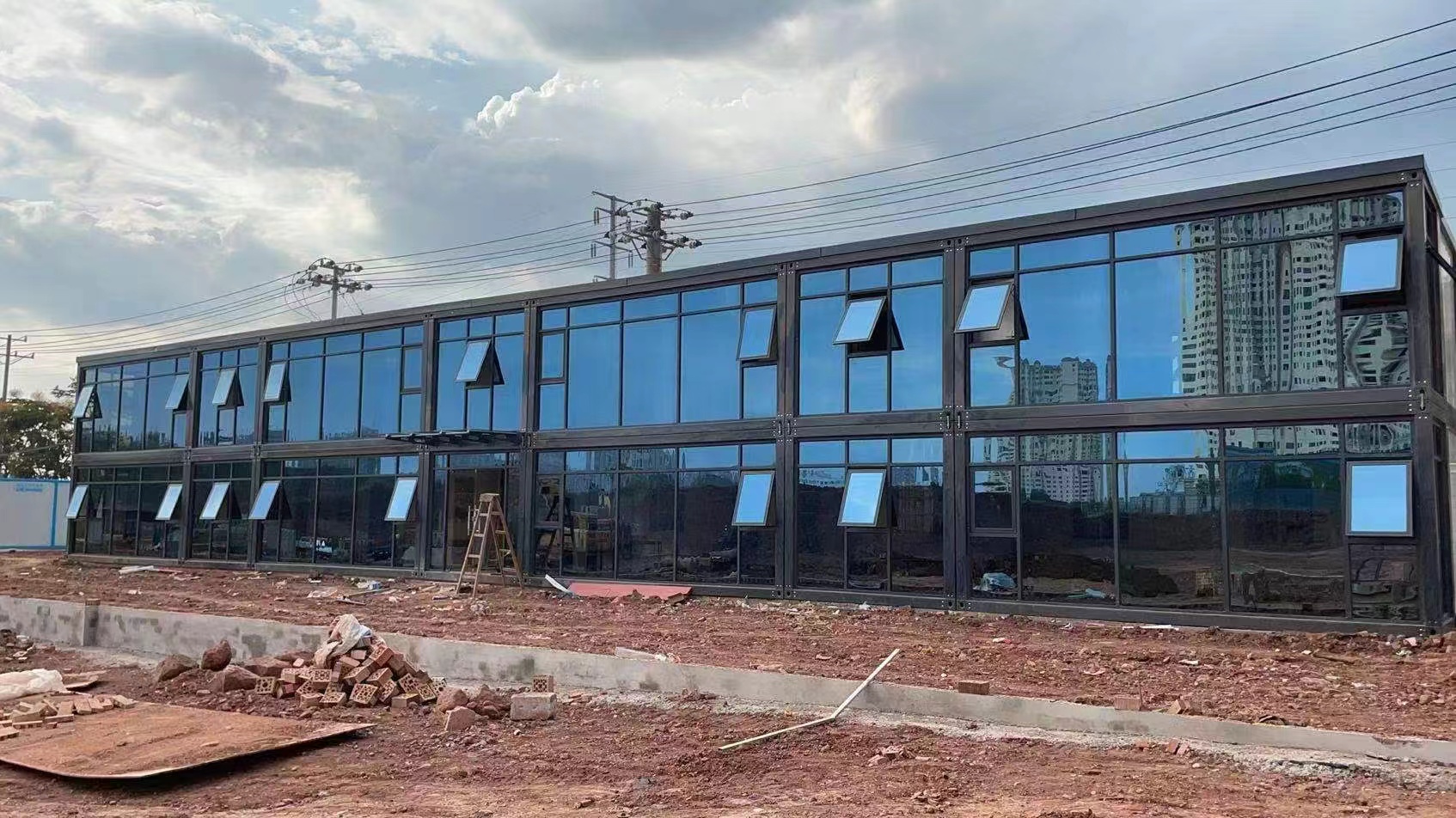

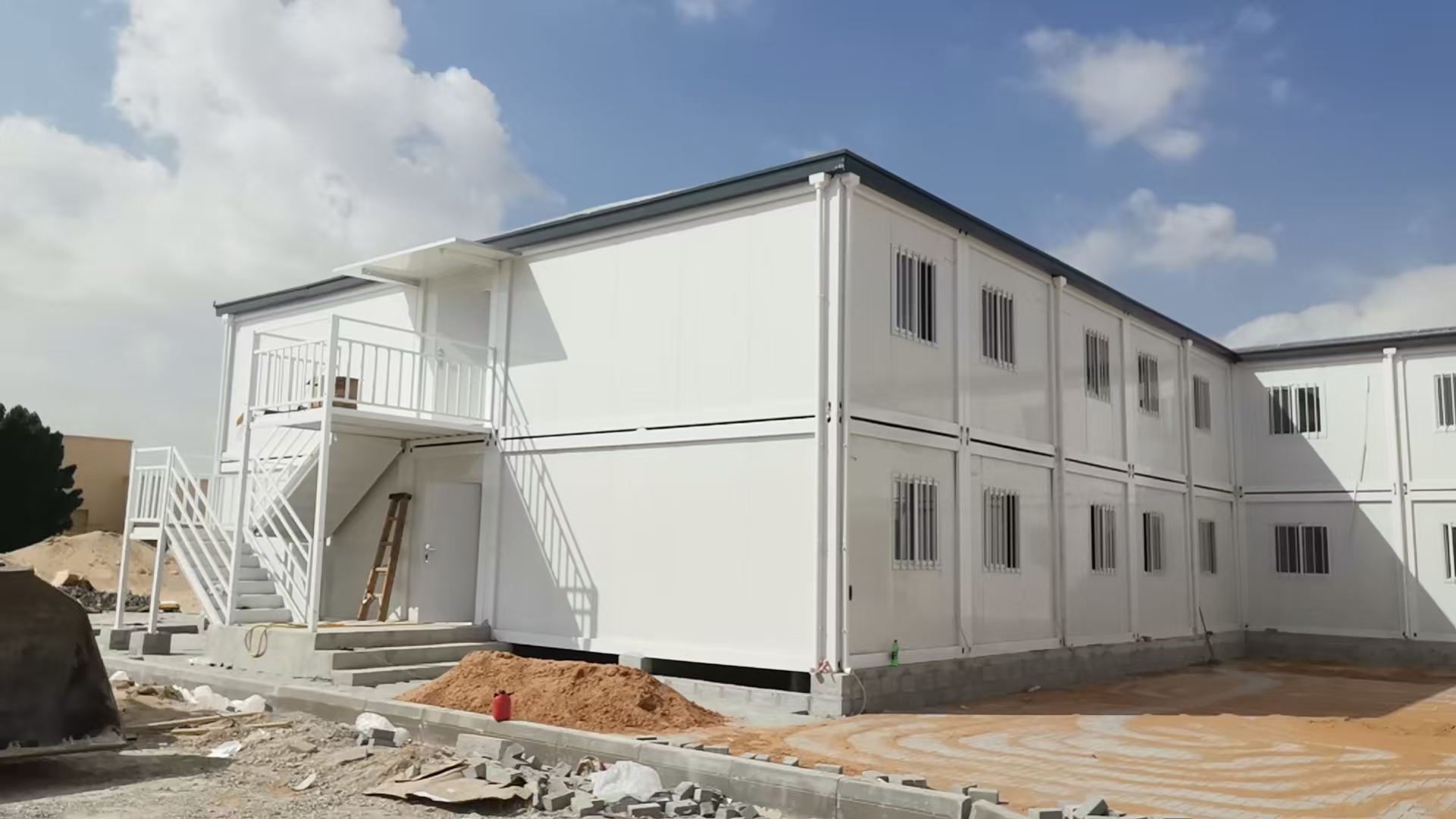

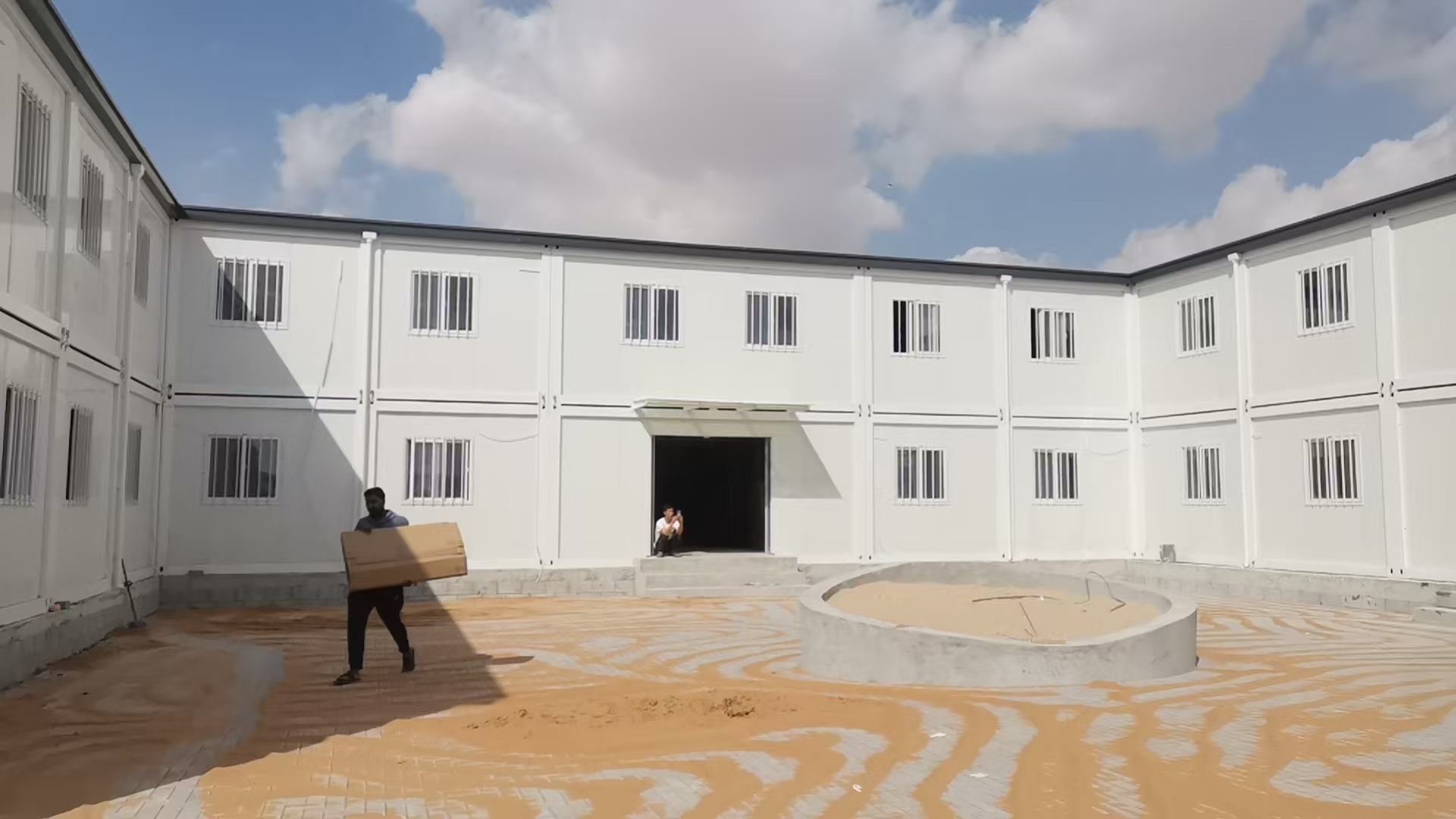

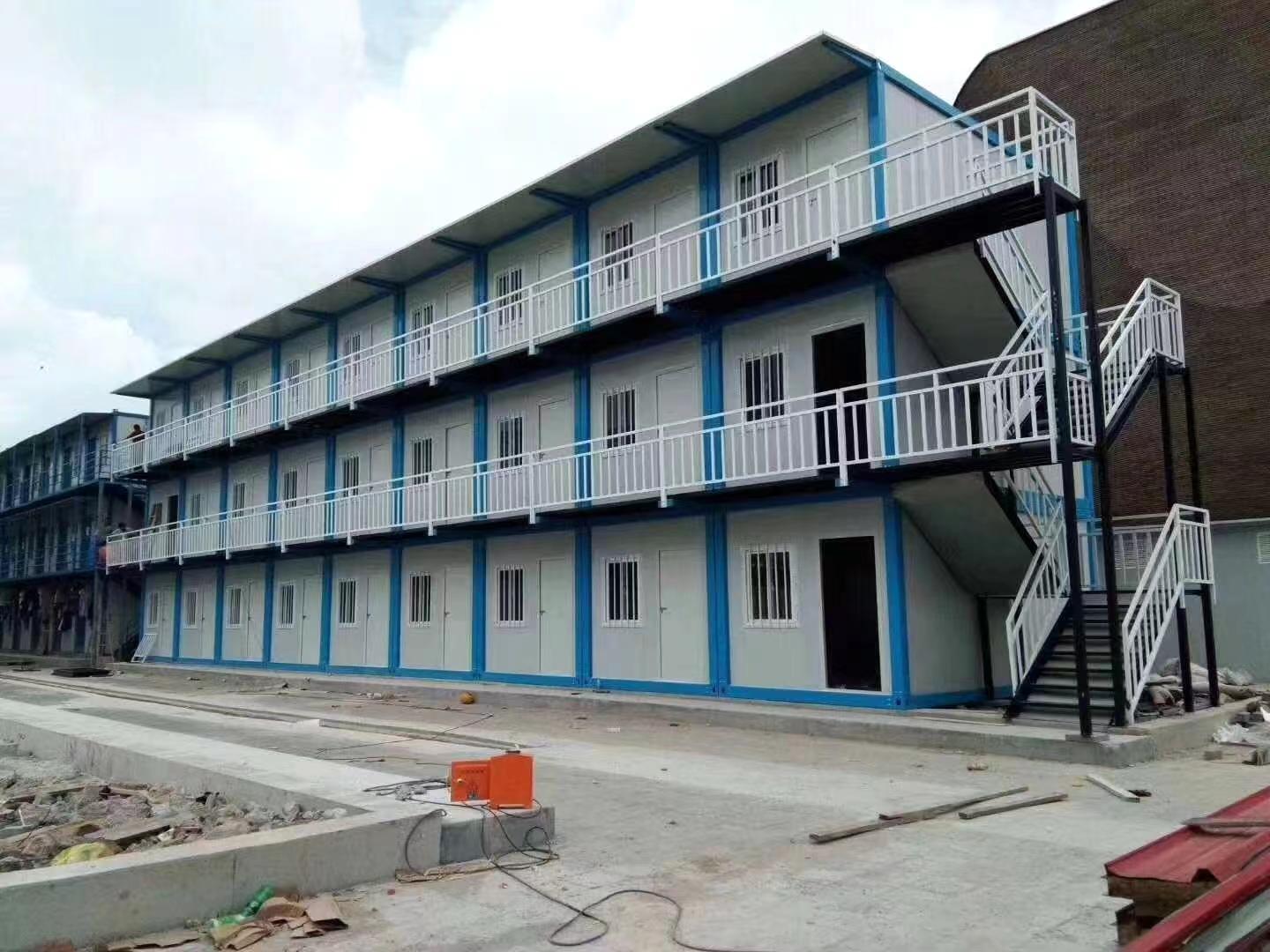

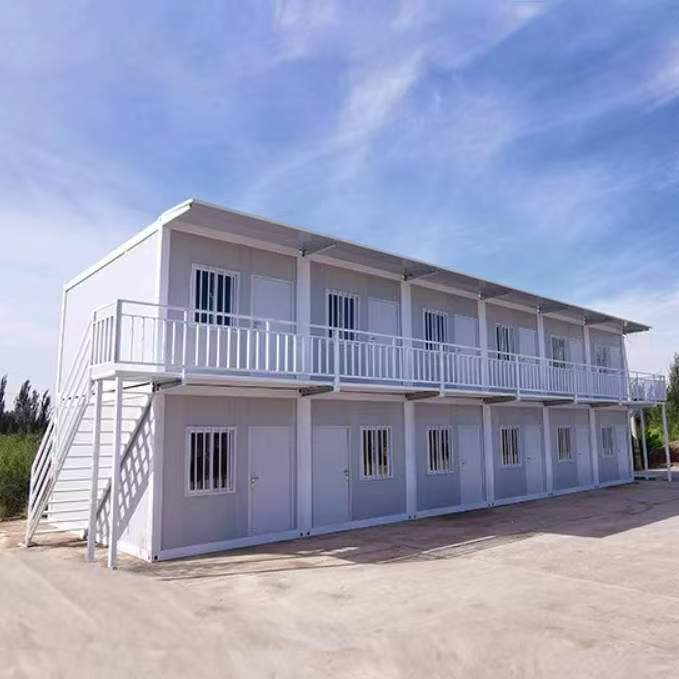

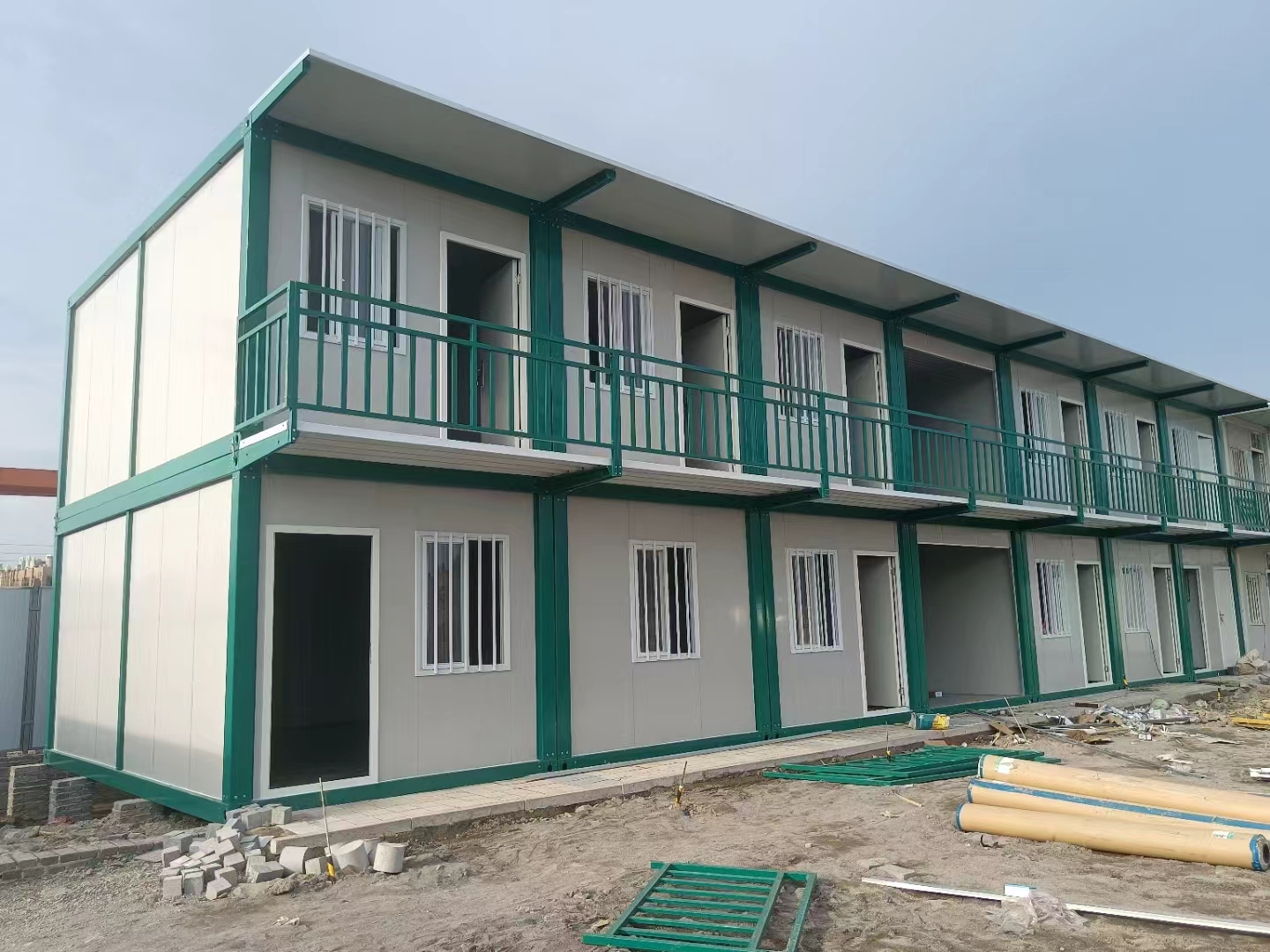

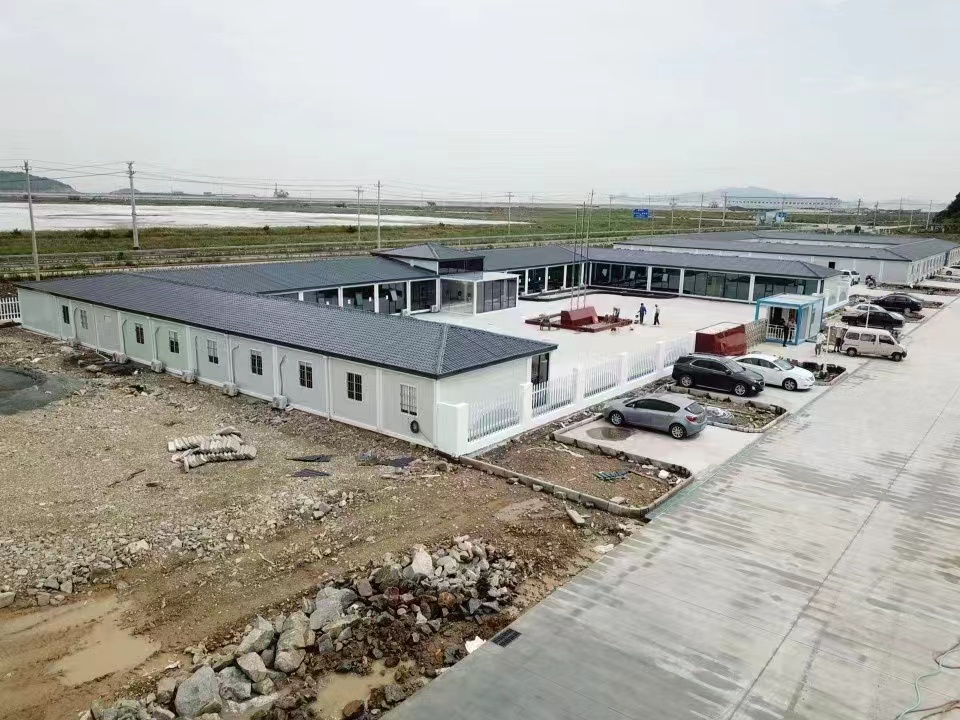

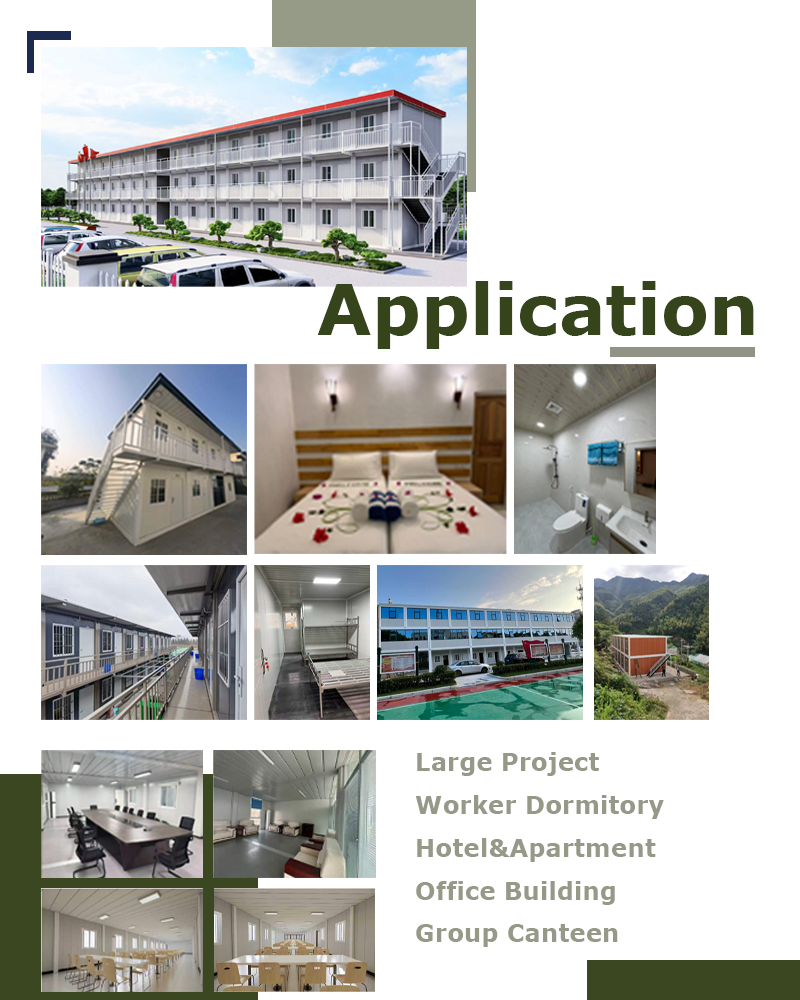

Detachable flat packing container houses offer flexible modular configuration options. They are widely used for emergency housing, collective labor accommodation, commercial offices, popup retail stores, agricultural equipment spaces, security outposts, regional medical shelters, storage warehouses, and modern micro-homes.

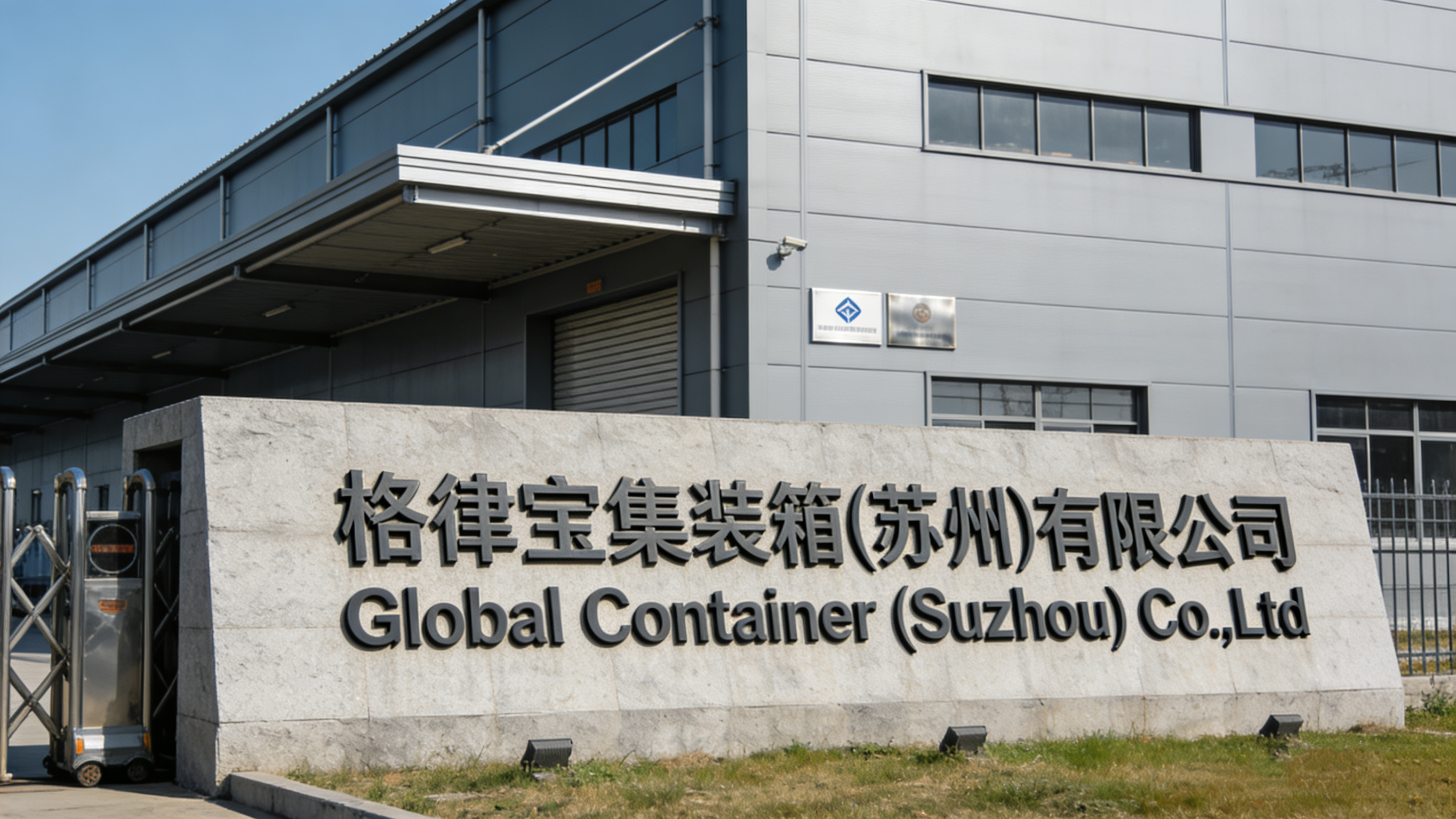

We are a leading manufacturer specializing in the design, production, and customization of high-quality container solutions. With a strong commitment to innovation and excellence, we provide a wide range of container products tailored to meet the needs of various industries, including logistics, construction, and modular housing. Equipped with advanced manufacturing facilities and a professional technical team, we ensure superior craftsmanship, durability, and cost-effectiveness in every product we deliver. Our product lineup includes standard shipping containers, modified containers, prefabricated modular buildings, and customized container solutions. We prioritize customer satisfaction by offering flexible solutions, timely delivery, and exceptional service. Whether for transportation, storage, or on-site applications, our containers provide reliable and sustainable solutions to enhance your business operations.
A: We are a manufacturing factory. You are welcome to visit us at any time.
A: It is very easy! A basic sketch drawing serves as a great reference. If you do not have one, simply notify us of your requirements (such as total area, usage, and number of stories) and we will assist with the layout design.
A: First, the design scheme must be confirmed. Next, structural material selection needs confirmation as different types and grades change baseline costs. Once complete, we will supply a comprehensive itemized quotation.
A: It depends on the size of the house. Generally, 2 workers can complete a standard room setup in about 3 hours.
A: Yes, they are highly stable. The structures are engineered to be safe, with structural capacity to withstand wind loads up to 200km/h and level 9 seismic impacts.
A: They offer superior thermal and sound insulation, improved fire and seismic resistance, easy weather protection, quick assembly speed saving time and labor, increased floor utilization area, and robust resistance to termites.
