Turnkey Prefabricated Modular Operating Room Project For Hospital, Dental, IVF, And Laboratory Cleanroom Decoration

Product Description

Turnkey Prefabricated Modular Operating Room Project for Hospital, Dental, IVF, and Laboratory Cleanroom Decoration

A wide range of purification engineering projects are designed and executed, including medical operating rooms, clean laboratories, laboratory dental implant rooms, clinics, testing institutions, hospital renovations, factories, and clean workshops.

Benefiting from nearly 30 years of management, production, and R&D experience in the clean industry. Backed by cooperation with more than 2,000 enterprises, projects are supported by dedicated design, production, construction, and after-sales service teams, earning high recognition across multiple industries.

Equipped with Grade III qualification for construction engineering, membership in the China Clean Industry Association, and multiple purification product patents. Advanced production workshops enable rigorous quality control at every phase—from design, production, and installation to sales and service.

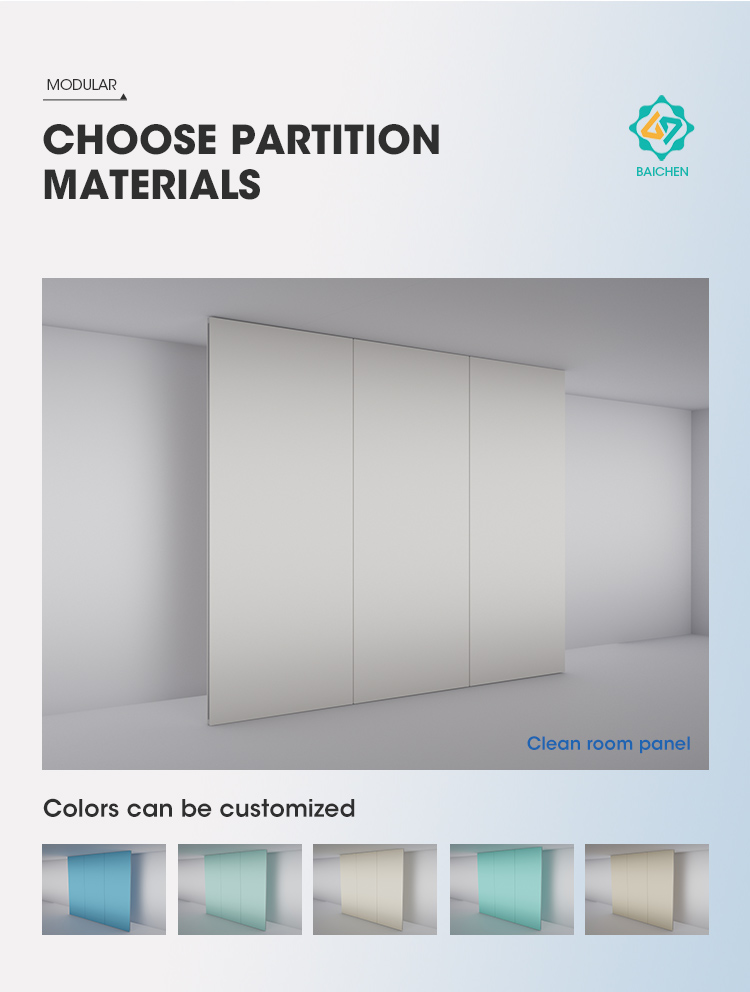

Handmade Clean Room Panel

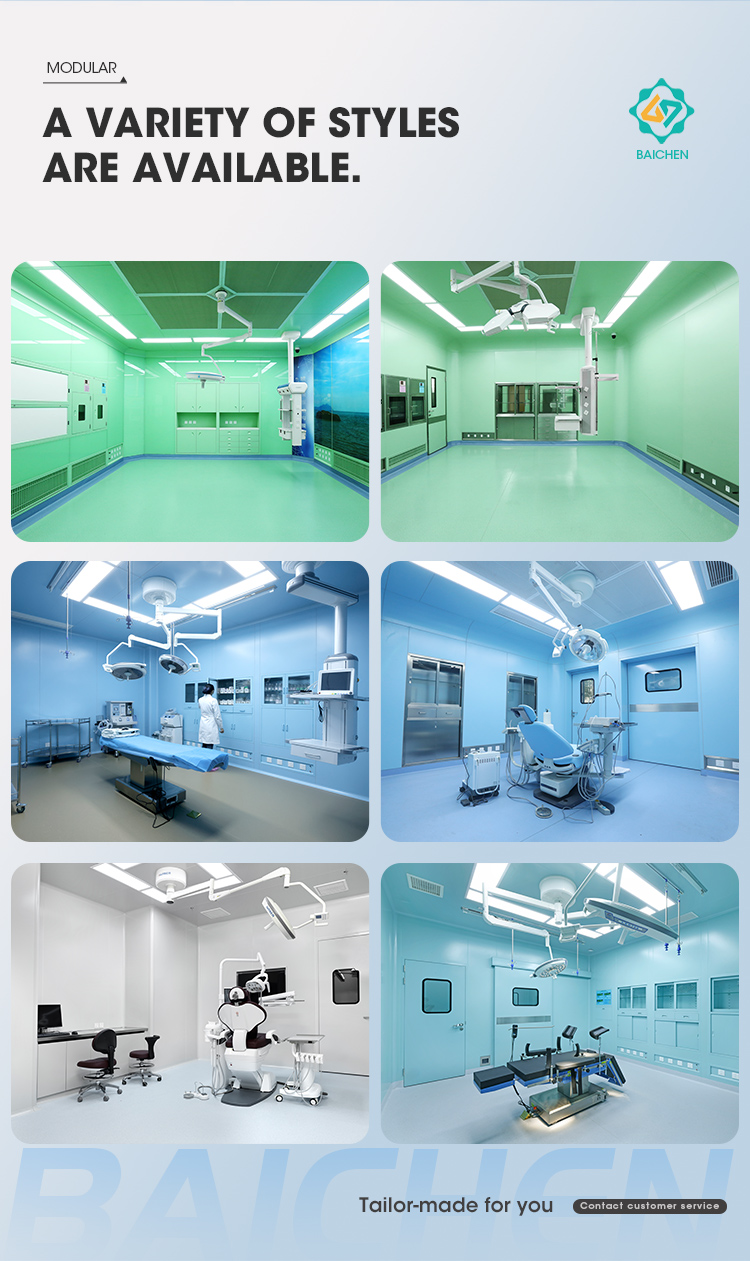

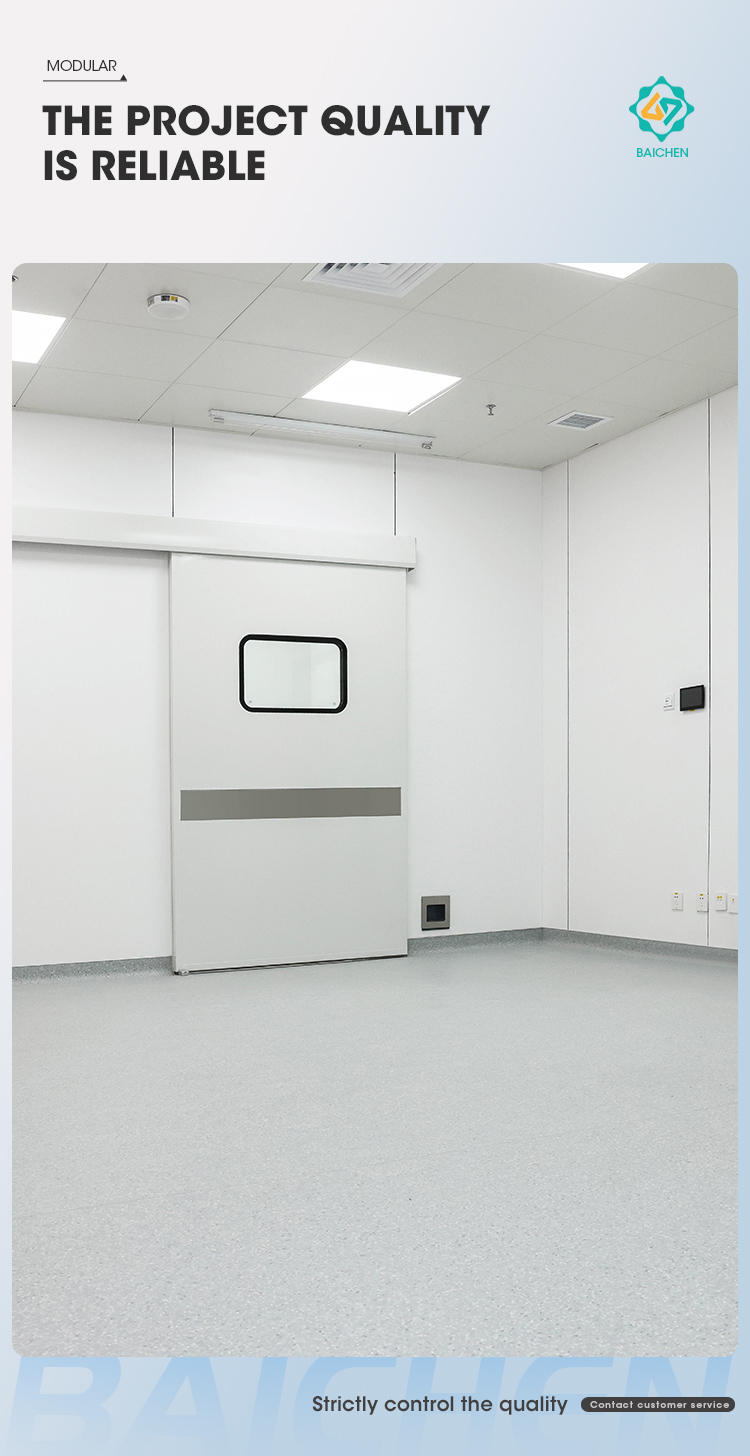

Handmade clean room panel layout Handmade clean room panel structure Handmade clean room panel design Handmade clean room panel installation Handmade clean room panel details Handmade clean room panel project Handmade clean room panel production

Length and width can be customized according to engineering requirements. The combined installation layout significantly reduces foundation engineering and structural costs of buildings, allows for multiple disassembly and assembly, and supports convenient and efficient construction.

These panels feature a smooth and attractive surface, high strength, sound insulation, heat insulation, heat preservation, and earthquake resistance. With customizable dimensions and convenient connection points, there is no exposure of core materials. They are widely applied in high-tech electronics, medicine, chemical industry, and food industry cleanroom enclosures and ceilings, as well as industrial workshops, warehouses, cold storage, ovens, and air conditioner wall panels.

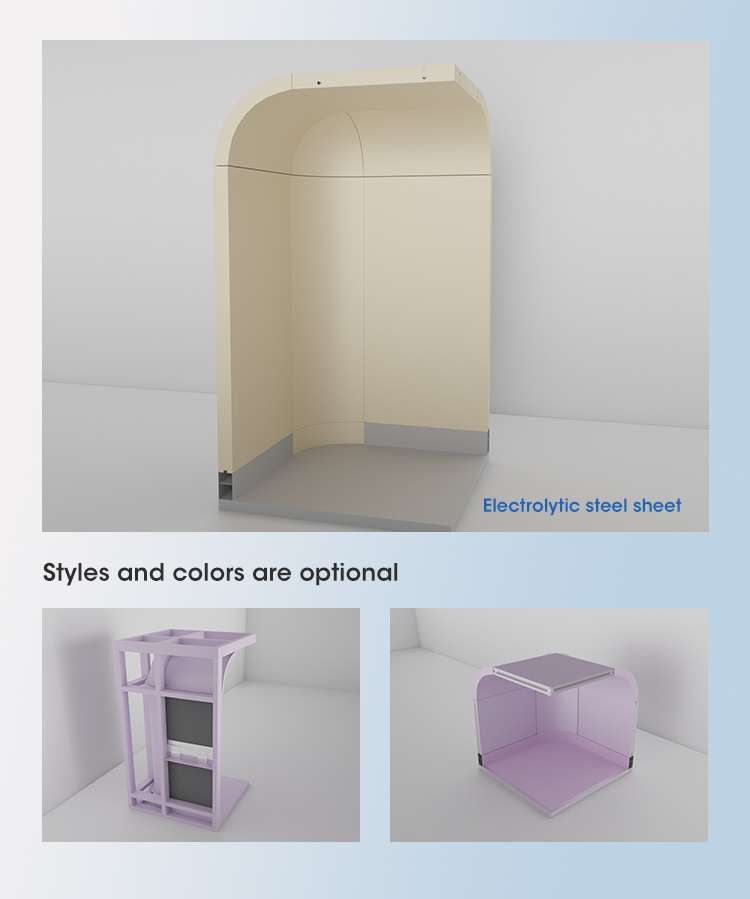

Electrolytic Steel Sheet
Electrolytic steel sheet panel
  • Small building load, light weight, and energy saving.
  • Fire retardant, earthquake-resistant, sound-insulating, moisture-proof, antibacterial, mildew-proof, detachable, energy-saving, and environmentally friendly.
  • Wires and pipes can be arranged in the middle layer of the wall panel, keeping the hospital indoor environment fashionable, clean, and integrated.
  • Increases the usable area of the building, with flexible wall thickness options.
  • Flexible space division, reusable, convenient for maintenance and reconstruction, and highly cost-saving.
  • Delivers a beautiful, clean, and comfortable finish that can be moved into immediately after on-site completion without polluting the environment, promoting resource saving.

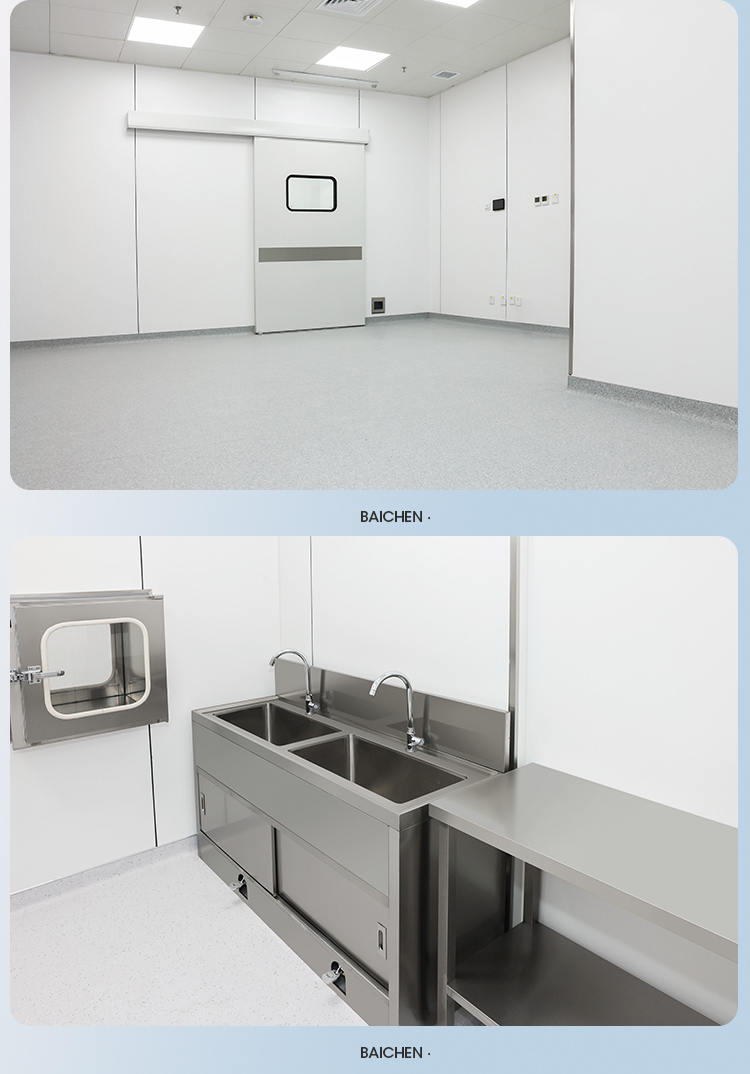

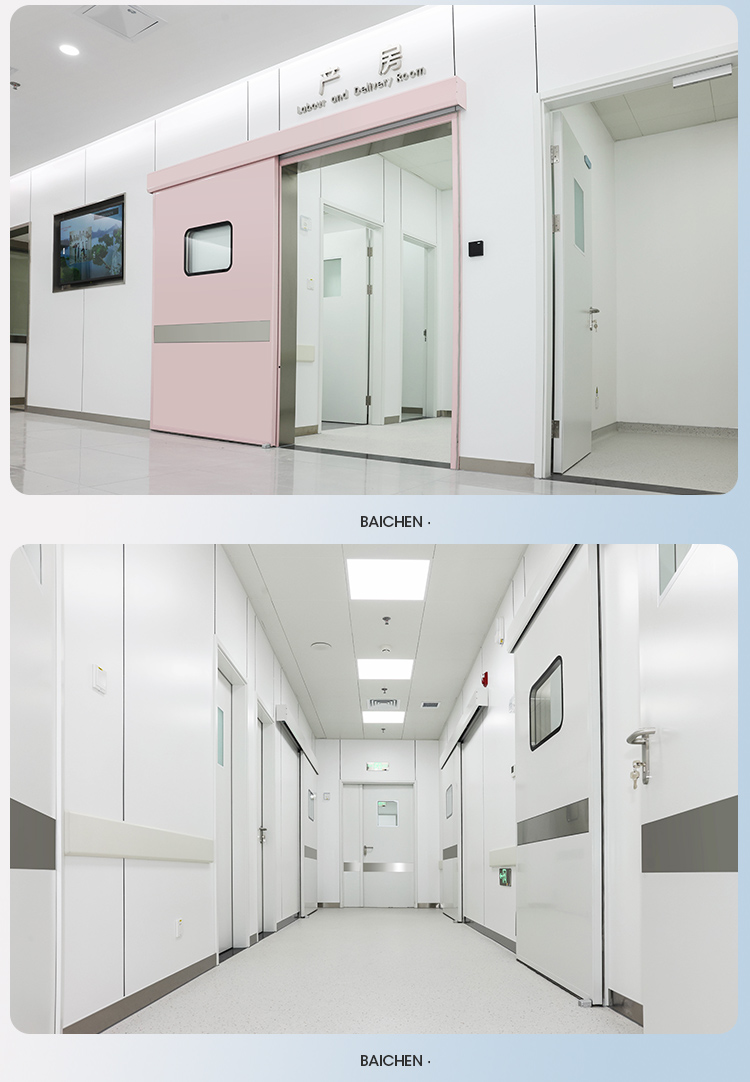

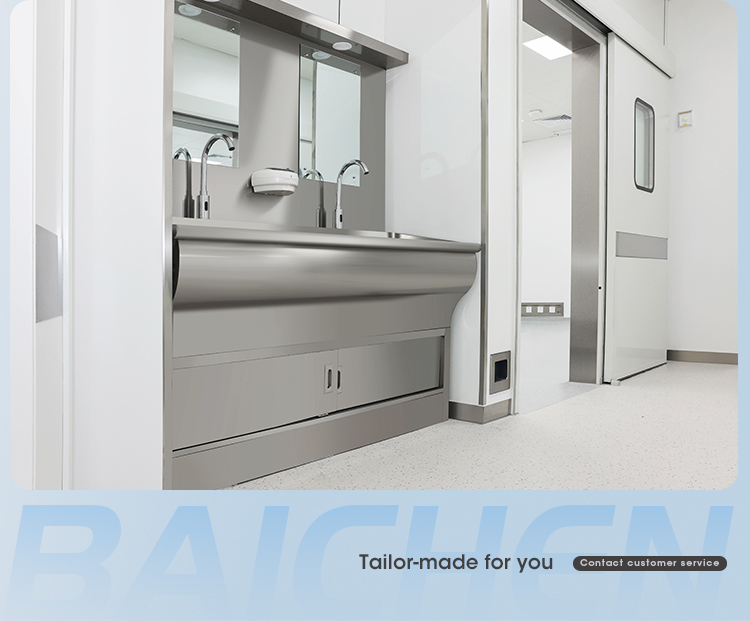

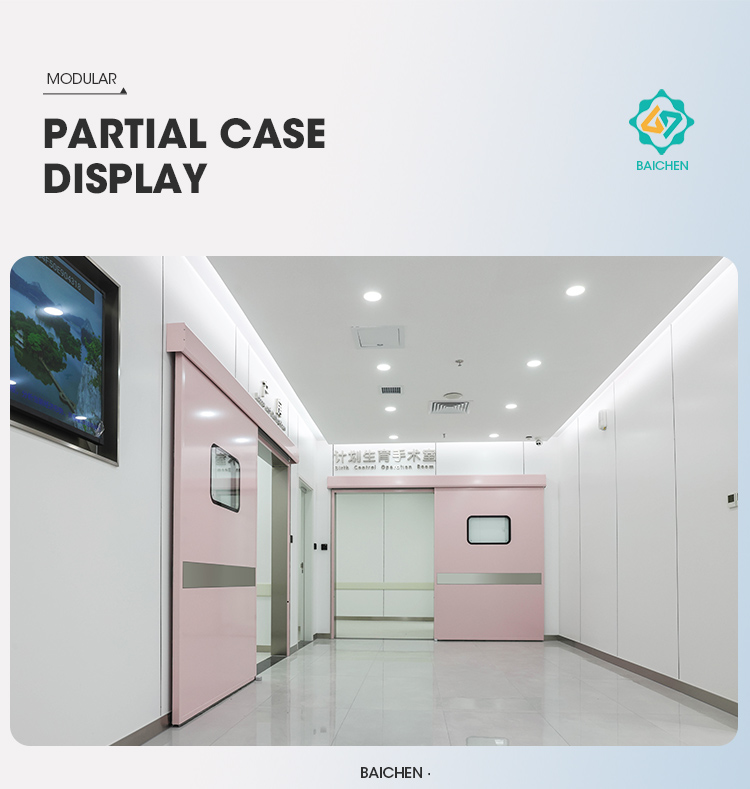

Electrolytic steel sheet installation layout Electrolytic steel sheet application in hospital Modular operating room construction Operating room cleanroom decoration Prefabricated cleanroom details
Classification Standards for Clean Operating Rooms
Clean Room Grade Maximum Average Concentration of Bacteria by Sedimentation Method (Planktonic Method) Air Cleanliness Class Reference Surgery
Surgical Area Peripheral Area Surgical Area Peripheral Area
1 0.2 cfu/30min · φ90 dish (5 cfu/m³) 0.4 cfu/30min · φ90 dish (10 cfu/m³) 5 6 Prosthesis implantation, large-scale organ transplants, and surgeries where site infections endanger life.
2 0.75 cfu/30min · φ90 dish (25 cfu/m³) 1.5 cfu/30min · φ90 dish (50 cfu/m³) 6 7 Major surgeries involving deep tissues and major vital organs.
3 2 cfu/30min · φ90 dish (75 cfu/m³) 4 cfu/30min · φ90 dish (150 cfu/m³) 7 8 Other general surgical operations.
4 6 cfu/30min · φ90 dish 8.5 Infectious and severely contaminated surgeries.
Classification Standards for Clean Operating Room Premises
Clean Room Grade Maximum Average Concentration of Bacteria by Sedimentation Method (Planktonic Method) Air Cleanliness Class
1 Local centralized air supply area: 0.2 cfu/30min · φ90 dish
Other areas: 0.4 cfu/30min · φ90 dish
Local level 5, other areas level 6
2 1.5 cfu/30min · φ90 dish Level 7
3 4 cfu/30min · φ90 dish Level 8
4 6 cfu/30min · φ90 dish Level 8.5

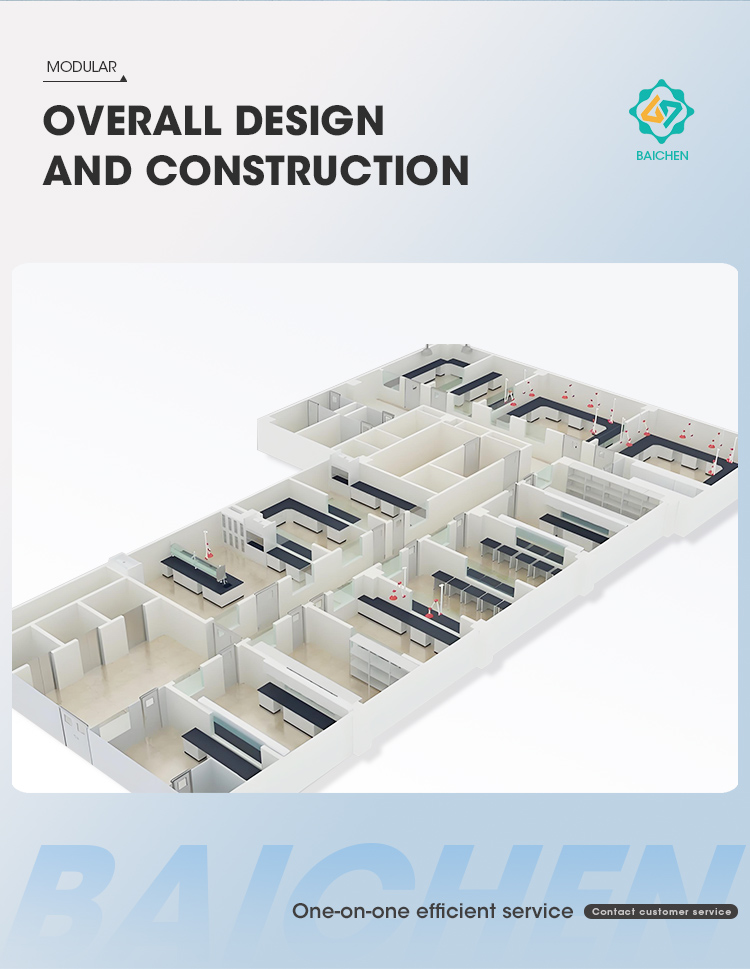

Clean operating room overall layout
Frequently Asked Questions (FAQ)
What types of environments are served by your purification engineering?
Purification engineering covers medical operating rooms, clean laboratories, laboratory dental implant rooms, clinics, testing institutions, hospital renovations, factories, and clean workshops.
What are the main advantages of using handmade clean room panels?
Handmade clean room panels feature high strength, sound and heat insulation, earthquake resistance, customizable dimensions, and easy disassembly. Their design prevents core material exposure and reduces structural foundation costs.
Where are handmade clean room panels typically applied?
They are widely used in cleanroom ceilings and enclosures within high-tech electronics, pharmaceuticals, chemical industries, and food processing, as well as in cold storage, ovens, and industrial warehouses.
How do electrolytic steel sheets improve hospital operating rooms?
Electrolytic steel sheets are fire-retardant, moisture-proof, antibacterial, and mildew-proof. They allow for the integration of wires and pipes within the middle layer, maximizing building usable area while maintaining a modern, clean, and safe clinical environment.
How are clean operating rooms graded?
Operating rooms are classified into Grades 1, 2, 3, and 4 based on specific air cleanliness classes and the maximum average concentration of bacteria allowed (using sedimentation or planktonic methods) in both surgical and peripheral areas.
What level of cleanroom is required for organ transplant surgeries?
According to classification standards, prosthesis implantations and large-scale organ transplants require a Grade 1 clean room, which corresponds to Air Cleanliness Class 5 in the surgical area and Class 6 in the peripheral area.
