China Prefab Houses Modern Luxury High Rise Multi-Storey Shed Building Steel Structure with Galvanized Surface ISO9001 Certified

Customer Feedback and Positive Feedback on Project Cooperation

Products Description

The advantages of steel structure high-rise buildings are as follows:

1. Strength and Durability

Steel is known for its high strength-to-weight ratio, making it an excellent choice for constructing tall buildings. Steel structures can withstand heavy loads, such as wind and seismic forces, without compromising the integrity.

2. Design Flexibility

Steel structures offer greater design flexibility compared to other construction materials. Steel can be easily shaped and customized, allowing architects and engineers to create innovative and aesthetically pleasing designs.

3. Speed of Construction

Steel structures can be prefabricated off-site, which significantly reduces the construction time on-site. This leads to faster project completion and reduced labor costs.

4. Cost-Effective

While the initial cost of steel may be higher than other materials, its long-term benefits make it cost-effective. Steel structures require minimal maintenance, have a longer lifespan, and can be easily modified or expanded if needed.

5. Fire Resistance

Contrary to popular belief, steel structures are highly fire-resistant. Steel does not burn or contribute to the spread of fire, making it a safe choice for high-rise buildings.

Material List
Project	Steel Structure Building
Size	According to Customer Need
Main Steel Structure Frame
Column	Q235B, Q355B Welded H Section Steel
Beam	Q235B, Q355B Welded H Section Steel
Secondary Steel Structure Frame
Purlin	Q235B C and Z Type Steel
Knee Brace	Q235B C and Z Type Steel
Tie Tube	Q235B Circular Steel Pipe
Brace	Q235B Round Bar
Vertical and Horizontal Support	Q235B Angle Steel, Round Bar or Steel Pipe
Roof and Wall System
Roof Cladding	Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Wall Cladding	Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Door	Sandwich Panel Sliding Door/Rolling Metal Door
Window	Aluminium Alloy Window/PVC Panel Window

With more than 100 engineers and the help of modern designing software, such as PKPM, AutoCAD, Tekla, 3D3S, 3DS MAX, full designing and detailing services are provided to all customers.

Installation Instructions

Production Process

Steel structure building is a popular type of building system now, and its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.

Connection Method: The columns are connected with the foundation by pre-embedding anchor bolt. The beams and columns, beams and beams are connected with high intensity bolts.

Construction Advantage:

Could be designed according to different purpose and environment condition.
Long life span, could be more than 50 years.
Quick and easy install work and the more economic friendly.
Could be moved and recycled.
Strong seismic and wind resistance.

Product Packaging

Packaging and Shipping of Steel Structure

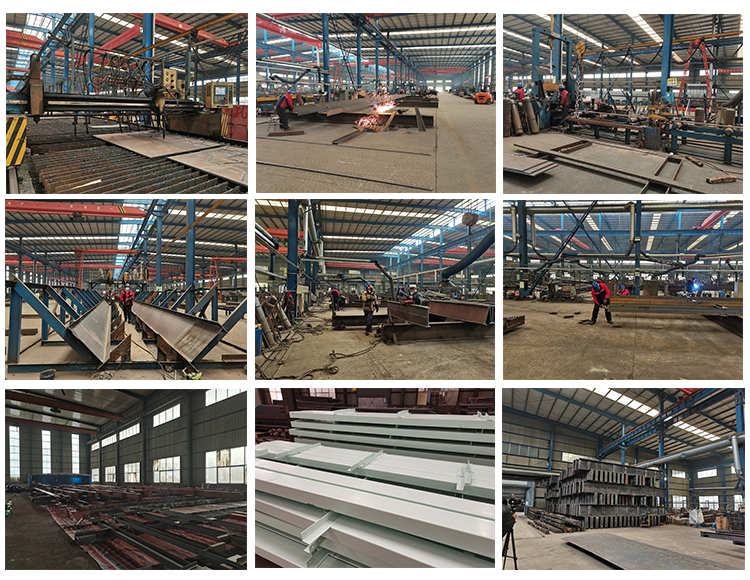

Production Showcase

Certifications

Frequently Asked Questions

Q Is the product direct from the factory?

Yes, we are a direct factory, which means you can get the best and most competitive price.

Q What are the main products?

Our main products include steel structures, warehouses, workshops, prefab houses, container houses, steel poultry sheds, steel car garages, aircraft hangars, light steel villas, sandwich panels, and other construction materials.

Q What quality assurance is provided and how is quality controlled?

We have established a procedure to check products at all stages of the manufacturing process - including raw materials, in-process materials, validated or tested materials, and finished goods.

Q Do you offer on-site installation guidance overseas?

Yes, we can provide installation, supervision, and training services. Professional technical engineers can be sent to supervise the installation on-site overseas.

Q What details should be provided before offering a complete quotation?

Please provide warehouse dimensions, draft drawings, layouts, and preferred materials for the prefabricated structures. We will design the drawings and offer a competitive quotation accordingly.

Q What kinds of drawings are provided?

We provide plan drawings, elevation drawings, sectional drawings, foundation drawings, and detailed installation drawings.
