| Structural Performance | |||
|---|---|---|---|
| Waterproof | 99.9999% | Fireproof | Grade A |
| Wind Resistance | 90~110 Km/hour | Seismic Resistance | Grade 10 |
| Sound Resistance | >=30dB | Lifetime | More than 30 years |
| Roof Live Load | 1.0 kN/m² | Floor Live Load | 2.5 kN/m² |
| Material Details | |||
| Roof | External roofing: Top tile 0.45mm | ||
| Internal ceiling: t0.3mm Type-831 ceiling plate | |||

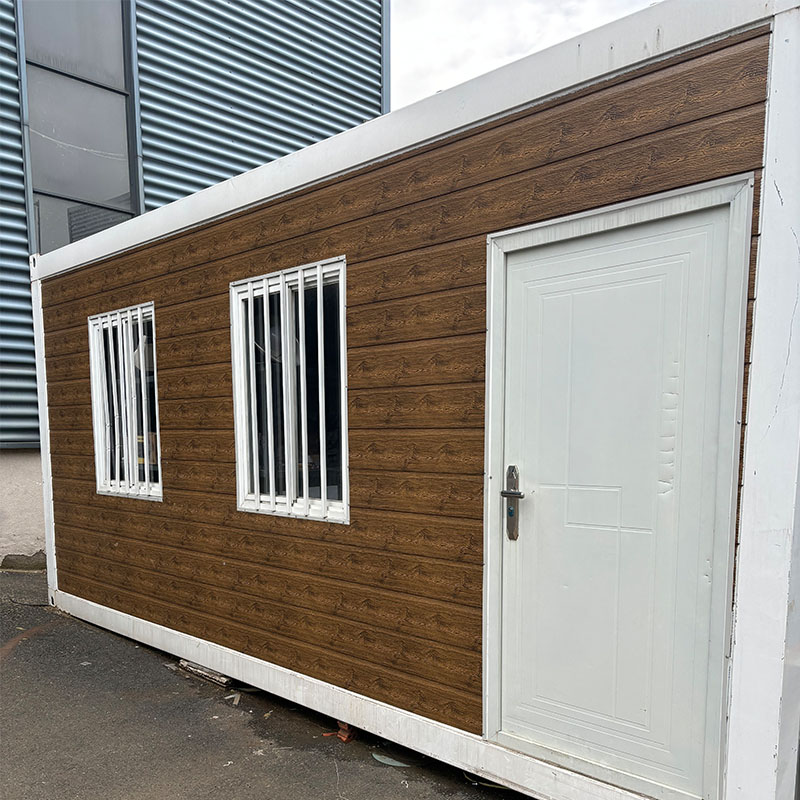

| Wall Board Options | Color Optional: White, Wooden stripe color, Black, Gray | ||
| Floor Base | Fire resistant cement fiber board 18mm (in the middle of the floor) | ||
| Insulation Options (Wall Board) | |||
|
1. Class A fireproof rock wool board (50mm, 75mm, 100mm): Thermal conductivity of 0.035W/(m·K), suitable for high safety requirements. 2. Polyurethane foam (PU) (50mm, 75mm, 100mm): Thermal conductivity of 0.022W/(m·K), offers excellent thermal insulation. 3. Polystyrene foam (EPS) (50mm, 75mm, 100mm): Thermal conductivity of 0.035W/(m·K), cost-effective and suitable for regular climates. |
|||

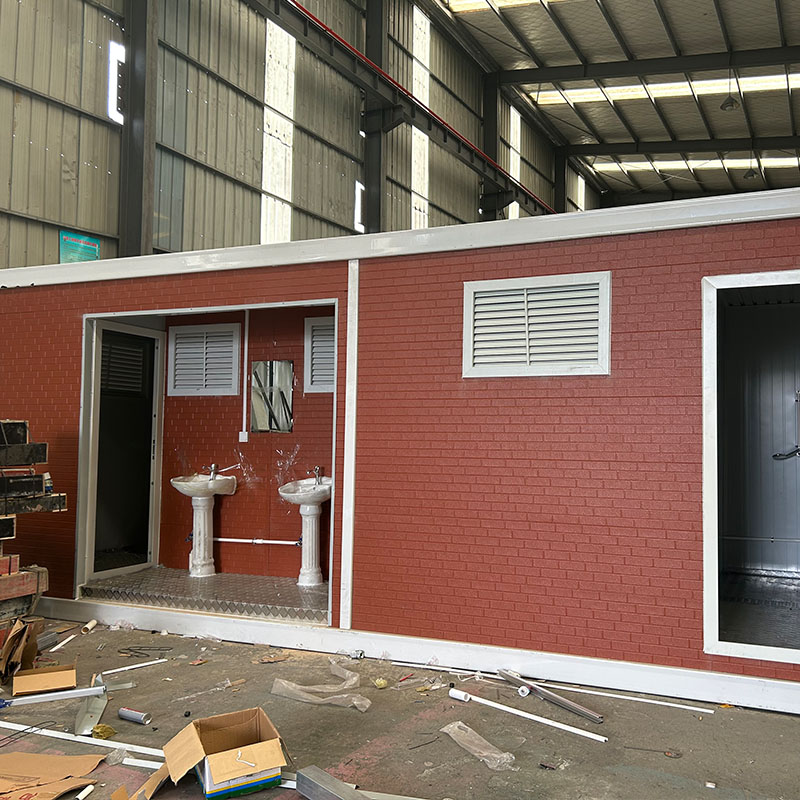

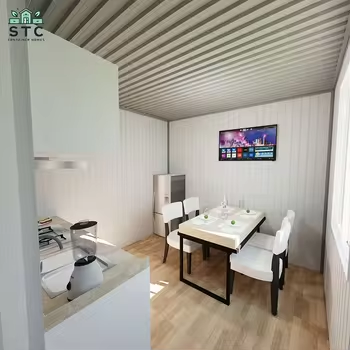

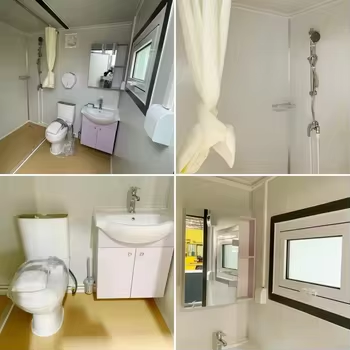

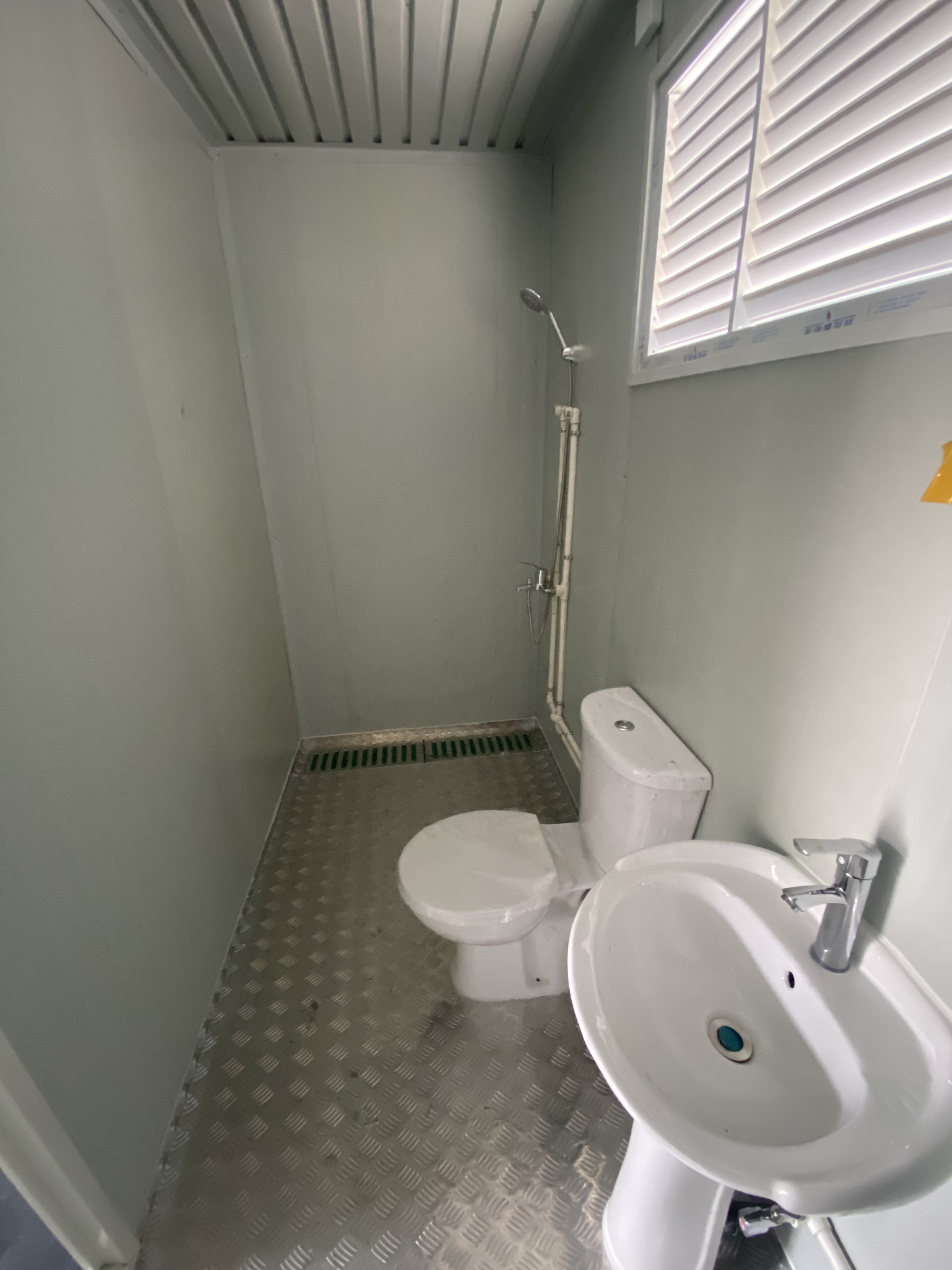

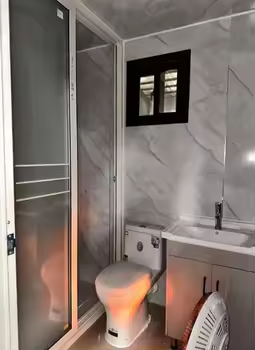

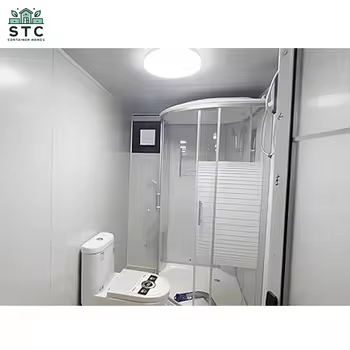

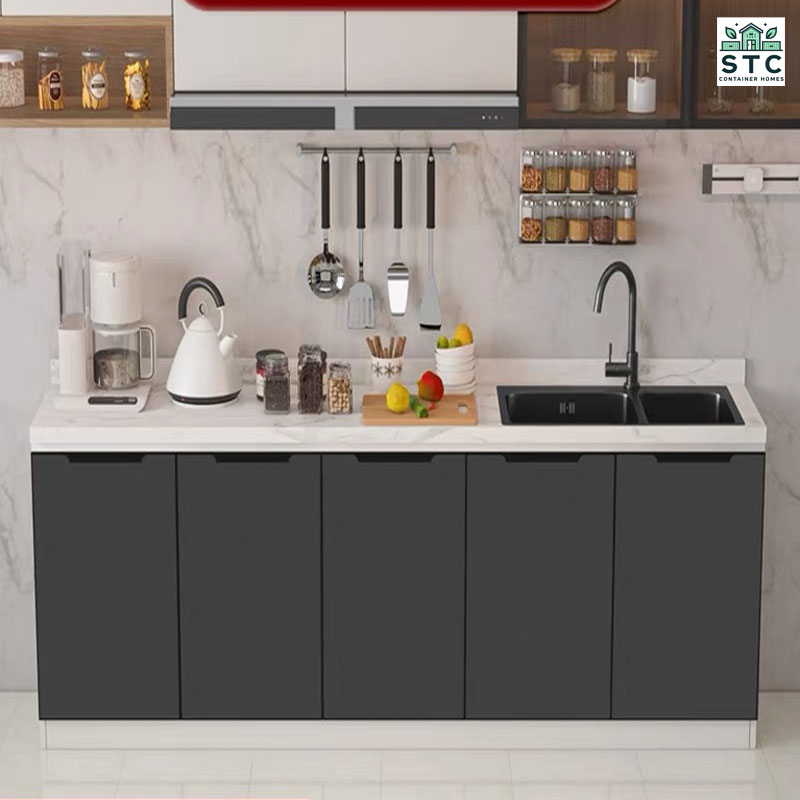

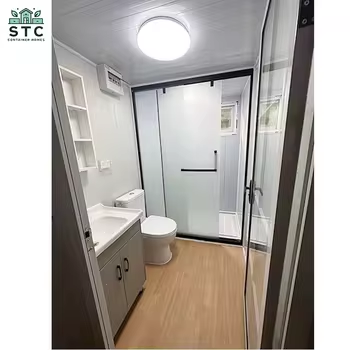

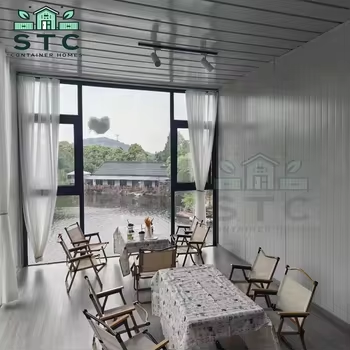

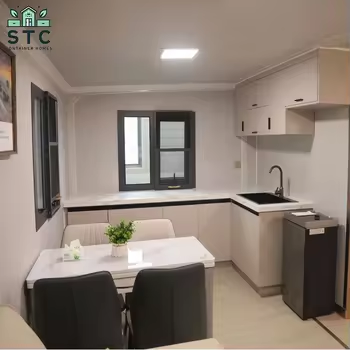

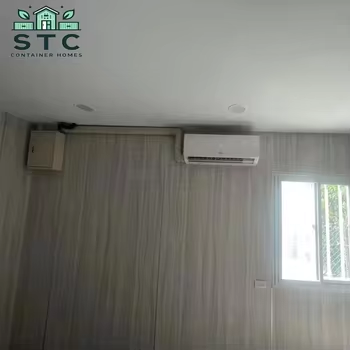

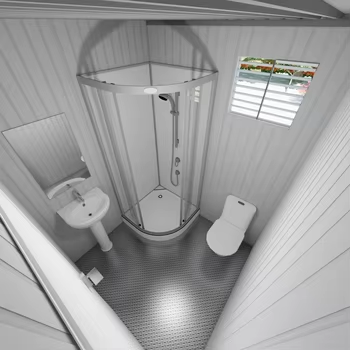

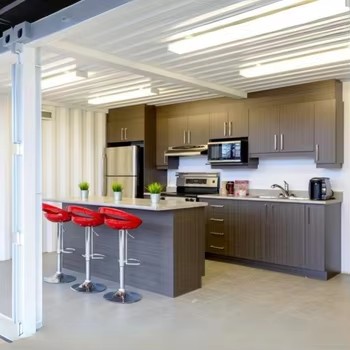

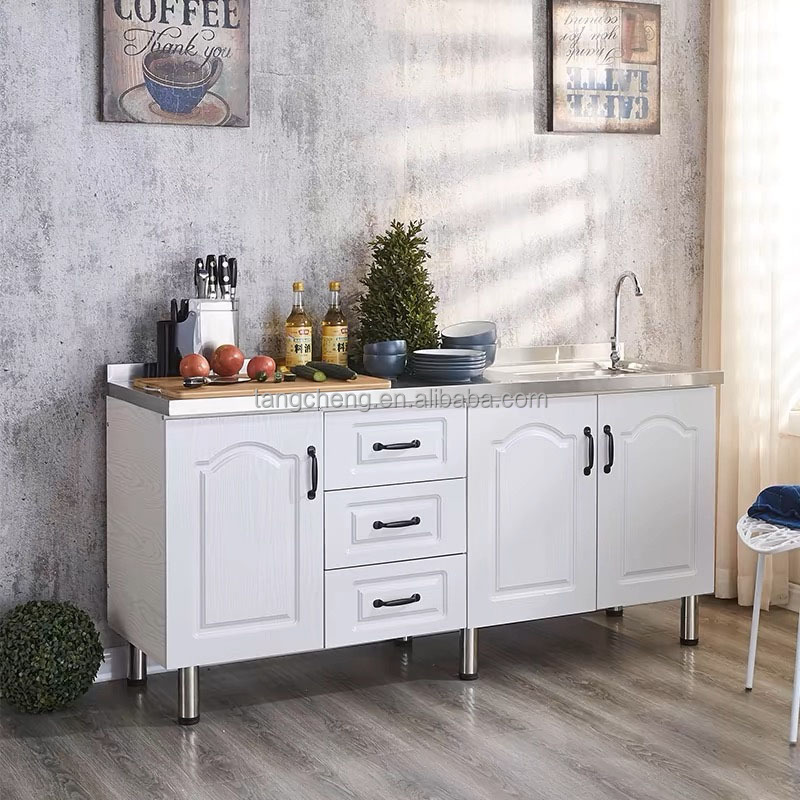

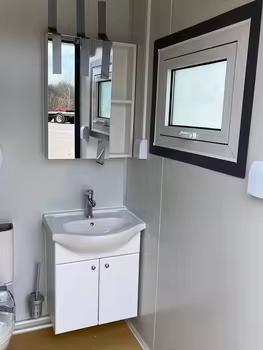

Fully equipped with kitchen, bathroom, electrical and plumbing systems — ready for comfortable living or working.

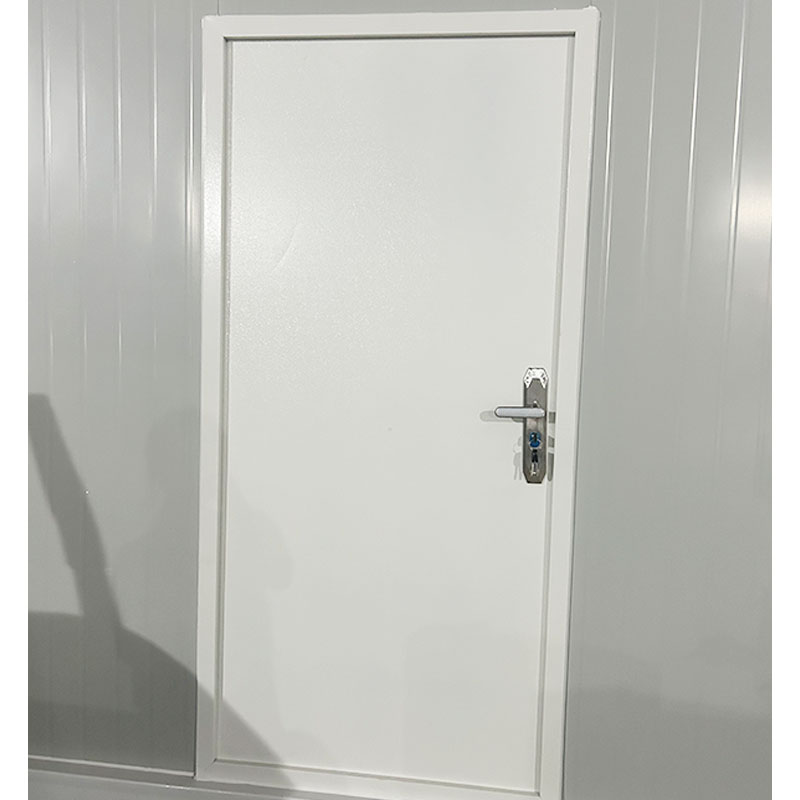

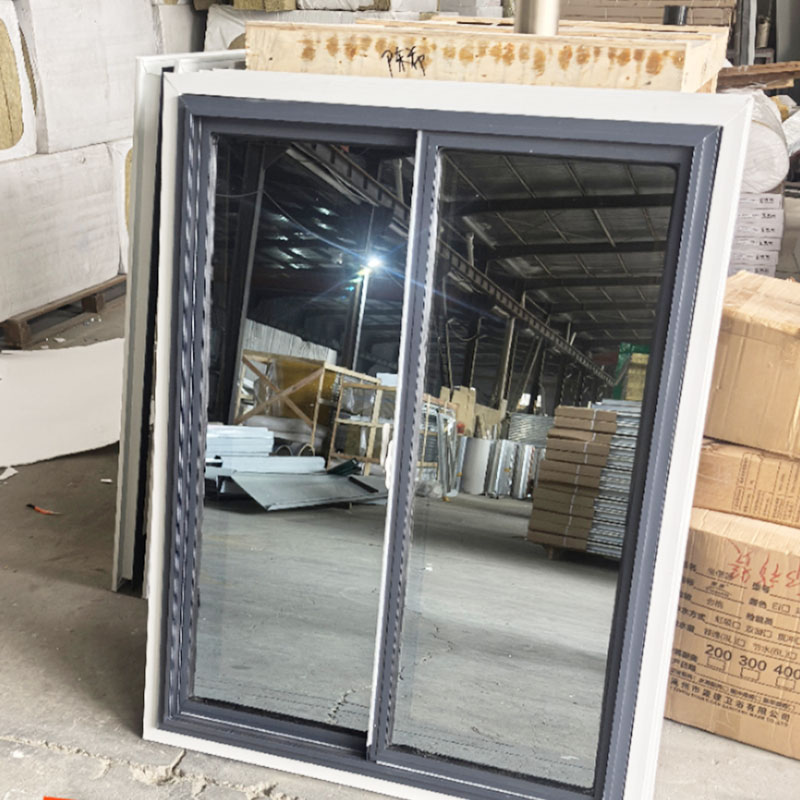

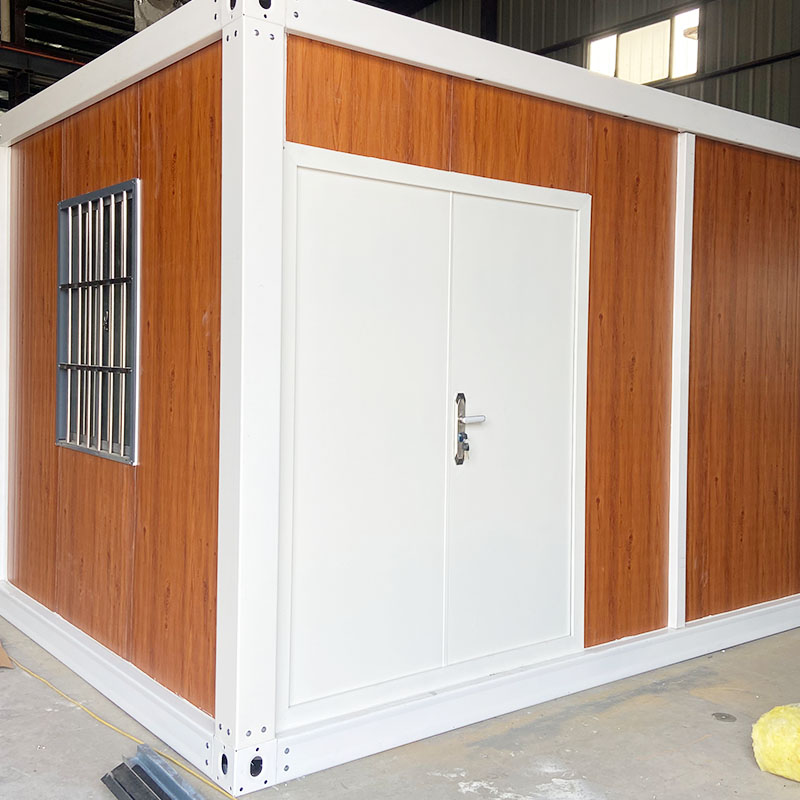

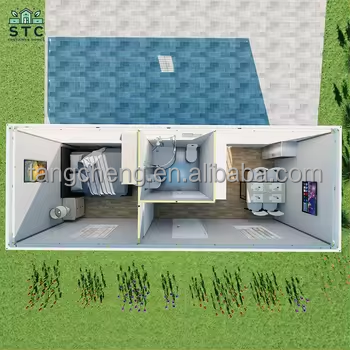

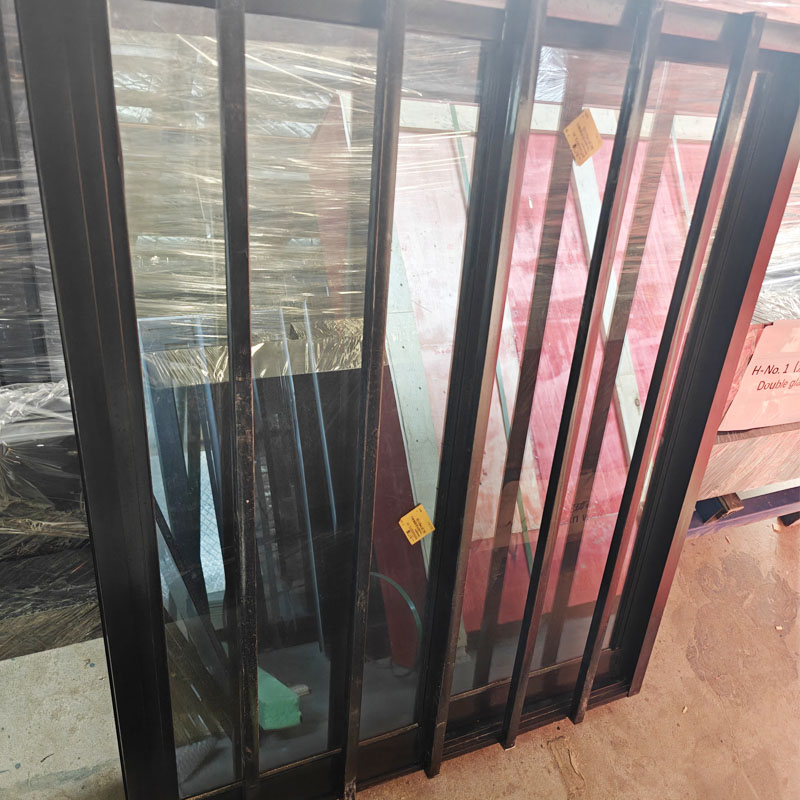

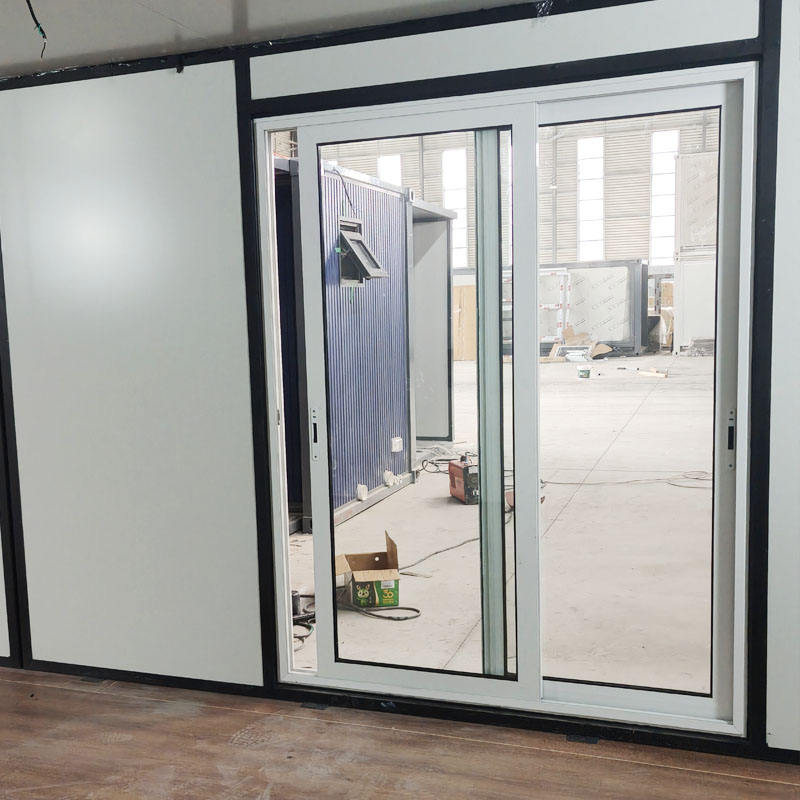

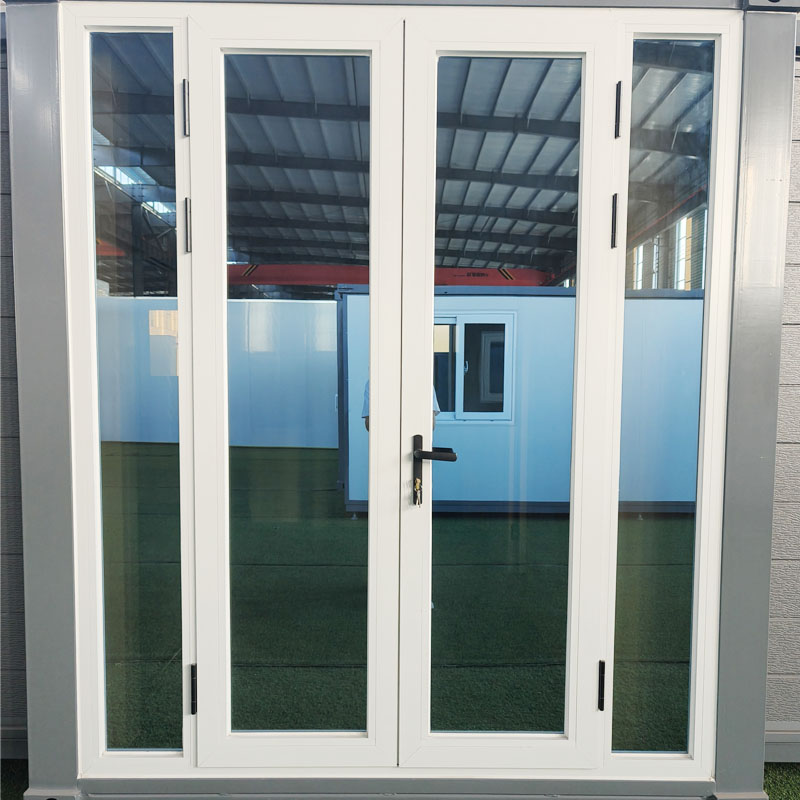

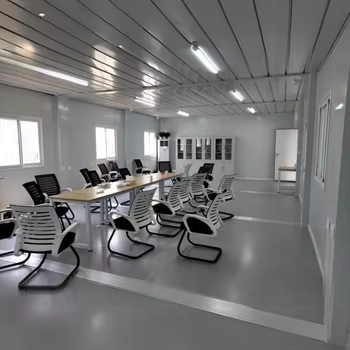

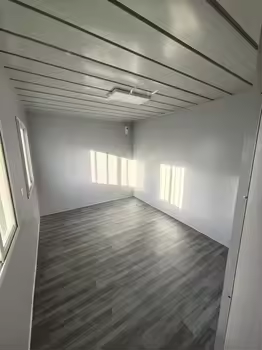

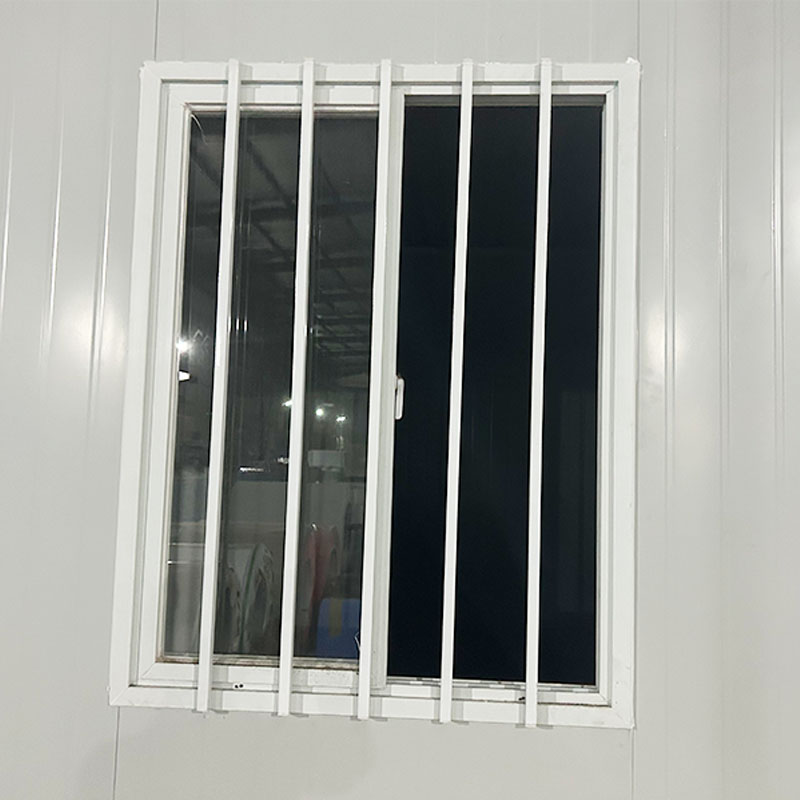

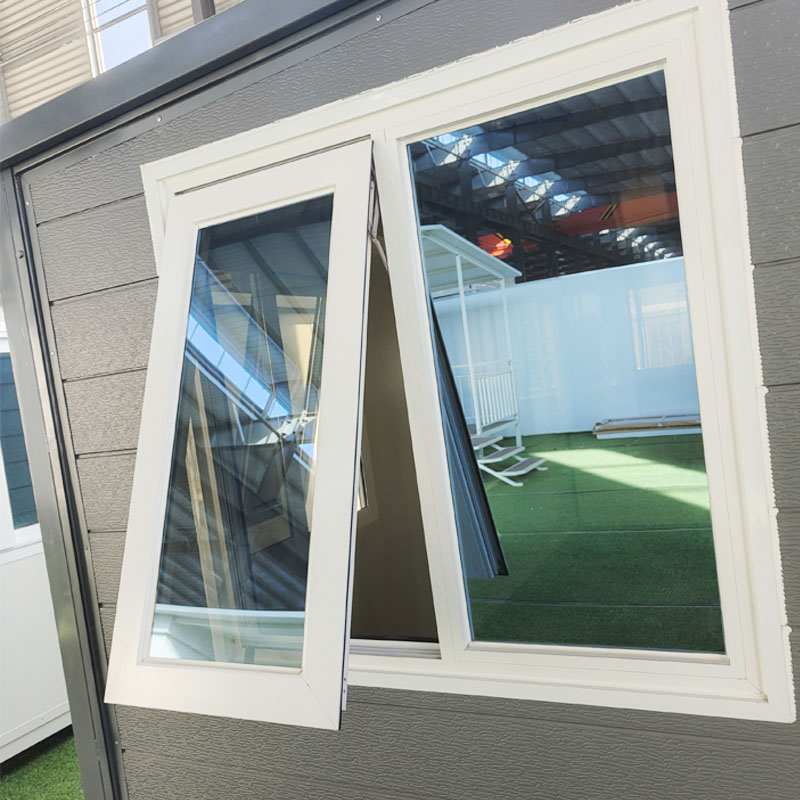

Supports personalized customization of exterior wall color, door and window styles, interior layout, and floor patterns to meet different aesthetic and usage needs.

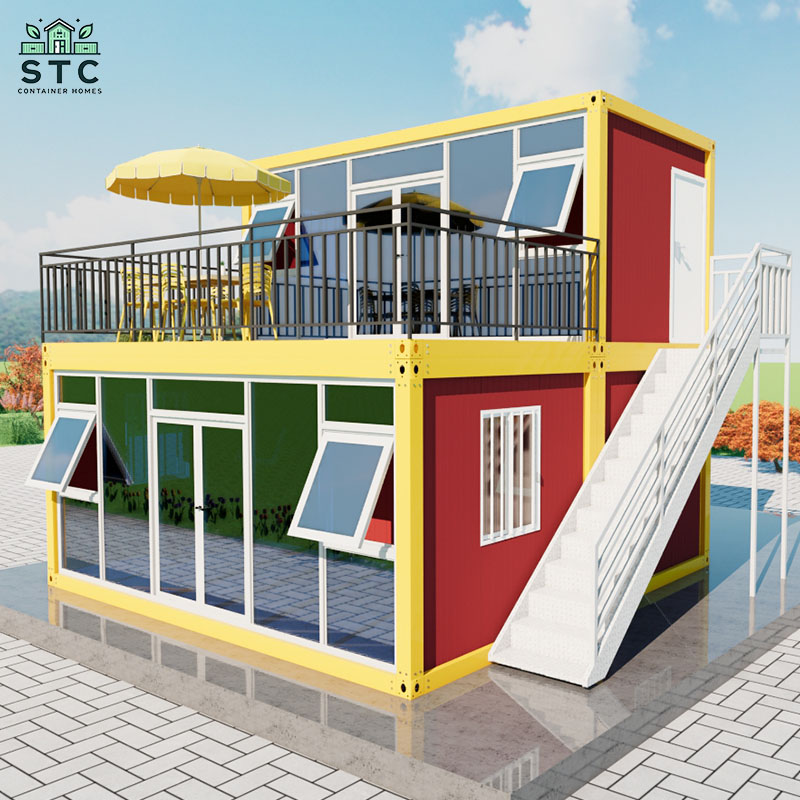

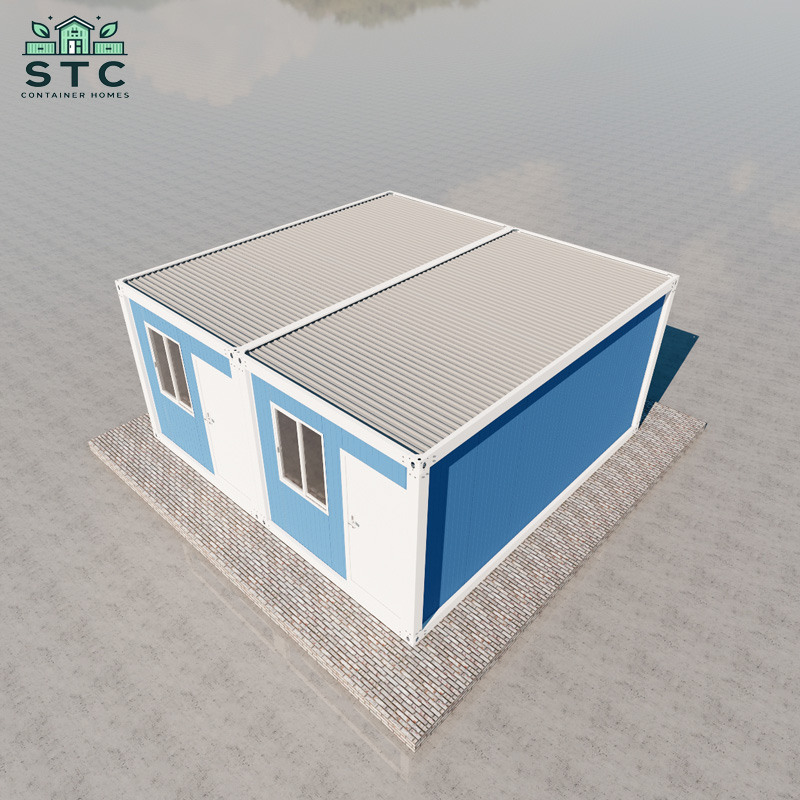

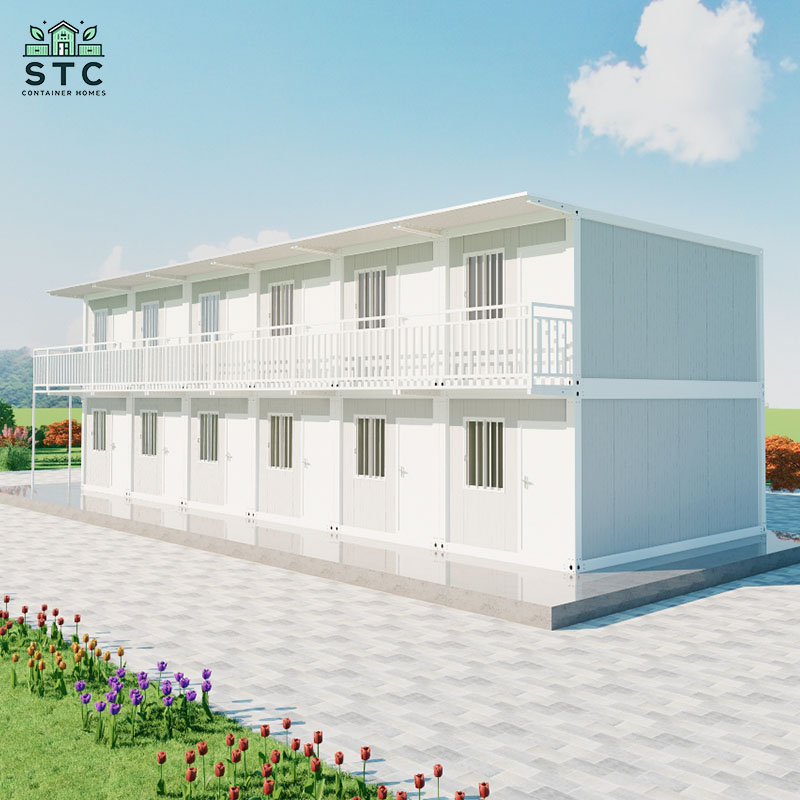

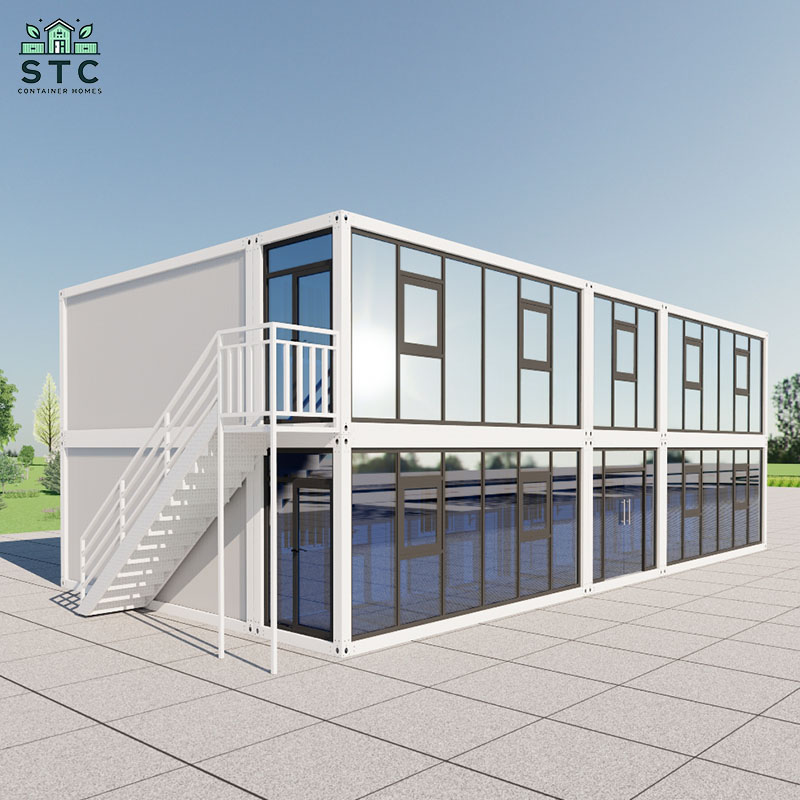

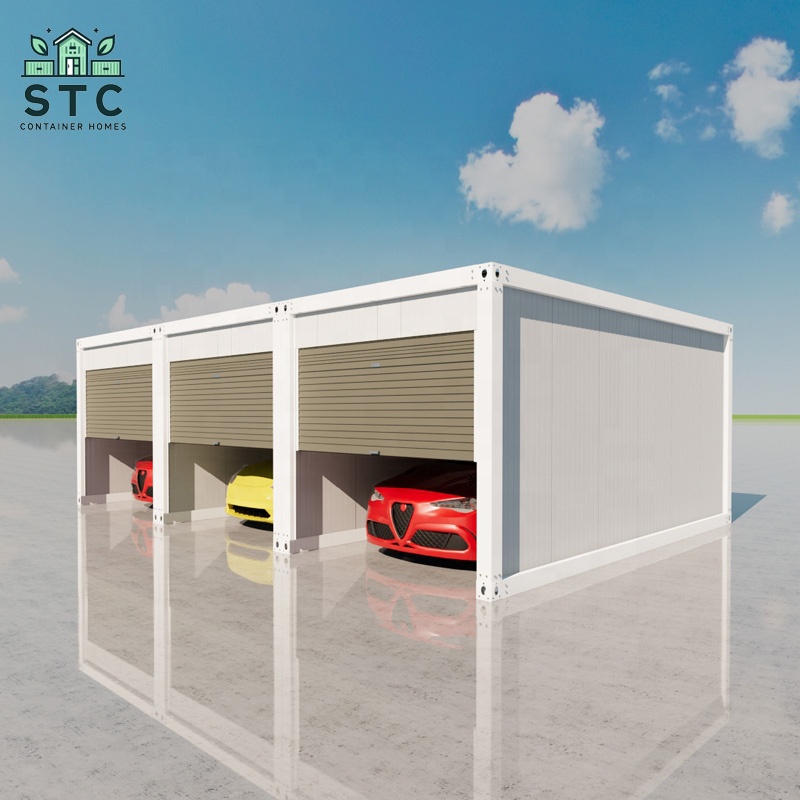

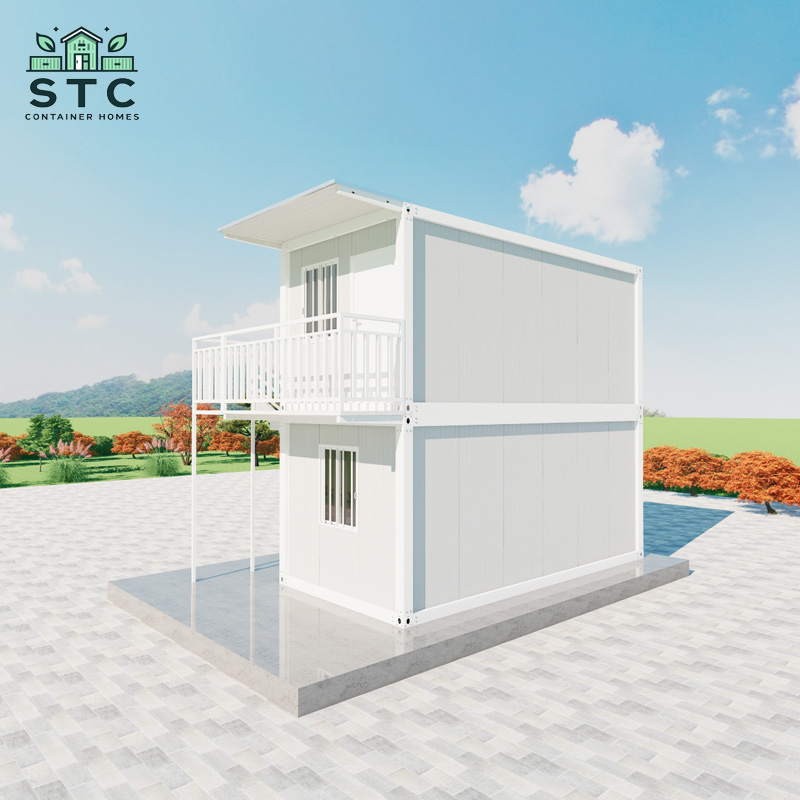

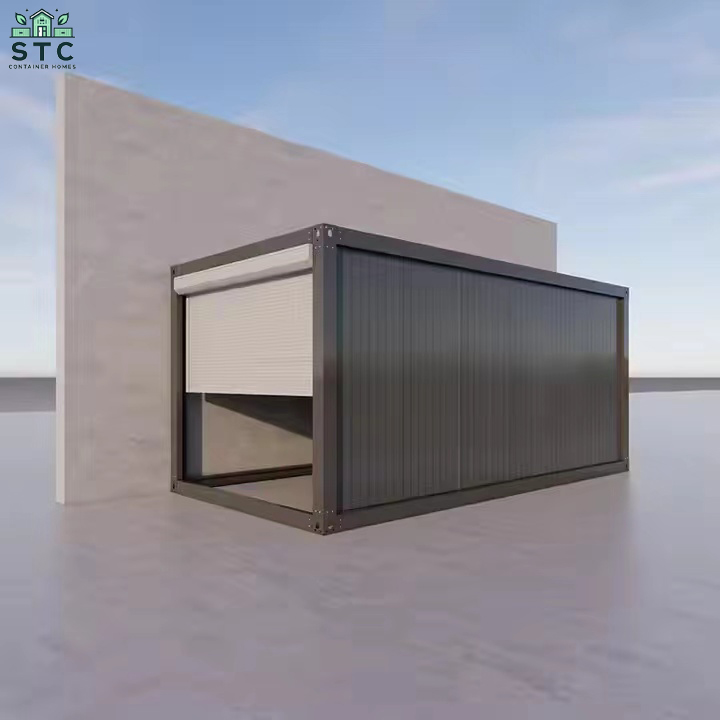

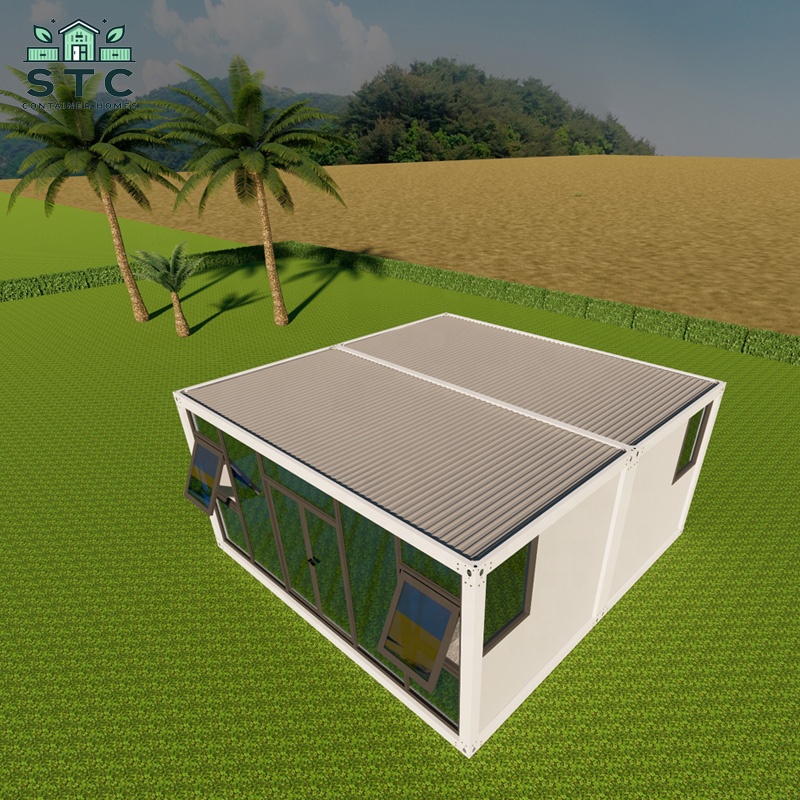

Modular design allows for flexible configurations — units can be used individually or joined together horizontally and vertically for larger structures.

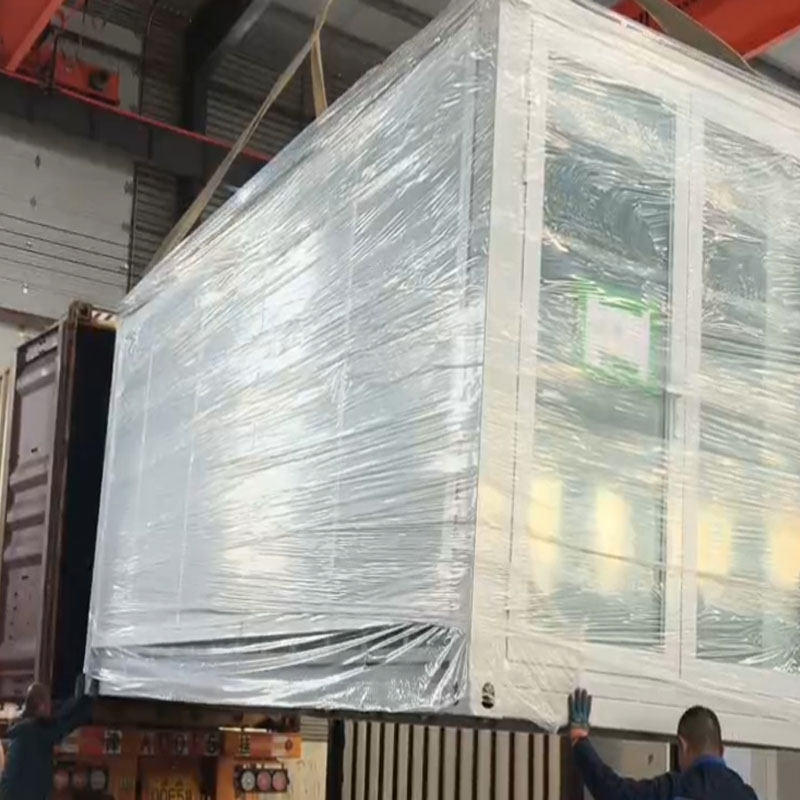

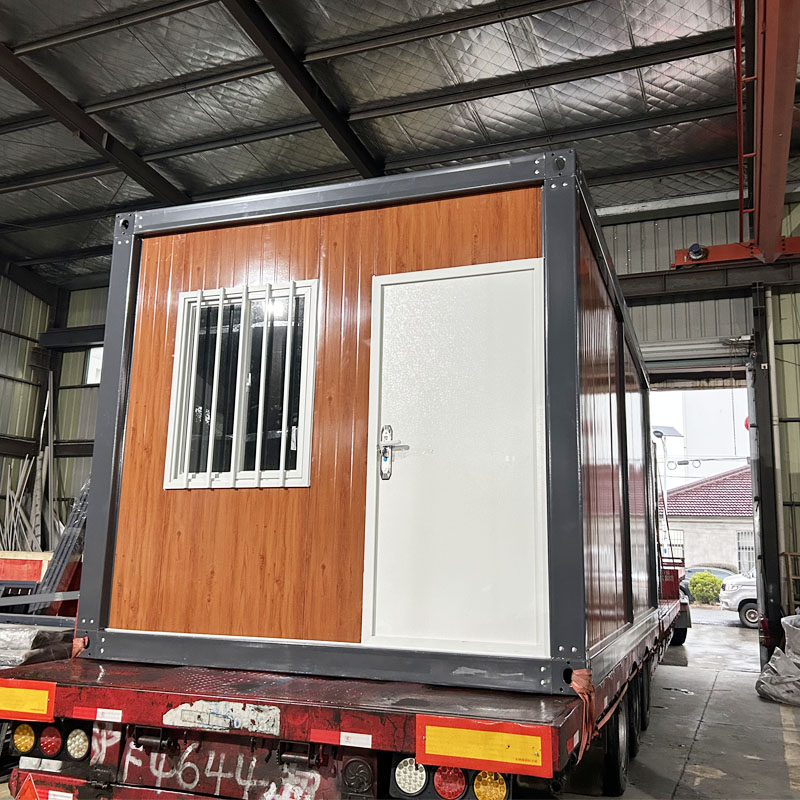

All modules are prefabricated in the factory. Only simple lifting and connection are required on site, which can be completed by a team of two people in three hours.

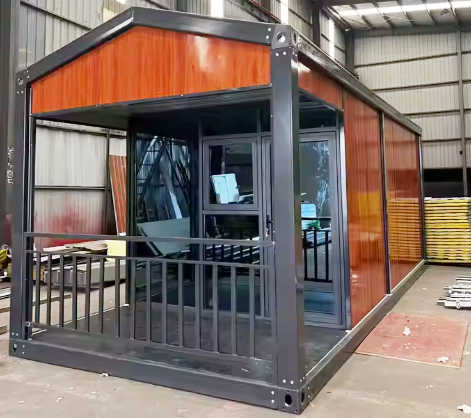

The galvanized steel structure is wind-resistant, earthquake-resistant, and corrosion-resistant (suitable for coastal locations), complying with building standards of many countries. The walls are made of sandwich rock wool for superior thermal insulation. Service life spans up to 15-20 years.
Reusable and recyclable design significantly reduces environmental impact — delivering a highly eco-friendly building solution.

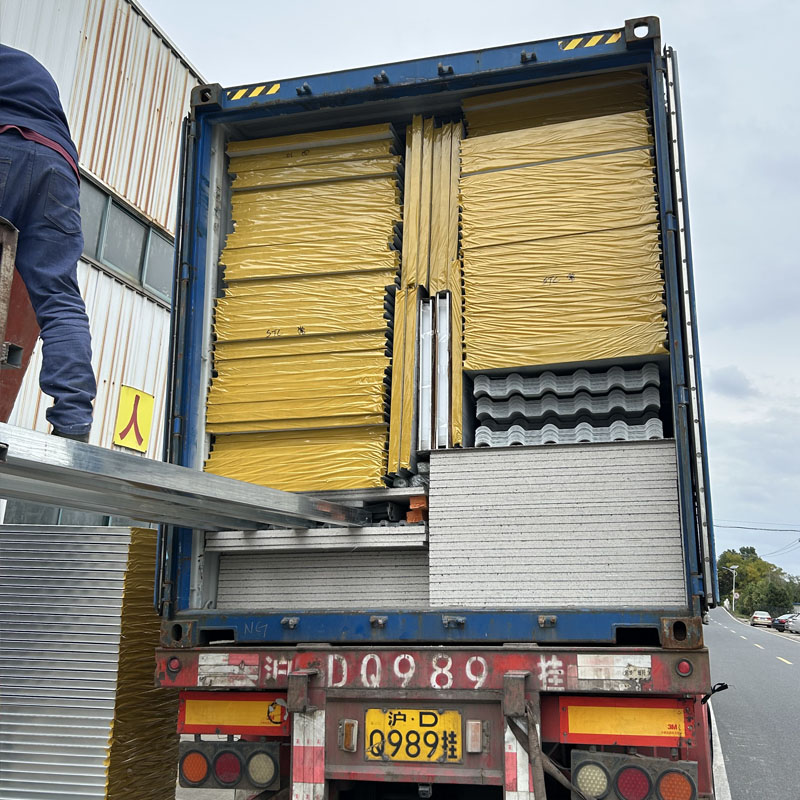

Proven export experience to over 48 countries — we support multiple trade terms including FOB, CIF, and DDP delivery.
