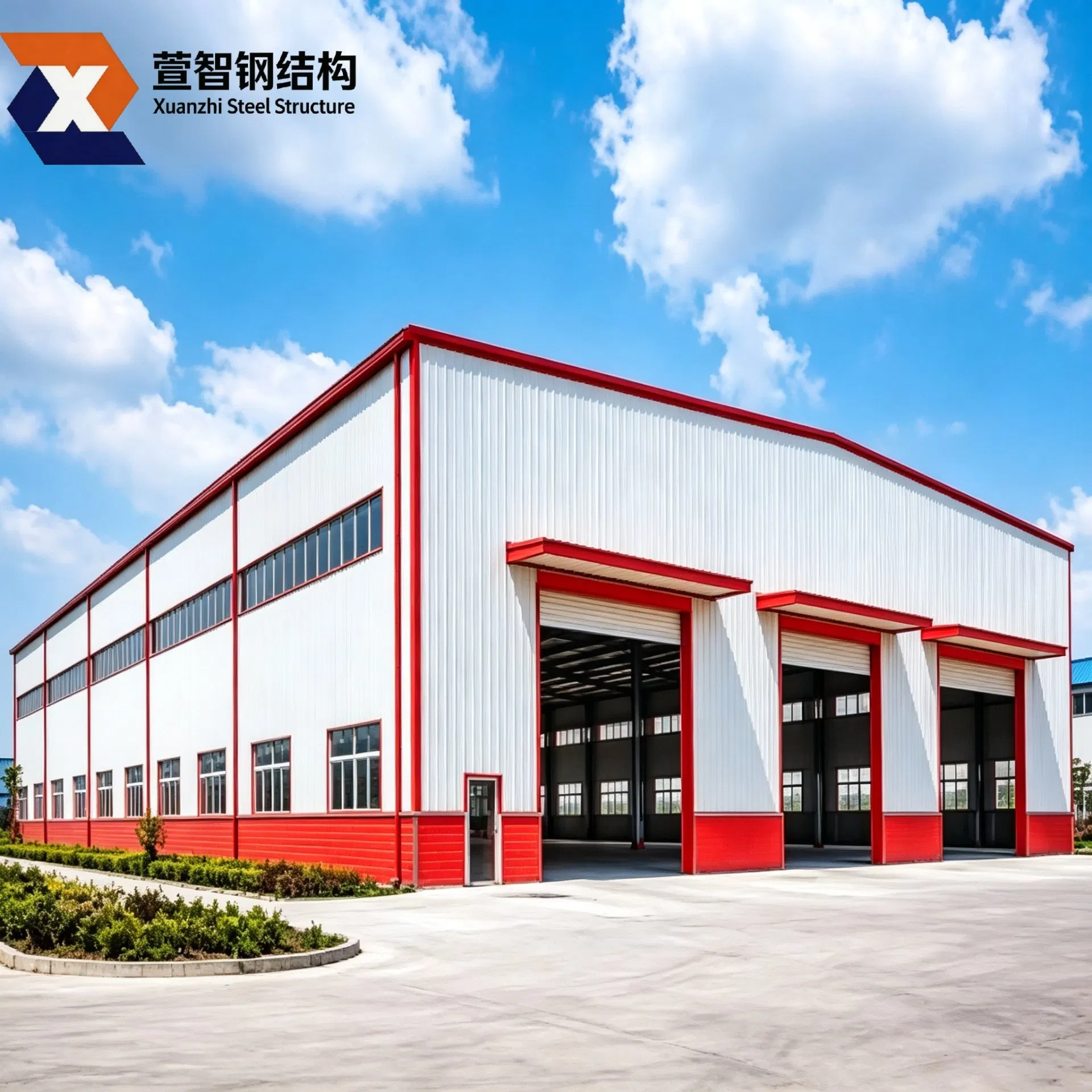

Economic Prefab Light Steel Structure Frame Building Workshop for Storage Prefabricated Warehouse Factory Industrial Construction Office Metal House Price

Customization: Available
After-sales Service: Online Installation Guidance & Lifetime Technical
Connection Form: Bolt Connection

Product Description

Basic Info
Model NO. SSB-036
Feature Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable
Install Online Guidance
Size Custom Design
Dimensions Customer's Request
Design Drawings CAD, 3D, Sketchup, Tekla
Material Q235/Q345
Main Frame Welded H-Section Steel Structure
Lifetime 20-50 Years
Anti-Corrosion Treatment Hot DIP Galvanized / Epoxy Paint Coating
Seismic Grade up to Grade 8
Wind Resistance Grade up to Grade 12
Fire Resistance Grade A Grade Fire Proof
Span Range 6m-36m (Customizable Large Span)
Customization Service OEM & ODM, Full Custom Design & Production
Quality Certification CE, SGS, BV, ISO9001, CCC
After-Sales Support 7×24 Hours Online Technical Support
Warranty Period 1-10 Years (Customizable)
Transport Package Sea-Worthy Packing
Specification Fully Customizable
HS Code 7308900000
Production Capacity 50, 000 Tons/Year
Packaging & Delivery Details
Package Size 1100.00cm * 130.00cm * 100.00cm
Package Gross Weight 6000.000kg
Product Description

With professional knowledge, rich experience, to provide the most suitable solutions.

We focus on the research and development of steel structure buildings, constantly innovate and improve the wind and rain resistance performance, extend the life-span as much as possible, so that realize the long-term investment value for customers. When planning your industrial building project, choosing prefabricated steel structure is the wisest decision. It outperforms traditional concrete and wood construction in all key aspects including speed, cost, space and durability.

1

50%-70% Faster Construction

Factory prefabrication + on-site assembly, no concrete curing needed, weather-resistant, earlier operation and profit

2

10%-20% Lower Overall Cost

Lower initial cost, reduced foundation expense, minimal maintenance, high steel residual value, more

3

8%-12% More Usable Space

Large-span column-free design, thinner walls, more usable area for the same footprint, higher land

4

Durable & Eco-friendly

Wind, seismic and snow resistant, 50+ year service life; 100% recyclable, low construction pollution, meets global green standards

5

Superior Consistent Quality

Factory automated standardized production with strict QC, completely eliminates on-site construction errors and quality variations

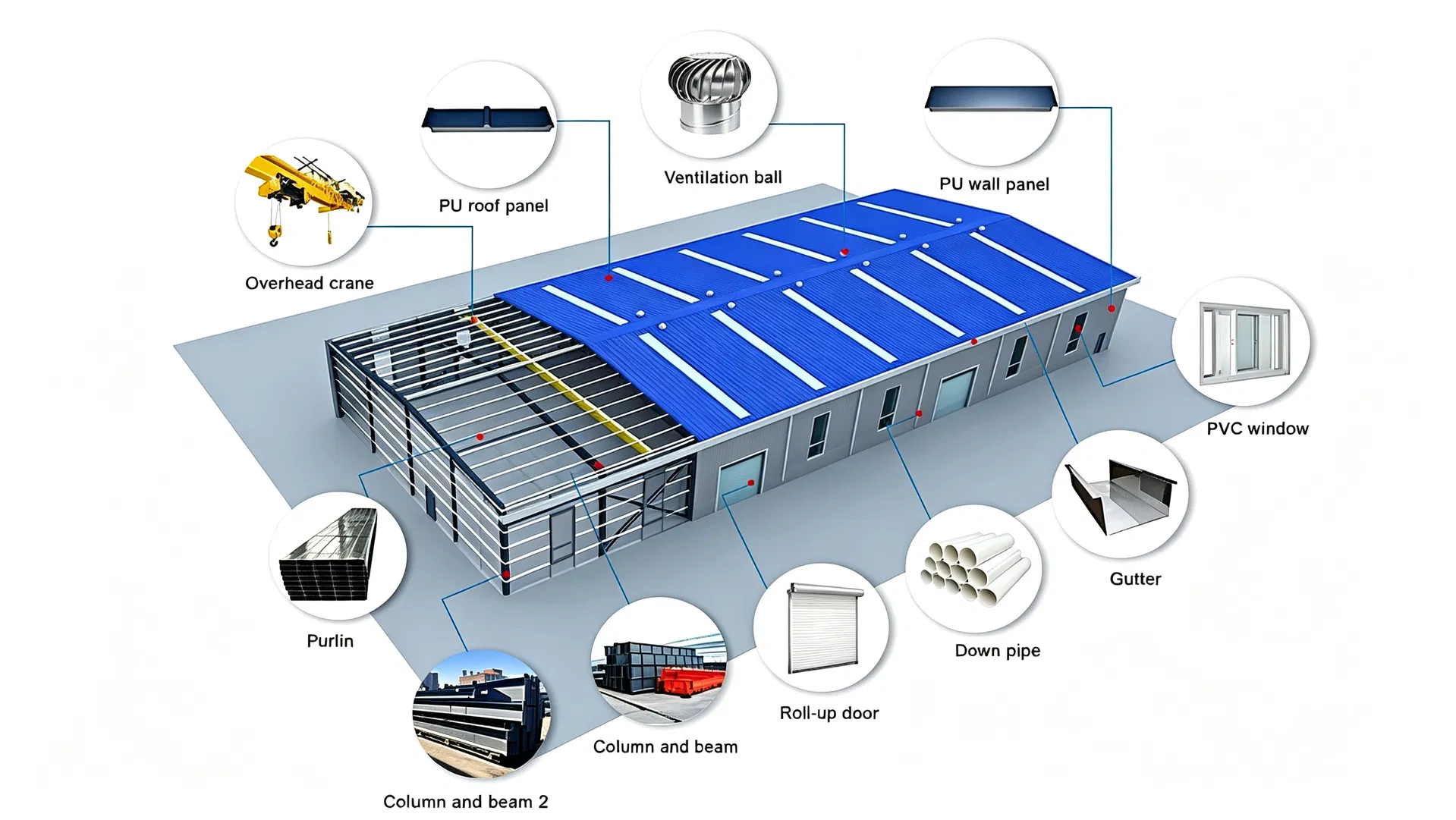

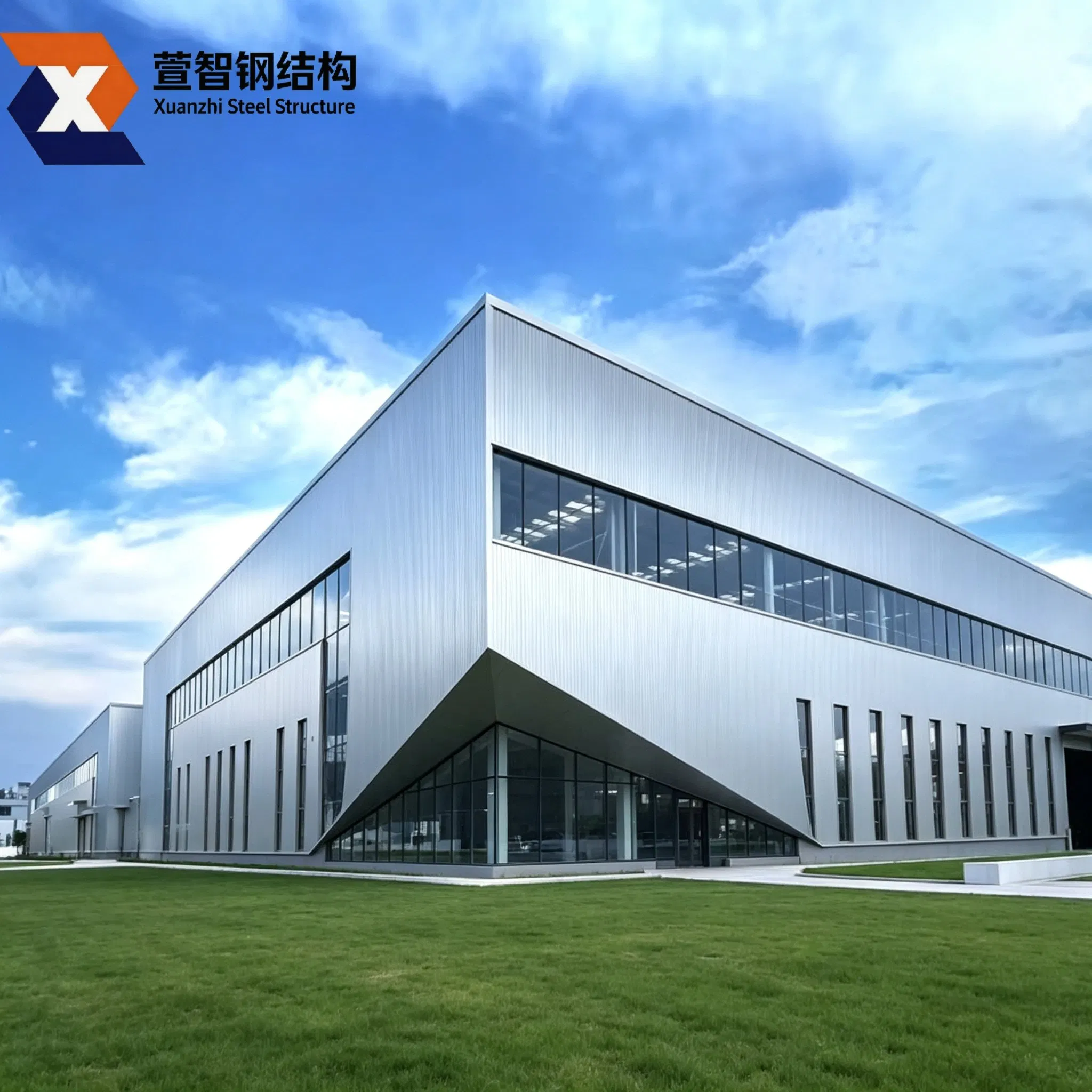

Prefab Light Steel Structure Frame Building Workshop

Customized design and static analysis can be provided according to the concept proposed by customers and strictly in accordance with the national design code. Also they can be produced according to the drawing from customer.

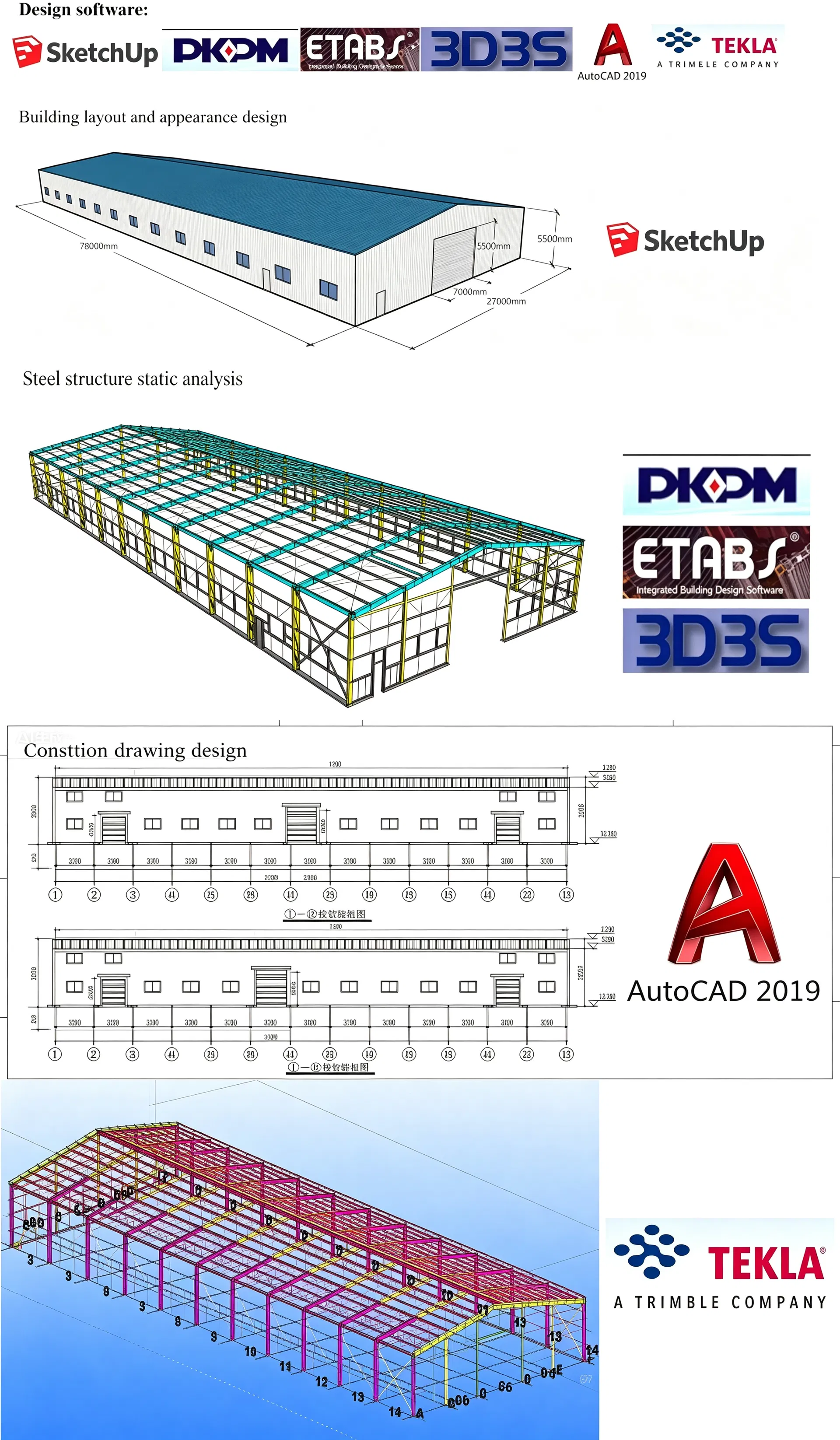

Customized Steel Structure Design
Specification
Component Details & Specifications
Main Steel Structure (Columns & Beams) 1. Material: Q235B / Q355B (S235JR / S355JR) H-section carbon steel
2. Cross-section: Straight / Variable cross-section, fully customizable
3. Finish: Hot-dip galvanized or anti-rust painted, compliant with GB/ASTM/EN standards
Secondary Steel Structure 1. Material: Q235B carbon steel
2. Connections: Bolted (welded optional), with anti-rust treatment
3. Bracing: X-type / V-type angle or round pipe bracing
4. Purlin: C/Z type, sizes C80~C320 / Z120~Z300

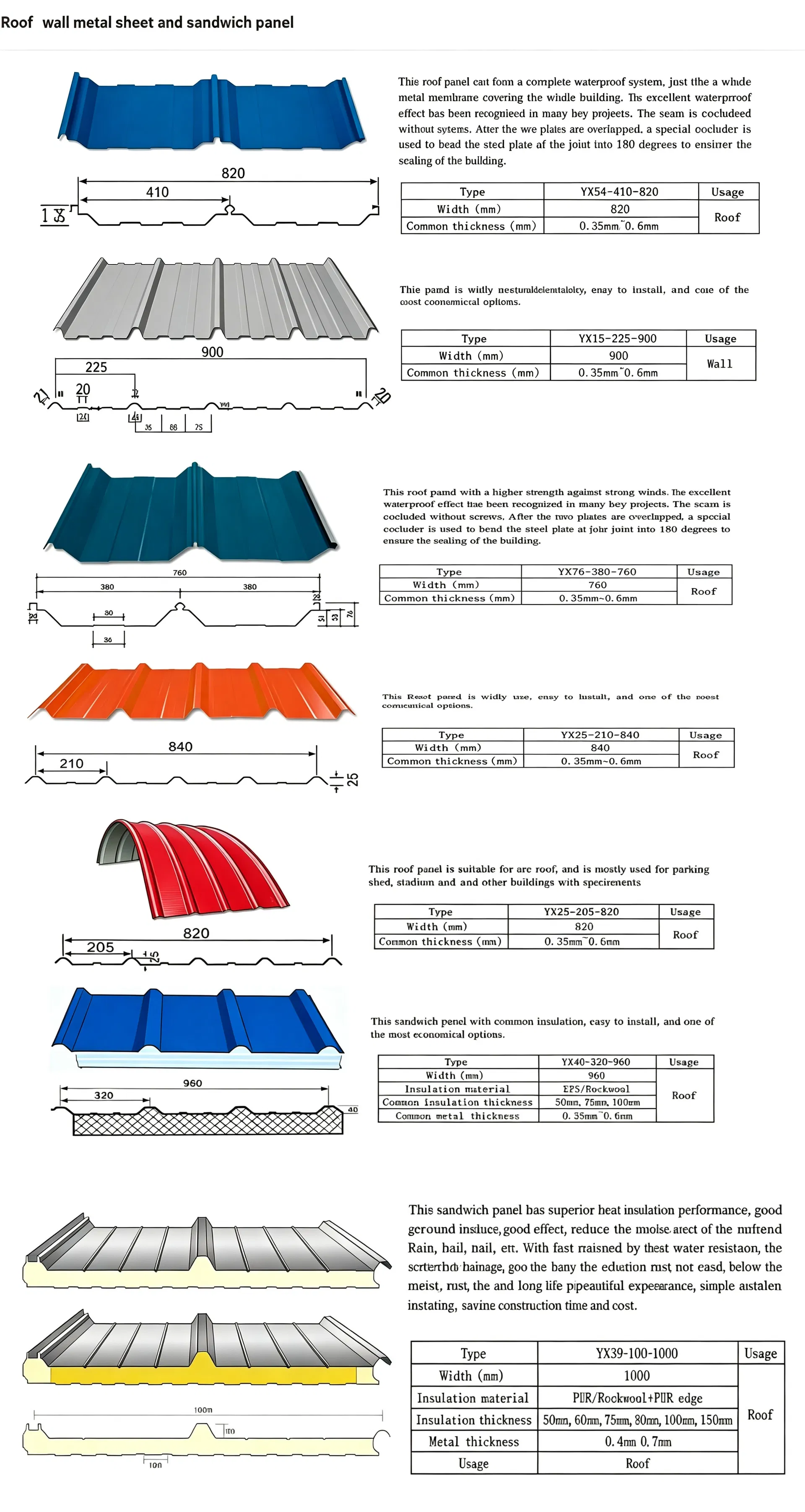

Roof System 1. Option 1: Single-layer color steel sheet (hot-dip galvanized, anti-corrosion)
2. Option 2: Insulated sandwich panel (core: PU/EPS/rock wool/fiberglass)
3. Features: Leak-proof seam design, suitable for coastal/high-humidity areas
Wall System 1. Option 1: Single-layer color steel sheet (hot-dip galvanized)
2. Option 2: Insulated sandwich panel (core: PU/EPS/rock wool/fiberglass)
3. Custom brick wall enclosure available per local building codes
Doors Galvanized steel material, optional roller shutter door / sliding door / fire-rated door, customizable size
Windows Aluminum alloy double-glazed window, energy-saving and anti-corrosion, customizable size
Edge Cover 0.5mm thick color coated steel sheet (color steel plate), with hot-dip galvanized substrate + polyester coating, anti-rust, anti-corrosion and waterproof, compatible with the overall anti-corrosion system of color steel roof/wall panels, for enclosure seam sealing
Bolts & Fasteners 1. High-strength galvanized bolts (Grade 8.8/10.9)
2. Embedded anchor bolts (M16~M24) for foundation connection
3. Special self-tapping screws for panel installation
Core Performance (Warehouse-Specific) 1. Wind resistance: Grade 12 (120km/h)
2. Seismic resistance: Grade 8
3. Roof load capacity: Customizable (0.3~1.5kN/sq.m snow/equipment load)
4. Design service life: 50+ years
Optional Accessories Skylight panel, roof ventilator, downspout, gutter system, crane beam, insulation upgrade, anti-corrosion coating
Foundation Concrete foundation with embedded steel anchor bolts, customized to local soil conditions
Certifications Compliant with ISO 9001, CE, EN 1090, AWS certifications, supporting global export
Main Frame Steel Details

With patented production technology and ISO quality management system, all steel members are designed with perfect welding and accurate dimensions, eliminating defects on site to ensure fast and easy installation.

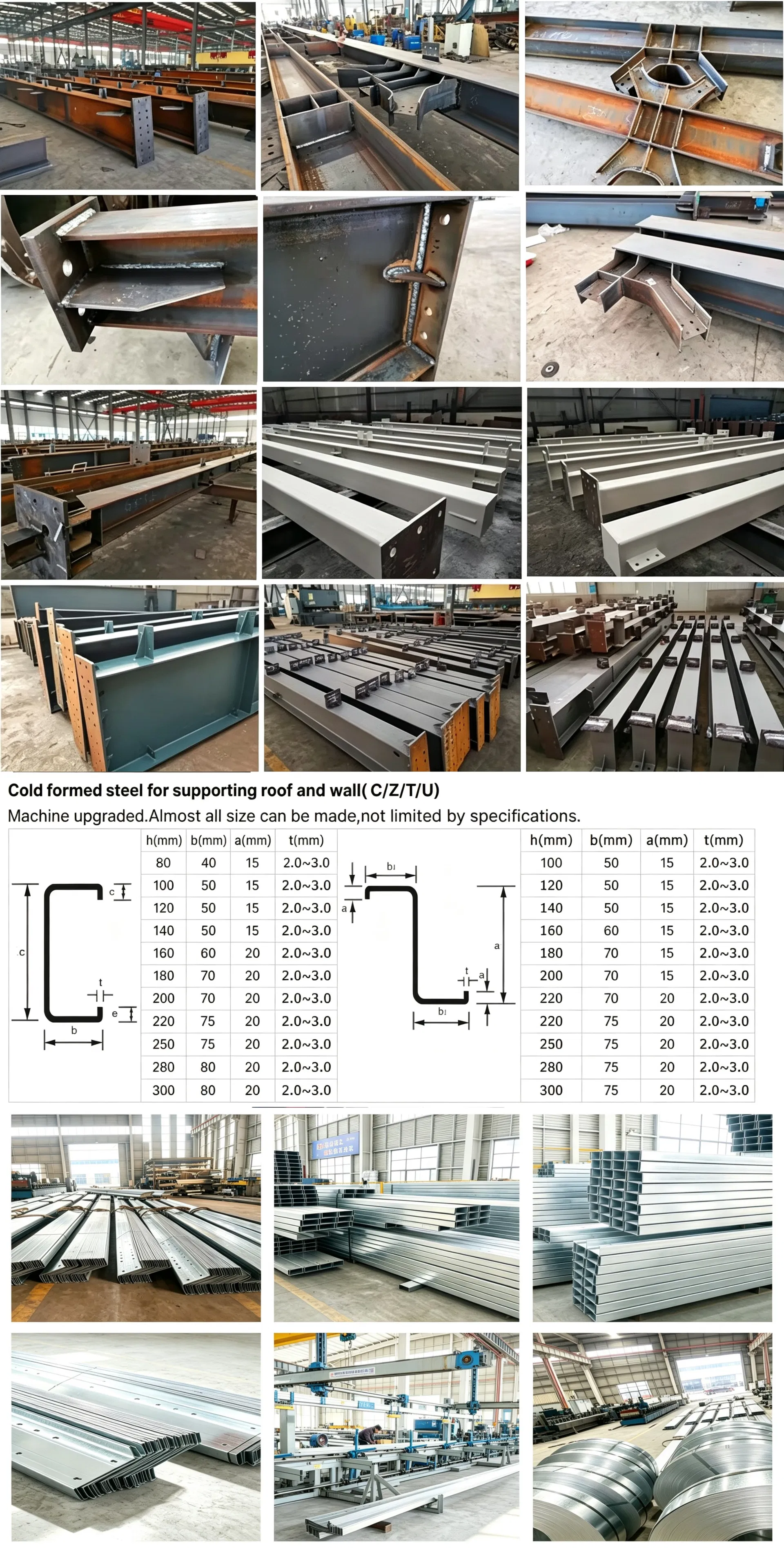

Main Frame Steel Component Processing Steel Frame Welding Details
Corrosion & Surface Treatment

The corrosion of steel is an electrochemical process that occurs in stages. It requires the simultaneous presence of water and oxygen. As long as either condition is absent, corrosion will not occur. The primary purpose of anti-corrosion is to isolate oxygen and water using effective solutions like metal and non-metal coatings.

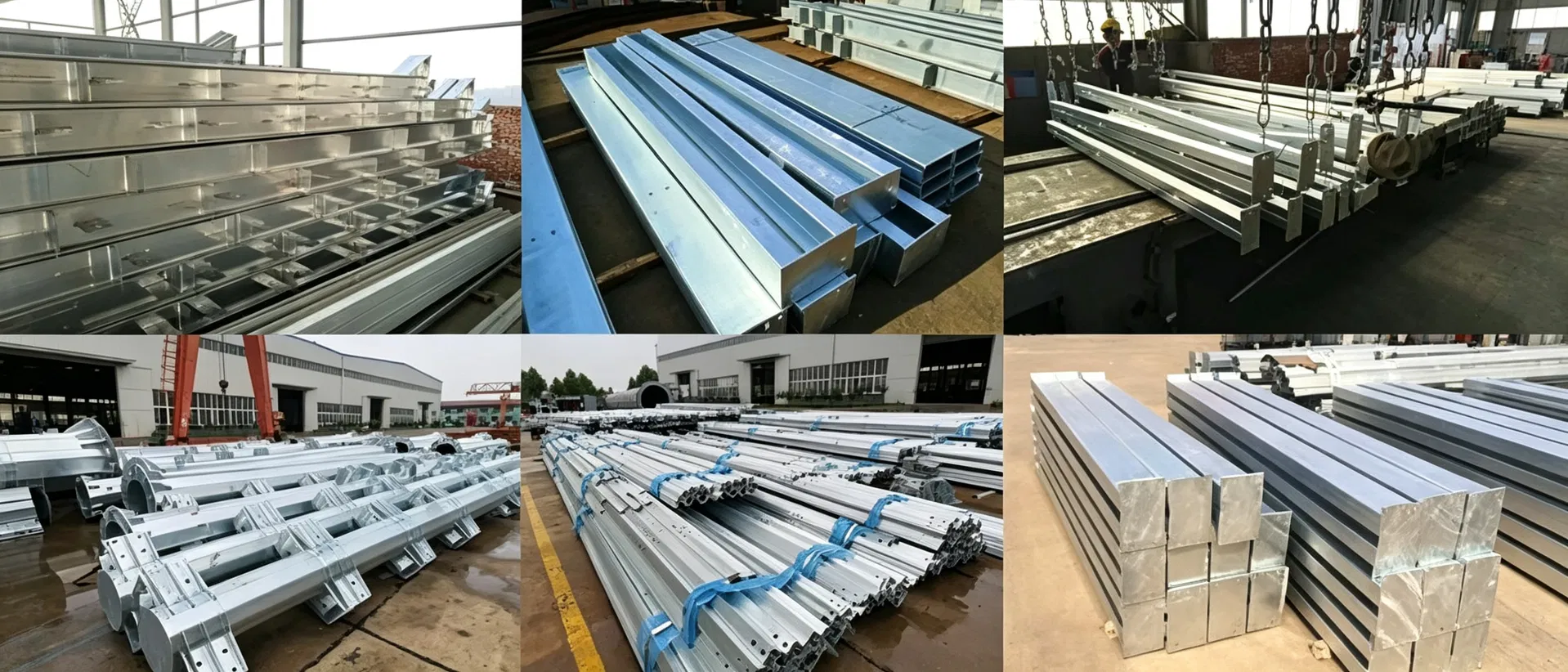

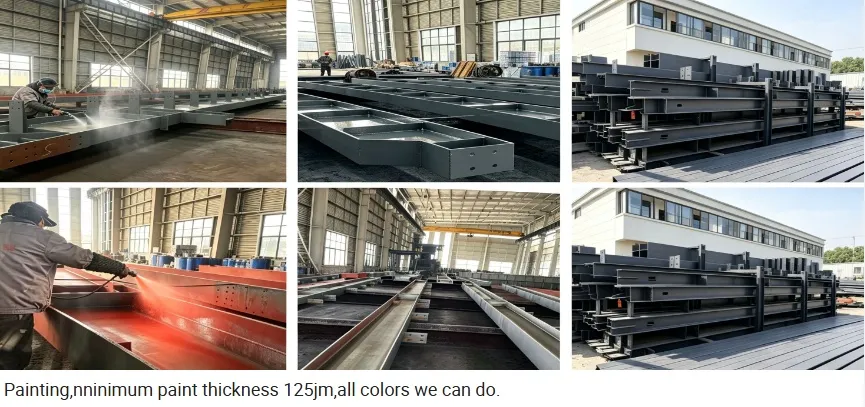

Anti-corrosion Steel Coatings
Hot-dip galvanized standards: average zinc thickness is not less than 85μm (606g/sqm), with maximum thickness exceeding 100μm (713g/sqm).
Galvanizing Zinc Thickness Measurement
Important Details Easily Overlooked

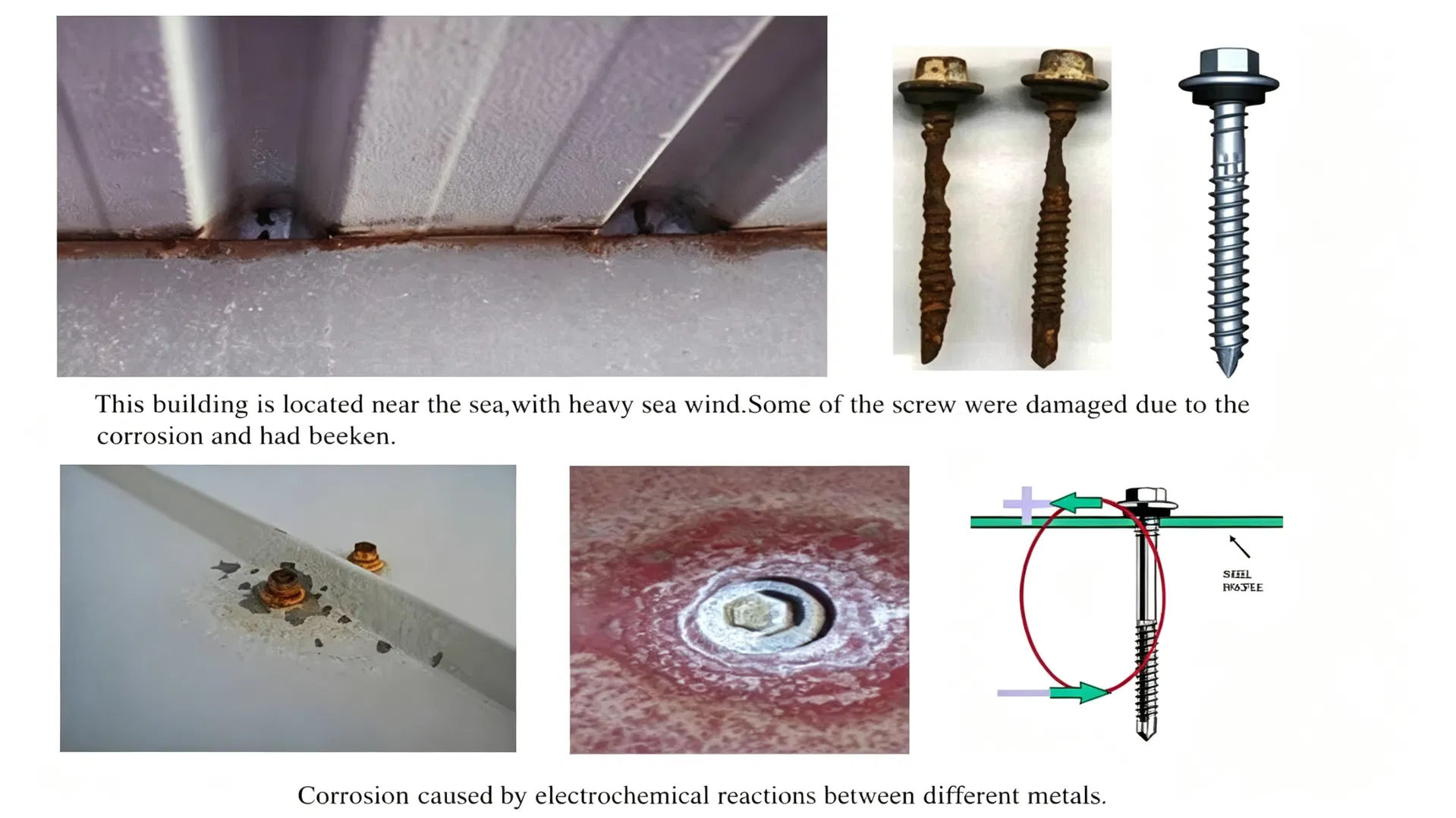

Screws & Fasteners: Fasteners are often the weak link in building structures over time due to strength reduction caused by corrosion, rather than design errors.

Fastener Corrosion Risks
What is the solution?

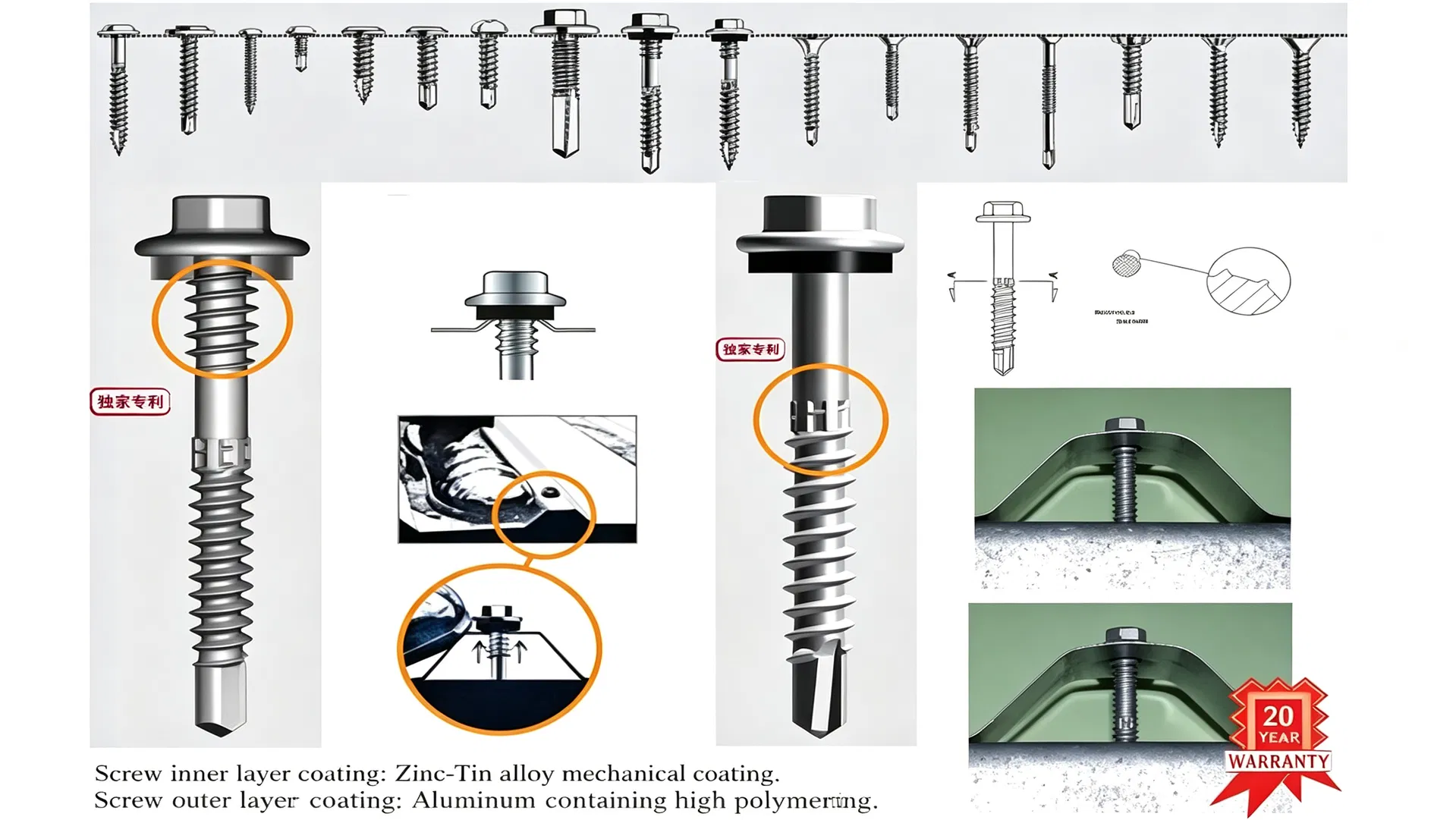

We use Zinc-Tin alloy mechanical coating, a patented and practical technology, offering long-term anti-rust properties. (Maximum drill thickness: 12.5mm).

Zinc-Tin Alloy Mechanical Coated Screws

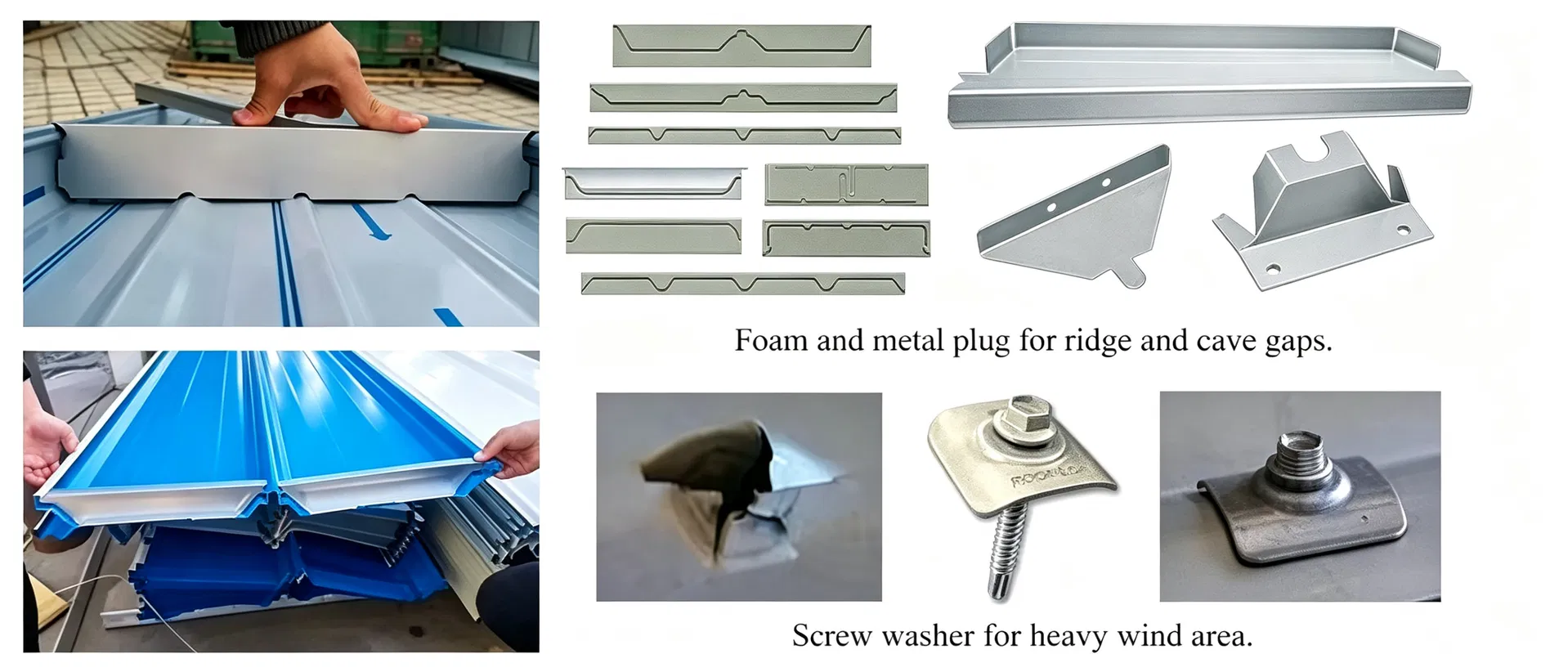

Water-Resistant Flashing & pipe caps

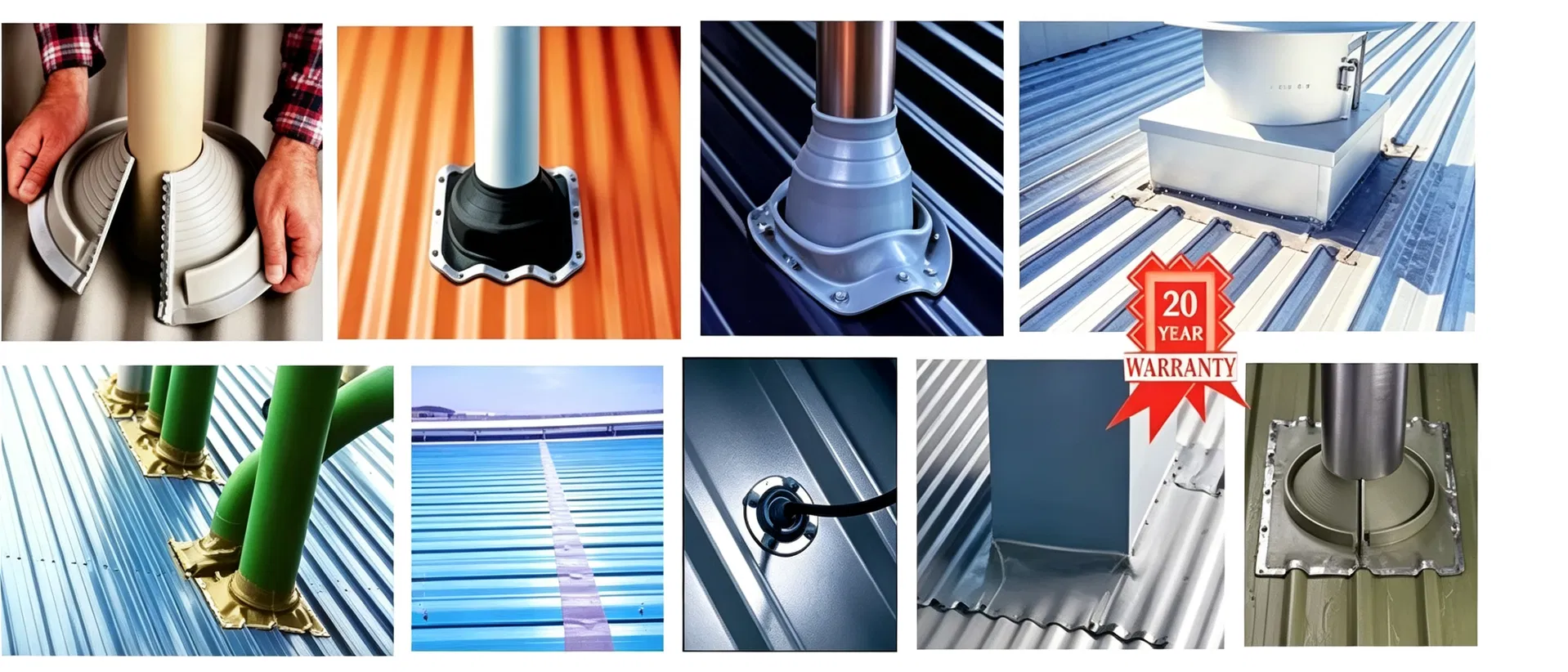

For penetrations on roofs or walls, we use flexible materials like EPDM or silicone. These offer excellent physical and chemical properties, simple installation, reliable noise-free performance, and a guaranteed service life of over 20 years.

EPDM Pipe Flashing Detail Roof Flashing Application Waterproof Structural Connection Details

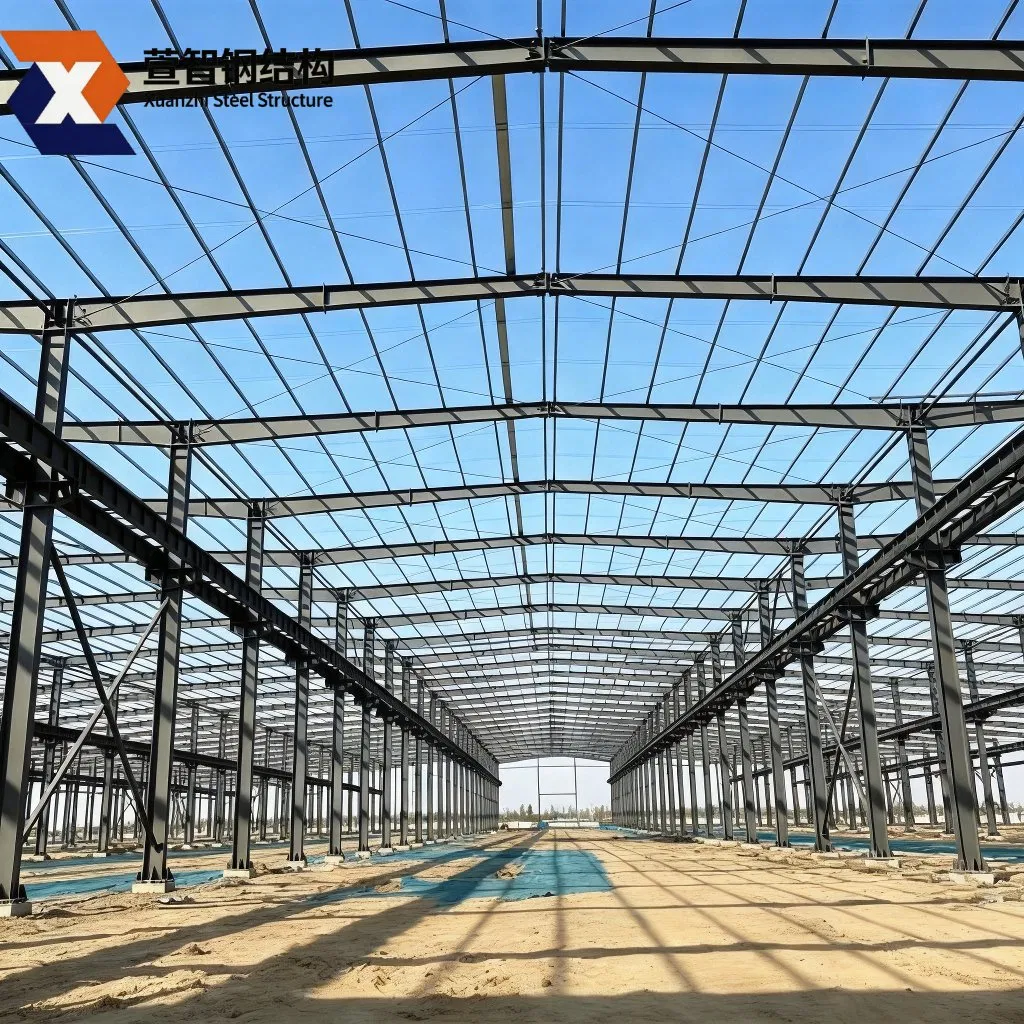

Project Cases

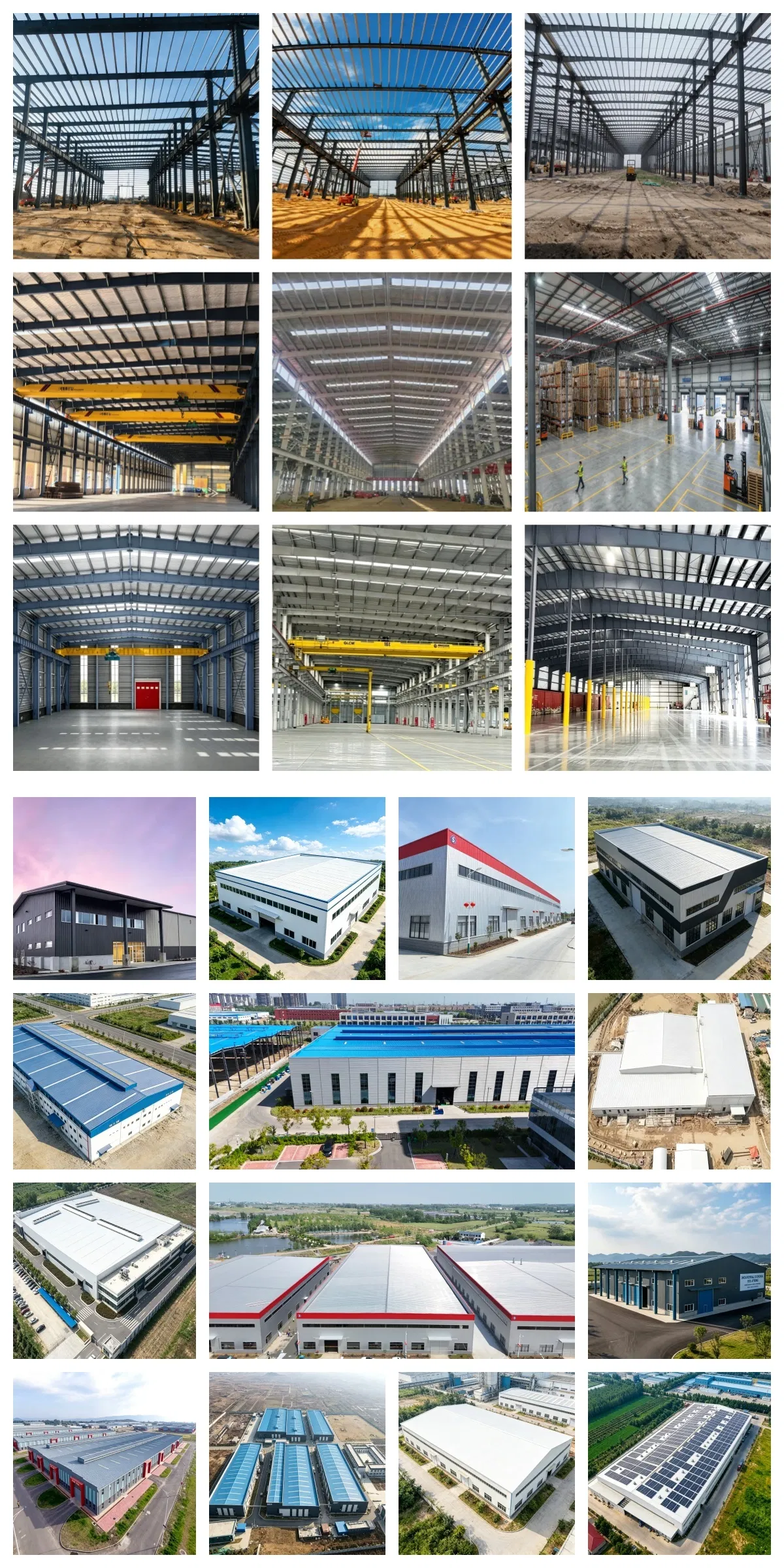

Steel Structure Construction Cases Gallery
Company Profile

We are a professional export-oriented steel structure enterprise integrating R&D, design, manufacturing, and services. With more than 10 years of in-depth development in the industry, we are dedicated to providing global customers with cost-effective one-stop integrated solutions for steel structure projects.

We operate a modern production base with an annual steel processing capacity of 100,000 tons. Relying on advanced production lines and a strict full-process quality control system, we guarantee stable delivery lead times and consistent superior product quality, delivering highly competitive cost advantages to customers through our factory-direct sales model. We have a professional team with over a decade of hands-on experience in the prefabricated steel structure sector, supported by academic workstations. We have mastered a number of core industry technologies and hold more than 200 patents, enabling us to provide full-cycle technical support for various types of projects.

To date, we have completed over 100 benchmark projects in more than 30 countries worldwide. Adhering to long-term brand development philosophy, we have established stable, long-term cooperative partnerships with numerous international enterprises, institutions, and government agencies. Our core product portfolio covers a complete range of steel structure products, including industrial workshops, logistics warehouses, multi-storey and high-rise steel structures, long-span pipe trusses, and prefabricated modular buildings. We provide a full one-stop service from design, manufacturing, global logistics, and transportation, to on-site installation guidance and after-sales support.

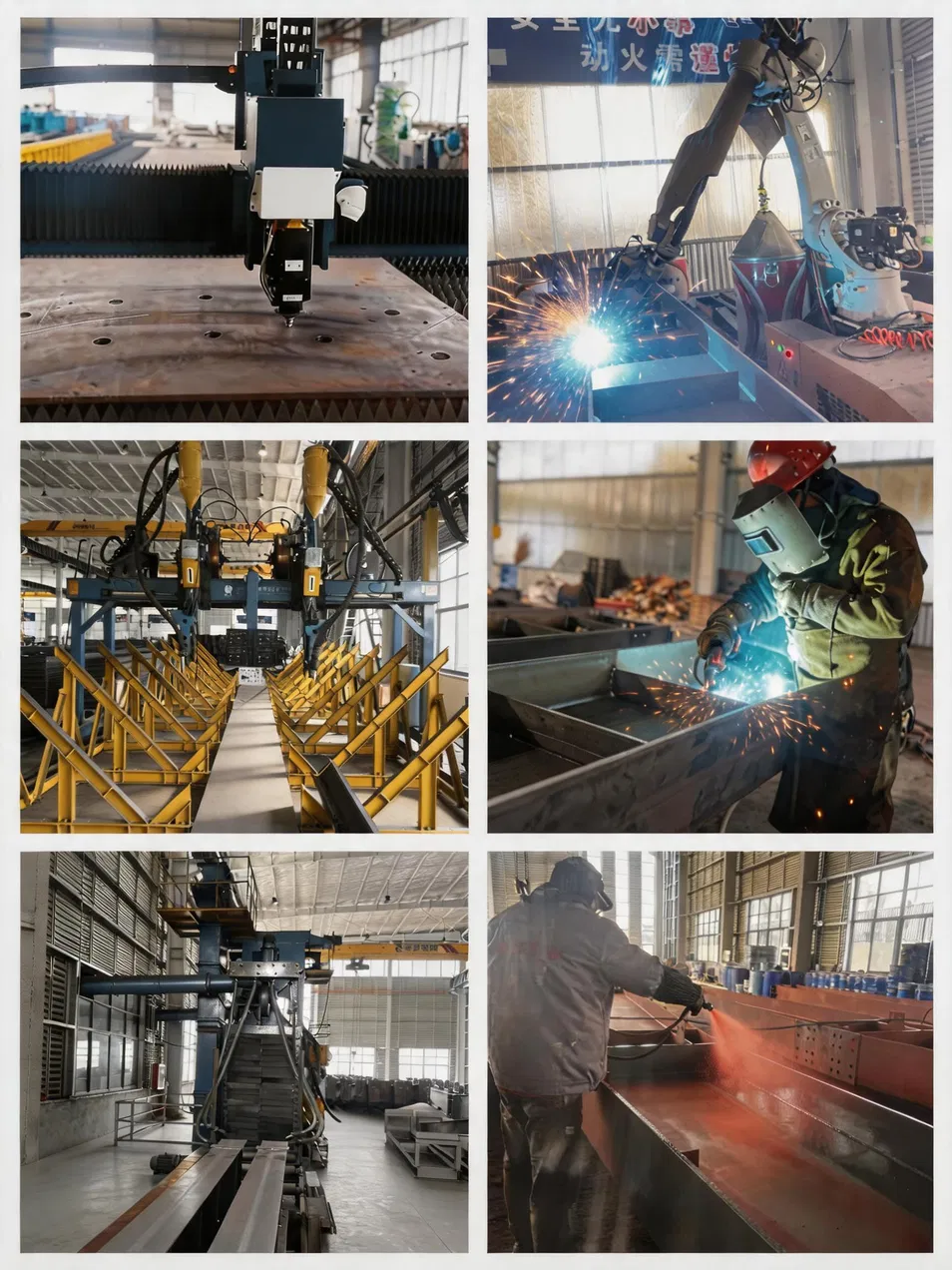

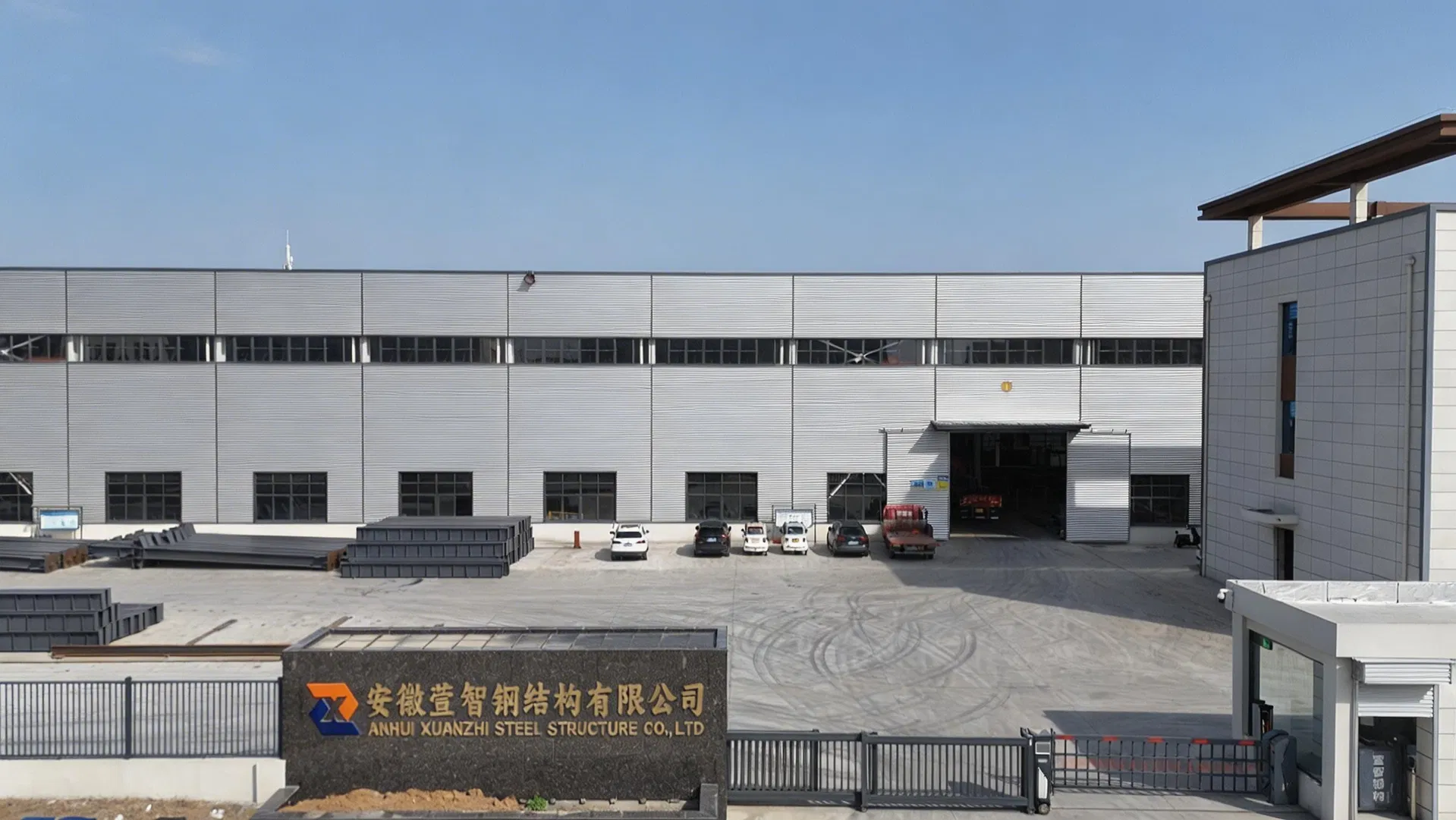

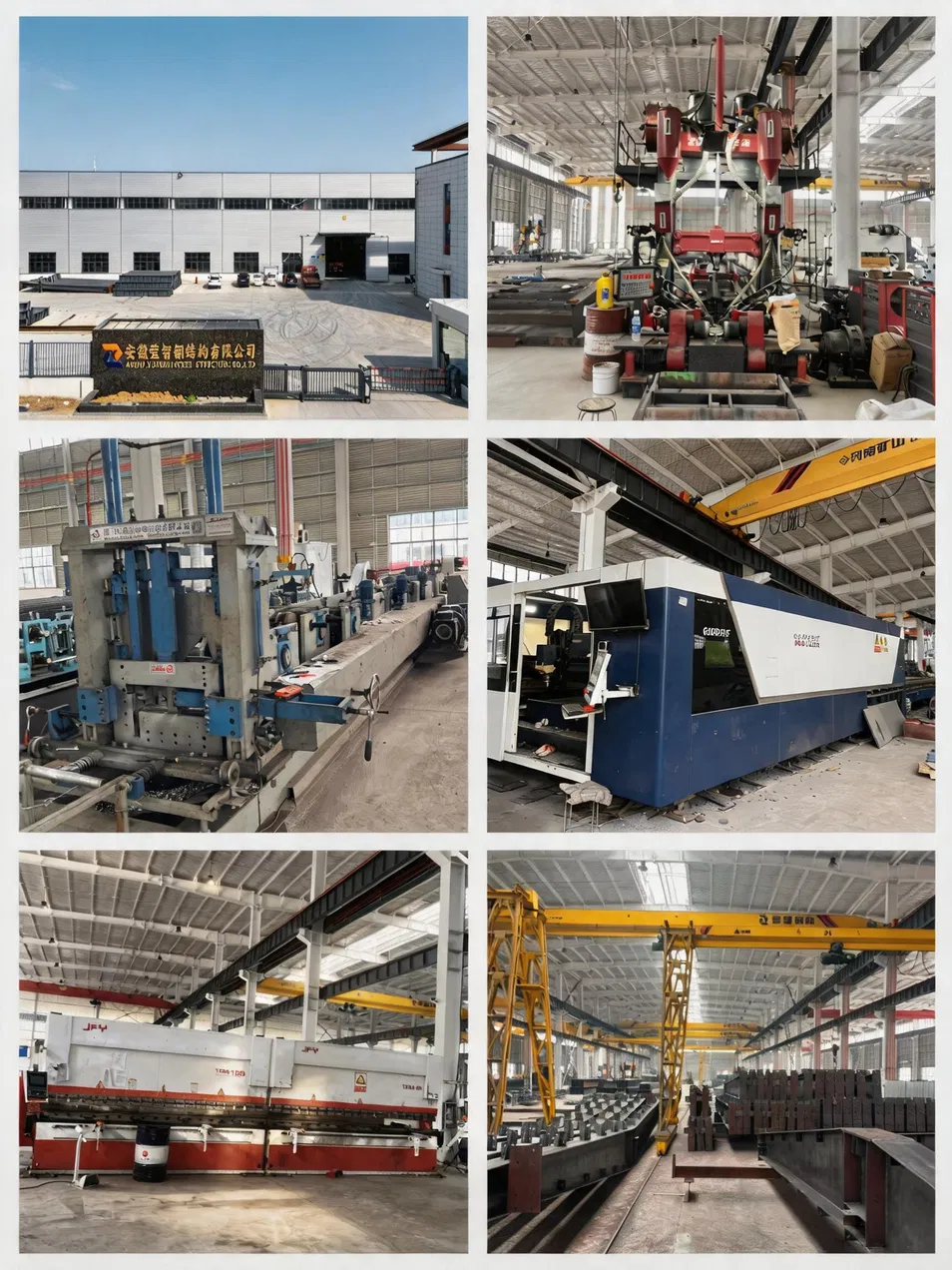

Production Facility Overview Factory Interior Steel Fabrication Automatic Welding Equipment
Packing & Delivery

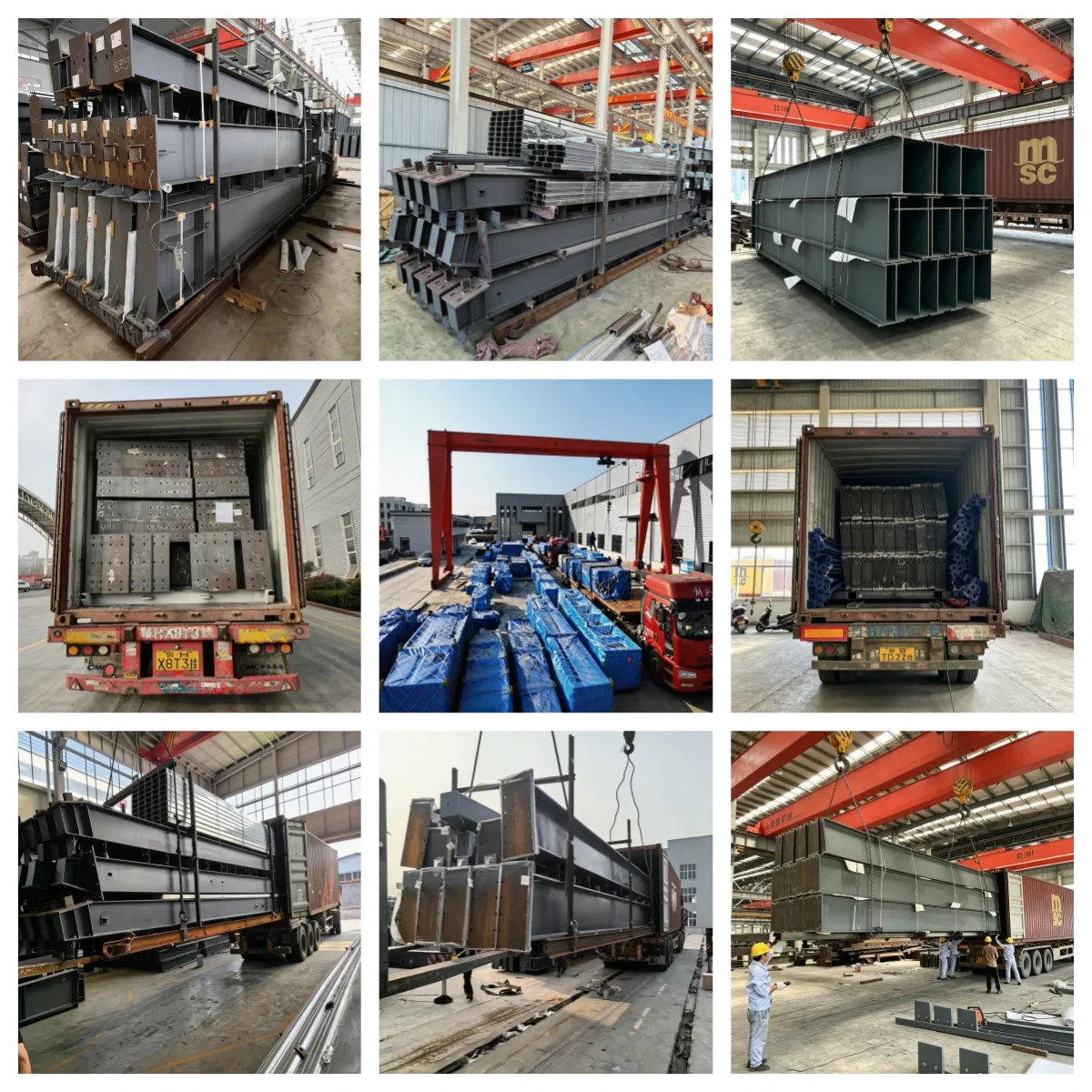

Steel components are moisture-wrapped and secured with steel strapping. Key components are packaged separately to prevent collision and corrosion during transit. All goods are sorted and loaded in accordance with the pre-planned installation sequence. Our professional logistics system ensures secure delivery and intact components for efficient unloading and onsite assembly.

Export Packing and Container Loading
Certifications
Quality and Export Certifications
Client Testimonials
Client Feedback and Project Acceptance
Frequently Asked Questions
Q1 Are you a manufacturer or a trading company?
A: We are a direct manufacturer with our own factory. Visit us anytime to see our quality control and professional sales team. Enjoy competitive factory-direct pricing.
Q2 How competitive is your price compared with other suppliers?
A: Our principle: 'best price for same quality, best quality for same price.' We streamline production to cut costs and ensure top material and workmanship for maximum value.
Q3 Is it difficult to install the prefabricated steel structure workshop? What if I have no installation experience?
A: Prefabricated components only need bolt assembly, no complex welding. We provide installation drawings, online video guidance, and can arrange on-site engineer support. Even beginners can install.
Q4 Do you accept third-party inspection before shipment?
A: Absolutely. You can arrange third-party inspection at any stage, including production, pre-loading, and at our factory. We fully support all inspection needs.
Q5 Can you provide customized design service?
A: Yes, we offer customized design services. Using AutoCAD, Tekla Structures, PKPM, we design steel workshops, warehouses, and industrial buildings per your size, load, climate, and functional needs.
Q6 What is your lead time for production?
A: Lead time varies by project scale and order size. Typically, production completes and delivers to the nearest Chinese port within 15-40 days post-deposit.
