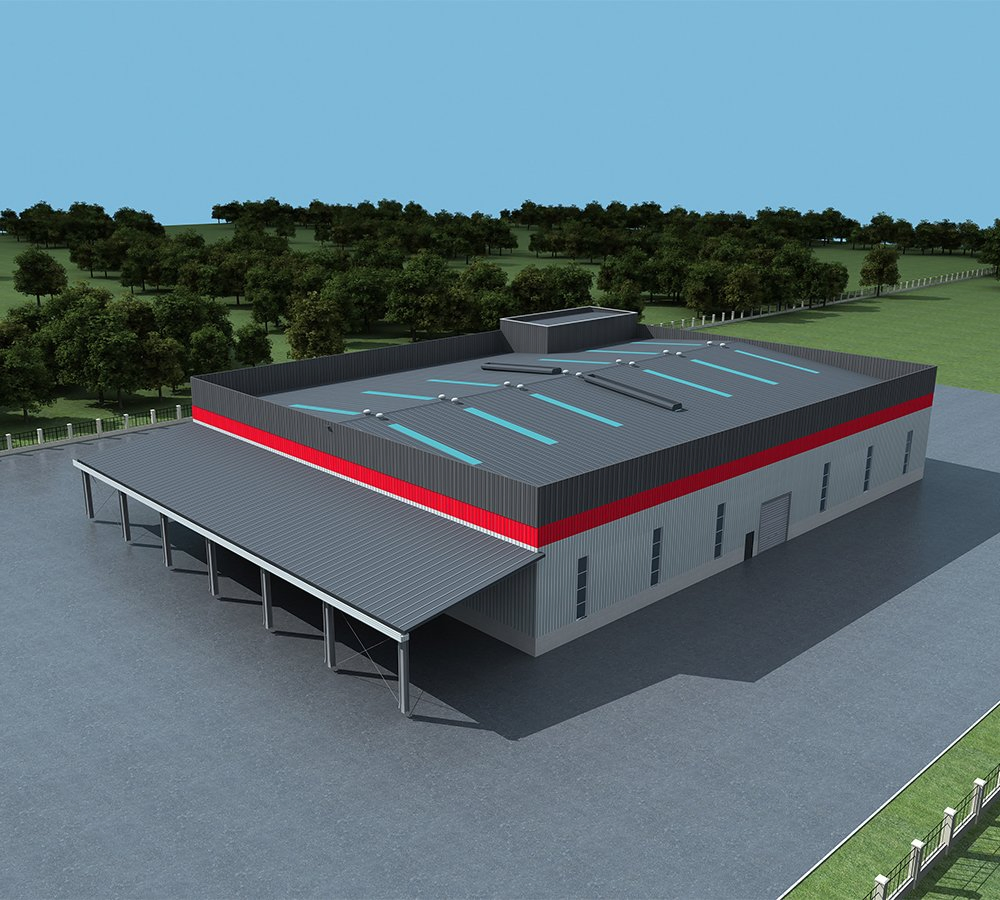

Portal Frame Steel Structure Building Construction for Prefabricated Commercial Warehouse Industrial Fabricated Workshop Prefab Office Farm Metal Shed
Portal Frame Steel Structure Building Construction for Prefabricated Commercial Warehouse / Industrial Fabricated Workshop / Prefab Office / Farm Metal Shed
Steel structure building is a new form in building construction, which is made from the organized combination of custom-designed structural steel members to meet architecture and engineering requirements of users. Steel structure involves sub-structure or members in a building made from structural steel, linked and fixed by welding, bolts and rivets.
Basic Specifications
Model NO.steel building1
GradeCarbon Structural Steel
Molding MethodCold Drawn Steel
Residential Wall StructureWallboard
StandardGB
Steel TypeH-Section Steel
StructureSteel Structure
Life Timeup to 50 Years
CertificateISO
Building SizeAccording to Client's Requirements
Main FrameHot Rolled or Built-up H Section, Q235B, Q345B
Secondary FrameX/V Type Bracing, C/Z Purlin, Q235B
Surface TreatmentPainted or Galvanized
Roof & WallSingle Sheet or Sandwich Panel
FoundationConcrete Foundation and Steel Anchor Bolt
ConnectionAll Bolt Connection (High-Strength and Normal)
WindowPVC, Steel Plastic, Aluminium
DoorWalk Door, Sliding Door, Roller Door
DrawingDesign Customized as Demand
InstallationEngineer Help & Guidance Available
Column and BeamHot Rolled or Welded H Section, I Section
Quality Assurance50 Years
Transport PackageStandard Export Package / Requirement
Production Capacity5000 Ton Per Month
Packaging & Delivery
Package Size100.00cm * 100.00cm * 100.00cm
Package Gross Weight100.000kg
Key Advantages
Lightweight & High Strength: Highly durable for up to 50 years with no structural construction waste.
Standard Certified: High performance quality standards matching ISO 9001: 2008 requirements.
Cost-Efficient & Fast: Saves extensive installation time and structural labor expenses.
Eco-Friendly & Recyclable: Easily relocatable design; main structural components are fully recyclable.
Versatile Uses: Ideal application as structural factories, warehouses, offices, aircraft hangars, and metal sheds.
Structural Durability: Solid load-bearing performance with easy low-cost maintenance over time.
Technical Parameters

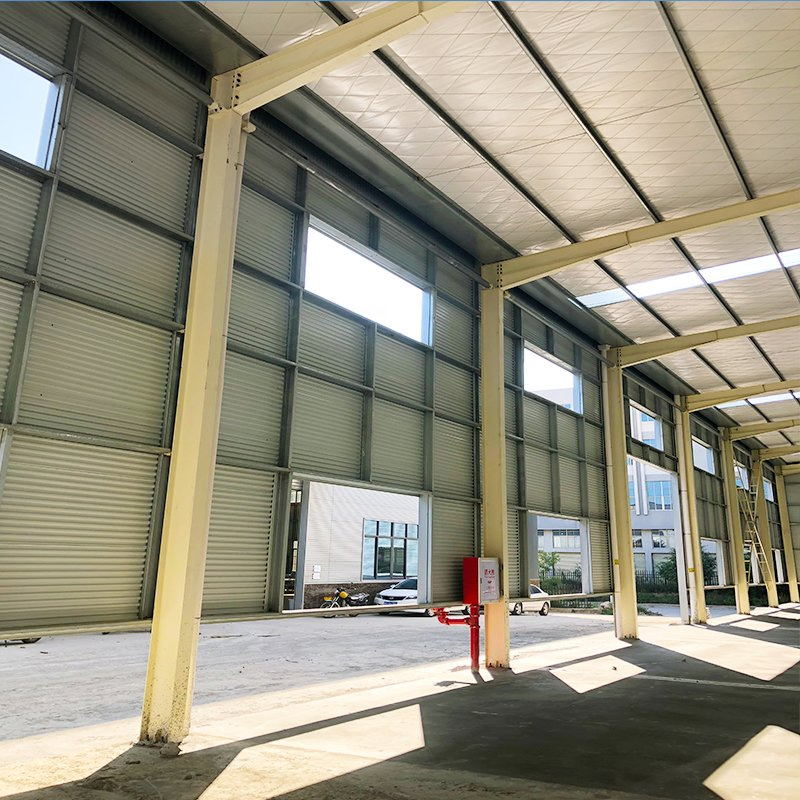

Main Steel Structure: Build-up column, welded H-beam
Purlin: C-type steel structural sections
Roof Panel: Single steel sheet or sandwich panel
Wall Panel: Matches roof panel options
Tie Bar: Welded-round steel tube
Brace: Round solid structural steel
Column & Lateral Brace: Angle structural steel
Crane System: Supports capacity of 3T - 30T
Angle Brace: Hot-rolled angle steel
Edge Trim: Colored coating plate
Gutter: Heavy duty stainless steel
Down Pipe: Durable PVC piping
Door: Sandwich panel door or rolling shutter
Window: Aluminum alloy or PVC frame windows
Design & Quotation Criteria
If you have structural drawings, we can make the quotation accordingly. If not, please provide us with the following parameters so we can prepare a complete design and price quotation:
(1) Dimensions:
Length, width, height, eave height, roof pitch, etc.

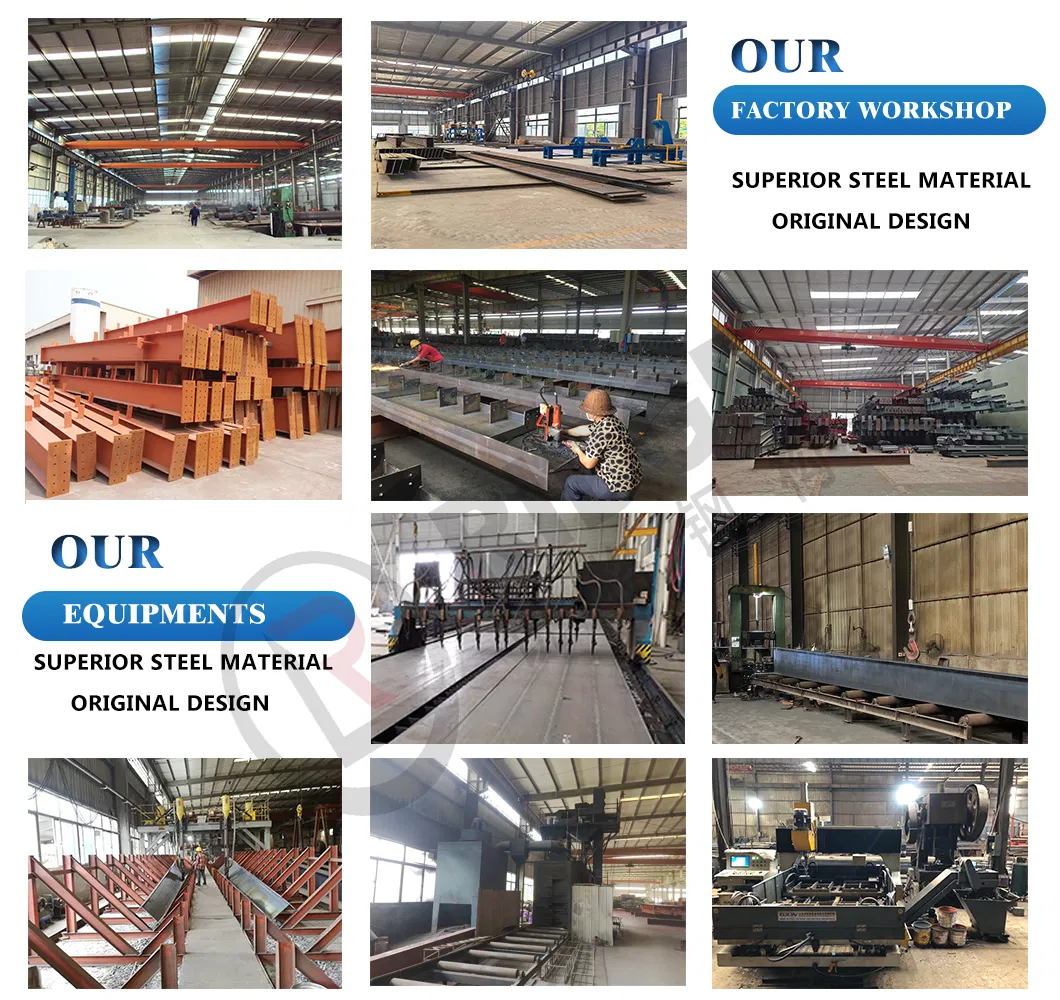

Established in 1998, the manufacturing facility specializes in the design, fabrication, and erection of high-quality steel structures. Consisting of a highly operational fabrication workshop, an experienced drawing and engineering design office, and an efficient erection group, we provide reliable quality and cost-effective solutions for various prefabricated building projects.

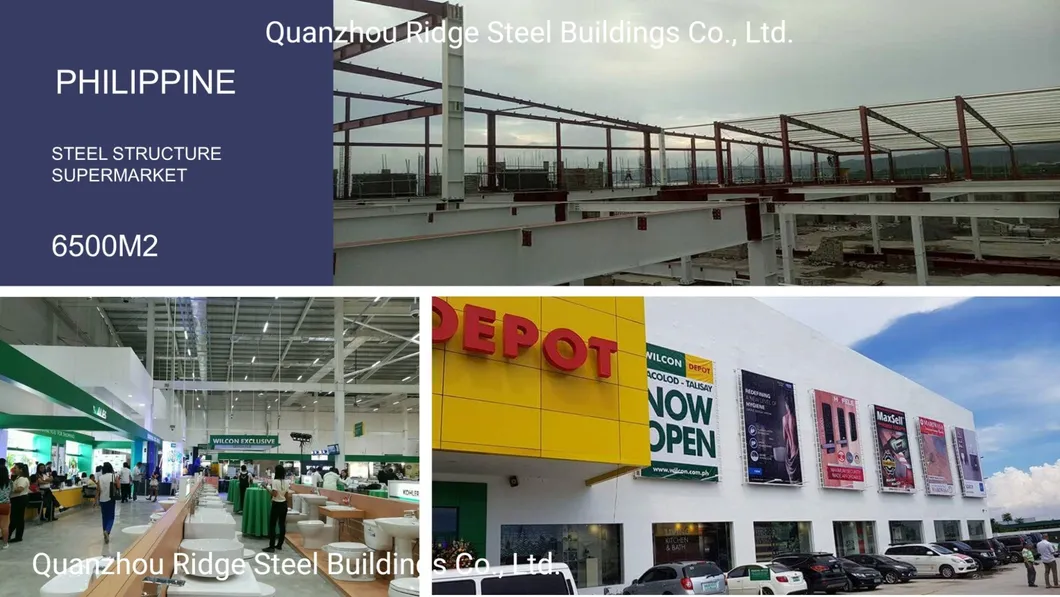

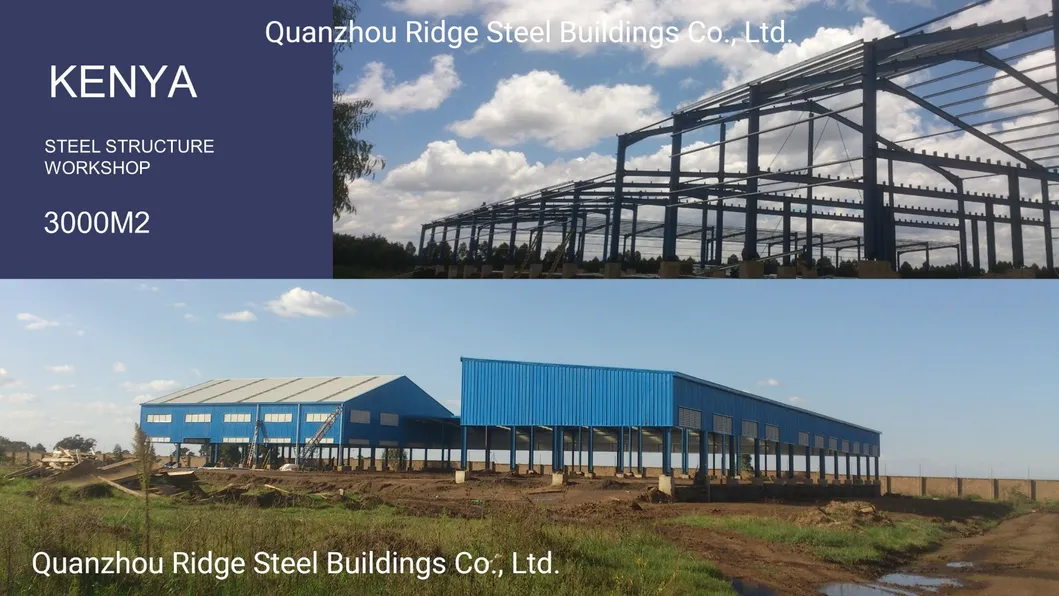

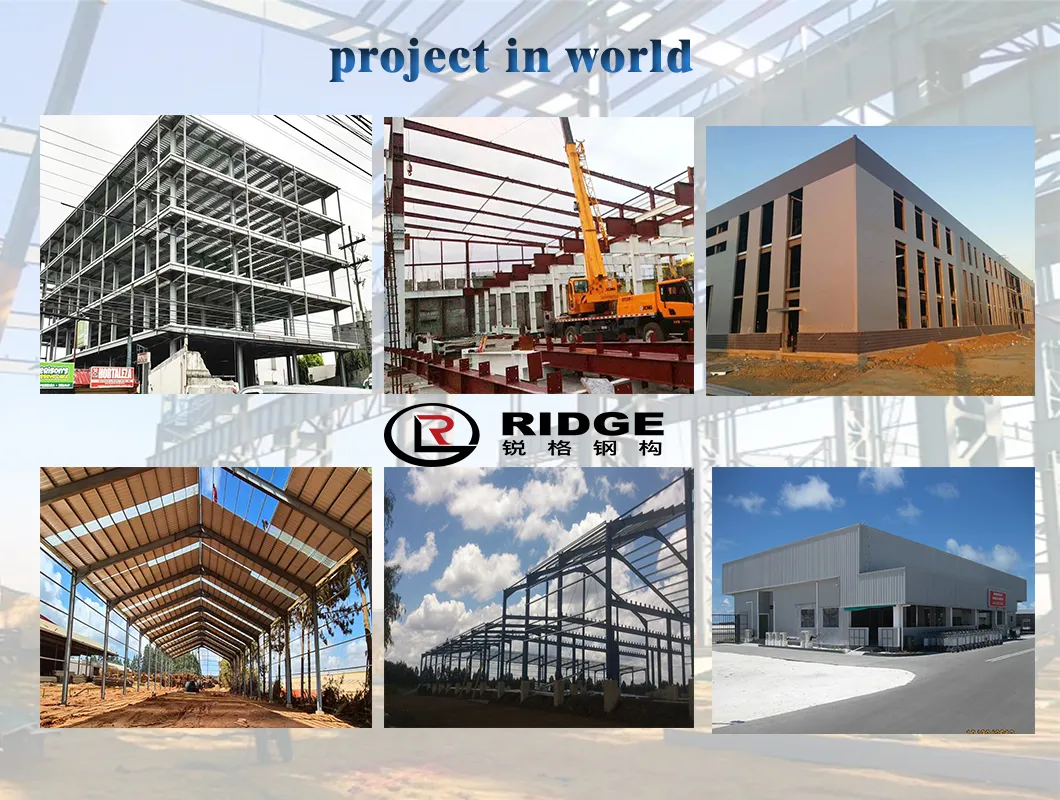

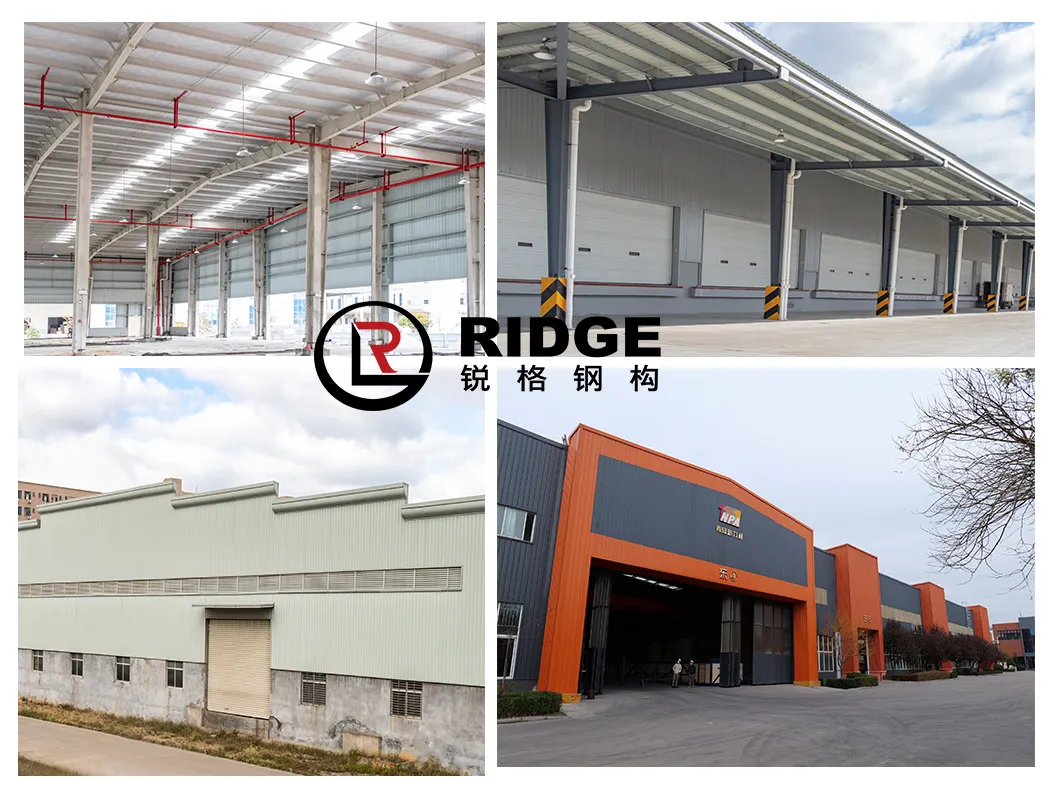

Global Projects Portfolio
Country
Project Type
Size (sq.m.)

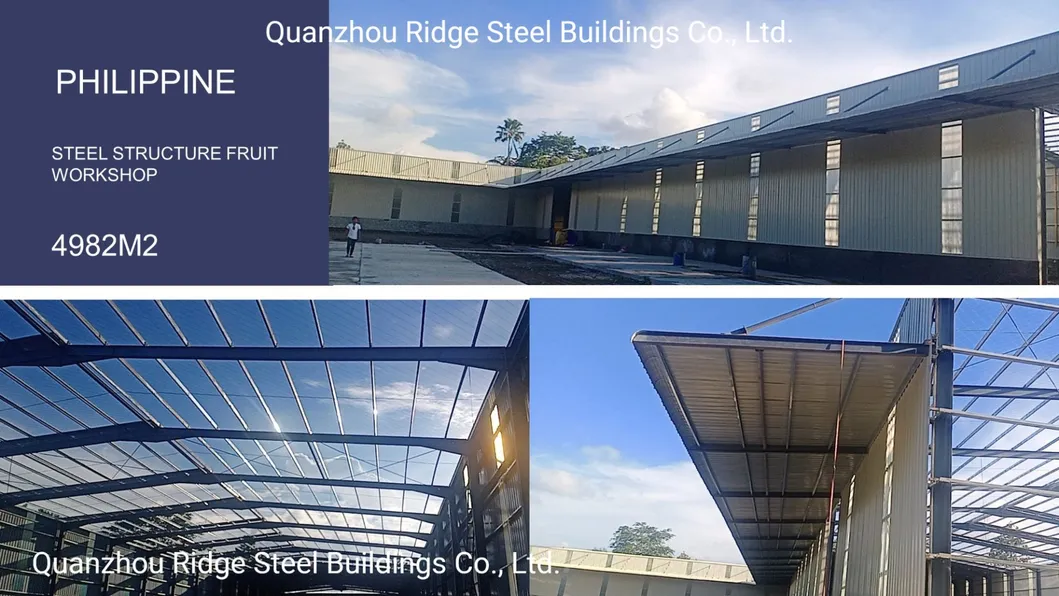

Philippine
Fruits processing workshop
4982m²
Canada
Storage shed
750m² * 6
Canada
Riding area
600m²

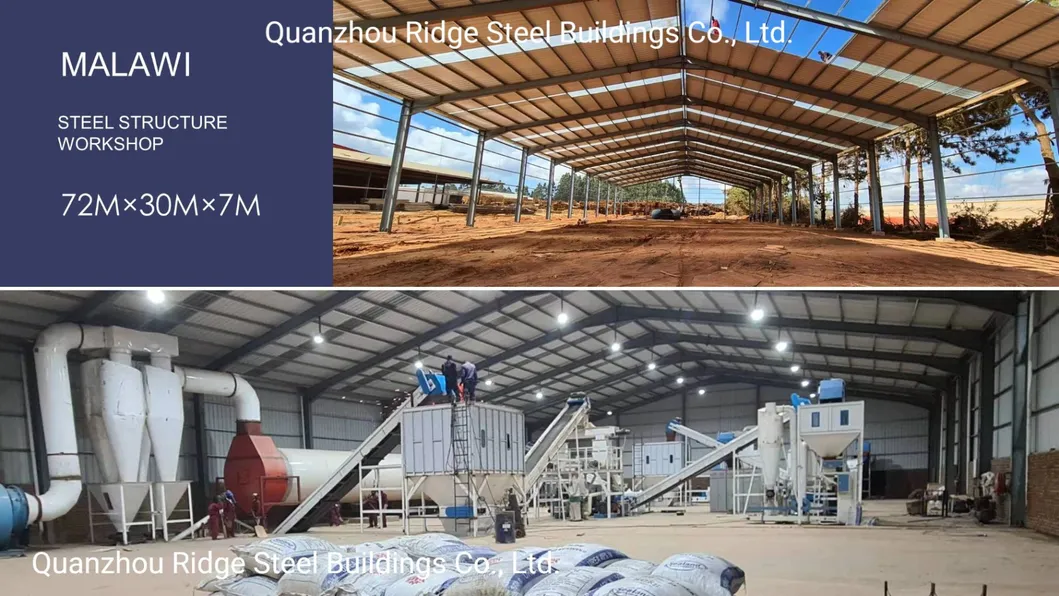

Malawi
Sawmill workshop
2160m²
Germany
Steel hall
300m²
Mauritius
Steel warehouse
1116m²
Zambia
Steel structure building
1383m²

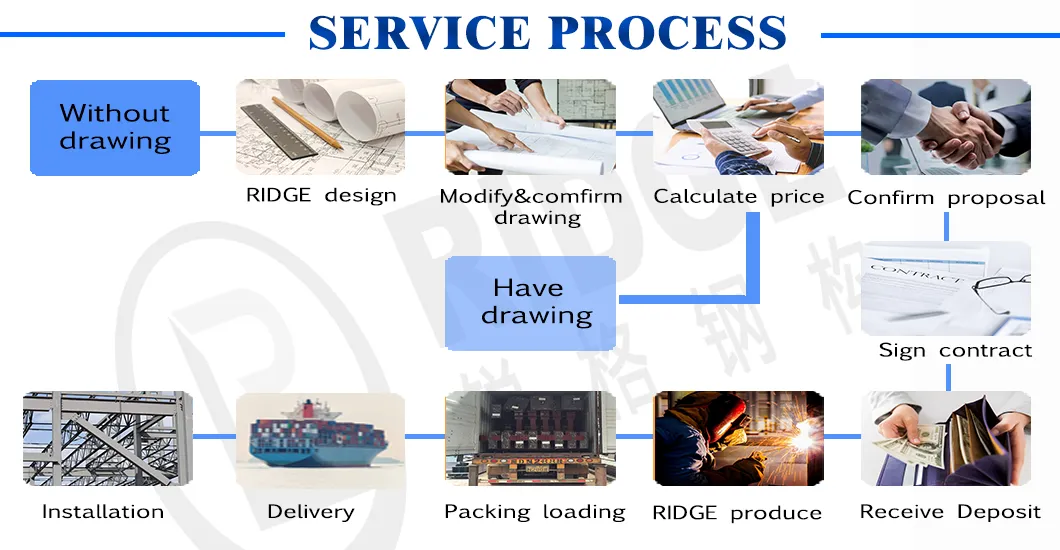

Our Service Scope
Design
Defining scope & budget with custom structural drawings tailored for lasting value.
Engineer
Ensuring structural integrity matches local building codes and design loads.
Fabricate
Pre-cut and pre-drilled fabrication to strict specification, packaged for shipment.
Deliver
Pre-shipment verification of the bill of materials at the factory for site precision.
Support
Dedicated project management support to guide erection until completion.
If you are interested in a structure for commercial or industrial use, we've got you covered! Because we custom build all of our structures, we can make yours virtually as large as you need with the exact specifications.
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of portal frame steel structure buildings?
A: They are lightweight, highly durable (up to 50 years), eco-friendly (materials are recyclable), saving time and cost compared to traditional construction, and produce zero construction waste.
Q2: What steel structural parameters do you offer?
A: We use high-quality welded H-beam steel for primary columns/beams, C/Z type purlins for the secondary structure, and high-strength bolt connections. Wall and roof options include single sheets or insulated sandwich panels.
Q3: What specifications are needed to get a design and price quote?
A: Please provide dimensions (length, width, height), door/window locations, local wind speed/snow load, insulation thickness, and details regarding any crane systems (lifting weight/height).
Q4: Are the prefabricated steel buildings shipped ready to assemble?
A: Yes, our structural components come pre-cut, pre-drilled, painted or galvanized, and carefully packaged for standard shipping to allow simple, bolt-together onsite assembly.

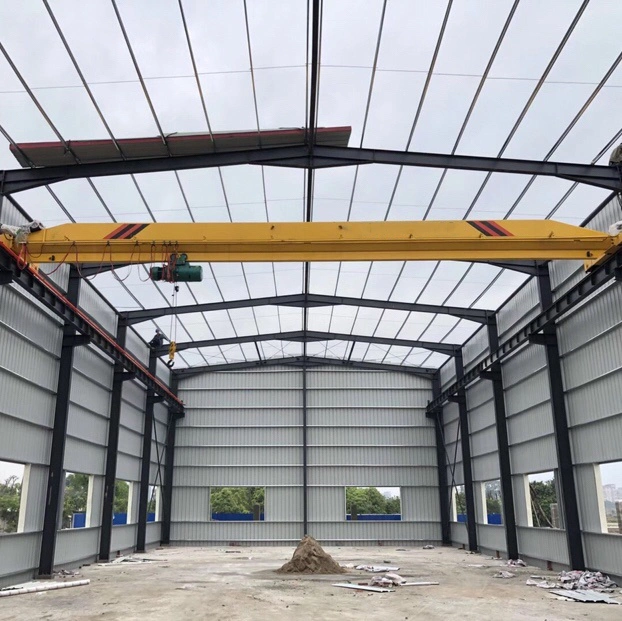

Q5: Can these metal buildings support heavy industrial crane systems?
A: Absolutely. Our structural engineering group designs columns and overhead runway beams to support structural overhead crane capacities ranging from 3 tons to 30 tons.
Q6: What quality certifications do these structural systems hold?
A: The fabrication process and structures adhere to strict quality parameters, matching international ISO 9001 and GB standards to guarantee up to a 50-year service life.
