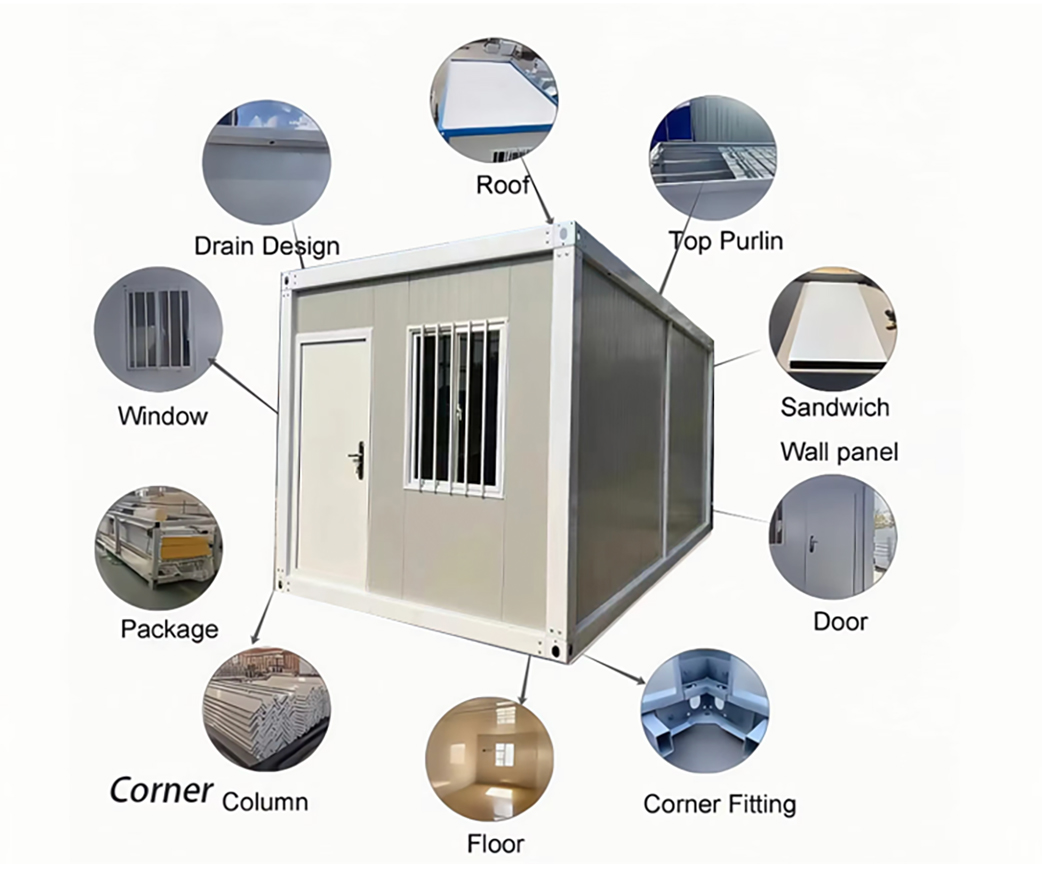

Detailed configuration parameters and dimensions of the modular unit
| Parameter Specifications | |
|---|---|
| External Dimensions | L5950mm × W3000mm × H2800mm |
| Internal Dimensions | L5730mm × W2800mm × H2500mm |
| Roof Type | Flat roof, free drainage |
| Corner Column & Roof Main Beam | Galvanized cold-rolled steel, t=2.0mm, material Q235B |
| Secondary Roof Beam | Galvanized square steel 5×5, t=1.5mm; Galvanized square steel 4.6t–1.2mm, material Q235B |
| Ground Main Beam | Galvanized cold-rolled steel, t=2.0mm, material Q235B |
| Ground Secondary Beam | Galvanized square steel 5×10 (9 grades), material Q235B |
| Paint Type | Graphene powder spraying (electrostatic spraying) |
| Roof Panel | 0.40mm thick color steel plate profiled plate, color white gray |
| Ceiling Panel | 0.25mm thick 811 ceiling, color white gray |
| Ground Substrate | 18mm sanded board |
| Wall Thickness | 50mm thick color steel rock wool sandwich panel; outer and inner panels use 0.3mm galvanized color steel plate |
| Door Material | Steel door |
| Door Specification | 920×2030mm ordinary door |
| Window Specification | Front window: 920×1200mm (W × H); Rear window (standard): 920×1200mm (W × H) |

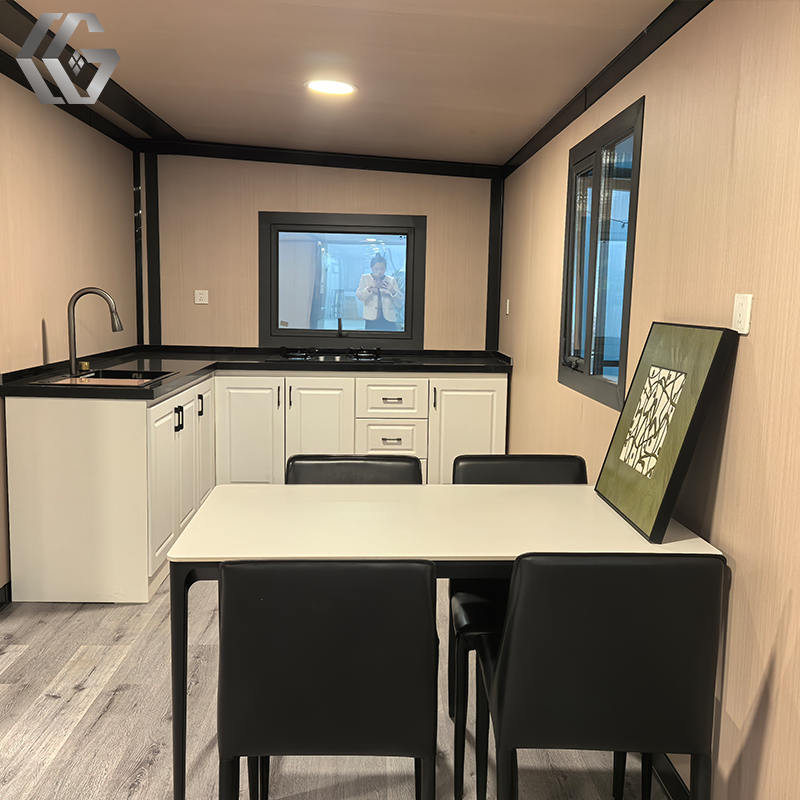

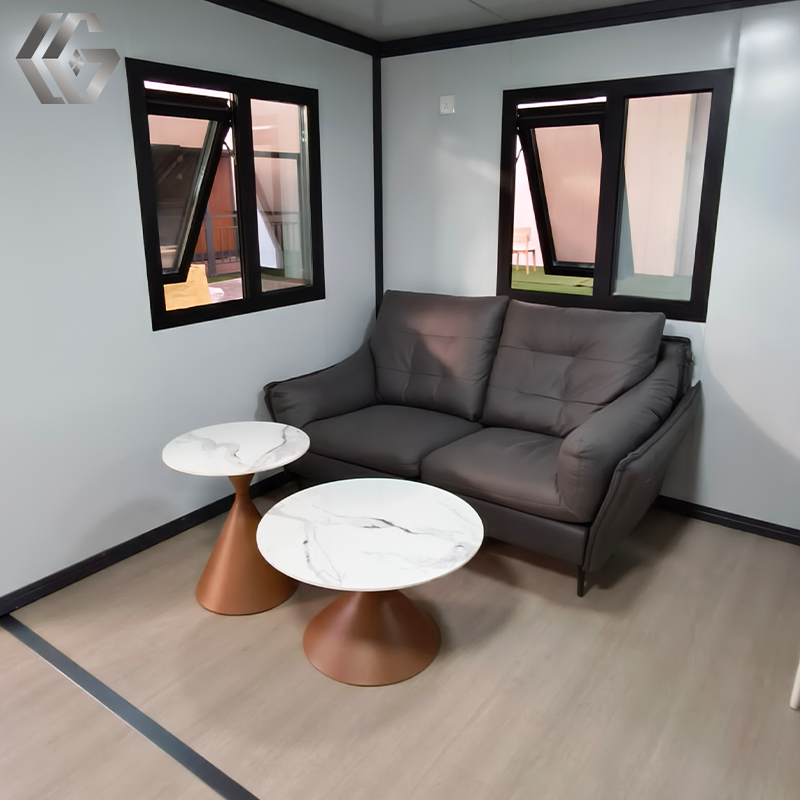

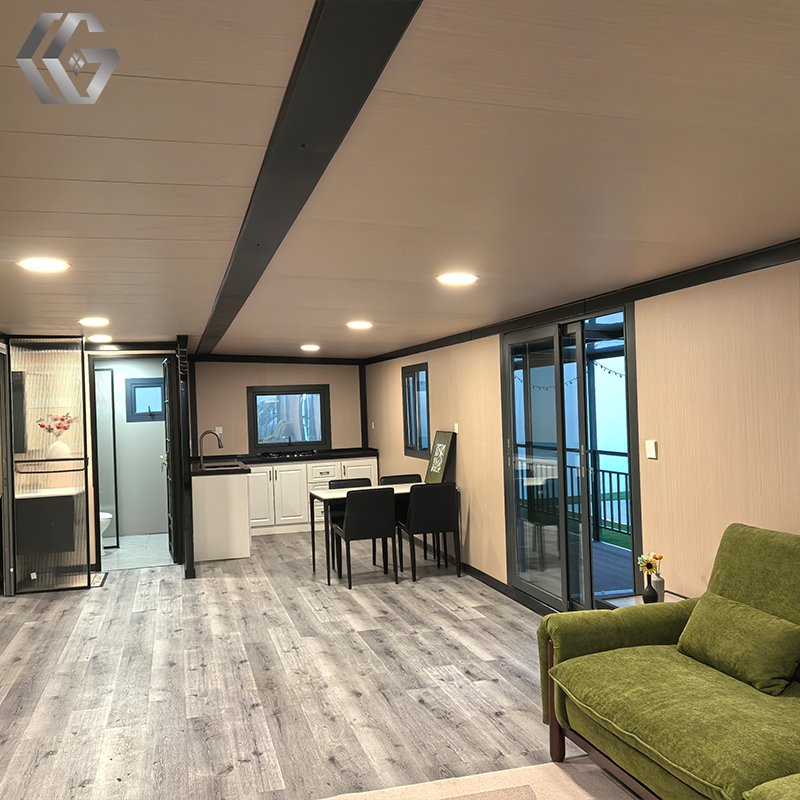

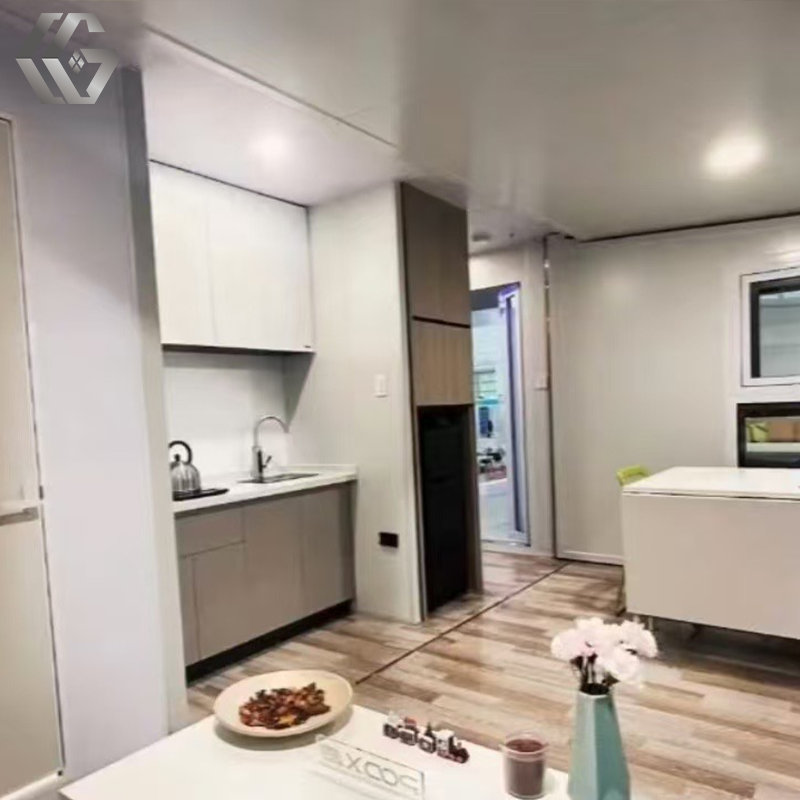

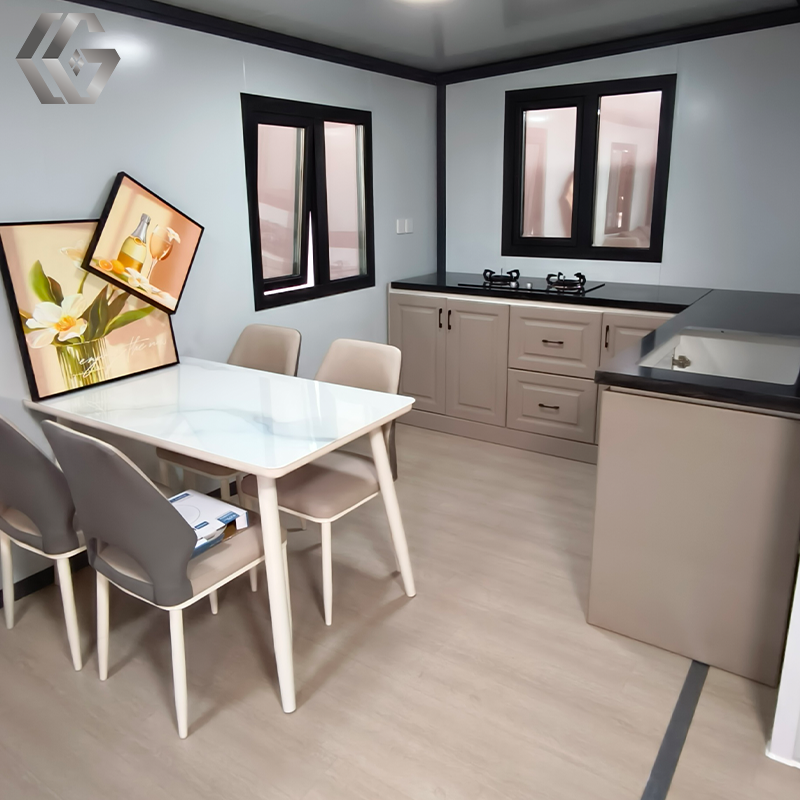

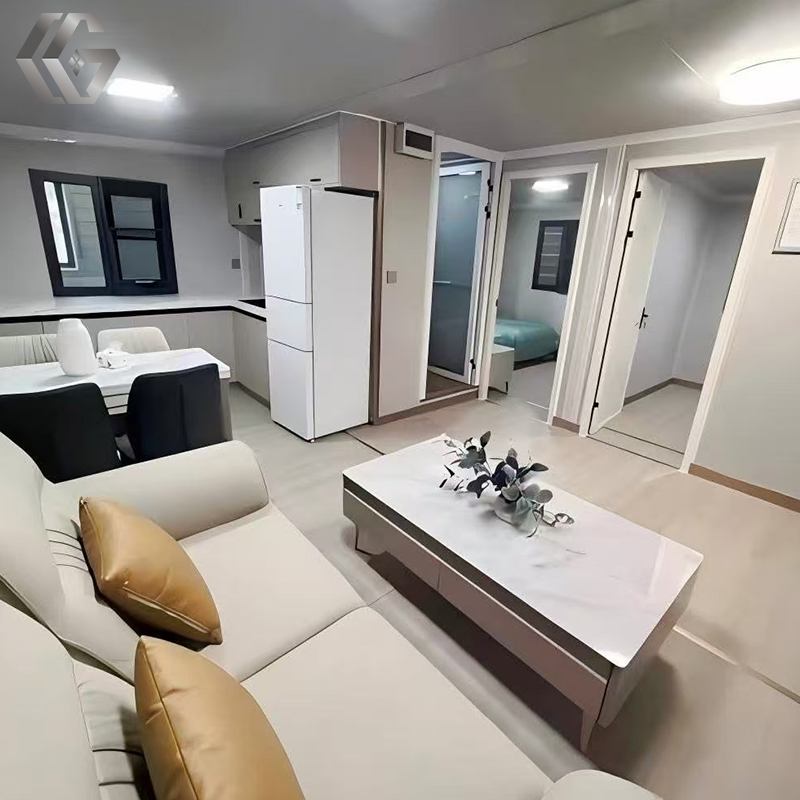

The whole house is customized according to your needs, giving you a perfect home

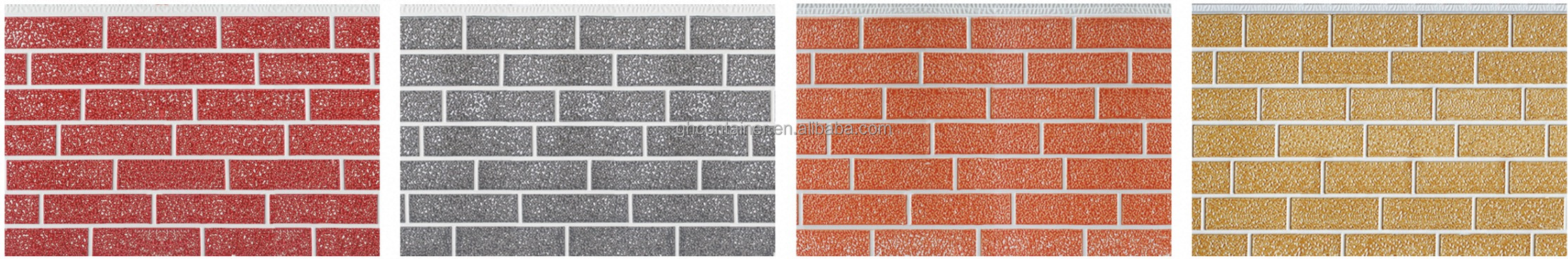

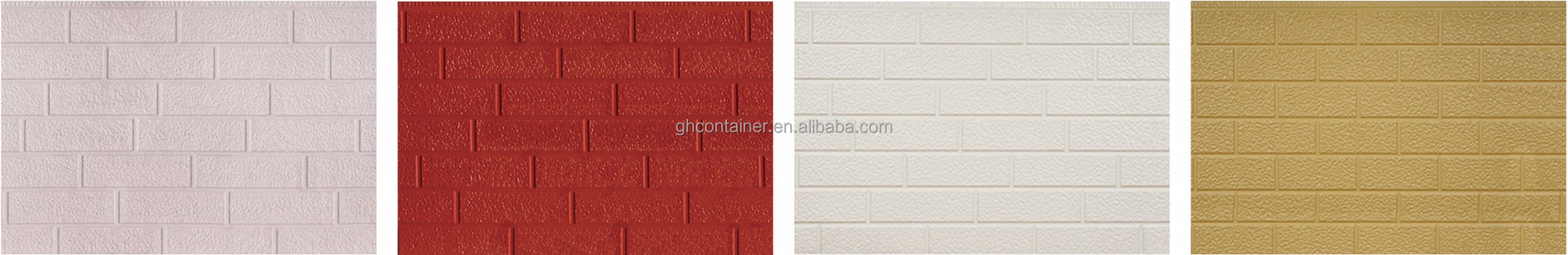

Custom exterior decoration color cards and design details. Welcome to consult.

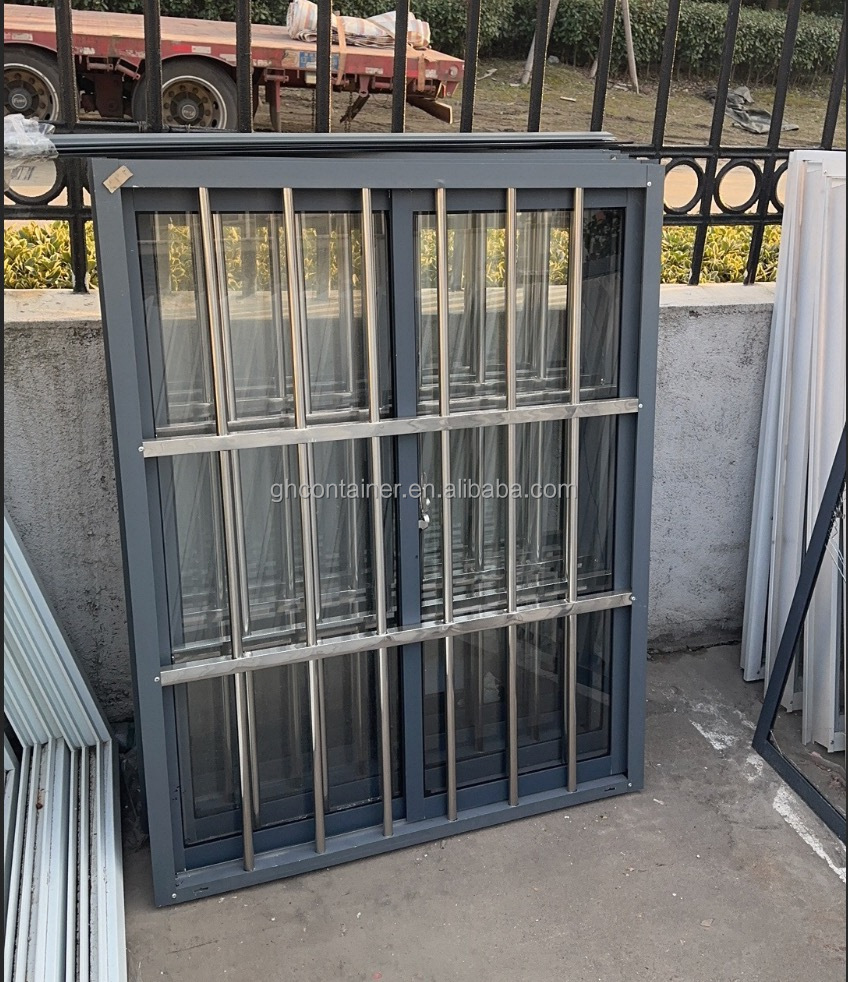

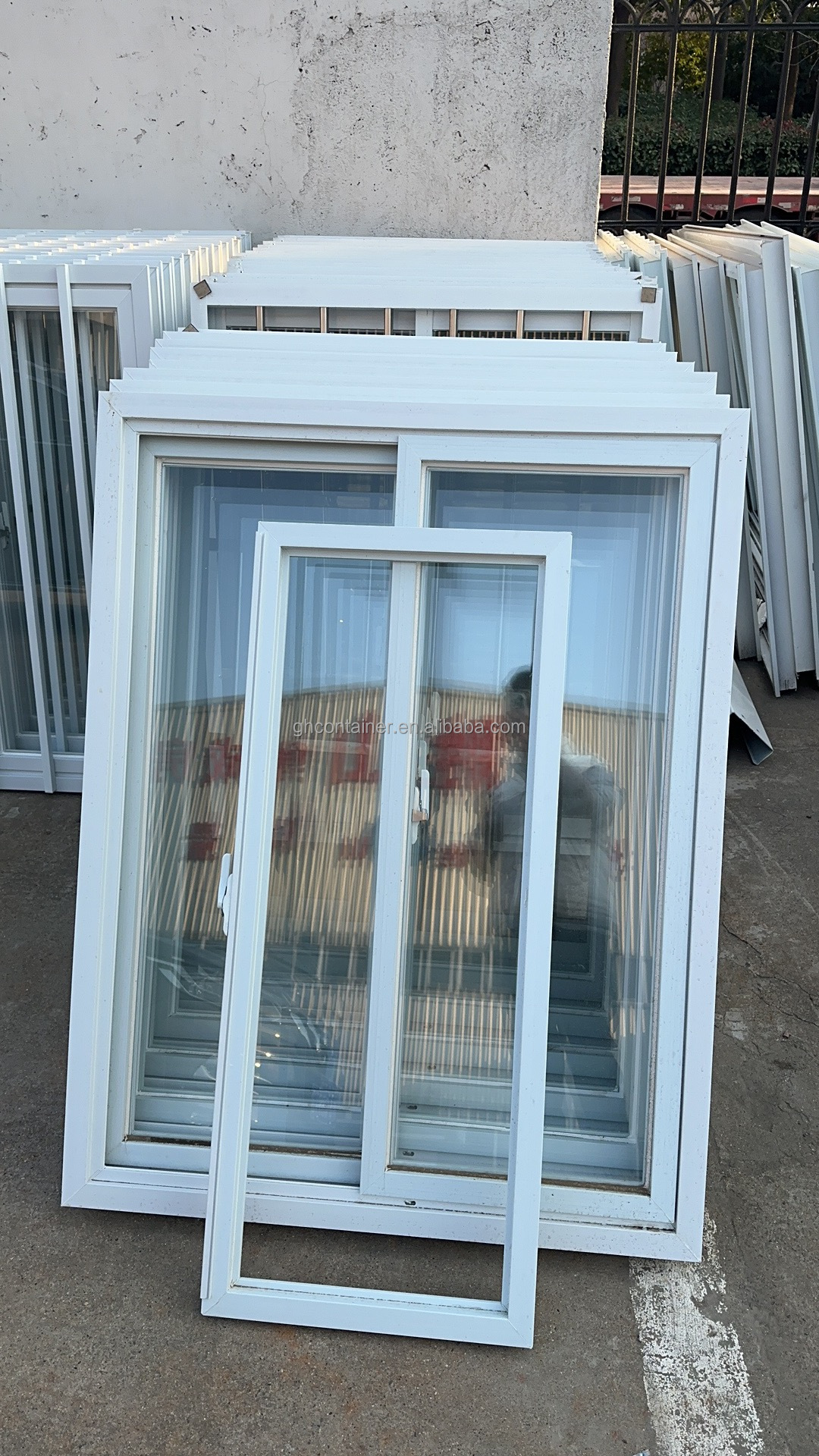

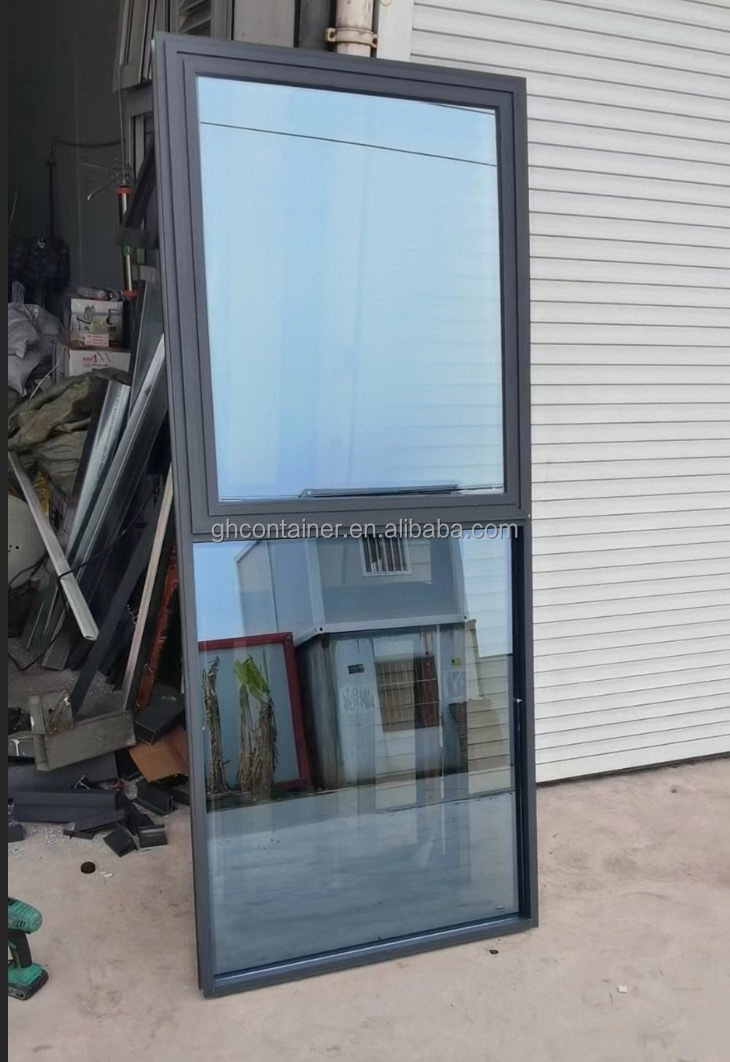

Custom doors and windows, more styles welcome to consult

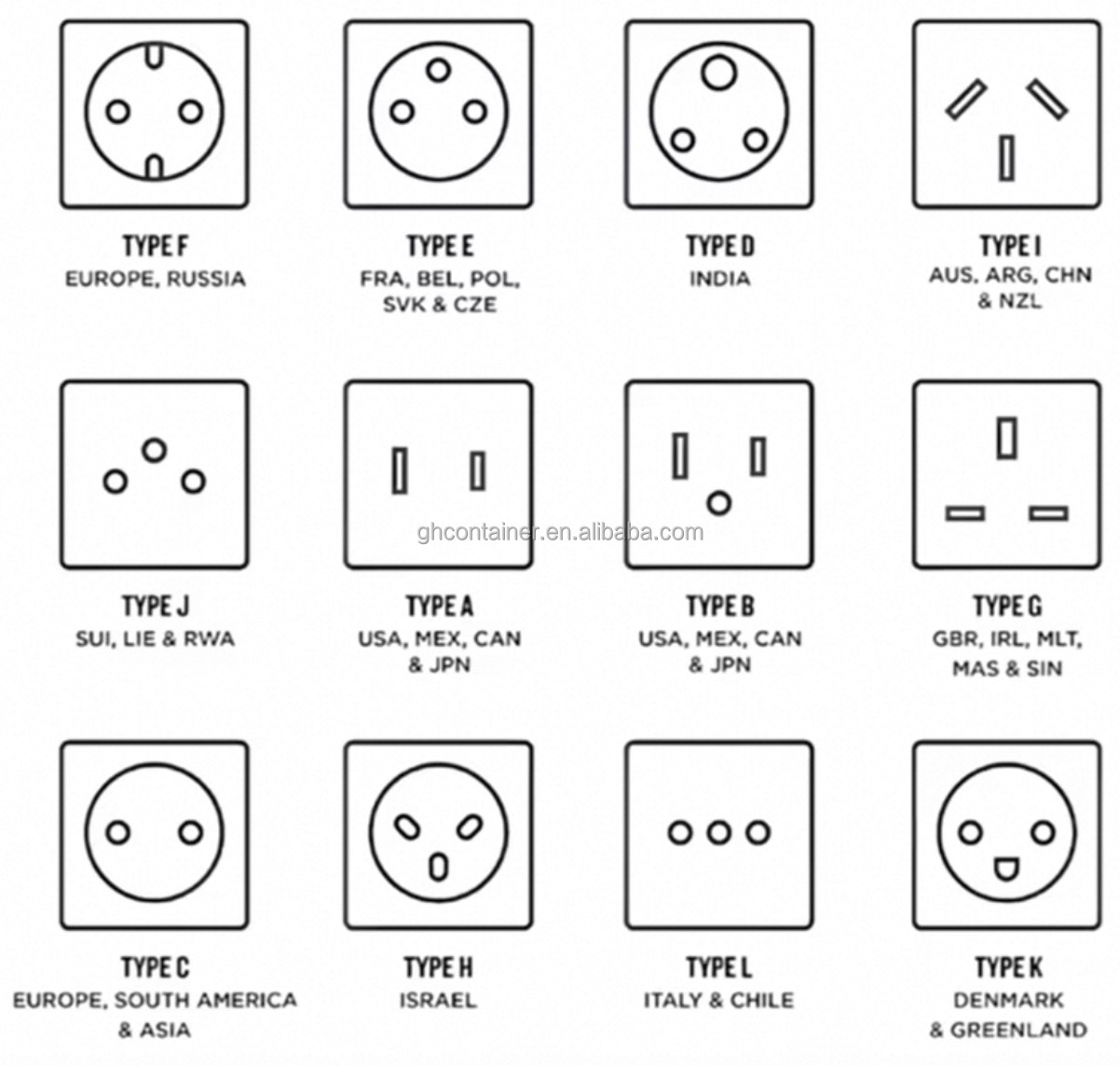

Global power socket styles can be customized

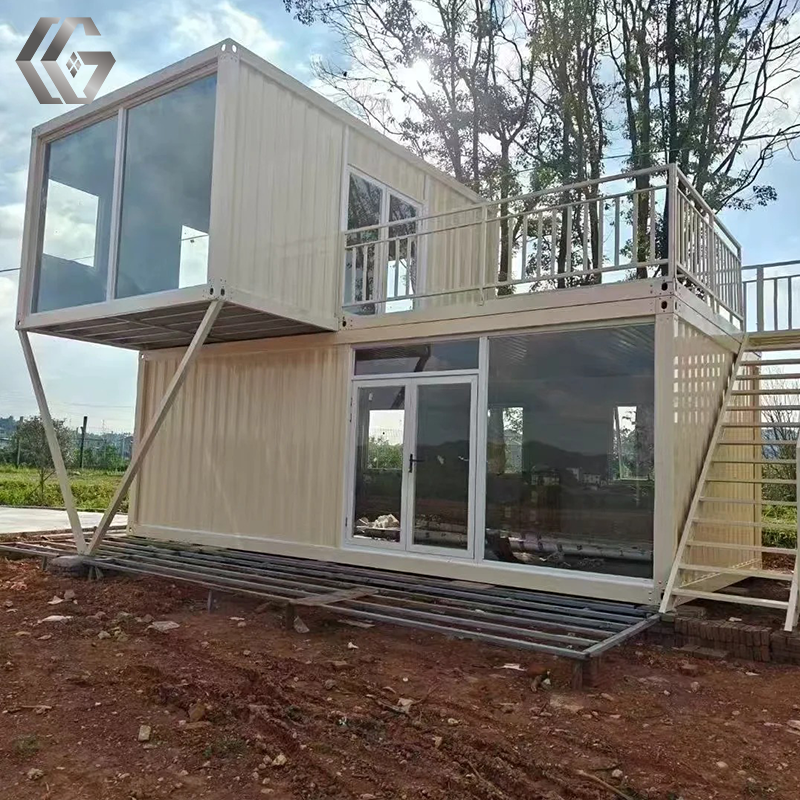

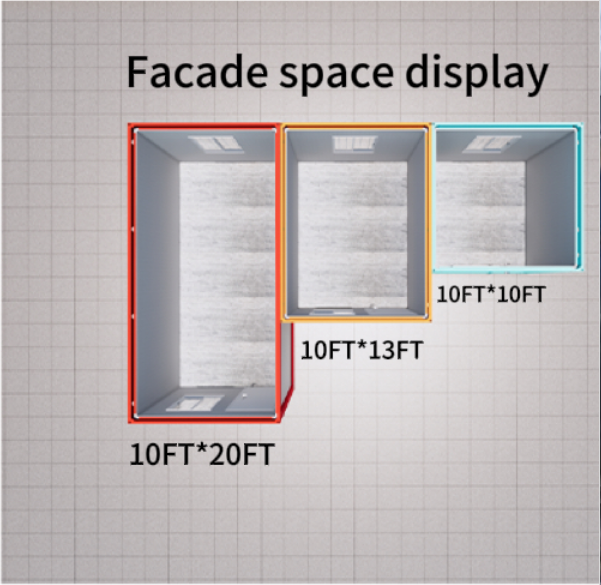

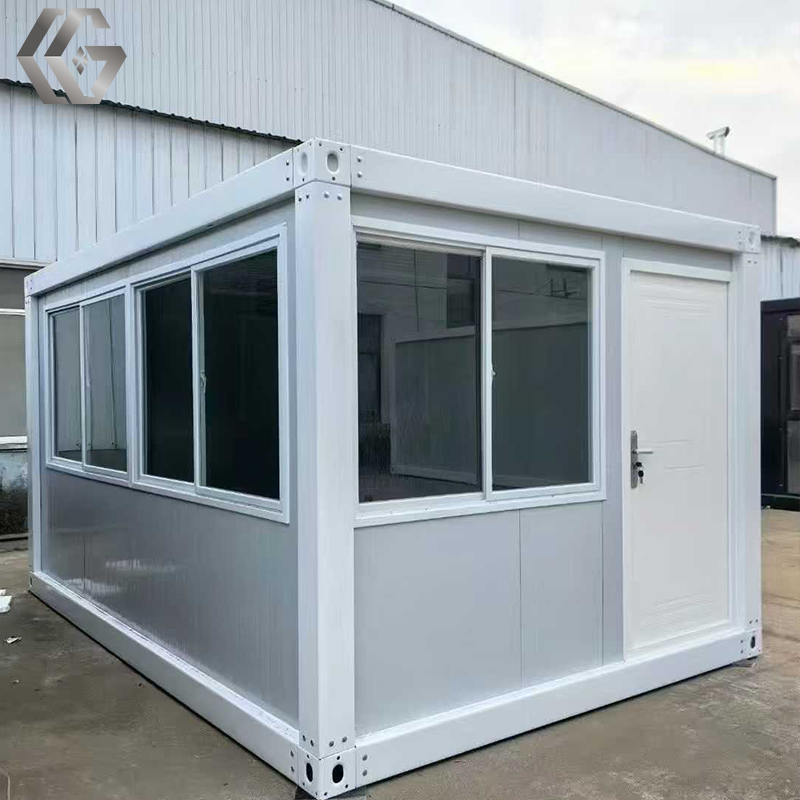

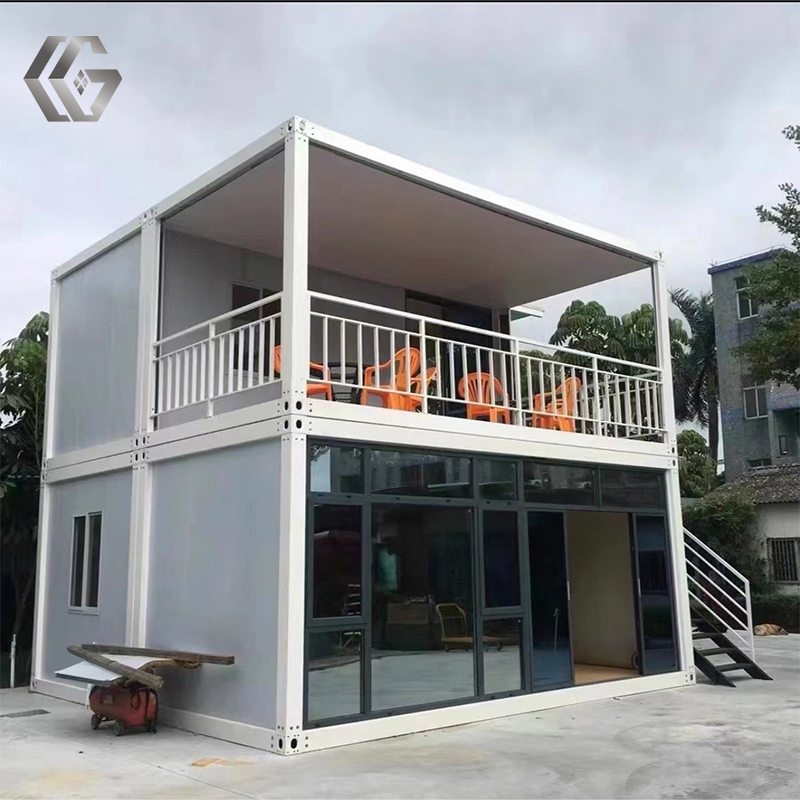

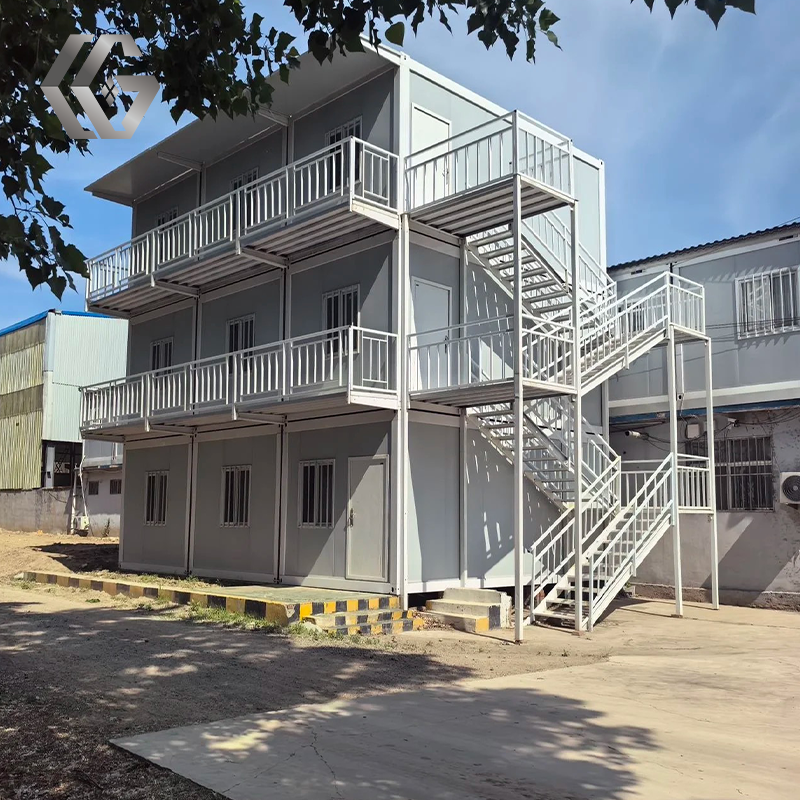

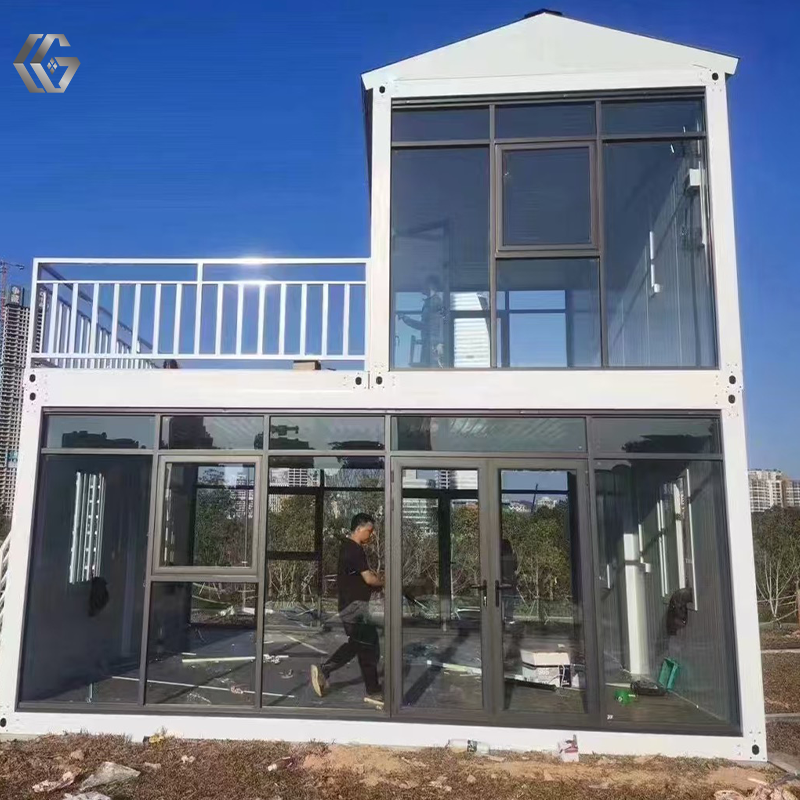

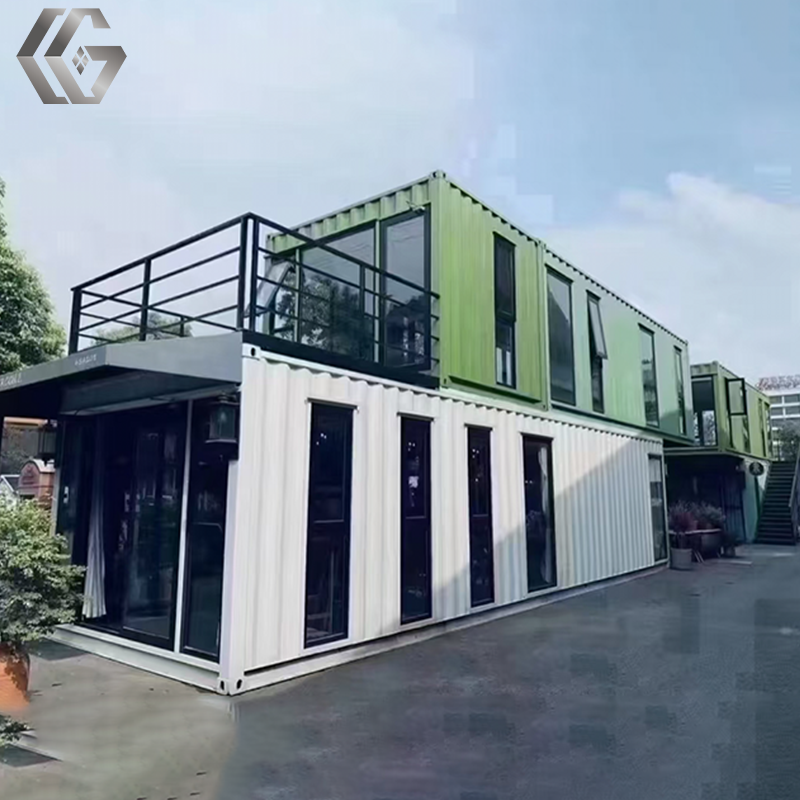

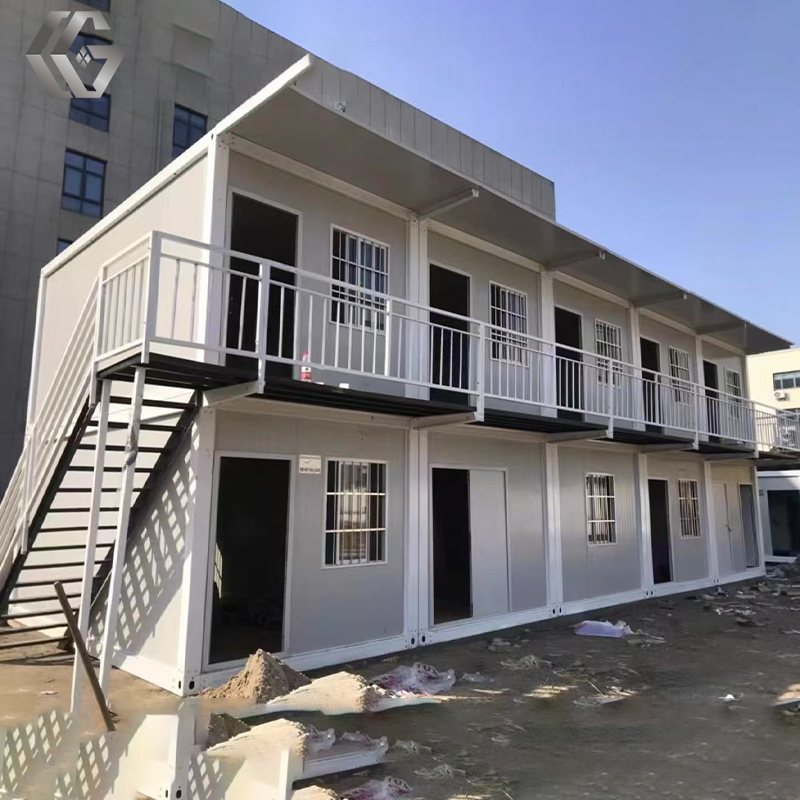

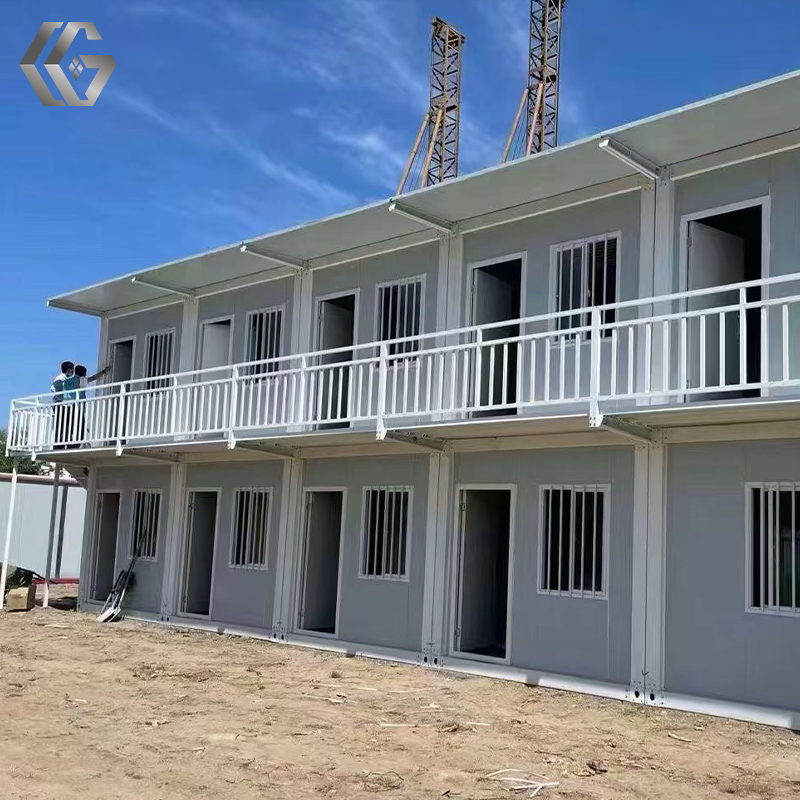

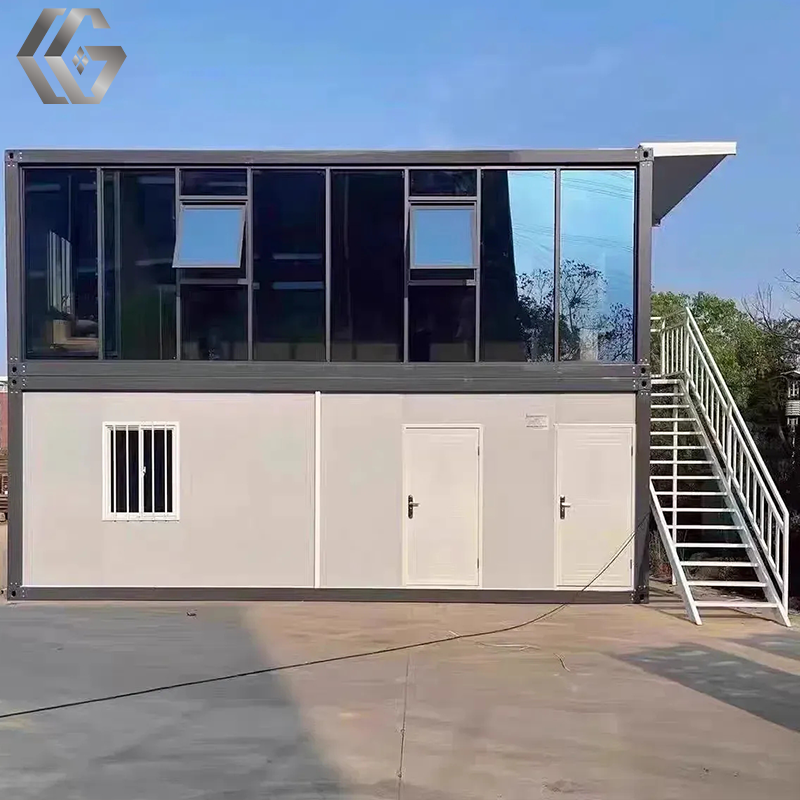

Modular structures allow various flexible stacking and configuration methods

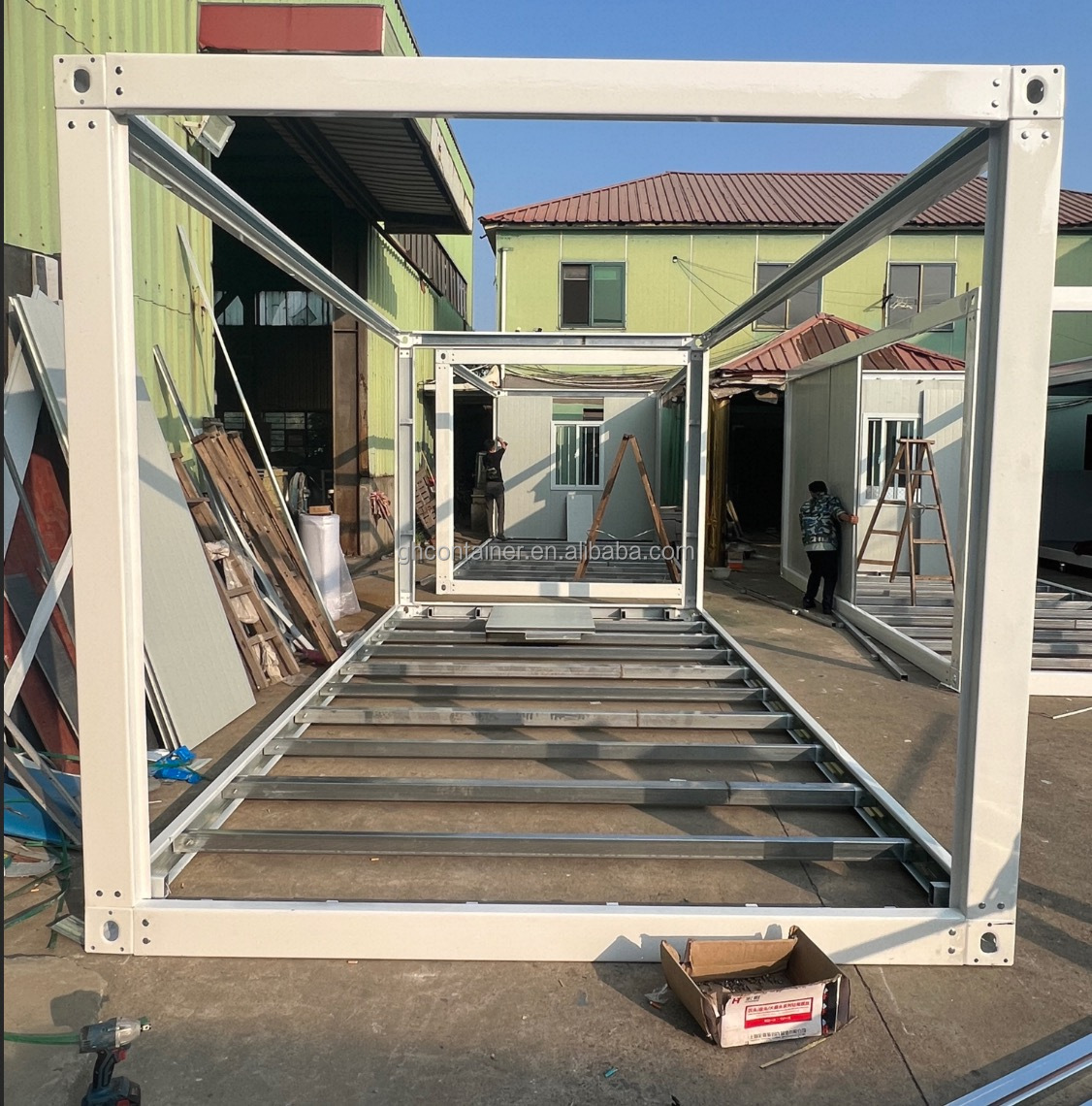

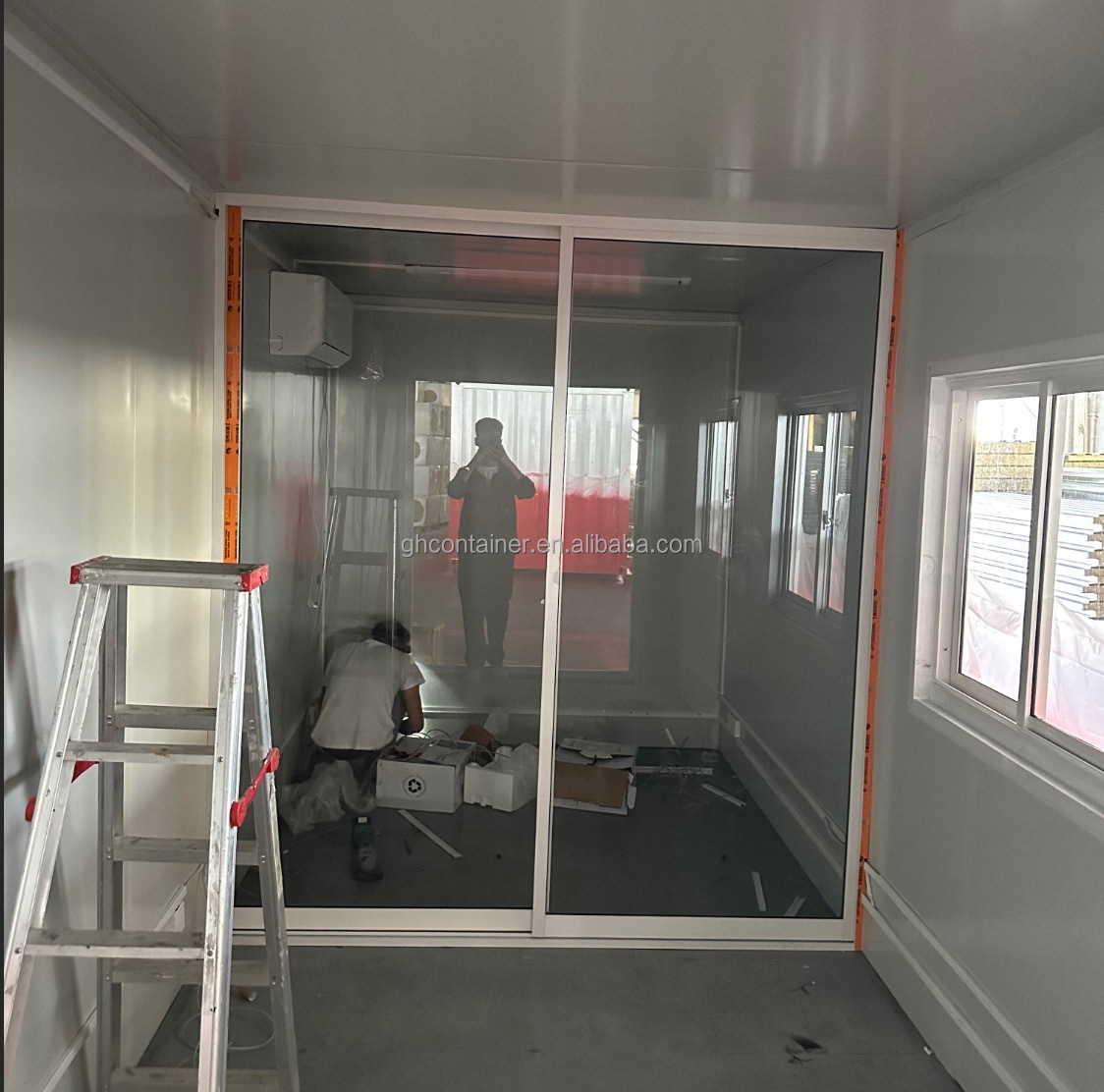

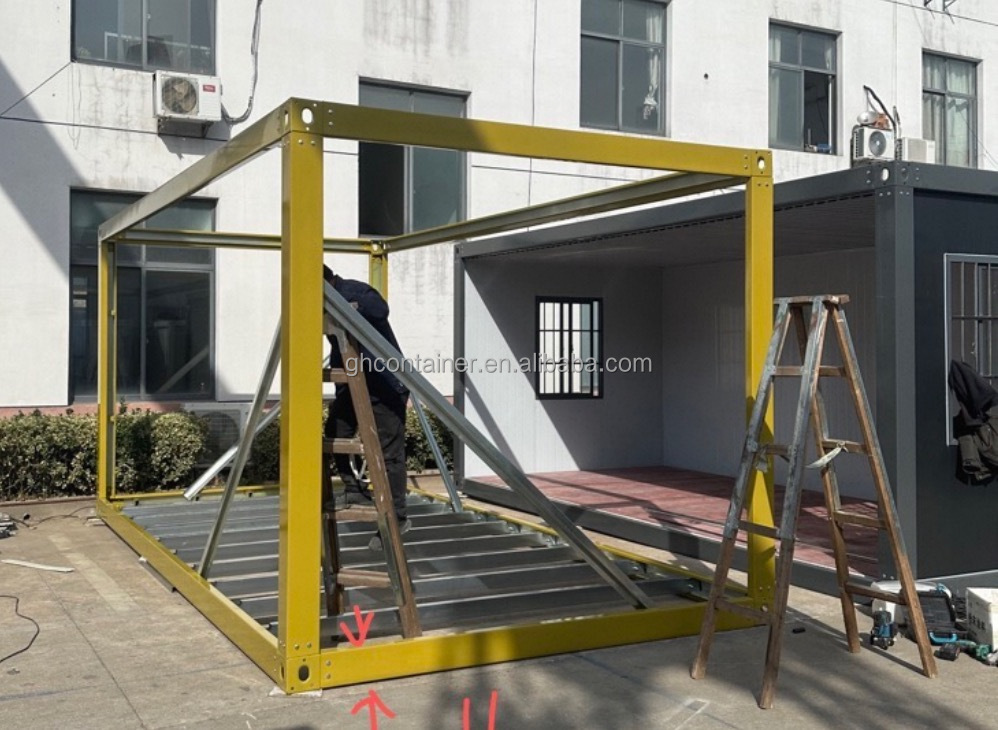

Factory prefabricated structures with easy on-site installation and step-by-step remote guidance to save time

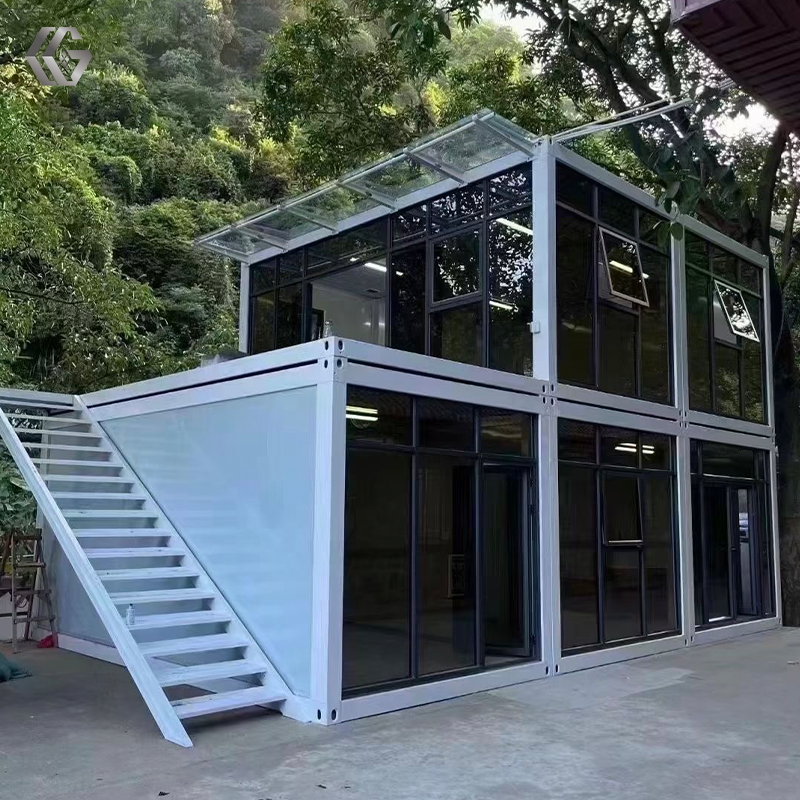

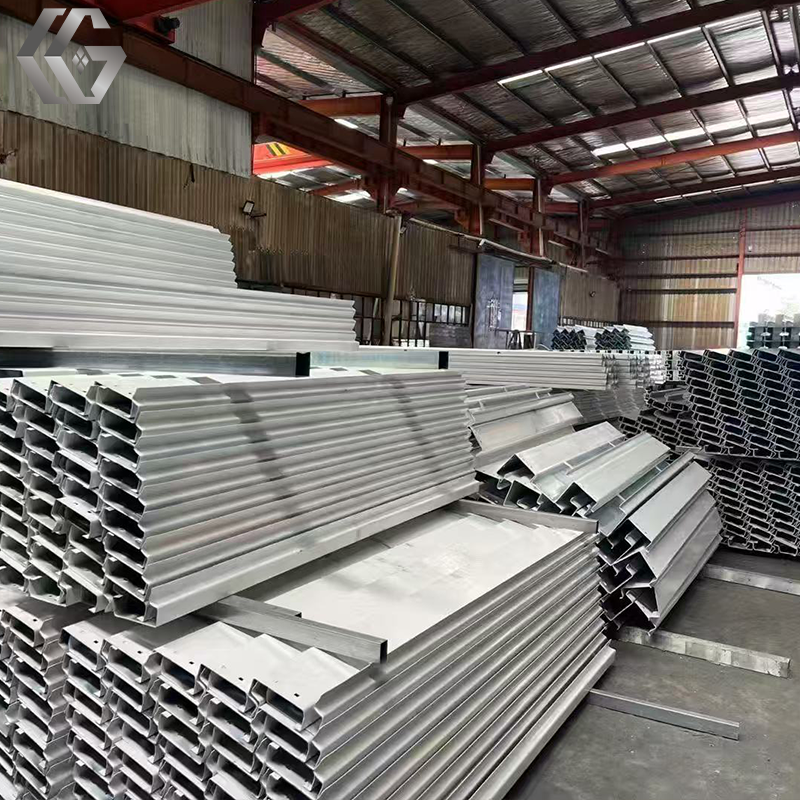

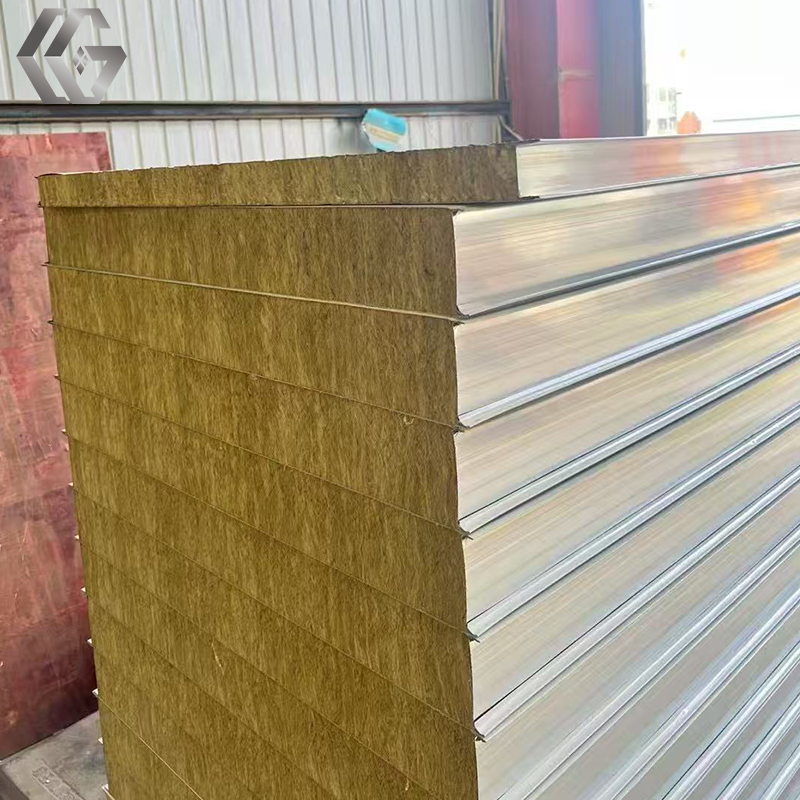

The galvanized steel structure is wind-resistant, shock-resistant and corrosion-resistant (ideal for seaside locations). Walls feature high-performance sandwich rock wool for outstanding heat insulation.

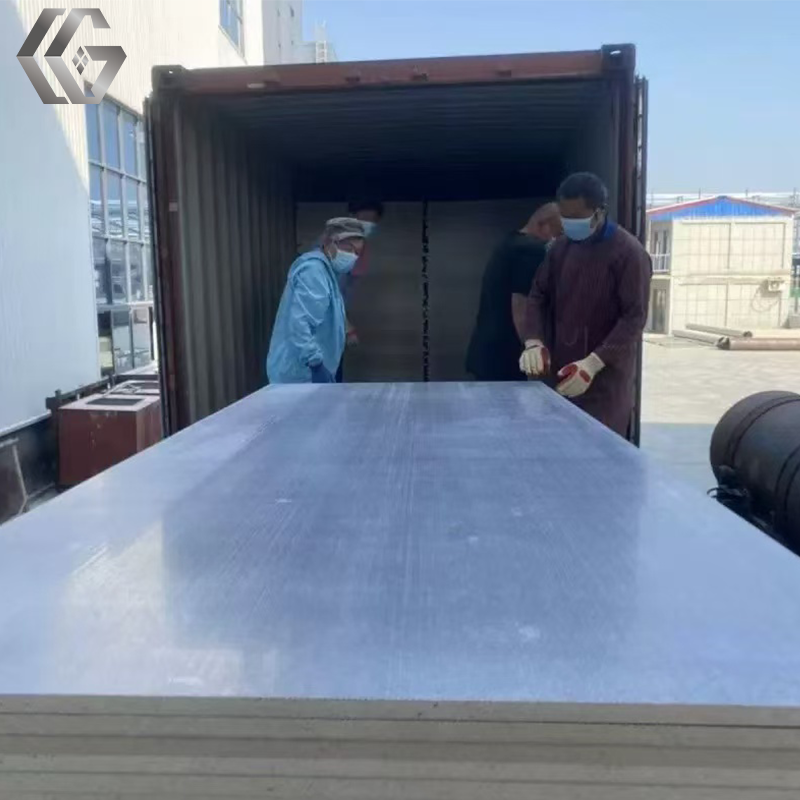

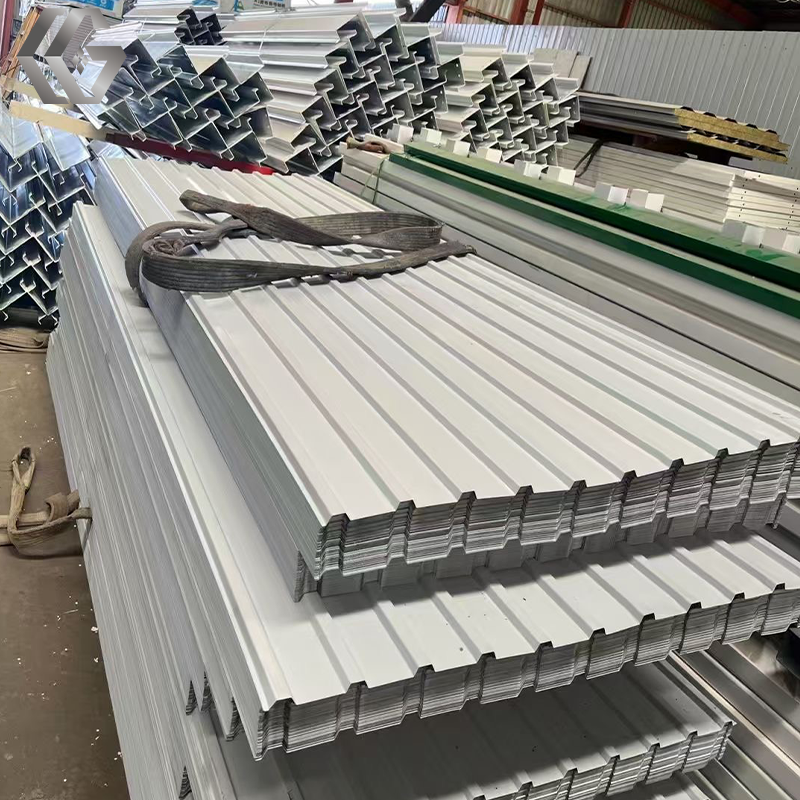

Goods are professionally packed to ensure maximum protection and security during global transport.
Common questions and answers regarding our modular units, customization, and logistics
