Umo House
1 / 5
| Size | 10FT/20FT/40FT Customized | |
| Parameter indicators | Fire resistance: Class A | Wind resistance performance: 0.50kN/m2 |
| Life: Over 35 years | Seismic performance: Level 8 | |

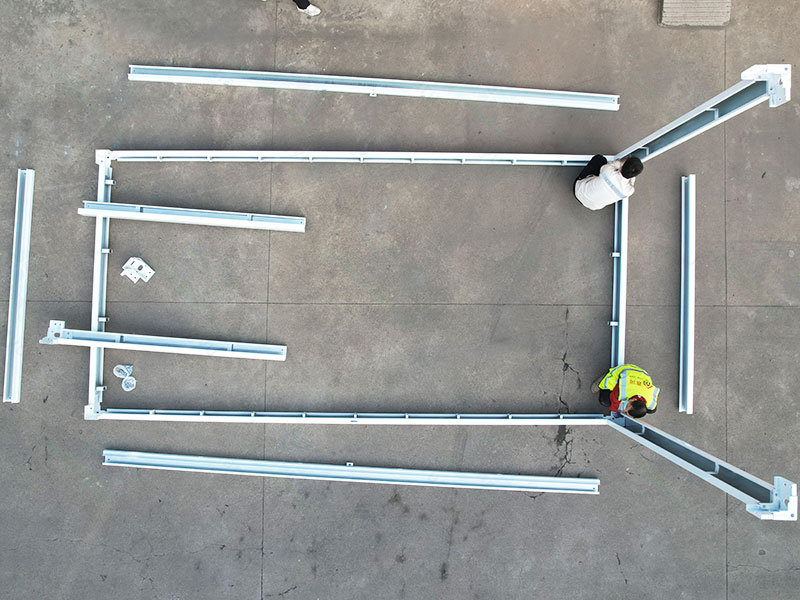

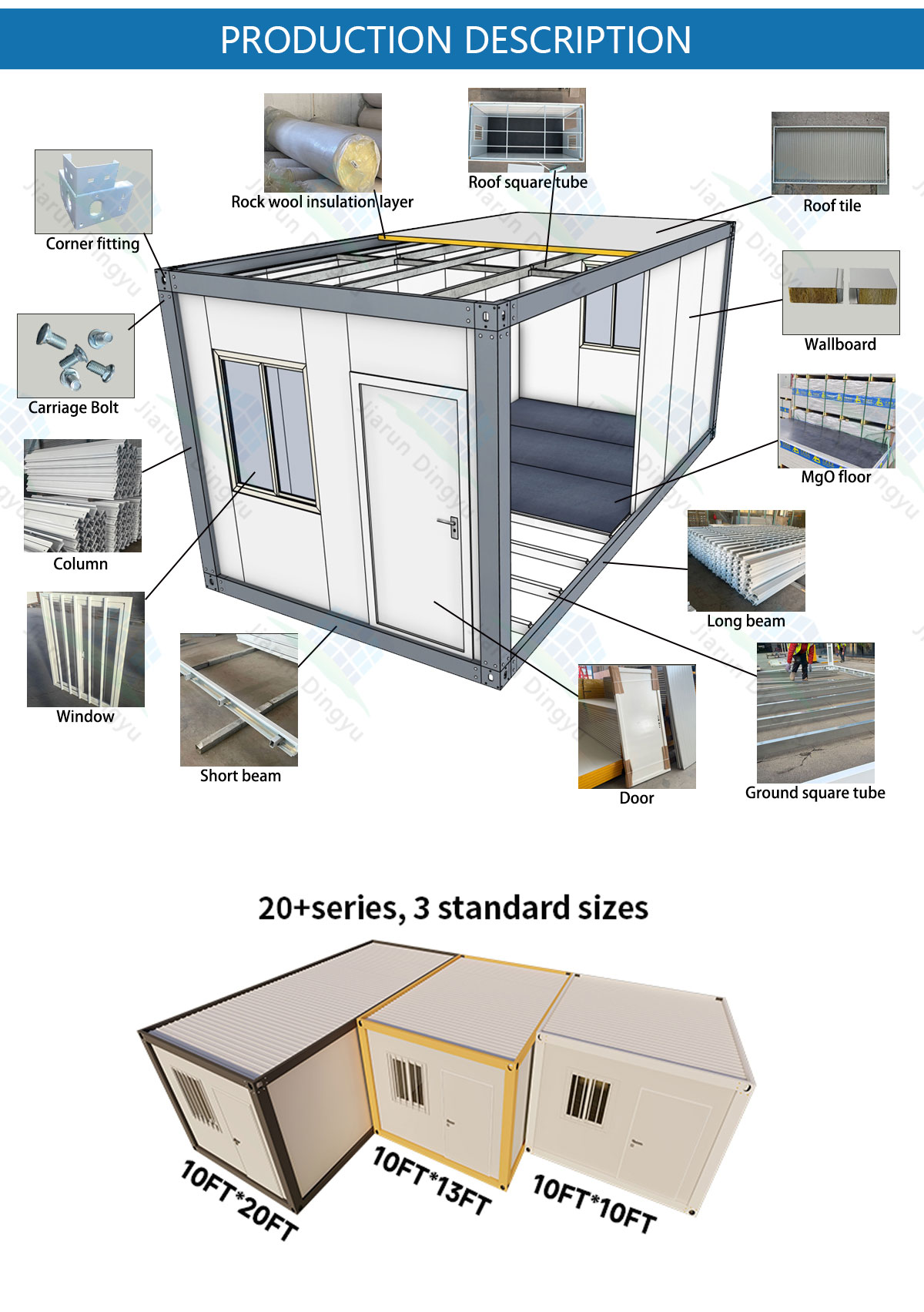

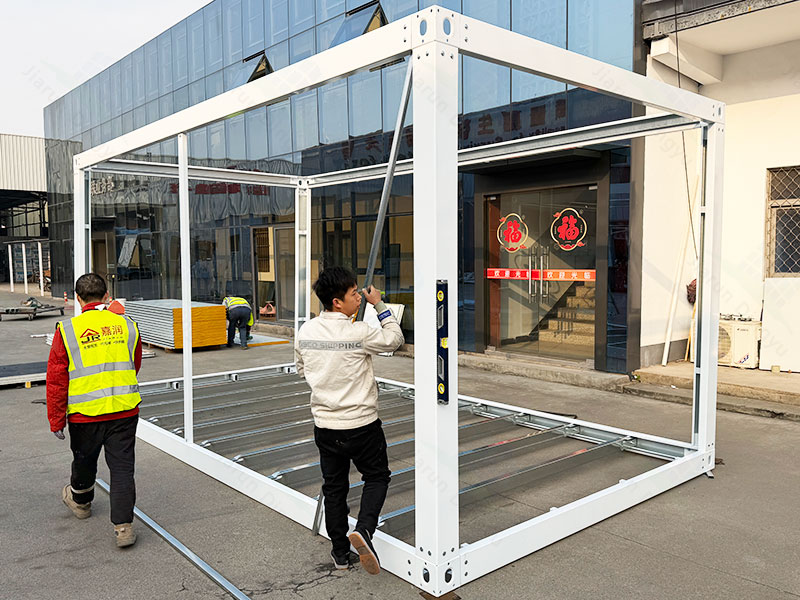

| Main Frame | Galvanized formed beam, Electrostatic spray paint treatment, traffic white, thickness ≥ 80 μm | |
| Bare steel Actual Thickness: 2.5mm/2.25mm/1.95mm/1.75mm (±0.01) | ||
| Top frame: Long beam | Galvanized beam, width 160mm | |
| Top frame: Short beam | Galvanized beam, width 160mm | |
| Bottom frame: Long beam | Galvanized beam, width 160mm | |
| Bottom frame: Short beam | Galvanized beam, width 160mm | |
| Steel column: Column | Galvanized column, width 160mm x 160mm | |
| Steel column: Bolt | High strength carriage bolt | |
| Turning accessories | 160mm * 160mm, Actual Thickness: 3.5mm/3.0mm (±0.01) | |
| Square tube | Chassis purlin | 50 * 100 galvanized square tube, Actual Thickness: 1.2mm/1.1mm/1.0mm (±0.01) |
| Chassis purlin auxiliary | 20 * 40 galvanized square tube, Actual Thickness: 1.0mm/0.7mm (±0.01) | |

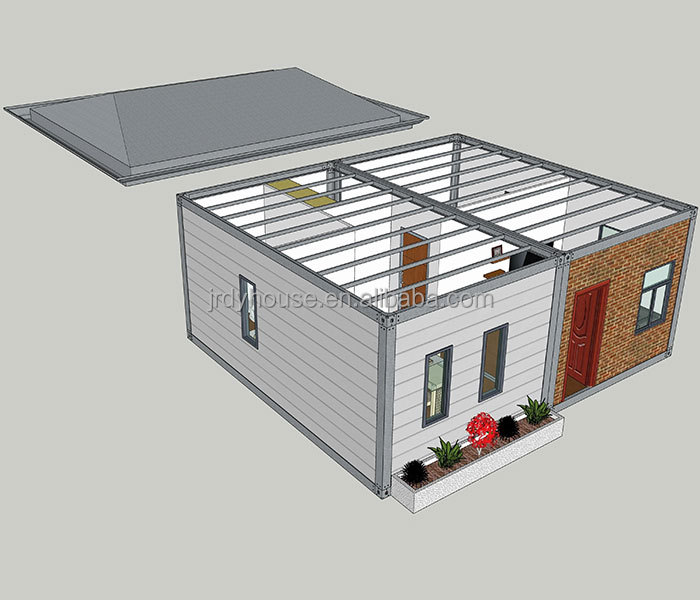

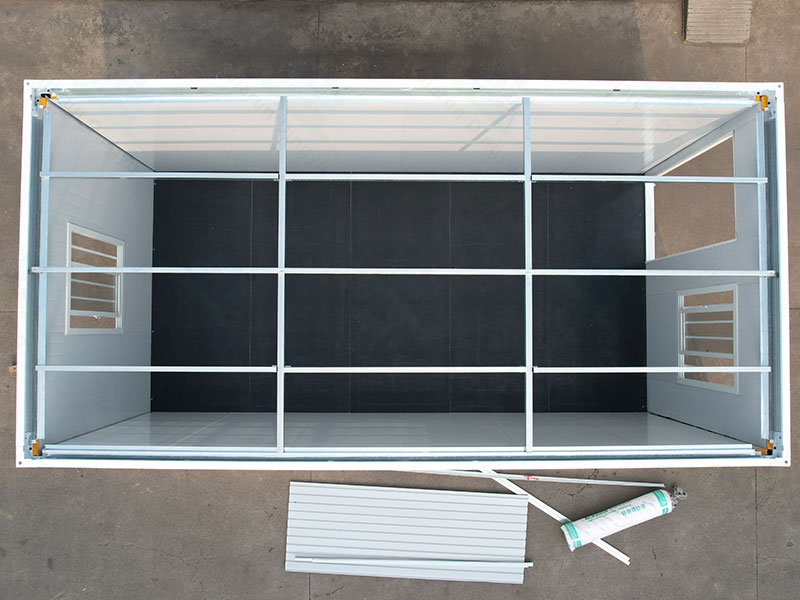

| Top purlin primary | 50 * 50 galvanized square tube, Actual Thickness: 1.4mm/1.2mm (±0.01) | |
| Top purlin secondary | 40 * 60 galvanized square tube, Actual Thickness: 1.0mm/0.8mm (±0.01) | |
| Top purlin tertiary | 40 * 40 galvanized square tube, Actual Thickness: 1.0mm/0.8mm (±0.01) | |
| Door frame pillar | 20 * 40 galvanized square tube, Actual Thickness: 1.0mm/0.7mm (±0.01) | |
| Pressure plate groove | Irregular parts, Actual Thickness: 1.0mm/0.7mm (±0.01) | |

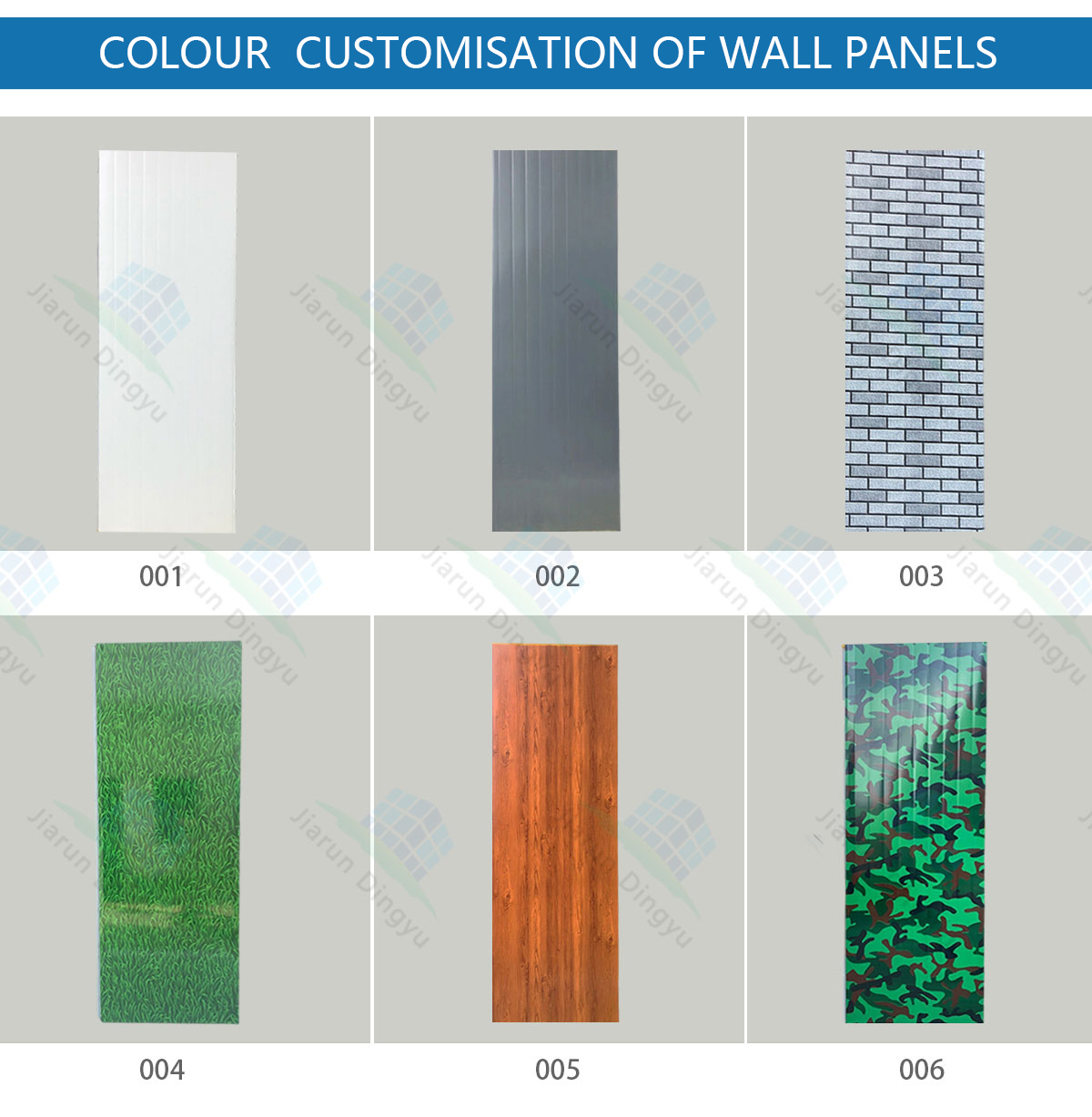

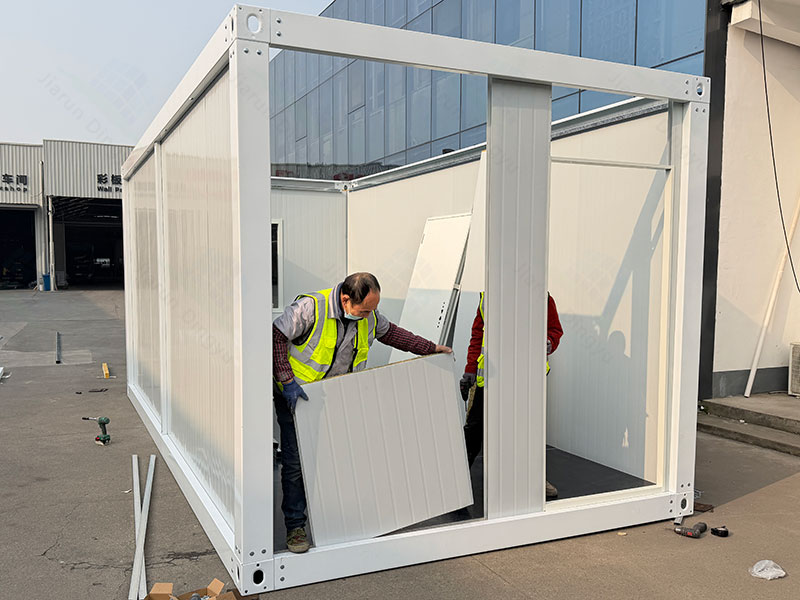

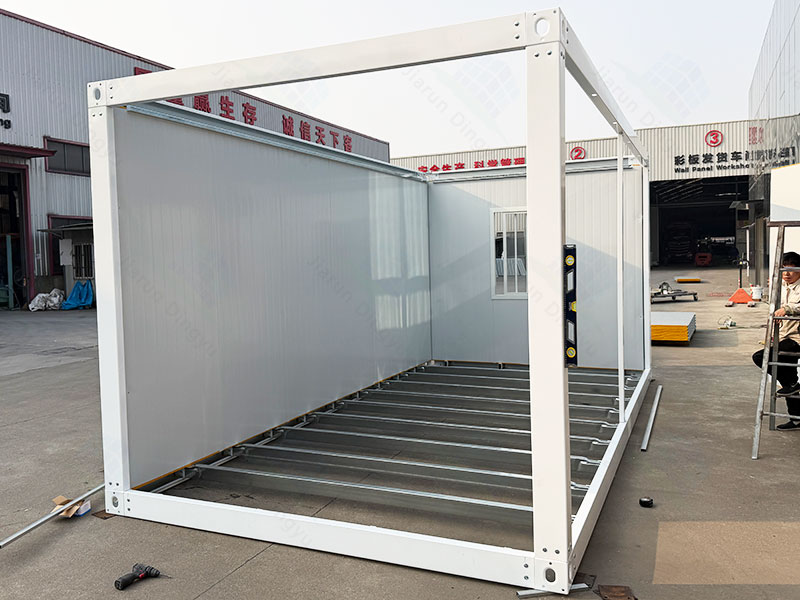

| Wallboard | 50mm/75mm/100mm foam board, rock wool, silicon rock board, 0.25mm/0.30mm/0.4mm steel plate | |

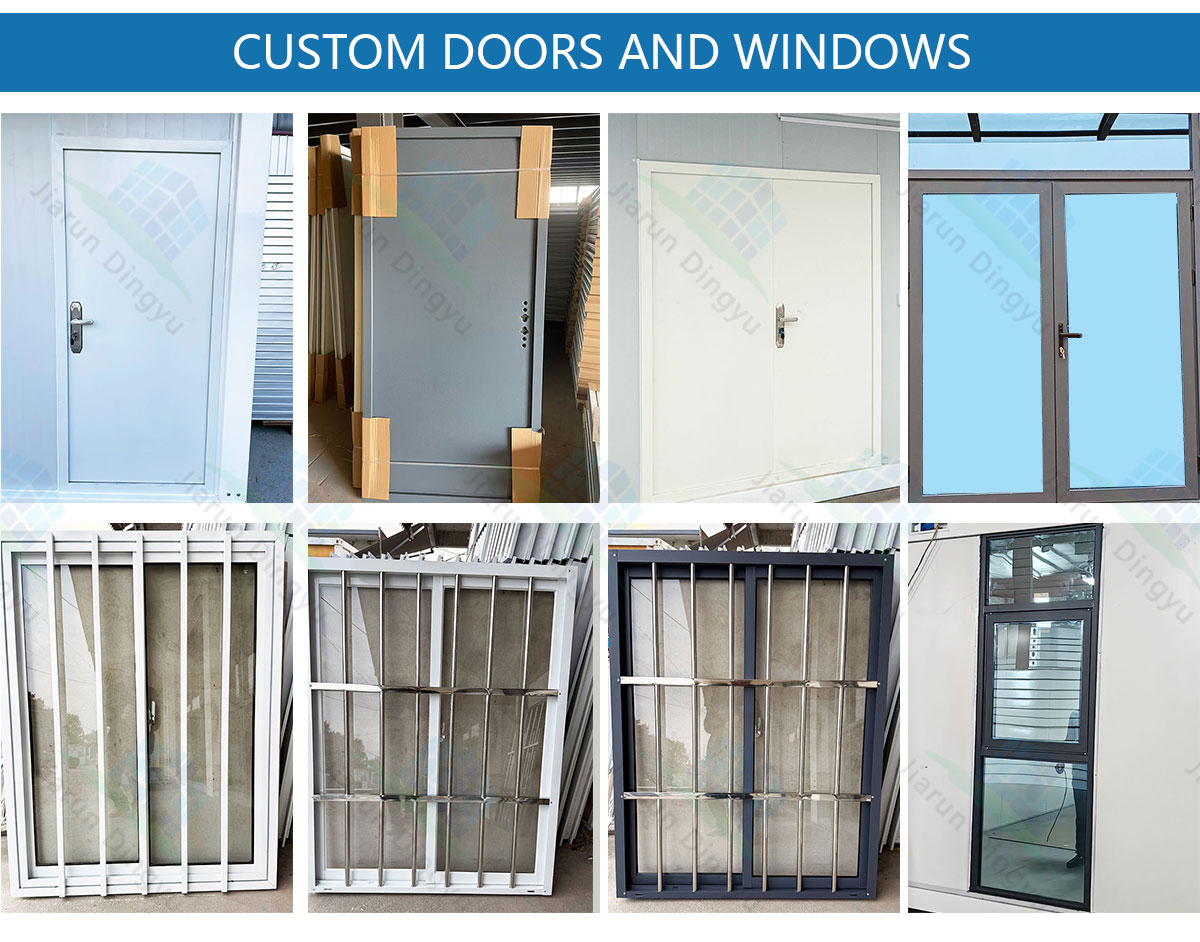

| Door | Steel door, W930mm x H2035mm, 0.3mm/0.25mm steel plate (±0.01) | |
| Window | Sliding window, W925mm x H1200mm, single glass | |

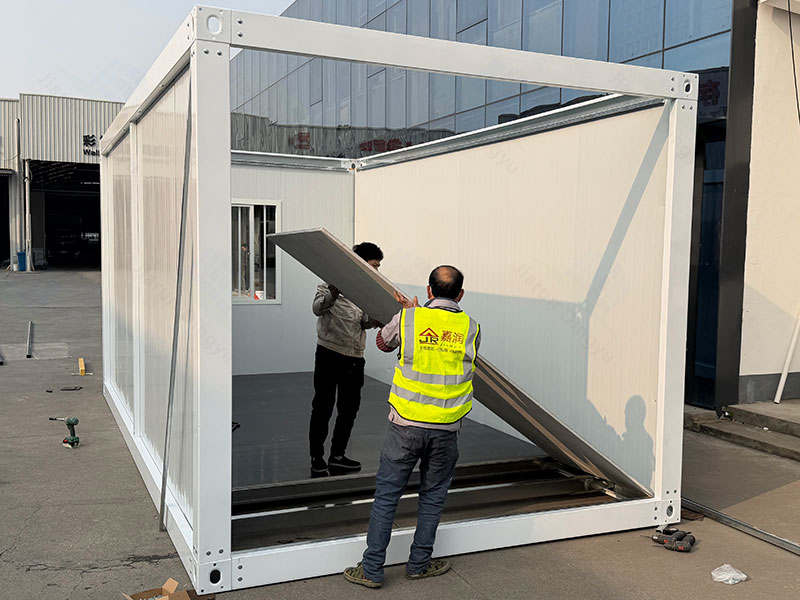

| Floor | 18mm fireproof fiberglass board | |

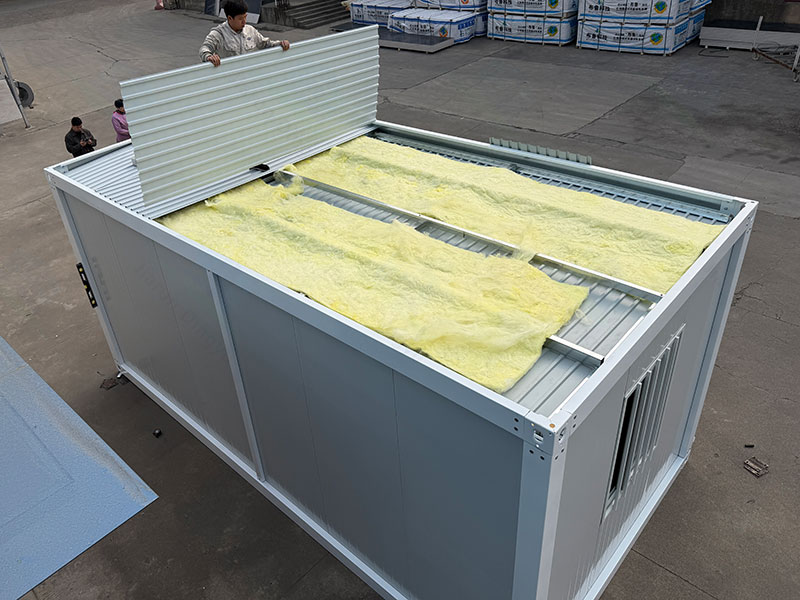

| Roof tiles | Thickness ≥ 0.40mm | |

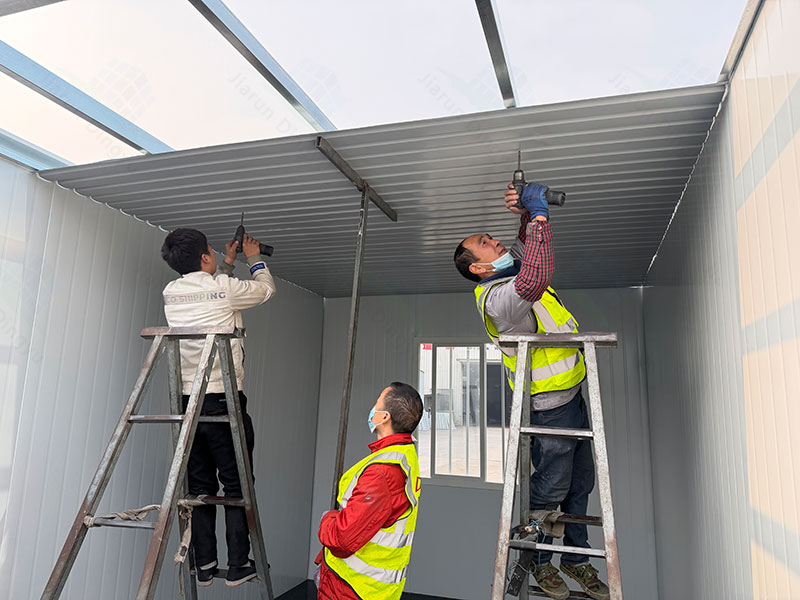

| Ceiling tiles | Thickness ≥ 0.20mm | |
| Thermal insulation cotton | 50mm glass fiber insulation cotton | |
| Auxiliary materials | The standard includes all screws, structural adhesives, etc. | |

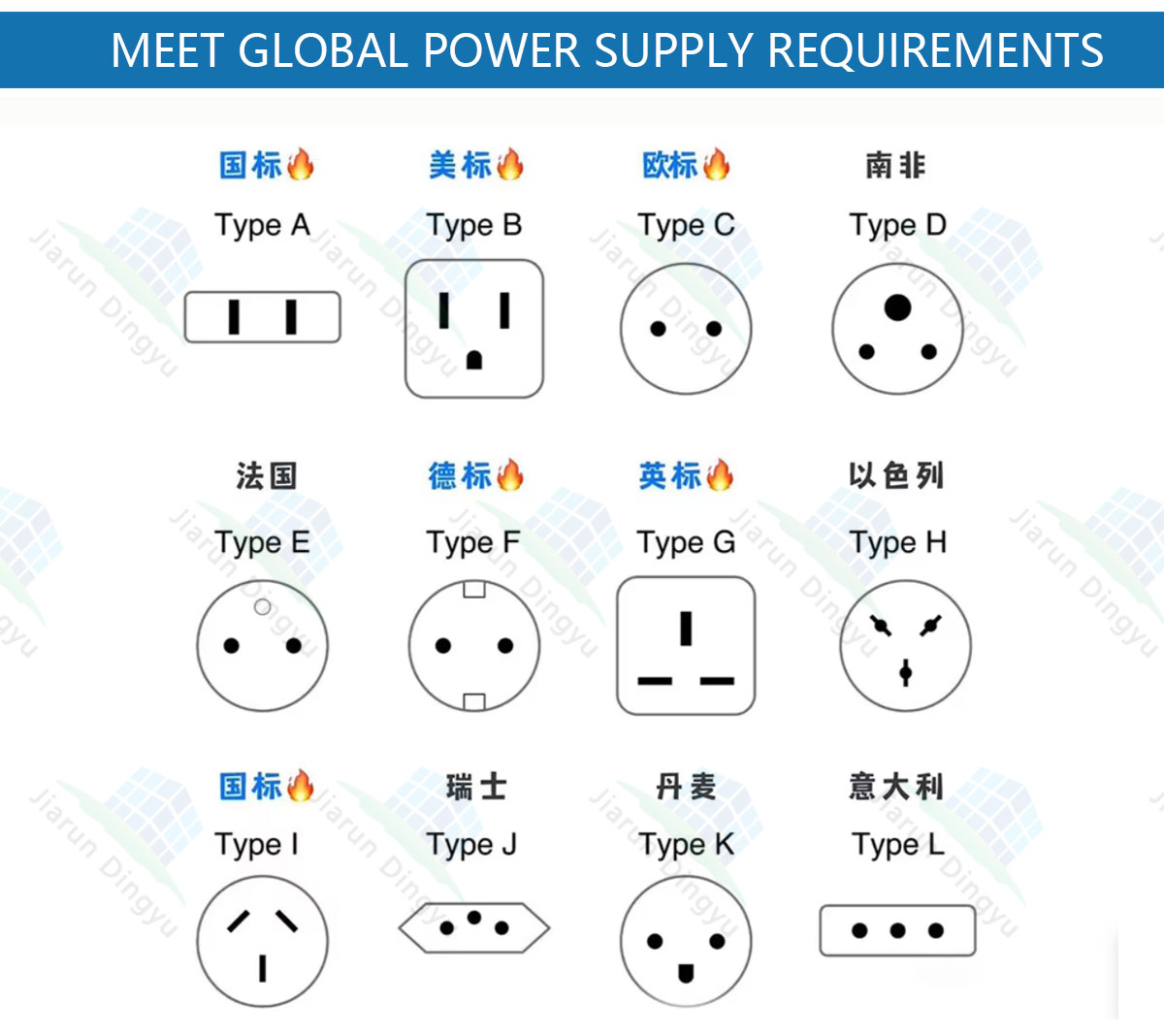

| Circuit | Adapt power supply according to different countries and regions | |
