| Some information we need to know before making the price for prefab warehouse steel structure building | ||
|---|---|---|
| Category | Application Scenarios & Advantages | |
| Building Structure | Portal steel frame structure | Light load, small span |
| Frame structure | Multi layer or medium load | |
| Truss / Grid structure | Large span, heavy load | |
| Suspended Cable Structure | Crane operation required | |
| Number of Layers | Single layer | Convenience and large space |
| Multilayer | Space utilization and functional zoning | |
| Usage Function | Ordinary | Raw material warehouse, transit warehouse, etc |
| Refrigerate | Cold storage, cold chain logistics center, etc | |
| Dangerous goods | Dangerous goods storage facility, oil depot, etc | |
| Bonded | Storage of goods in international trade | |

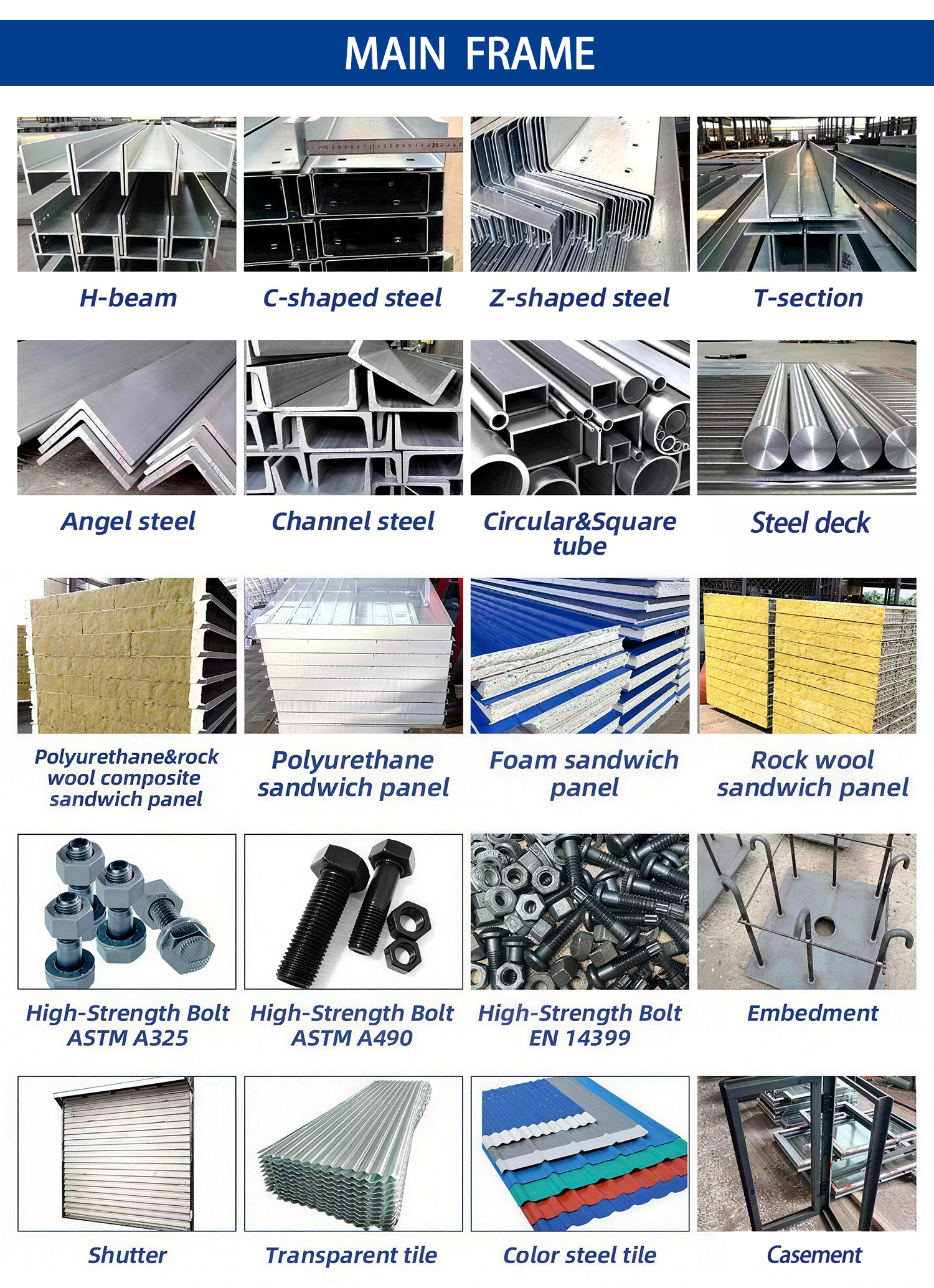

| Material list | ||

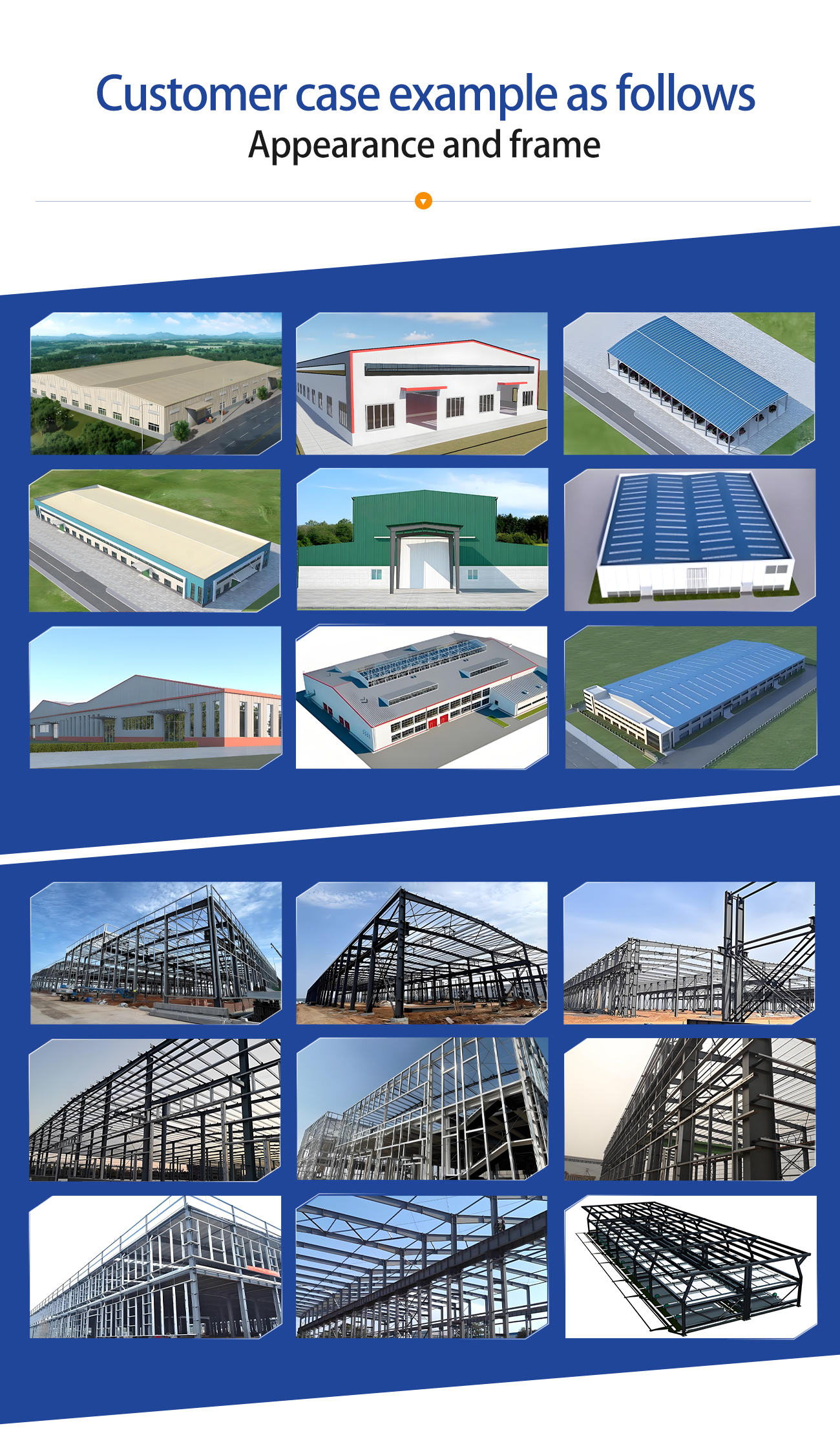

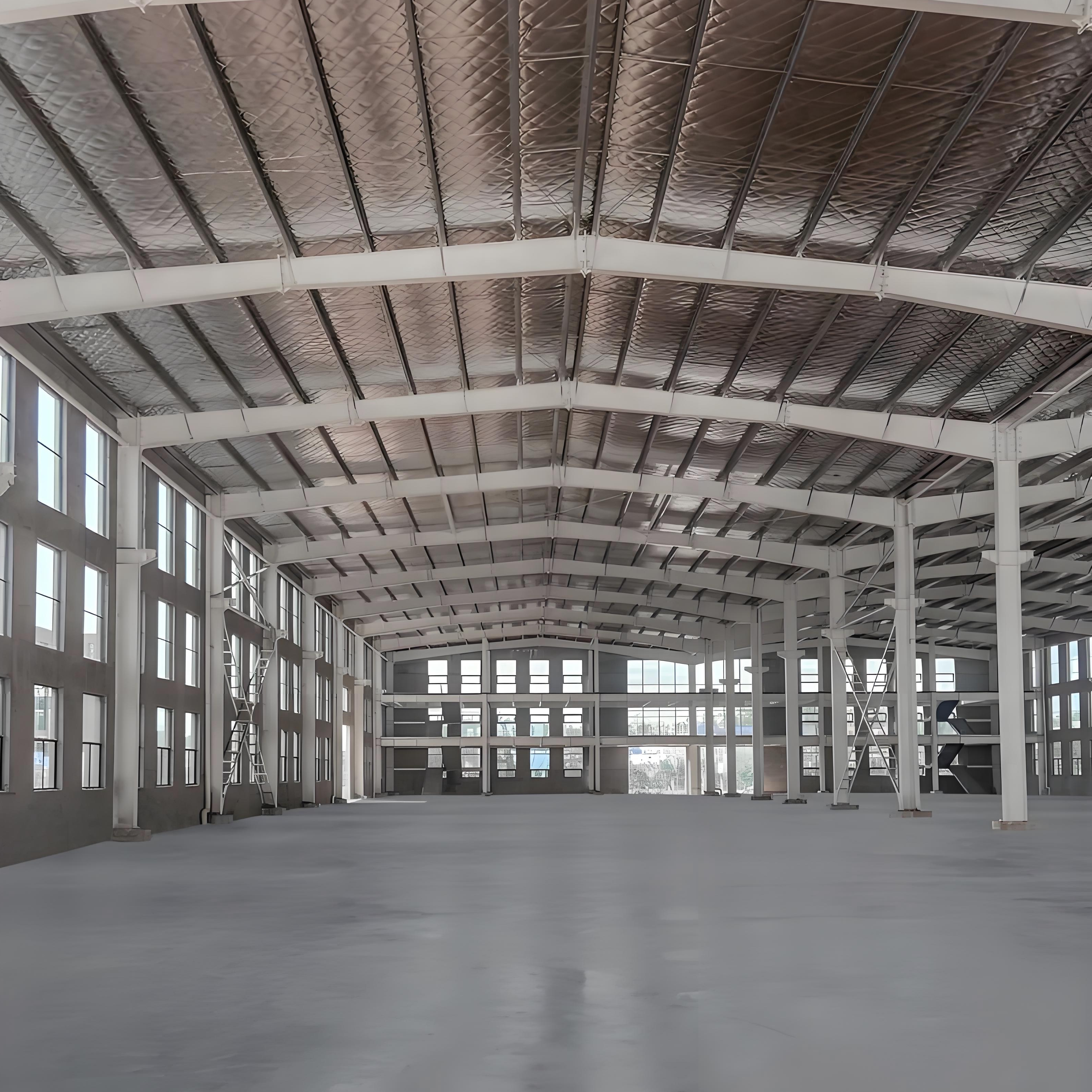

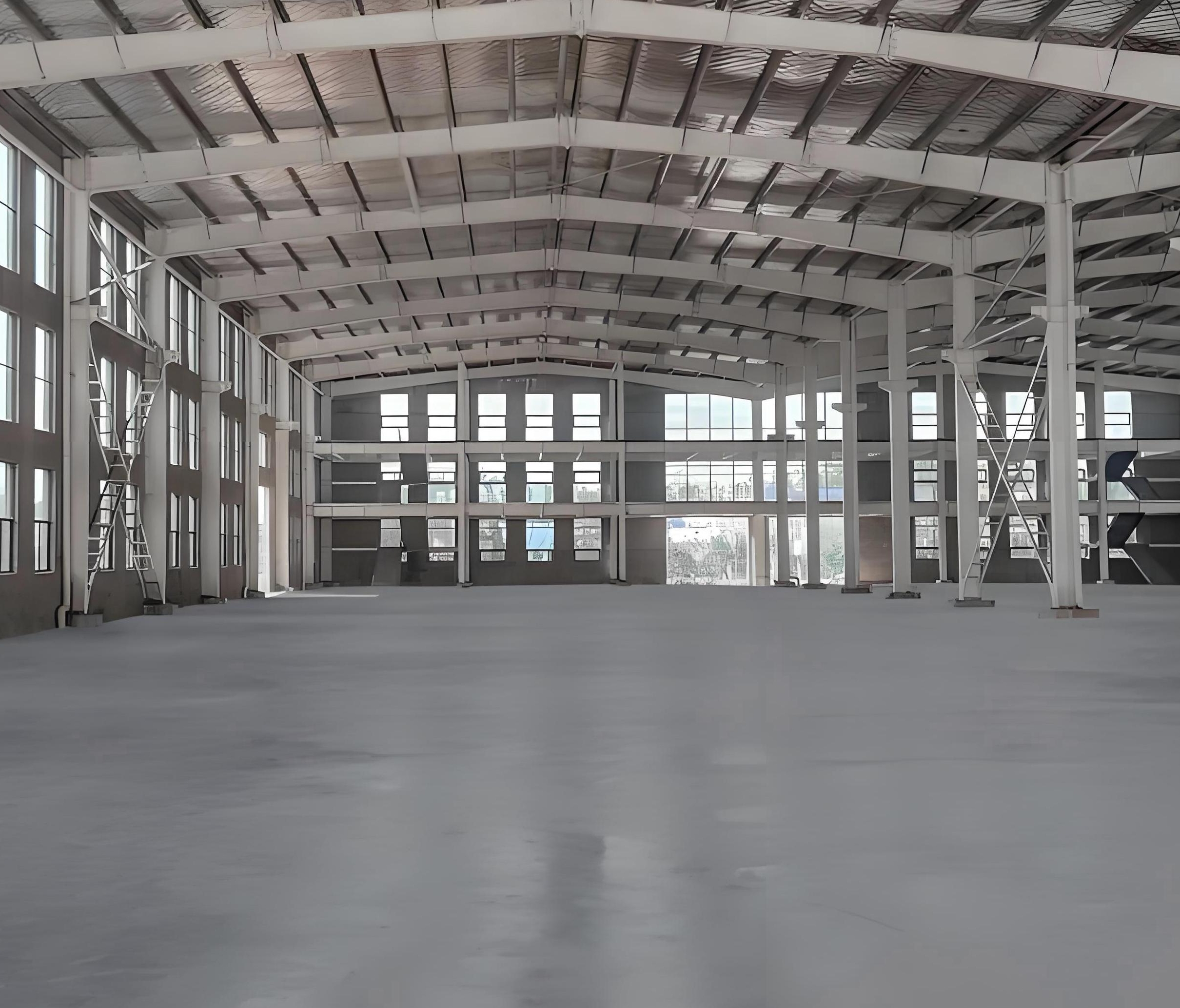

| Project sample | Steel structure warehouse | |
| Building size | Such as 78*30*8.5 m / customized | |

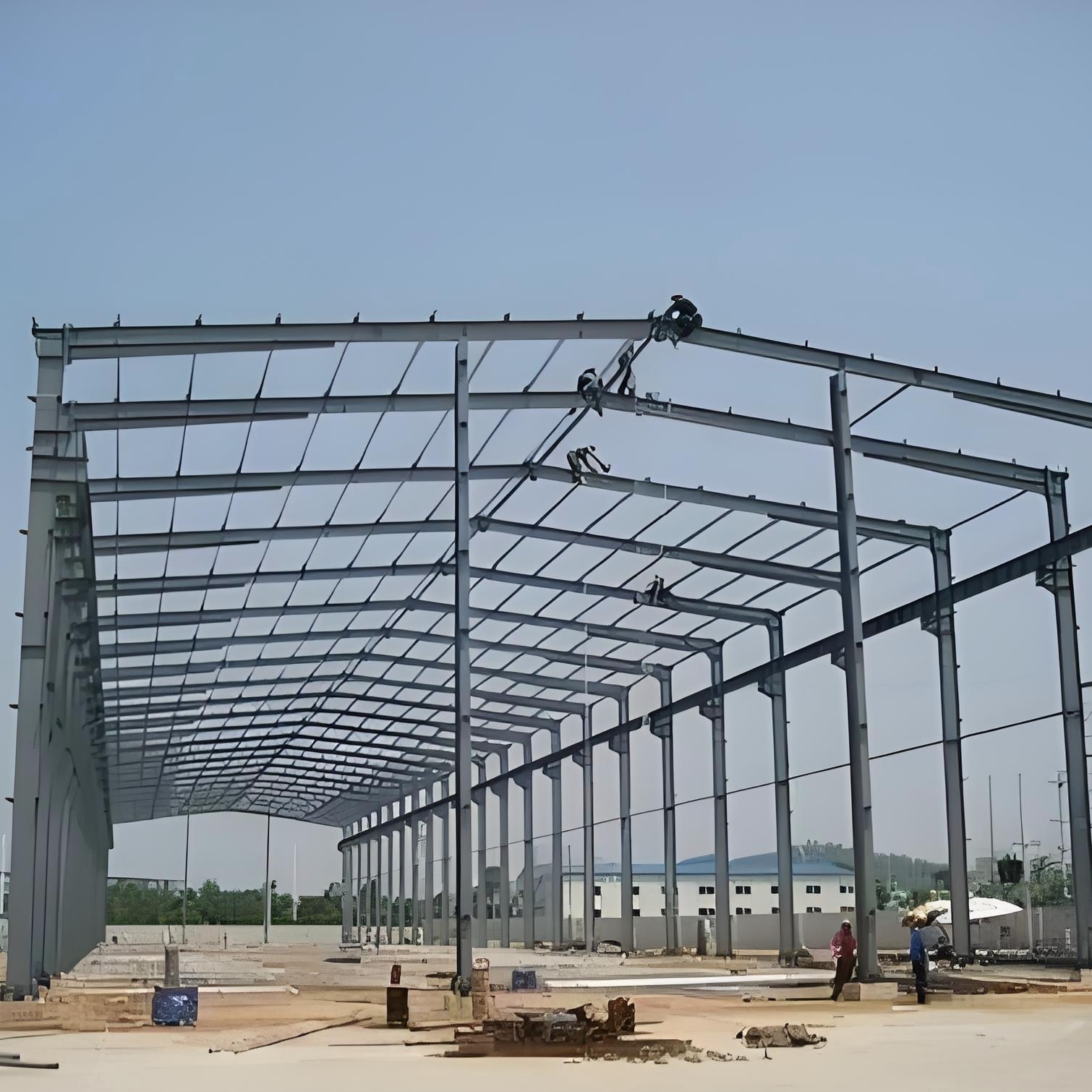

| Main steel structure | ||

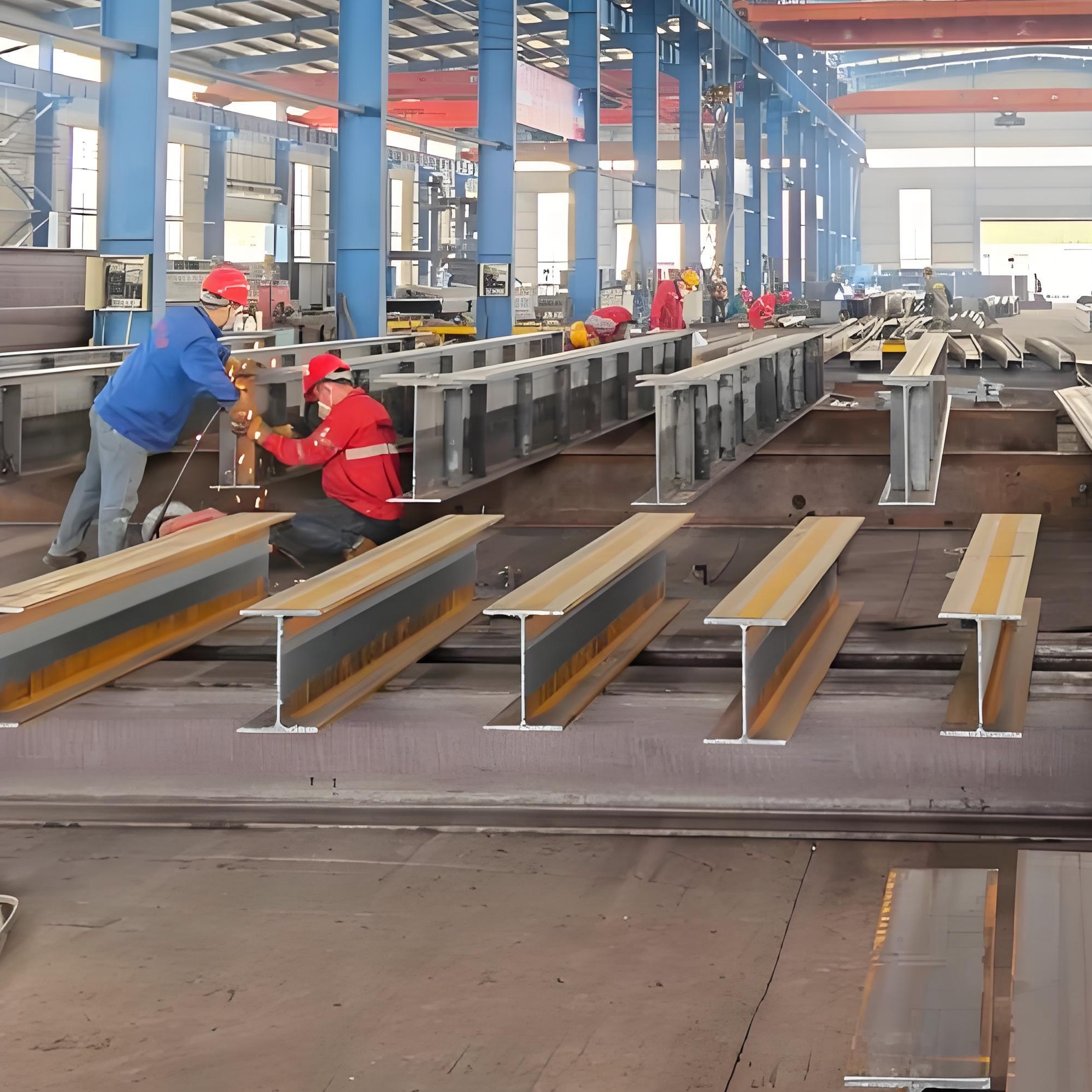

| Steel beam | H300*300*10*6 mm, H 180*180*10*6 mm, steel Q345 | |
| Steel column | H200*200*10*6 mm, steel Q345 | |
| Second steel structure | ||
| Roof purline | C180*75*50*2.5 mm | |
| Wall purline | C180*75*50*2.5 mm | |
| Cross support | 20 round steel bar, steel Q 235 | |
| Column bracing | 20 round steel bar, steel Q 235 | |
| Angle brace | ∠ 50*4 Angle steel, steel Q 235 | |
| Tie bar | 89*3 mm, round steel Q235 | |
| Roof and wall panel | ||
| Roof panel | 50/80/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool) | |
| Wall panel | 50/75/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool) | |
| Door | Single wing door (Sandwich panel door) | |
| Window | Aluminum / PVC sliding window with single glass | |
| Fittings | Glass adhesive, self-tapping screw, etc | |
| Other fittings | ||
| Embedded | M 24 steel Q 235, process | |
| Intensive bolt | Grade 10.9 | |
| Ordinary bolt | Grade 4.85 | |
